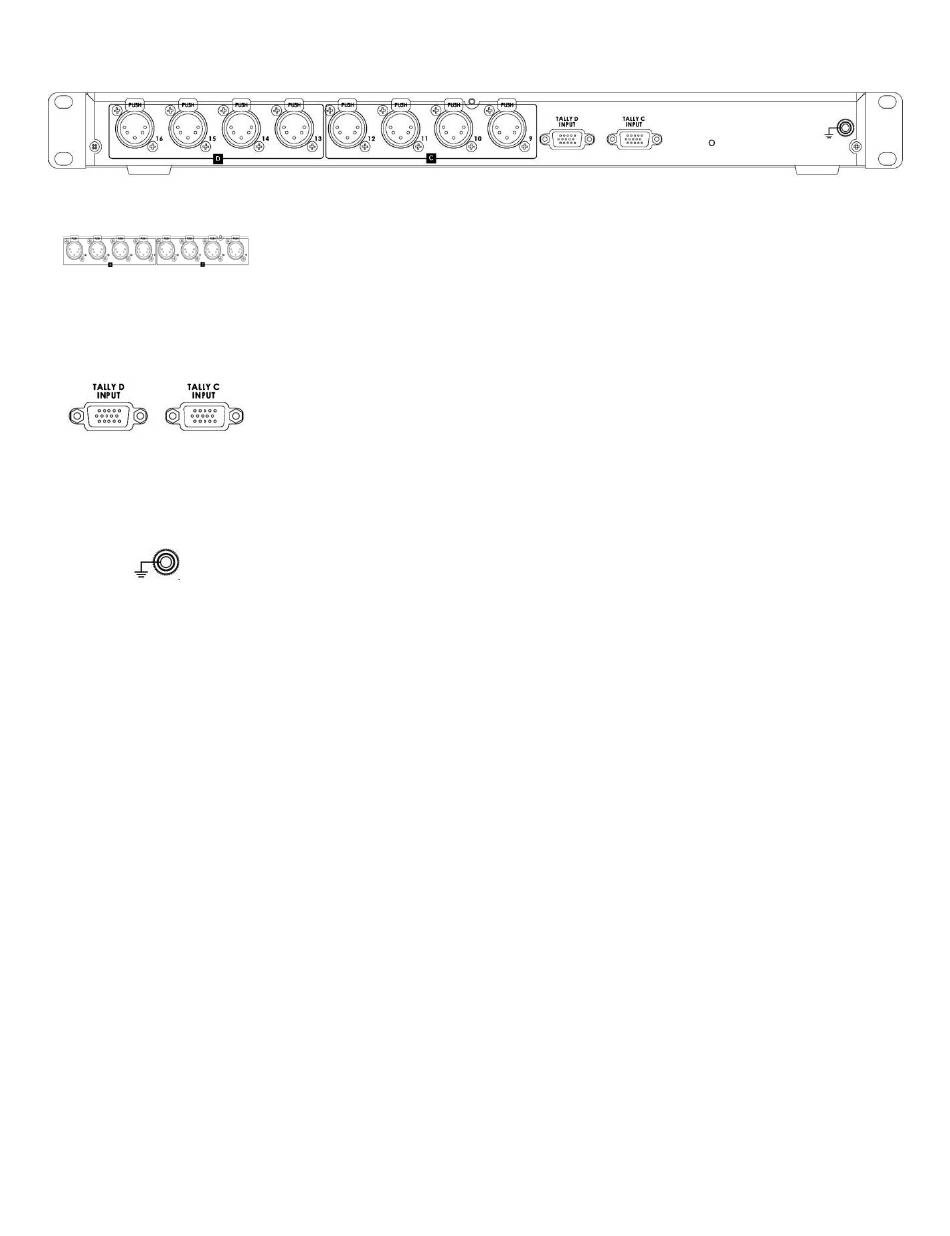

Rear Panel
Channel Input / Output XLR Sockets
Each of the 8 channels has an XLR connector that carries bi-directional
signals between the ITC-100 and ITC-100SL. All connections are
contained within the one cable. Channels 9 ~ 12 are supplied tally light
information from tally C; channels 13 ~ 16 are supplied tally light
information from tally D.
Tally Inputs C & D
Tally Inputs C & D are configured for direct connection to the Datavideo
RMC-140, RMC-90 or SE-500. They supply bi-color tally information to the
ITC-100SL; RED indicates Live and AMBER indicates Cued. Tally C will
feed information to channels 9 ~ 12 and Tally D will feed information to
channels 13 ~ 16
Ground Terminal
When connecting this unit to any other component, make sure that it is
properly grounded by connecting this terminal to an appropriate point.
When connecting, use the socket and be sure to use wire with a
cross-sectional area of at least 1.0 mm2.
5
