Viessmann VITOTROL 100 Operating Instructions Manual
Room temperature controller, type utdb-rf, with wireless receiver iu300/ iu301-a10
Hide thumbs
Also See for VITOTROL 100:
- Operating instructions for the system user (36 pages) ,
- Operating instructions manual (36 pages) ,
- Installation instructions for contractors (20 pages)
Table of Contents
Related Manuals for Viessmann VITOTROL 100
Summary of Contents for Viessmann VITOTROL 100
- Page 1 VIESMANN Operating instructions for the system user ■ Room temperature controller, type UTDB Room temperature controller, type UTDB-RF, with wireless receiver IU300/ ■ IU301-A10 VITOTROL 100 Please keep safe. 5592 618 GB 1/2016...
- Page 2 Safety instructions For your safety Please follow these safety instructions closely to ■ Never remove casings. prevent accidents and material losses. ■ Never change or remove attachments or fitted accessories. Safety instructions explained Never open or retighten pipe connections. ■ Danger Danger This symbol warns against the risk of injury.
- Page 3 Safety instructions For your safety (cont.) In case of water leaking from the appliance Extractors Danger The operation of appliances that extract air to the out- Water leaking from the appliance poses an elec- side (cooker hoods, extractors, air conditioning units, trocution hazard.
-
Page 4: Table Of Contents
Index Index Information Symbols ....................Intended use ..................Product information ................Commissioning ..................Energy saving tips ................. Tips for greater comfort ................. Operation Summary of controls and indicators ............Opening the flap ................. ■ Functions .................... ■ Symbols on the display ............... ■... -
Page 5: Symbols

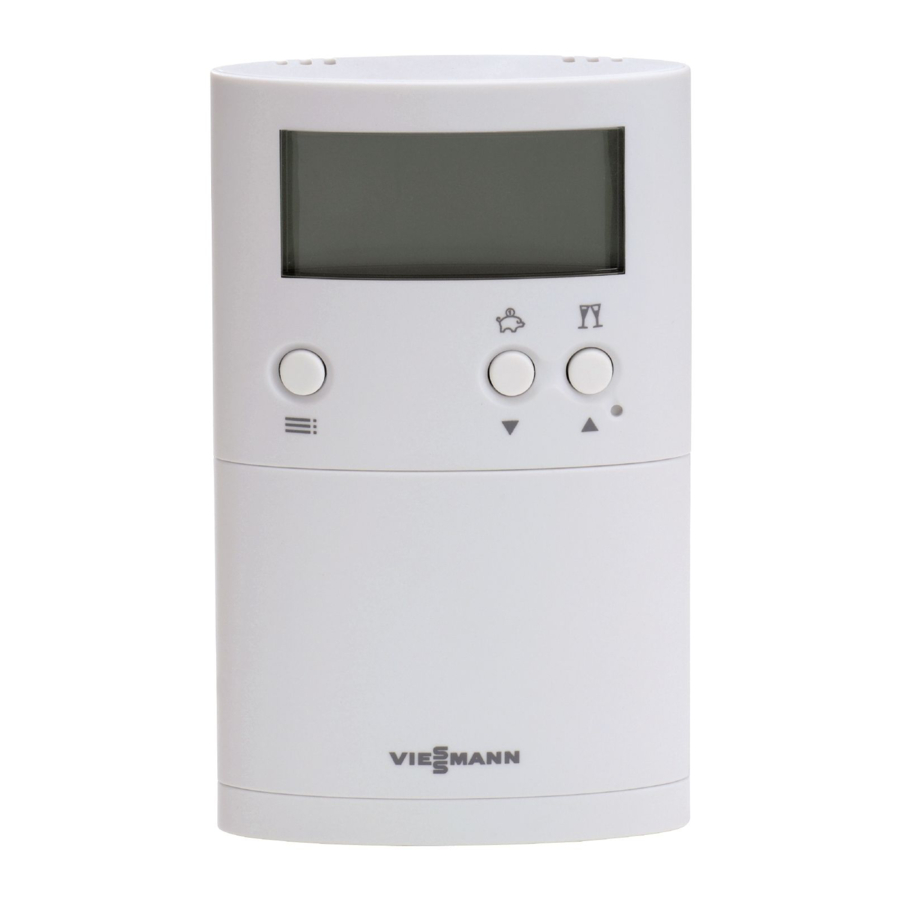

Product information The Vitotrol 100, type UTDB is a battery powered room temperature controller with switching output. -
Page 6: Commissioning
Information Product information (cont.) The Vitotrol 100, type UTDB-RF is a battery powered The digital time switch provides the option to use time room temperature controller with switching output, inte- programs for central heating. gral wireless transmitter and separate wireless receiver. -
Page 7: Summary Of Controls And Indicators
Operation Summary of controls and indicators Opening the flap Fig. 1 Functions û å ä Fig. 2 To call up the menu. Reset Display To confirm your selection or save the setting To activate economy mode (page 14) or to you’ve made. -
Page 8: Symbols On The Display
Operation Summary of controls and indicators (cont.) Symbols on the display These symbols are not always displayed, but appear Heat demand subject to operating conditions. Party mode active Economy mode active û Manual mode active Holiday program active 23:26 01.01.09 Frost protection mode active Ç... -
Page 9: Locking The Controls
Operation How to use the controls (cont.) Locking the controls You can lock the control keys of the Vitotrol 100. To do so, press simultaneously for 5 s. To unlock the keys, again press simultaneously for 5 s. -
Page 10: Selecting The Operating Mode
Central heating Selecting the operating mode You can select between the following operating modes: ■ Heating mode in accordance with the time program: See page 10 Frost protection mode: See page 12 ■ ■ Operation with constant room temperature (manual): See page 12 Selecting a time program for heating mode You can choose from 3 preset time programs (Prog 1... -
Page 11: Changing The Time Phases Of The Time Programs
Central heating Selecting the operating mode (cont.) Time phase Start Room temperature 16:00 22:00 Comfort 22:00 06:00 Reduced Saturday and Sunday Time phase Start Room temperature 07:00 08:00 Comfort 08:00 12:00 Comfort 12:00 14:00 Comfort 14:00 18:00 Comfort 18:00 23:00 Comfort 23:00 07:00... -
Page 12: Frost Protection Mode
Central heating Selecting the operating mode (cont.) 03. Use / to select "Settings". Deactivating time phases 04. Confirm with OK. To deactivate a time phase, set the same value for the start and the stop time. 05. Use / to select "Programs". Copying time programs 06. -
Page 13: Setting A Permanent Room Temperature
Central heating Selecting the operating mode (cont.) 6. Confirm with OK. The display shows and again the current room temperature. Setting a permanent room temperature You can set 3 room temperatures: 04. Confirm with OK. ■ Standard room temperature "Comfort" Factory setting: 21 °C 05. -
Page 14: Changing The Room Temperature For A Few Hours Only
Central heating Changing the room temperature for a few days… (cont.) 5. Use / to select "OFF". Changing the room temperature for a few hours only The following functions enable you to change the room If you want an unscheduled reduction in room temper- temperature for a few hours without permanently alter- ature: ing your settings. -
Page 15: Time And Date
Further adjustments Time and date 01. Open the flap. 06. Confirm with OK. 02. Press twice. 07. Use / to select "Date - time". 03. Use / to select "Settings". 08. Confirm with OK. 04. Confirm with OK. 09. Use / to set the current date and time. 05. -
Page 16: Temperature Balancing
Further adjustments Temperature balancing If your Vitotrol 100 is installed in an unfavourable posi- 04. Confirm with OK. tion, e.g. on an external wall or near an open fireplace, the displayed room temperature can deviate from the 05. Use / to select "Service". -
Page 17: Scanning Temperatures And Further Settings
Calling up information Scanning temperatures and further settings 1. Press 2. Use / to call up the current set temperature. The display shows the following details: Room temperature ■ ■ Date and time ■ Current program ■ Day of the week Scanning time programs On the display, you see the selected time program Example:... -
Page 18: Rooms Are Too Cold
Time (see page 15) ■ The wireless connection to the boiler control unit is in- Change the address code (see page 19). terrupted (only for Vitotrol 100, type UTDB-RF with wireless connection). At the receiver unit, the display flashes. Note... -
Page 19: Reset
What to do if... Replacing the batteries (cont.) The Vitotrol 100 has a power reserve of 3 min. If you replace the batteries within this time, all set data is retained. If the power reserve has been exceeded, a reset will need to be carried out (see next chapter). - Page 20 What to do if... Changing the address code (cont.) 9. Confirm with OK. The display shows a number combination for approx. 30 s. Then "Send data" appears on the display. The transfer takes 30 s. flashes during the transfer. If the receiver recognises the address code, go out.
-
Page 21: Cleaning
Maintenance Cleaning This device can be cleaned with a commercially availa- ble domestic cleaning agent (non-scouring). -
Page 22: Declaration Of Conformity
Vitotrol 100, type UTDB Vitotrol 100, type UTDB-RF with wireless receiver IU300/IU301-A10 We, Viessmann Werke GmbH & Co. KG, D-35107 Allendorf, declare as sole responsible body that the listed products comply with the provisions of the following directives: 1999/5/EEC R&TTE Directive... - Page 23 Keyword index Keyword index Calling up time programs........... 17 Language..............15 Central heating – Saving energy............6 Changing the room temperature Maintenance...............21 – For a few days............13 – For a few hours............14 Cleaning..............21 Party mode..............7 Comfort (tips)............... 6 Product information............
- Page 24 Certification Your contact Contact your local contractor if you have any questions regarding the maintenance and repair of your system. You may, for example, find local contractors on the internet under www.viessmann.com. Viessmann Werke GmbH & Co. KG Viessmann Limited...
