Page 1 M a n u a l w n e r ' s...
Page 3 We urge you to review all these publications carefully. This will help you enjoy safe and trouble-free operation of your vehicle. When it comes to service, keep in mind that your GMC Truck dealer knows your vehicle best and is interested in your complete satisfaction. Your dealer invites you to return for all of your service needs both during and after the warranty period.
Page 4 DGN Marketing Services Ltd., 1500 Bonhill Rd., Mississauga, Ontario L5T 1C7. GMCTRUCK General Motors, GM and the GM Emblem, GMC and the GMC Emblem, and SONOMA are registered trademarks of General Motors Corporation.

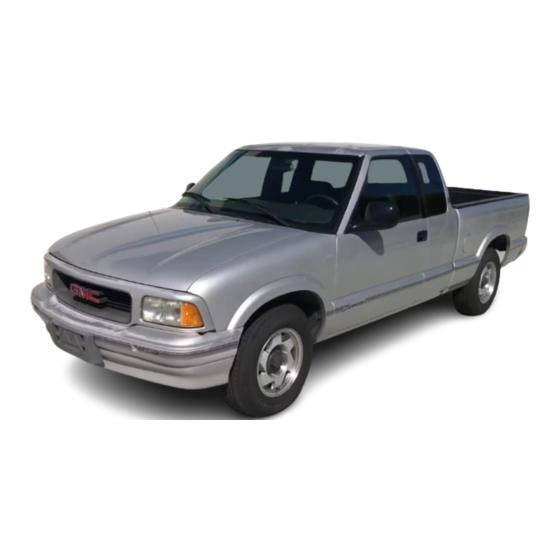

Page 5 Model Reference This manual covers these models: REGULAR CAB CLUB COUPE / EXTENDED CAB...
Page 6: Table Of Contents
Table of Contents Introduction How to Use this Manual This section tells you how to use your manual and includes safety and vehicle damage warnings and symbols. Section 1 Seats and Safety Restraints This section tells you how to use your seats and safety restraints properly.
Page 7: How To Use This Manual
How to Use This Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. This will help you learn about the features and controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
Page 8 Safety Warnings and Symbols You will find a number of safety cautions in this book. We use a box with gray background and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning. In the gray caution area, we tell you what the hazard is.
Page 9 Vehicle Damage Warnings Also, in this book you will find these notices: NOTICE: These mean there is something that could damage your vehicle. In the notice area, we tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 10 These symbols are important for you and your passengers whenever your vehicle is driven: Fasten Safety Door LocMUnlock Belts These symbols have to do with your lights: 6 c 3 Master Lighting Turn Signal Headlight Hazard Warning Direction Switch Flasher High Beam Fog Lights Daytime...
Page 11 on some of your controls: These symbols are Windshield Windshield Windshield Washer Defroster Wiper Ventilating Fan These symbols are used on warning and indicator lights Engine Oil flaftery Charging Fuel Coolant Engine Pressure System Temperature SHIFT BRAKE Shift Light Brake...
Page 12 Here are some other symbols you may see: Fuse Hood Release Lighter Horn...
Page 13 Seats & Restraint Systems Here you’ll find information about the seats in your vehicle and how to use your safety belts properly . You can also learn about some things you should not do with safety belts Seats and Seat Controls ........
Page 14: Seats And Seat Controls
Seats and Seat Controls This section tells you about the seats-how to and down. Front Seat (Except Easy Entry) Front Seat (Easy Entry Only) adjust them, and fold them up Move the lever under the front of the seat to your left to unlock it.
Page 15 Reclining Front Seatbacks (Bucket Seats or 60/40 Bench) But don’t have a seatback reclined if your vehicle is moving. adjust the seatback, lift the lever on the outer side of the seat. Release the lever to lock the seatback where you want it. Pull up on the lever and the seat will go to an upright position.
Page 16 Front Seatback Latches The front seatback folds forward to let people get into the back seat or reach the storage area behind the seat. Your seatback will move back and forth freely, unless you come to a sudden stop. Then it will lock in place. There’s one time the seatback may not fold without some help from you.
Page 17 Easy Entry Seat (Exfended Cab) The right front bucket or split-bench seat of your vehicle makes it easy to get in and out of the rear vehicle area. When you tilt the right front seatback fully forward, the whole seat will slide forward.
Page 18: Head Restraints
Jump Seat (Extended Cab Models) STORED POSITION Your extended cab pickup has jump seats in the rear area. To fold the jump seat down, pull down on the handle on the bottom of the seat until the seat is in place, then move the seatback to a vertical position. To store the seat, fold the seatback down on the cushion, then push the entire seat up until it is flush with the trim panels.
Page 19 Safety Belts: This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. This figure lights up as a reminder to buckle up. (See “Safety Belt Reminder Light”...
Page 20: Why Safety Belts Work
After more than 25 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. a lot!
Page 21 When the bike hits the block, it stops. But the child keeps going! rake the simplest ‘vehicle.” Suppose it’s just a seat on wheels. Put someone on it.
Page 22 Get it up to speed. Then stop the "vehicle." The rider doesn't stop. The person keeps going until stopped by something. a real vehicle, it could be the windshield ... or the instrument panel ... 1-10...
Page 23: Questions Many People Ask About Safety Belts
With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense. Here Are Questions Many People Ask About Safety Belts Won’t I be trapped in the vehicle after an accident safety belt?
Page 24: How To Wear Safety Belts Properly
I’m a good driver, and I never drive far from home, why should wear safety belts? You may be an excellent driver, but if you’re in an accident one that isn’t your fault a good driver doesn’t protect you from things beyond your control, such as bad drivers.
Page 25: Driver Position
Driver Position This section describes the driver’s restraint system. Lap-Shoulder Belt The driver has a lap-shoulder belt. Here’s how to wear it properly. 1. Close and lock the door. 2. Adjust the seat (to see how, see “Seats” in the Index) so you can sit up straight.
Page 26 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 27 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 28 CAUTION: You can be seriously hurt your shoulder belt is too loose. In a crash you would move forward too much, which could increase injury. The shoulder belt should fit against your body. What’s wrong with this? The belt is buckled in the wrong place. 1-16...
Page 29 What’s wrong with this? The shoulder belt is worn under the It should be worn over the arm. shoulder at all times. 1-17...
Page 30 What’s wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In wouldn’t have the full width of the belt to spread impact forces. belt is twisted, make it straight so it can work properly, or ask your dealer to Before you close the door, be sure the belt is out of the way.
Page 31: Safety Belt Use During Pregnancy
Safety Belf Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible throughout the pregnancy.
Page 32: Center Passenger Position
Center Passenger Position (Bench Seat) Lap Belt If your vehicle has a bench seat, someone can sit in the center position. When you sit in a center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull...
Page 33 Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see “Safety Belt Extender” at the end of this section. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 34 Rear passengers who aren't safety belted can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts. Buckle, position and release it the same way as the lap part of the driver's safety belt (see "Driver Position"...
Page 35: Children
Children Everyone in a vehicle needs protection! That includes infants and all children smaller than adult size. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 36 1-24...
Page 37: Child Restraints
Child Restraints Be sure to follow the instructions for the restraint. instructions on the restraint itself or in a booklet, or both. These restraints use the belt system in your vehicle, but the child also has to be secured within the restraint to help reduce the chance instructions that come with the infant or child restraint will show you how to .do that.
Page 38 Securing a Child Restraint in the Center Front Seat Position (Bench Seat Don’t use child restraints in the center position of a 60/40 bench seat. When you secure a child restraint in a center seating position, you’ll be using the lap belt. See the earlier section about the top strap if the child restraint has one.
Page 39 6. To tighten the belt, pull its free end while you push down on the child restraint. 7. Push and pull the child restraint in different directions to be sure it is secure. If the child restraint isn’t secure, turn the latch plate over and buckle it again.
Page 40 60/40 Split Bench Seats Don’t use a child restraint in this position. The restraint won’t work properly. Securing a Child Restraint in the Right Front Seat Position You’ll be using the lap-shoulder belt. See the earlier section about the too strap if the child restraint has one.
Page 41 If the shoulder belt goes in front of the child's face or neck, put it behind the child restraint. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 42: Larger Children
To remove the child restraint, just unbuckle the vehicle's safety belt and let it go back all the way. The safety belt will move freely again and be ready to work for an adult or larger child passenger. Larger Children Children who have outgrown child restraints should wear the vehicle's safety belts.
Page 43 Children who aren’t buckled up can strike other people who are. 1-31...
Page 44 What if a child is wearing a lap-shoulder belt, but the child is small that the shoulder belt is very close to the child’s face or neck? Move the child toward the center of the vehicle, but be sure that the shoulder belt still is on the child’s shoulder, so that in a crash the child’s upper body would have the restraint that belts provide.
Page 45: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, extender. It’s free. When you go in to order it, take the heaviest coat will wear, so the extender will be long enough for you.
Page 46 What’s wrong with this? The belt is torn. Torn or frayed belts may not protect you impact forces. If a belt is torn or frayed, get a new one right away. Before replacing any safety belt, see your dealer for the correct part number. You’ll need the model year and model number for your vehicle.
Page 47: Features & Controls
Features & Controls Here you can learn about the many standard and optional features on your vehicle. and information on starting. shifting. and braking . Also explained are the instrument panel and the warning systems that tell you if everything is working properly- and what to do if you have a problem .
Page 48 ......... Four-WheelDrive Manual Transfer Case Electronic Transfer Case...
Page 49: Keys
Keys The square-shaped key is for the ignition only.
Page 50 When a new vehicle is delivered, the dealer removes the plugs from the keys, and gives them to the first owner. Each plug has a code on it that tells your dealer or a qualified locksmith how to make extra keys. Keep the plugs in a safe place. If you lose your keys, you’ll be able to have new ones made easily using these plugs.
Page 51: Your Doors And How They Work
Your Doors And How They Work Side Doors To open the door from the outside, lift the handle and pull the door open. To open the door from the inside, pull the lever toward you and push the door open.
Page 52 There are several ways to lock and unlock your vehicle: From the outside: Use your door key. From the inside: To lock the door, slide the lever on your inside door to LOCK. To unlock the door, slide the lever on your inside door toward you.
Page 53: Doorlocks
Power Door Locks To unlock the doors, push on the raised area next to the key symbol. Leaving Your Vehicle If you are leaving the vehicle, take your keys, open your door and set the locks from inside. Then get out and close the door. Tailgate your vehicle has sower door locks,...
Page 54: Theft
Tailgate Removal Theft Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft deterrent features, we know that nothing we put on it can make it imDossible to steal. However, there are ways you can help.
Page 55: New Vehicle Break-In
Parking at Night Park in a lighted spot, close all windows and lock your vehicle. Remember to keep your valuables out of sight. Put them in a storage area, or take them with you. Parking Lots If you park in a lot where someone to lock it up and take your keys.
Page 56: Ignitionswitch
Ignition Switch Use your ignition key to start your vehicle. The ignition key lets you turn the ignition switch to five different positions. ACC (Accessory): ACC lets you use things like the radio and the windshield wipers when the engine is off. To get into ACC, push in the key and turn it toward you.
Page 57 NOTICE: If your key seems stuck in “Lock” and you can’t turn it, be sure it is all the way in. If it is, then turn the steering wheel left and right while you turn the key hard. But turn the key only with your hand.
Page 58: Starting Your Engine
Starting Your Engine Engines start differently. The 8th digit of your Vehicle Identification Number (VIN) shows the code letter or number for your engine. You will find the VIN at the top left of your instrument panel. (See “Vehicle Identification Number” in the Index.) Follow the proper steps to start the engine.
Page 59 NOTICE: Your engine is designed to work with the electronics in your vehicle. If you add electrical parts or accessories, you could change the way the fuel injection system operates. Before adding electrical equipment, check with your dealer. If you don’t, your engine might not perform properly.
Page 60: Driving Through Deep Standing Water
NOTICE: Your engine is designed to work with the electronics in your vehicle. If you add electrical parts or accessories, you could change the way the fuel injection system operates. Before adding electrical equipment, check with your dealer. If you don’t, your engine might not perform properly.
Page 61 In very cold weather, 0°F (-1 8°C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle. To use the coolant heater: 1.
Page 62: Automatic Transmission
How long should you keep the coolant heater plugged in? The answer depends on the weather, the kind of oil you have, and some other things. Instead of trying to list everything here, we ask that you contact a GM dealer in the area where you’ll be parking your vehicle.
Page 63 R (Reverse) Use this gear to back up. NOTICE: Shifting to “R” (Reverse) while your vehicle is moving forward could damage your transmission. Shift to “R” (Reverse) only after your vehicle is stopped. To rock your vehicle back and forth to get out of snow, ice or sand without damaging your transmission, see “If You’re Stuck: In Sand, Mud, Ice or Snow’’...
Page 64 NOTICE: Damage to your transmission caused by shifting out of “P’’ (Park) or “N” (Neutral) with the engine racing isn’t covered by your warranty. (Overdrive) This position is for normal driving. If you need more power for passing, and you’re: Going less than about 35 mph (56 k d h ) , push your accelerator pedal about halfway down.
Page 65: Five-Speed Manual Transmission
NOTICE: If your rear wheels can’t rotate, don’t try to drive. This might happen if you were stuck in very deep sand or mud against a solid object. You could damage your transmission. Also, if you stop when going uphill, don’t hold your vehicle there with only the accelerator pedal.
Page 66 To Stop Let up on the accelerator pedal and press the brake pedal. Just before the vehicle stops, press the clutch pedal and the brake pedal, and shift to “N” (Neutral). N (Neutral) Use this position when you start or idle your engine. R (Reverse) To back up, press down the clutch pedal, wait about 6 seconds, then shift into “R”...
Page 67: Locking Rear Axle
Four-wheel Drive Vehicles Only: If your vehicle has four-wheel drive and is equipped with a manual transmission, disregard the shift light when the transfer case is in 4LO. Locking Rear Axle If you have this feature, your rear axle can give you additional traction on snow, mud, ice, sand or gravel.
Page 68 NOTICE: Driving with the parking brake on can cause your rear brakes to overheat. You may have to replace them, and you could also damage other parts of your vehicle. If you are on a hill: See “Parking on Hills” in the Index. That section shows how to turn your front wheels.
Page 69 Move the shift lever into Pull the lever toward you. Move the lever up as far as it will go. 3. If you have four-wheel drive with a manual transfer case shift lever, be sure the transfer case is in a drive gear 4.
Page 70: Parking Over Things That Burn
Torque Lock (Automatic Transmission) If you are parking on a hill and you don’t shift your transmission into (Park) properly, the weight of the vehicle may put too much force on the parking pawl in the transmission. You may find it difficult to pull the shift lever out of “P7’...
Page 71: Engineexhaust
Engine Exhaust 2-25...
Page 72: Running Your Engine While You're Parked
Running Your Engine While You’re Parked (Automatic Transmission) It’s better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the air system control off could allow dmgerous exhaust into your vehicle (see the earlier Caution under “Engine Exhaust”).
Page 73: Four-Wheeldrive
Four- Wheel Drive If your vehicle has four-wheel drive, you can send your engine’s driving power to all four wheels for extra traction. To shift out of two-wheel drive and into four-wheel drive, move the transfer case shift lever to 4HI or 4LO. You should use 2HI for most normal driving conditions, however.
Page 74 The front axle portion of the diagram on the indicator will light up when you shift into four-wheel drive. A slight delay between shifting and the pattern’s lighting is normal. If the pattern does not light up, or if the front axle does not go out after you shift out of four-wheel drive, have your dealer check your system.
Page 75: Electronic Transfer Case
Electronic Transfer Case If your four-wheel drive vehicle has the electronic transfer case, the transfer case switches are on the right side of your instrument panel above the radio controls. Use these switches to shift into and out of four-wheel drive. You can choose among three driving settings: 1.
Page 76 To shift from 2H1, or 4HI to 4LO moving less than 3 mph (4.8 km/h) with the transmission in “N” (Neutral) or the clutch pedal depressed. The preferred method for shifting into 4LO is to have your vehicle slowly moving 1 to 2 mph (1.6 to 3.2 k d h ) . Press and release the 4LO switch.
Page 77: Windows
Windows The driver’s window switch has an “express” feature that allows it to lower faster than the passenger’s window. The driver’s door also has a switch for the passenger windows. Push the down arrow on the switch to lower the window. Push the up arrow on the switch to raise the window.
Page 78 Sliding Rear Window Your vehicle may have a sliding rear window. Swing-Out Windows (Extended Cab) Push the latch in the center and slide the glass to open it. When you close the window, be sure the latch catches. If your vehicle has rear swing-out windows, just unlatch them at their clasps...
Page 79: Horn
Horn Tilt Wheel (Option) You can also raise it to the highest level to give your legs more room when you enter and exit the vehicle. To tilt the wheel, hold the steering wheel and pull the lever. Move the steering wheel to a comfortable level, then release the lever to lock the wheel in place.
Page 80: Turn Signal/Multifunction Lever
Turn SignaUMultifunction Lever The lever on the left side of the steering column includes your: Turn Signal and Lane Change Indicator Headlight High-Low Beam Windshield Wipers Windshield Washer Cruise Control (Option) Turn Signal and Lane Change Indicator To signal a turn, move the lever all the way up or down. When the turn is finished, the lever will return automatically.
Page 81 To signal a lane change, just raise or lower the lever until the green arrow starts to flash. Hold there until you complete your lane change. The lever will return by itself when you release it. As you signal a turn or a lane change, if the arrows don’t flash but just stay on, a signal bulb may be burned out and other drivers won’t see your turn signal.
Page 82: Headlight High-Low Beam
Headlight High-Low Beam Windshield Wipers beam to high or high to low, pull the turn signal lever all the way toward you. Then release it. When the high beams are on, this blue indicator light on the instrument panel also will be on.
Page 83: Windshield Washer
For a single wiping cycle, turn the band to MIST. Hold it there until the wipers start, then let go. The wipers will stop after one cycle. If you want more cycles, hold the band on You can set the wiper speed for a long or short delay between wipes. This can be very useful in light rain or snow.
Page 84 Driving without washer fluid can be dangerous. A bad mud splash can block your vision. You could hit another vehicle or go off the road. Check your washer fluid level often. NOTICE: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water. Don’t mix water with ready-to-use washer fluid.
Page 85: Cruise Control
Cruise Control (Option) With Cruise Control, you can maintain a speed of about 25 mph (40 k d h ) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise Control does not work at speeds below about 25 mph (40 km/h).
Page 86 Get up to the speed you want. Push in the set button at the end of the lever and release it. Take your foot off the accelerator pedal.
Page 87 To Resume a Set Speed Suppose you set your Cruise Control at a desired speed and then you apply the brake. This, of course, shuts off the Cruise Control. But you don’t need to reset it. Once you’re going about 25 mph (40 k d h ) or more, you can move the Cruise Control switch from ON to WA (Resume/Accelerate) for about half a second.
Page 88 To lncrease Speed While Using Cruise Control There are two ways to go to a higher speed. Here’s the first: Use the accelerator pedal to get to the higher speed. Push the button at the end of the lever, then release the button and the accelerator pedal. You’ll now cruise at the higher speed.
Page 89 To Reduce Speed While Using Cruise Control To slow down in very small amounts, push the button for less than half a second. Each time you do this, you’ll go I mph (1.6 k d h ) slower. Passing Another Vehicle While Using Cruise Control Use the accelerator pedal to increase your speed.
Page 90 To Get Out of Cruise Control There are two ways to turn off the Cruise Control: To Erase Speed Memory When you turn off the Cruise Control or the ignition, your Cruise Control set speed memory is erased. Step lightly on the brake pedal or push the clutch pedal, if you have...
Page 91: Lights
Lights Push the top switch to turn on: Parking Lights Sidemarker Lights Taillights License Plate Lights Instrument Panel Lights Transfer Case Shift Indicator Panel Push the bottom switch to turn on the headlights, together with: Parking Lights Sidemarker Lights Taillights License Plate Lights Instrument Panel Lights Transfer Case Shift Indicator Panel...
Page 92 A circuit breaker protects your headlights. If you have an electrical overload, your headlights will flicker on and off. Have your headlight wiring checked right away if this happens. Fog Lamps (Opfion) Press the left side of the switch to turn the fog lamps on, and the right side of the switch to turn them off.
Page 93 Daytime Running Lights (DRL) Indicator Light (Canada Only) If your vehicle was first sold, when new, in Canada, you will have this light on the instrument panel. It goes on whenever the Daytime Running Lights are on, the ignition is on, the headlamp switch is off, and the parking brake is released.
Page 94: Mirrors
Of course, you may still turn on the headlights any time you need to. To idle your vehicle with the DRL off, set the parking brake. The DRL will stay off until you release the parking brake. Headlights-On Reminder A reminder tone will sound when your headlights or parking lights are turned on and your ignition is in OFF, LOCK or ACC.
Page 95 They will also stay on for I5 seconds when the interior light switch on the dash is turned on then off, while the ignition is off. Outside Mirrors You can also turn the map lights on and off by pressing the switch near each light.
Page 96 Your outside mirrors must be folded in before entering a carwash. To fold, pull the mirrors in towards the vehicle. Push the mirrors back out when finished. Convex Outside Mirror Your right side mirror is convex. A convex mirror’s surface is curved so you can see more from the driver’s seat.
Page 97: Accessory Power Outlets
Accessory Power Outlets (Option) These circuits are protected by a fuse and have maximum current levels. NOTICE: When using the accessory power outlets, maximum electrical load must not exceed 25 amps. Always turn off any electrical equipment when not in use. Leaving electrical equipment on extended periods will drain your battery.
Page 98: Cigarette Lightedashtray
Cigarette Lighter/Ashtray Don’t hold a cigarette lighter in with your hand while it is heating. If you do, it won’t be able to back away from the heating element when it’s ready. That can make it overload, damaging the lighter and the heating element. ’...
Page 99: Storage Compartments
Storage Compartments Your vehicle may have a console compartment between the bucket seats. To open it, just squeeze the lever in the front of the console while lifting the top of the console. Your console also includes a handy place to hold cups. To open your glove box, squeeze the lever at the top of the...
Page 100 YOU also have a storage pocket on the back of your bucket or 60/40 bench seats. A storage compartment under your radio may be used to hold small items. You will find a storage pocket on each of the front doors. Some vehicles have a storage area behind the seat...
Page 101: Instrument Cluster
Instrument Panel 1. Vents 2. Instrument Cluster 3. Air ConditionerEIeater 4. Glove Box 5. Sound System 6. Cigarette Lighter Instrument Cluster 7. Brake Release Handle 8. Light Switches 9. Electronic Transfer Case 10. Fog Lamp Switch 11. Ashtray 12. Storage Compartment 2-55...
Page 102 Speedometer and Odometer All speedometers will show speeds up to 85 mph have a 4.3L (VIN W) engine with a tachometer, the speedometer will show speeds up to 100 mph Your odometer shows how fa- your vehicle has been driven, in either miles (used in the U.S.) or kilometers (used in Canada).
Page 103 Trip Odometer Standard Cluster The trip odometer can tell you how fir your vehicle has been driven since you last set the trip odometer to zero. Make sure the button is completely depressed. To set the trip odometer to zero, completely push the button near the readout .
Page 104: Warning Lights, Gages And Indicators
running at 2,000 revolutions per minute (rpm). The tachometer needle will vary all the time that the engine is running. The yellow warning range tells you that your engine speed is reaching its upper limits. Don’t drive very long with the tachometer in the yellow range. If you have a manual transmission, shift to a higher gear as soon as possible.
Page 105 Brake System Warning Light Your vehicle hydraulic brake system is divided into two parts. If one part isn’t working, the other part can still work and stop you. For good braking, though, you need both parts working well. Your vehicle also has rear-wheel or four-wheel anti-lock brakes. See “Anti-Lock Brakes”...
Page 106 Anti-Lock Brake System Warning Light (Option) With anti-lock, this light will go on when you start your engine and may stay on for several seconds. That’s normal. If the light doesn’t come on, have it fixed so it will be ready to warn you if there is a problem. If the light stays on, or comes on when you’re driving, your vehicle needs service.
Page 107 Malfunction Indicator (Service Engine Soon) Lamp SERVICE ENGINE A computer monitors operation of your fuel, ignition and emission control systems. This light should come on when the ignition is on, but the engine is not running, as a check to show you it is working. If it does not come on at all, have fixed right away.
Page 108 Oil Pressure Gage The oil pressure gage shows the engine oil pressure in psi (pounds per square inch) when the engine is running. Canadian vehicles indicate pressure in kPa (kilopascals). Oil pressure may vary with engine speed, outside temperature and oil viscosity, but readings above the low pressure zone indicate the normal operating range.
Page 109 Charging System Light It should go out once the engine is running. If you are driving, you may have a problem with the charging system. It could indicate that you have problems with a generator drive belt, or another electrical problem. Have could drain your battery.
Page 110 Daytime Running Lights (DRL) Indicator Light (Canada Only) SHIFT Indicator Light This green DRL indicator light is on the instrument cluster. The DRL indicator light is on whenever the ignition is on and the headlight switch and parking brake are off.
Page 111 Headlight High Beam Indicator Light Turn Signal and Lane Change Indicator This blue high beam indicator light is on the instrument cluster and is on whenever you use your high beam headlights. For more details about high beams, see “Headlight High-Low Beam Changer’’...
Page 112 Gages Fuel Gage Here are four things that some owners ask about. None of these show a problem with your fuel gage: At the gas station, the gas pump shuts off before the gage reads f~111. It takes a little more or less fuel to fill up than the gage indicated. For example, the gage may have indicated the tank was half full, but it actually took a little more or less than half the tank’s capacity to fill the tank.
Page 113: Center High Mounted Stop Lamp (Chmsl) Feed Wire
Voltmeter When your engine is not running, but the ignition is on (in the RUN position), this gage shows your battery’s state of charge in DC volts. When the engine is running, the gage shows the condition of the charging system. Readings between the low and high warning zones indicate the normal operating range.
Page 114: Trailer Wiring Harness
Trailer Wiring Harness Your vehicle may have either a 5-wire or 7-wire harness. The 5-wire harness is stored under your vehicle, along the left rear frame crossmember. The harness has no connector, and you should have a qualified service person wire your harness for loose enough so the wiring doesn’t bend or break, but not so loose that it drags on the ground.
Page 115: Comfort Controls & Audio Systems
Comfort Controls & Audio Systems In this part you’ll find out how to operate the con audio systems offered system supplied with your vehicle For explanation of vehicle symbols. refer to “Vehicle Symbols” in the Introduction Comfort Controls Flow-Through Ventilation System Heater Controls .
Page 116: Flow-Through Ventilation System
Comfort Controk Flow-Through Ventilation System Your vehicle’s flow-through ventilation system supplies outside inside of your vehicle when it is moving. With the side windows closed, air will flow into the front air inlet grilles, through the vehicle, and out the rear air exhaust valve.
Page 117: Heater Controls
Air Vents You will find air vents in the center and on the sides of your instrument panel. You can move the vents to direct the flow of air, or close the vents altogether. When you close a vent, it will increase the flow of air corning out of any vents that are open.
Page 118: Heatedait. Conditioning Controls
OFF: This setting turns off all heating functions. Some outside air will still come out of the heater outlet whenever the vehicle is moving forward. VENT: Airflow is through the instrument panel vents. Set the upper knob to the temperature desired. This setting is useful for mild outside temperatures, when little heating or cooling is desired.
Page 119: Engine Coolant Heater (Engine Block Heater)
OFF‘: This setting turns off all heating functions. Some outside air will still come out of the heater outlet whenever the vehicle is moving forward. MAX A/C: Air inside your vehicle is recirculated to maximize your air conditioner’s performance and your vehicle’s fuel economy. This setting cools the air the fastest and should be used to keep ”unwanted odors”...
Page 120: Fmstereo
To help avoid hearing loss or damage: Adjust the volume control to the lowest setting. Increase volume slowly until you hear comfortably and clearly. FM Stereo FM stereo will give you the best sound. But FM signals will reach only about 10 to 40 miles (16 to 65 km).
Page 121: How To Operate Your Etr@ Am Radio
How To Operate Your ETW AM Radio This part tells you how your ETR@ AM radio works. Upper Knob (PWR-VOL-RECALL) The upper knob has four functions: Rotate it to turn the system on and off. Rotate it to control the volume. Press it to display the time when the ignition is off.
Page 122: How To Operate Your Etr" Am-Fm Stereo Audio System
NOTE: Up to two additional stations may be preset by pressing two adjoining buttons at the same time. Tune in the desired station. Press the SET pushbutton. Within 5 seconds, press any two adjoining pushbuttons at the same time. (The station will return when the same two buttons are pressed again.) Clock To set the clock, just:...
Page 123 This part tells you how your ETR@ AM-FM stereo audio system works: Upper Knob (PWR-VOL-RECALL) The upper knob has these four functions: Rotate it to turn the system on and off. Rotate it to control the volume. Press it to display the time when the ignition is off. Press it to change between the clock and the radio station frequency displayed when the radio is on.
Page 124 Clock To set the clock, just: Press the SET pushbutton. Within 5 seconds, press and hold SEEK until the correct minute appears on the display. Press and hold SCAN until the correct hour appears on the display. TREBLE Slide the TREBLE lever up to increase the treble response. If a station is weak or noisy, slide the TREBLE lever down to reduce the noise.
Page 125 BAL (Balance) The control ring behind the upper knob adjusts the left/right speaker balance. Lower Knob The lower knob has two functions: Rotate it to tune in radio stations. Press it to change between the AM and FM bands. FADE The control ring behind the lower knob adjusts the frondrear speaker balance.
Page 126 Clock To set the clock, just: Press the SET pushbutton. Within 5 seconds, press and hold SEEK until the correct minute appears on the display. Press and hold SCAN until the correct hour appears on the display. TREBLE Slide the TREBLE lever up to increase the treble response. If the station is weak or noisy, slide the TREBLE lever down to reduce the noise.
Page 127: With Equalizer
How to Operate Your ETW AM-FM Stereo Audio Cassette System with Equalizer This part tells you how your ETR@ AM-FM stereo audio cassette system with equalizer works: Upper Knob (PWR-VOL-PROG-RCL) The upper knob has these five functions: Rotate it to turn the system on and off Rotate to control the volume.
Page 128 SCAN When you press SCAN, the radio will go to the next station and pause and will keep scanning until you press SCAN again. SCAN appears in the graphic display. Pushbuttons The four pushbuttons let you return to favorite stations. You can set the pushbuttons for up to eight favorite stations (4 AM and 4 FM).
Page 129 AUTO DNR This unit is equipped with an automatic Dynamic Noise Reduction system. background hiss on AM and FM radio broadcasts, as well as DNR'reduces on cassette tapes. DNR@ is a registered trademark of National Semiconductor Corporation. To Play A Cassette Your tape player is built to work best with tapes that are 30 to 45 minutes long on each side.
Page 130: Care Of Your Cassette Tape Player
Care of Your Cassette Tape Player A tape player that is not cleaned regularly is subject to reduced sound quality, ruining the cassette, or a damaging the mechanism. Tape cassettes that are not properly stored in their plastic cases away from contaminants, direct sunlight, and extreme heat may not operate properly and could cause premature failure of the tape player.
Page 131 How to Operare Compact Disc (CD) System This part tells you how your ETR' AM-FM Upper Knob (PWR-VOL) The upper knob has three functions: It switches the radio on and off when the ignition is on. It controls the volume. Volume will increase when the RCL knob is turned to the right and decrease when turned to the left.
Page 132 SEEK Pressing the SEEK station and stop. Pressing the 4 SEEK button will cause the receiver to seek the next lower station and stop. SCAN When you press SCAN, the radio will go to the next station and pause, and will keep scanning until you press SCAN again.
Page 133 To Play A Compact Disc (CD) NOTICE: Before you begin, please note: DO NOT use mini-discs that are called singles. They won’t eject. USE FULL-SIZE COMPACT DISCS. If the disc player is very hot, or if you’re driving on a very rough road, a disc may come out or just not play.
Page 134 SCAN Press SCAN to sample each track for approximately 10 seconds. Scanning will continue until the RDM, SCAN or any other motion button is pressed again. PREV If you hold the PREV disc will return to previous tracks. NEXT Press NEXT (SEEK the present track is finished.
Page 135 8. Press BAND and 000 will appear again. Now you are ready to enter the last three digits of your code. Repeat steps 6 and 7 for the last three digits of your code. 10, Press BAND and rEP will appear for 5 seconds and then 000 will appear.
Page 136: Fixed Mast Antenna
Care of Your Compact Discs Handle discs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. If the surface of a disc is soiled, dampen a clean, soft cloth in a mild, neutral detergent solution and clean it, wiping from the center to the edge.
Page 137: Your Driving And The Road
Your Driving and the Road Here you'll find information about driving on different kinds of roads and in varying weather conditions driving ......... . . Defensive Driving .
Page 138: Defensive Driving
Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. (See “Safety Belts” in the Index.) Defensive driving really means “be ready for anything.” On city streets, rural roads, or freeways, it means “always expect the unexpected.”...
Page 139 According to the American Medical Association, a 1 80-pound (82 kg) person who drinks three 12-ounce (355 end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinlung three &ounce (120 drinks if each had 1-1/2 ounces (45 vodka.
Page 140 But it’s very important to keep in mind that the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night.
Page 141: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
Page 142 Avoid needless heavy braking. Some people drive in spurts acceleration followed by heavy braking traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 143 driver could. With rear-wheel anti-lock: If one of the rear wheels is about stop rolling, the computer will work the brakes at the rear wheels. The computer is programmed to make the most of available tire and road conditions. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 144: Steering
Braking in Emergencies At some time, nearly every driver gets into a situation that requires hard braking. The four-wheel anti-lock system lets you steer and brake at the same time. If you have the rear-wheel anti-lock braking system, your front wheels can stop rolling when you brake very hard.
Page 145 The same thing can happen if you’re steering through a sharp curve and you suddenly accelerate. Those two control systems - steering and acceleration - can overwhelm those places where the tires meet the road and make you lose control. What should you do if this ever happens? Ease up on the brake or accelerator pedal, steer the vehicle the way you want it to go, and slow down.
Page 146 The fact that such emergency situations are always possible is a good reason to practice defensive driving at all times and wear safety belts properly. Off-Road Recovery You may find sometime that your right wheels have dropped off the edge of a road onto the shoulder while you're driving.
Page 147: Passing
Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehcle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupi&...
Page 148: Loss Of Control
Check your mirrors change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your inside mirror, activate your right lane change signal and move back into the right lane.
Page 149: Driving Guidelines
While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration, or braking (including engine braking by shifting to a lower gear). Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until your vehicle is skidding. Learn to recognize warning clues snow on the road to make a “mirrored surface”...
Page 150 Loading Your Vehicle for Off-Road Driving There are some important things to remember about how to load your vehicle. The heaviest things should be on the load floor and forward of your rear axle. Put heavier items as far forward as you can. Be sure the load is secured properly, so driving on the off-road terrain doesn’t toss things around.
Page 151 Getting Familiar with Off-Road Driving It’s a good idea to practice in an area that’s safe and close to home before you go into the wilderness. Off-road driving does require some new and different driving skills. Here’s what we mean. Tune your senses to different kinds of signals.
Page 152 Surface Obstacles. Unseen or hidden obstacles can be hazardous. A rock, log, hole, rut, or bump can startle you if you’re not prepared for them. Often these obstacles are hidden by grass, bushes, snow or even the rise and fall of the terrain itself.
Page 153 Driving On Off-Road Hills Off-road driving often takes you up, down, or across a hill. Driving safely on hills requires good judgment and an understanding of what your vehicle can and can’t do. There are some hills that simply can’t be driven, no matter how well built the vehicle.
Page 154 Driving Uphill Once you decide you can safely drive up the hill, you need to take some special steps. Use a low gear and get a firm grip on the steering wheel. smooth start up the hill and more power than you need, because you don’t want your wheels to start spinning or sliding.
Page 155 What should I do if my vehicle stalls, or is about to stall, and I can’t make it up the hill? If this happens, there are some things you should do, and there are some things you must not do. First, here’s what you should do: Push the brake pedal to stop the vehicle and keep it from rolling backwards.
Page 156 Suppose, after stalling, can’t do it. What should I do? Set the parking brake, put your transmission in “P” (Park) (or the manual transmission in first gear) , and turn off the engine. Leave the vehicle and go get some help. Exit on the uphill side and stay clear of the path the vehicle would take if it rolled downhill.
Page 157 Are there some things I should not do when driving down Yes! These are important because if you ignore them you could lose control-and have a serious accident. When driving downhill, avoid turns that take you across the incline of h i l l the hill.
Page 158 Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: A hill that can be driven straight up or down may be too steep to drive across.
Page 159 Stalling on an Incline If your vehicle stalls when you’re crossing an incline, be sure you (and your passengers) get out on the uphill side, even if the door there is harder to open. If you get out on the downhill side and the vehicle starts to roll over, you’ll be right in its path.
Page 160 Hard packed snow and ice offer the worst tire traction. On these surfaces, it’s very easy to lose control. On wet ice, for example, the traction is so poor that you will have difficulty accelerating. And if you do get moving, poor steering and difficult braking can cause you to slide out of control.
Page 161: Drivingatnight
After Off-Road Driving Remove any brush or debris that has collected on the underbody, chassis or under the hood, These accumulations can be a fire hazard. After operation in mud or sand, have the brake linings cleaned and checked. These substances can cause glazing and uneven braking. Check the body structure, steering, suspension, wheels, tires, and exhaust system for damage.
Page 162: Driving In The Rain
Night Vision No one can see as well at night as in the daytime. But differences increase. A 50-year-old driver may require at least twice as much light to see the same thing at night as a 20-year-old. What you do in the daytime can also affect your night vision. For example, if you spend the day in bright sunshine you are wise to wear sunglasses.
Page 163 less traction. It’s always wise to go slower and be cautious if rain starts to fall while you are driving. The surface may get wet suddenly when your reflexes are tuned for driving on dry pavement. The heavier the rain, the harder it is to see. Even if your windshield wiper blades are i n good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 164: Citydriving
Hydroplaning doesn’t happen often. But it can if your tires haven’t much tread or if the pressure in one or more is low. It can happen if a lot of water is standing on the road. If you can see reflections from trees, telephone poles, or other vehicles, and raindrops “dimple”...
Page 165: Freeway Driving
Try to use the freeways that rim and crisscross most large cities. You’ll save time and energy. (See the next part, “Freeway Driving.”) Treat a green light as a warning signal. A traffic light is there because the corner is busy enough to need it. When a light turns green, and just before you start to move, check both ways for vehicles that have not cleared the intersection or may be running the red light.
Page 166 Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit do not, under any circumstances, stop and back up.
Page 167: Hill And Mountain Roads
High way Hypnosis Is there actually such a condition as “highway hypnosis”? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 168 Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system and transmission. These parts can work hard on mountain roads. Know how to go down hills. The most important thing to know is this: let your engine do some of the slowing down.
Page 169: Winter Driving
Winter Driving Here are some tips for winter driving: Have your vehiclein good shape for winter. Be sure your engine coolant mix is correct. You may want to put winter emergency supplies in your vehicle. Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth, and a couple of reflective warning triangles.
Page 170 What’s the worst time for this? “Wet ice.” Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get “wet ice” when it’s about freezing (32°F;...
Page 171 If You’re Caught in a If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: Turn on your hazard flashers.
Page 172: Recreational Vehicle Towing (Four-Wheel Drive Only)
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 173 Before towing, you should: 1. Set the parking brake firmly. 2. Place the automatic transmission in “P” (Park) or me manual transmission in the lowest gear ( 1 st gear). 3. Firmly attach the vehicle being towed to the tow vehicle. Refer to the hitch manufacturer’s instructions.
Page 174: Towing A Trailer
Towing a Trailer NOTICE: Pulling a trailer improperly can damage your vehicle and result in costly repairs not covered by your warranty. To pull a trailer correctly, follow the advice in this section, and see your dealer for important information about towing a trailer with your vehicle.
Page 175 You can ask a hitch dealer about sway controls. Don’t tow a trailer at all during the first 500 miles (800 km) your new vehicle is driven. Your engine, axle or other parts could be damaged. Then, during the first 500 miles (800 km) that you tow a trailer, don’t drive over SO mph (80 kmh) and don’t make starts at full throttle.
Page 176 If you’re using a “dead-weight” hitch, the trailer tongue (A) should weigh 10% of the total loaded trailer weight (B). If you have a “weight-distributing” hitch, the trailer tongue (A) should weigh 12% of the total loaded trailer weight (B). After you’ve loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 177 You can tow trailers to 2,000 pounds (900 kg) with a step bumper hitch, but if your trailer tongue has a V-shaped foot, your bumper could be damaged in sharp turns. Check the distance from the front edge of the foot to the middle of the hitch ball socket.
Page 178 trailer brake controller by hand to be sure the brakes are working. This lets you check your electrical connection at the same time. During your trip, check occasionally to be sure that the load is secure, and that the lights and any trailer brakes are still working, Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer.
Page 179 Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you don’t shift down, you might have to use your brakes so much that they would get hot and no longer work well. On a long uphill grade, shift down and reduce your speed to around 45 mph (70 km/h) to reduce the possibility of engine and transmission overheating.
Page 180 When You Are Reddy to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: Start your engine; Shift into gear; and Release the parking brake. Let up on the brake pedal. 3.
Page 181 Power Winches If you wish to use a power winch on your vehicle, only use it when your vehicle is stationary or anchored. NOTICE: When operating a power winch on your vehicle always leave the transmission in the neutral position. Do not leave an automatic transmission in P (Park) or a manual transmission in gear or the transmission may be damaged.
Page 182 Notes...
Page 183: Problems On The Road
Problems on the Road Here you’ll find what to do about some problems that can occur on the road Hazard Warning Flashers Other Warning Devices ..........Jumpstarting TowingYourVehicle .
Page 184 Hazard Warning Flashers When the hazard warning flashers are on, your turn signals won’t work. Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lights will flash on and off.
Page 185 Other Warning Devices If you carry reflective triangles, you can set one up at the side of the road about 300 feet (1 00 m) behind your vehicle. Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle.
Page 186 To Jump Start Your Vehicle: 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system. NOTICE: If the other system isn’t a 12-volt system with a negative ground, both vehicles can be damaged. 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles aren’t touching each other.
Page 187 5 . Check that the jumper cables don’t have loose or missing insulation. If they do, you could get a shock. The vehicles could also be damaged. Before you connect the cables, here are some basic things you should know. Positive will go to positive or a metal engine part.
Page 188 Dead Battery (+) 7. Don't let the other end touch metal. Connect it to the positive terminal of the good battery. 8. Now connect the black negative terminal. Don't let the other end touch anything until the next step. The other end of the negative cable doesn't go to the dead battery.
Page 189 Now start the vehicle with the good battery and run the engine for a while. Try to start the vehicle with the dead battery. If it won’t start after a few tries, it probably needs service. Remove the cables in reverse order to prevent electrical shorting. Take care that they don’t touch each other or any other metal.
Page 190 r o w Towing Try to have a GM dealer or a professional towing service tow your vehicle. They can provide the right equipment and know how to tow it without damage. If your vehicle has been changed since like fog lamps, aero skirting, or special tires and wheels, these things could be damaged during towing.
Page 191 When your vehicle is being towed, have the ignition key off. The steering wheel should be clamped in a straight-ahead position with a clamping device designed for towing service. Do not use the vehicle’s steering column lock for this. The transmission (either automatic or manual) should be in “N”...
Page 192 Towing From NOTICE: Do not tow with sling-type equipment or front bumper system will be damaged. Use wheel lift or car-carrier equipment. Additional ramping may be required for car-carrier equipment. Use safety chains and wheel straps. If your vehicle has the four-wheel drive option, a dolly MUST be used under the rear wheels when towing from the front.
Page 193 Towing From the Rear NOTICE: not tow with sling-type equipment or rear bumper system will be damaged. Use wheel lift or car-carrier equipment. Additional ramping may be required for car-carrier equipment. Use safety chains and wheel straps. If your vehicle has the four-wheel drive option, a dolly MUST be used under the front wheels when towing from the rear.
Page 194 Engine Overheating You will find a coolant temperature gage on your vehicle’s instrument panel. If Steam Is Coming From Your Engine NOTICE: If your engine catches fire because you keep driving with no coolant, your vehicle can be badly damaged. The costly repairs would not be covered by your warranty.
Page 195 If No Steam Is Coming From Your Engine If you get the overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: Climb a long hill on a hot day. Stop after high speed driving.
Page 196 The coolant level should be at or above the ADD mark. If it isn’t, you may have a leak in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. NOTICE: Engine damage from running your engine without coolant isn’t covered by your warranty.
Page 197 How to Add Coolant to the Coolant Recovery Tank If you haven’t found a problem yet, but the coolant level isn’t at or the ADD mark, add a 50/50 mixture of clean water (preferably distilled) and a proper antifreeze at the coolant recovery tank. (See “Engine Coolant” in the Index for more information about the NOTICE: In cold weather, water can freeze and crack the engine, radiator,...
Page 199 Turn the pressure cap slowly to the left until it first stops. (Don’t press down while turning the pressure cap.) If you hear a hiss, wait for that to stop. A hiss means there is still some pressure left. 2. Then keep turning the pressure cap, but now push down...
Page 200 5. h t the cap back on the coolant recovery tank, but leave the radiator pressure cap off. 5-18...
Page 201 7. By this time the coolant level inside the filler neck may be lower. If the level is lower, add more of the proper mix through the filler neck until the level reaches the base of the filler neck. Engine Fan Noise This vehicle has a clutched engine cooling fan.
Page 202 If a Tire Goes Flat It’s unusual for a tire to “blow out” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the flat tire will create a drag that pulls the vehicle toward that side.
Page 203 Blocked Tire Flat Tire To remove your jack cover, if you have one, turn the plastic wing nut to the left until you can pull it out. Remove the jack cover. To remove the wheel blocks, jack and wheel wrench, turn the wing nut to the left.
Page 204 Jacking Equipment Storage Wheel Wrench Bracket Jacking Instructions Tag (Roll and place tag behind the bracket after the tools are installed) Bolt Location (Standard) Bolt Location (ZR2) Wheel Blocks Rubber Band Jack Position (ZR2) Jack Position (Standard)
Page 205 Jacking Storage Cover 1 . Hub Cap Removal Tool 2. Cover (Extended Cab) 3. Cover (Standard Cab) 4. Hub Cap Removal Tool 5. Bolt NOTE: Restore cover and hub cap removal tool if provided. Spare Tire Your spare tire is stored underneath the rear of your vehicle.
Page 206 Underbody Carrier NOTICE: Never remove or restow a tire f r o d t o a stowage position under the vehicle while the vehicle is supported by a jack. Always tighten the tire fully against the underside of the vehicle when restowing.
Page 207 To Remove the Spare Tire sure the chisel end of When the tire has been completely lowered, tilt the retainer at the end of the cable and pull it through the wheel opening. Pull the tire out from under the vehicle.
Page 208 Changing the Tire Start with the jack, wheel wrench and wheel blocks. Rotate the jackhandle to the right. That will raise the jack lift head a little. Before you start, block the front and rear of the tire farthest away from the one' being changed.
Page 209 Hub Caps And Wheel Nut Caps You will have to take off hub caps or wheel nut caps to reach your wheel nuts. Your wheel nut caps may attach your hub cap to the wheel. Remove these wheel nut caps and retaining ring (if so equipped) before you take off the hub cap.
Page 210 Some jack storage covers are equipped with a hub cap removal tool. Position hub cap removal tool in notch. Remove the hub cap. Using the wheel wrench, loosen all the wheel nuts. Don’t remove them yet.
Page 211 Jack Locations Position the jack under the vehicle. A. Front Frame Hole B. Rear Frame Hole (ZR2) C. Spring Hanger Hole (Standard Pick-ups) Your vehicle has a hole in the frame near each front wheel, and a hole in the spring hanger near each rear wheel for the jack.
Page 212 Raise the vehicle by rotating the jackhandle to the right. Raise the vehicle far enough off the ground so there is enough room for the spare tire to fit. Remove all the wheel nuts. Take off the flat tire. 5-30...
Page 213 Put on the spare tire. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. Place the spare on the wheel mounting surface. 5-31...
Page 214 Tighten each nut by hand until the wheel cari't be turned by hand, use the wheel wrench and see your dealer as possible. Put the nuts hand. Make sure the cone-shaped end is toward the wheel. held against the hub. If a nut Lower the vehicle by rotating the jackhandle to the left.
Page 215 Tightening Wheel Nut Use the wrench to tighten the wheel nuts firmly in a criss-cross sequence as shown. Remove the wheel blocks. Storing The Tire in The Underbody Carrier Put the tire on the ground at the rear of the vehicle, with the valve stem pointed down and to the rear.
Page 216 Storing The Jacking Equipment Return the jack, wheel wrench and wheel blocks to the proper location behind the seat. Secure the items and replace the jack cover. NOTICE: Don’t use the existing hoist to store a tire with an aluminum wheel or could damage the wheel.
Page 217 Rocking your vehicle to get it out: First, turn your steering wheel left and right. That will clear the area around your front wheels. Then shift back and forth between “R” (Reverse) and a forward gear (or with a manual transmission, between First or Second gear and Reverse), spinning the wheels as little as possible.
Page 218 NOTICE: Never use the recovery hooks to tow the vehicle. Your vehicle could be damaged and it would not be covered by warranty.
Page 219: Service & Appearance Care
Service & Appearance Care Here you will find information about the care of your vehicle begins with service and fuel information. and then it shows how to check important fluid and lubricant levels about your vehicle. and a section devoted to its appearance care . .
Page 220: Service
Service Your GM dealer knows your vehicle best and wants you to be happy with it. We hope you’ll go to your dealer for all your service needs. You’ll get genuine GM parts and GM-trained and supported service people. We hope you’ll want to keep your GM vehicle all GM. Genuine GM parts have one of these marks: Doing Your Own Service Work If you want...
Page 221: Fuel
Fuel The 8th digit of your Vehicle Identification Number (VIN) shows the code letter for your engine. You will find the VIN at the top left of your instrument panel. (See “Vehicle Identification Number” in the Index.) Use regular unleaded gasoline rated at 87 octane or higher. With the 4.3L (Code W) engine, use premium unleaded gasoline rated at 91 octane or higher for high power performance, when towing a trailer or with a high payload requirement.
Page 222 Gasolines for Cleaner Air Your use of gasoline with deposit control additives will help prevent deposits from forming in your engine and fuel system. That helps keep your engine in tune and your emission control system working properly. It’s good for your vehicle, and you’ll be doing your part for cleaner air.
Page 223 Filling Your Tank The fuel cap is behind a hinged door on the left side of your vehicle. While refueling, hang the cap inside the fuel door. To take off the cap, turn it slowly to the left.
Page 224: Checking Things Under The Hood
Be careful not to spill gasoline. Clean gasoline from painted surfaces as soon as possible. See “Cleaning the Outside of NOTICE: If you need a new cap, be sure to get the right type. can get one for you. If you get the wrong type, it may not fit or have proper venting, and your fuel tank and emissions system might be damaged.
Page 225 Then go to the front of the vehicle and release the secondary hood release. Lift the hood, release the hood prop from its retainer and put the hood prop into the slot in the hood. You will have an underhood light that comes on when you lift the hood.
Page 226 Remove the hood prop from the slot in the hood and return the prop to its retainer. Then just pull the hood down and close it firmly.
Page 227: Engineoil
Engine Oil To Check Engine Oil Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it again, keeping the tip lower. When to Add Oil If the oil is at or below the ADD line, then you’ll need to add some oil. But you must use the right kind.
Page 228 NOTICE: Don’t add too much oil. If your engine has so much oil that the oil level gets above the cross-hatched area that shows the proper operating range, your engine could be damaged. What Kind of Oil to Use Beginning midyear 1993, oils of the proper quality for your vehicle will be identified with this new “starburst”...
Page 229 You should also use the proper viscosity oil for your vehicle, as shown in the following chart: RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST SAE VISCOSITY GRADE 011 FOR THE EXPECTED TEMPERATURE RANGE. WEATHER SAL 5W-30 PREFERRED...
Page 230 If you cannot find oils with the new “starburst” symbol container, you should look for and use oils containing the following three things: SHor SG “SH or SG’ must be on the oil container, either by itself or combined with other quality designations, such as “SWCD,” “SH, SG, CD,” “SG/CD,”etc.
Page 231 Engine Oil Additives Don’t add anything to your oil. Your GM dealer is ready to advise if you think something should be added. When to Change Engine Oil See if any one of these is true for you: Most trips are less than 4 miles (6 km). It’s below freezing outside and most trips are less than 10 miles (16 km).
Page 232: Aircleaner
Used oil can be a real threat to the environment. If you change your own oil, be sure to drain all free-flowing oil from the filter before disposal. Don't ever dispose of oil by putting it in the trash, pouring it on the ground, into sewers, or into streams or bodies of water.
Page 233: Automatic Transmission Fluid
While reassembling the air cleaner assembly, ensure that the air cleaner cover tabs are fully inserted into the slots in the air cleaner tube is properly seated in the left hand valve cover. Refer to the Maintenance Schedule to determine when to replace the air filter.
Page 234 NOTICE: Too much or too little fluid can damage your transmission. Too much can mean that some of the fluid could come out and fall on hot engine parts or exhaust system, starting a fire. Be sure to get an accurate reading if you check your transmission fluid. Wait at least 30 minutes before checking the transmission fluid level if you have been driving: When outside temperatures are above 90°F (32°C).
Page 235 Then, without shutting 3. Check both sides of the dipstick, and read the lower level. The fluid level must be in the COLD area for a cold check or cross-hatched area for a hot check. the engine, follow these steps: 6-17 1.
Page 236: Manual Transmission Fluid
How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transmission fluid to use. See “Recommended Fluids and Lubricants” in the Index. If the fluid level is low, add only enough of the proper fluid to bring the level up to the COLD area for a cold check or the HOT area for a hot check.
Page 237 NOTICE: Too much or too little fluid can damage your transmission. much can mean that some of the fluid could come out and fall on hot engine parts or exhaust system, starting a fire. an accurate reading if you check your transmission fluid. Check the fluid level only when your engine is off, the vehicle is parked on a level place and the transmission is cool enough for you to rest your fingers on the trimmission case.
Page 238: Hydraulic Clutch
Hydraulic Clutch The hydraulic clutch in your vehicle is self-adjusting. A slight amount of play (1/4 inch to 1/2 inch) in the pedal is normal. When to Check and What to Use Refer to the Maintenance Schedule to determine how often you should check the fluid level in your clutch master cylinder reservoir and what to add.
Page 239: Transfer Case
How to Check Lubricant What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use. See “Recommended Fluids and Lubricants’’ in the Index. Four-wheel Drive Most lubricant checks in this section also apply to four-wheel-drive vehicles.
Page 240: Frontaxle
How to Check Lubricant The arrow on the left shows the drain plug location. The arrow on the right shows the filler plug location. What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use. See “Recommended Fluids and Lubricants” in the Index. Front Axle When to Check and Change Lubricant Refer to the Maintenance Schedule to determine how often to check the...
Page 241: Engine Coolant
If the differential is at operating temperature (warm), add enough lubricant to raise the level to the bottom of the filler plug hole. If the differential is cold, add enough lubricant to raise the level to 1/2 inch (12 mm) below the filler plug hole. What to Refer to the Maintenance Schedule to determine what kind of lubricant to use.
Page 242 NOTICE: If you use an improper coolant mix, your engine could overheat and be badly damaged. The repair cost wouldn’t be covered by your warranty. the engine, radiator, heater core and other parts. Some conditions, such as air trapped in the cooling system, can affect the coolant level in the radiator.
Page 243 Add coolant rnix at the recovery tank, but be careful not t O spill it. Radiator Pressure Cap NOTICE: Your radiator cap is a 15 psi (105 kPa) pressure-type cap and must be tightly installed to prevent coolant loss and possible engine damage from overheating.
Page 244: Power Steering Fluid
Thermostat Engine coolant temperature is controlled by a thermostat in the engine coolant system. The thermostat stops the flow of coolant through the radiator until the coolant reaches a preset temperature. When you replace your thermostat, an AC@ thermostat is recommended. Power Steering Fluid NOTICE: Always turn the engine off before checking or adding power...
Page 245 When the engine compartment is hot, the level should be at the “HOT” mark. When the engine compartment is cool, the level should be at the “FULL COLD” mark. What to Add Refer to the Maintenance Schedule to determine what kind of fluid to use. See “Recommended Fluids and Lubricants’’...
Page 246: Windshield Washer Fluid
Windshield Washer Fluid To Add NOTICE: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water. Don’t mix water with ready-to-use washer fluid. Water can cause the solution to freeze and damage your washer fluid tank and other parts of the washer system. Also, water doesn’t clean as well as washer fluid.
Page 247 Brakes Brake Master Cy/incier There are only two reasons why the brake fluid level in your master cylinder might go down. The first is that the brake fluid goes down to an acceptable level during normal brake lining wear. When new linings are put in, the fluid level goes back up.
Page 248 To Check Brake Fluid The fluid levels should be above “MIN.” If they aren’t, have your brake system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the levels are above “MIN”...
Page 249 Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal..firmly).
Page 250: Replacing Brake System Parts
Replacing Brake System Parts The braking system on a modern vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Vehicles we design and test have top-quality GM brake parts in them, as your vehicle does when it is new.
Page 251: Bulb Replacement
Fluid Leak Check After the vehicle has been parked for awhile, inspect the surface under the vehicle for water, oil, fuel or other fluids. Water dripping from the air conditioning system after it has been used is normal. If you notice fuel leaks or fumes, the causes should be found and corrected at once.
Page 252 Composite Headlights 1. Open the hood. 2. Remove the screws at the top of the radiator support. 3. Pull the headlight lens assembly out. Unplug the electrical connector. 5. Turn the bulb to the left to remove 6-34...
Page 253 8. Put the headlight lens assembly back into the vehicle. Install and tighten the screws. Sealed Beam Headlights 4. Plug in the new headlight and put 5 . Put the retainer on the headlight and install and tighten the screws. 6.
Page 254 Front ParkfTurn Signal Lights (Composite and Sealed Beam) If you have fog lamps, the fog lamp bracket must be removed before you can replace the front park/turn signal lights. 1. Reach under the bumper and behind the parkinghrn signal light assembly.
Page 255 Rear Lights 1. Open the tailgate. 5. Pull the bulb out. 6. Push the new bulb into the socket. 7. Put the socket into the light assembly and turn the socket to the right until it locks in place. 8. Replace the light assembly.
Page 256 Center High Mounted Stop Lamp (CHMSL) 1. Remove the CHMSL lens retaining screws. 2. Remove the CHMSL iens. CHMSL lens. Install tighten the screws.
Page 257: Other Maintenance Items
Other Maintenance Items Front Suspension and Steering Linkage Refer to the Maintenance Schedule to determine how often to lubricate the fittings and what type of lubricant to use. Front Wheel Bearings (Two- Wheel Drive) If your vehicle is two-wheel drive, it has wheel bearings that must be cleaned and repacked.
Page 258 To Remove the Old Wiper Blade: Lift the wiper arm until it locks into a vertical position. 1. Blade Assembly 2. Arm Assembly 3. Locking Tab 4. Blade Pivot 5. Hook Slot 6. Arm Hook Press down on the blade assembly pivot locking tab. Pull down on the blade assembly to release it from the wiper arm hook Remove the insert from the blade assembly.
Page 259 To Install the New Wiper Blade: Slide the insert (notched end last) into the blade claws at end “A”. Plastic caps will be forced off as the insert is fully inserted. 1. End ”A” 2. End ”B” 3. Retaining Caps 4.
Page 260 Be sure that the notches are locked by the bottom claws. Make sure that all other claws are properly locked on both sides of the insert slots. 1. Claw in Notch 2. Correct Installation 3. Incorrect Installation Put the blade assembly pivot in the wiper arm hook. Pull up until the pivot locking tab locks in the hook slot.
Page 261 Lubrication Accelerator Control System Refer to the Maintenance Schedule to determine how often the accelerator linkage pivot points must be lubricated and what type of lubricant to use. Accelerator cables and cruise control cables should not be lubricated. Any cables that are worn or are hard to pull should be replaced. When cleaning the engine compartment with water or steam, avoid directing the flow onto the throttle linkage in a manner that would cause moisture to enter the cables.
Page 262 Lock Cylinders To be sure your locks operate properly, they must be lubricated. Refer to the Maintenance Schedule to determine how often to lubricate them and what type of lubricant to use. You should not use penetrating oils because they could wash out the factory installed lubricant and cause the lock to bind.
Page 263: Loading Your Vehicle
Engine Control Module System This system has an oxygen (02) sensor that helps keep your engine’s air-fuel mixture at a proper level. Use only unleaded fuel in your vehicle. If you use leaded fuel, you could damage your oxygen (02) sensor and affect your vehicle’s emissions.
Page 264 Using heavier suspension components to get added durability might not change your weight ratings. Ask your dealer to help you load your vehicle the right way. NOTICE: Your warranty does not cover parts or components that fail because of overloading. If you put things inside your vehicle they will go as fast as the vehicle goes.
Page 265 Payload The Payload Capacity is shown on the CertificatiodTire label. This is the maximum load capacity that your vehicle can carry. Be sure to include the weight of the people inside as part of your load. If you added any accessories or equipment after your vehicle left the factory, remember to subtract the weight of these things from the payload.
Page 266 Truck-Camper Loading Information Open your glove box and look for this label: This label will tell you if your vehicle can carry a slide-in camper, how much of a load your vehicle can carry, and how to spread out your load the right way.
Page 267 Truck Loading Information 1. Recommended location for cargo center of gravity for cargo weight rating. Refer to Truck Camper Loading Information label in the glove box for “A”and “B” dimensions. Use rear edge of load floor for measurement purposes Example of Proper Truck and Camper Match 1.
Page 268 You must weigh any accessories, trailer hitches or other equipment you add to your vehicle. Then, subtract this extra weight from the CWR. This extra weight may shorten the center of gravity zone for your vehicle. Your dealer can help you with this. If your slide-in camper and its load weigh less than the CWR, the center of gravity zone for your vehicle may be larger.
Page 269: Tires
Tires We don’t make tires. Your new vehicle comes with high quality tires made by a leading tire manufacturer. These tires are warranted by the tire manufacturers and their warranties are delivered with every new vehicle. If your spare tire is a different brand than your road tires, you will have a tire warranty folder from each of these manufacturers.
Page 270 Inflation Tire Pressure The Certification/Tire label which is on the driver’s door lock pillar, shows the correct inflation pressures for your tires, when they’re cold. “Cold” means your vehicle has been sitting for at least three hours or driven no more than a mile.
Page 271 When to Check Check your tires once a month or more. Also, check the tire pressure of the spare tire. How to Check Use a good quality pocket-type gage at the tires will not tell you the pressure, especially if you have radial tires which may look properly inflated even if they’re underinflated.
Page 272 Tire Inspection and Rotation To make your tires last longer, have mileages recommended in the Maintenance Schedule. See “Scheduled Maintenance Services” in the Index. The four wheel rotation is for aluminum wheels only. The five wheel rotation is for steel wheels only. If your vehicle has front tires with different load ratings or tread designs (such as all season vs.
Page 273 When /t’s Time for New Tires You need a new tire if: You can see the indicators at three or more places around the tire. You can see cord or fabric showing through the tire’s rubber. The tread or sidewall is cracked, cut or snagged deep enough to show cord or fabric.
Page 274 Uniform Tire Quality Grading The following information relates to the system developed by the United States National Highway Traffic Safety Administration which grades tires by treadwear, traction and temperature performance. (This applies only to vehicles sold in the United States.) Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test...
Page 275 Temperature A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 276 If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts, and wheel nuts for your GM model.
Page 277: Appearance Care
Tire Chains NOTICE: I f your vehicle has P235/75R15 or 3lxl0.50R15LT/C size tires, don’t use tire chains; they can damage your vehicle. If’ you have other size tires, use tire chains only where legal and only when you must. Use only SAE Class “S” type chains that are the proper size for your tires.
Page 278 Never use these to clean your vehicle: Gasoline Benzene Naphtha Carbon Tetrachloride Acetone They can all be hazardous damage your vehicle, too. Don’t use any of these unless this manual says you can. In many uses, these will damage your vehicle: Alcohol Laundry Soap Bleach...
Page 279 Using Foam-Type Cleaner on Fabric Vacuum and brush the area to remove any loose dirt. Always clean a whole trim panel or section. Mask surrounding trim along stitch or welt lines. Mix Multi-Purpose Powdered Cleaner following the directions on the container label.
Page 280 Fabric Protection Your vehicle has upholstery and carpet that has been treated with Fabric Protector, a 3M product. Scotchgard Scotchgard by repelling oil and water, which are the carriers of most stains. Even with this protection, you still need to clean your upholstery and carpet often to keep it looking new.
Page 281 Cleaning Vinyl Use warm water and a clean cloth. Rub with a clean, damp cloth to remove dirt. You may have to do it more than once. Things like tar, asphalt and shoe polish will stain if you don’t get them off quickly.
Page 282 Glass Glass should be cleaned often. GM Glass Cleaner (GM Part No. 1050427) or a liquid household glass cleaner will remove normal tobacco smoke and dust films. Don’t use abrasive cleaners on glass, because they may cause scratches. Avoid placing decals on the inside rear window, since they may have to be scraped off later.
Page 283 Finish Care Occasional waxing or mild polishing of your vehicle may be necessary to remove residue from the paint finish. You can get GM approved cleaning products from your dealer. (See “Appearance Care and Materials” in the Index.) Your vehicle has a “basecoat/clearcoat” paint finish. The clearcoat gives more depth and gloss to the colored basecoat.
Page 284 White Side wall Tires Your GM dealer has a GM White Sidewall Tire Cleaner. You can use a stiff brush with the cleaner. Weatherstrips Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth at least every six months.
Page 285 Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, accelerated corrosion (rust) can occur on the underbody parts such as fuel lines, frame, floor pan, and exhaust system even though they have corrosion protection. At least every spring, flush these materials from the underbody with plain water.
Page 286: Vehicle Identification Number (Vin)
SIZE PART NUMBER 23 oz. (0.680L) Glass Cleaner 1050427 6 Ibs. (2.72 kg) Multi-Purpose 1050429 1050729 8 oz. (0.237L) 16 oz. (0.473L) Preservatone 105 1055 1051398 8 oz. (0.237L) 1052870 16 oz. (0.473L) Wash-Wax (cone.) 16 oz. (0.473L) Magic Mirror 1050201 Vehicle ldentification Number (VIN) TESTVNXX3XXQ09696...
Page 287 Engine Identification The eighth character in your VIN is the engine code. This code will help you identify your engine, specifications, and replacement parts. 6-69...
Page 288: Service Parts Identification Label
Service Parts Identification Label You’ll find this label on the inside of the glove box. K19 K64 L C 3 M X 1 M 3 1 62U 67D 671 679 7BJ 8HJ 9HJ PAINTTECHNOLOGY It’s very helpful if you ever need to order parts. On this label is: your VIN, the model designation, paint information, and...
Page 289 Headlights The headlight wiring is protected by a circuit breaker in the light switch. An electrical overload will cause the lights to go on and off, or in some cases to remain off. If this happens, have your headlight wiring checked right away. Windshield Wipers The windshield wiper motor is protected by a circuit breaker and a fuse.
Page 290 Fuse Block Spare fuses are provided, however if you ever have a problem on the road and don’t have a spare fuse, you can “borrow” one of the correct value. Just pick some feature of your vehicle that you can get along without-like radio or cigarette lighter-and Replace it as soon as you can.
Page 291 Capacities and Specification Charts Replacement Parts Replacement part numbers listed in this section are based on the latest information available at the time of printing, and are subject to change. If a part listed in this manual is not the same as the part used in your vehicle when it was built, or if you have any questions, please contact your GM truck dealer.
Page 292 Crankcase Capacity ENGINE 2.2L 4.3L 4.3L *All quantities are approximate. After refill, the level MUST be rechecked. Fuel Tank Capacity TYPE Standard Tank *All quantities are approximate. Lamp and Bulb Data LAMPS EXTERIOR Headlamps (Sealed Beam) Headlamps (Composite) Backup Lamp License Lamp (w/o Bumper) License Lamp (Step Bumper) Tail and Stop Lamps...
Page 293 INTERIOR Ash Tray Lamp Courtesy Lamp Dome Lamp Four-wheel Drive Indicator Heater & N C Control Instrument Panel Compartment Lamp Rearview Mirror Lamps Sunshade Vanity Mirror Lamps INSTRUMENT CLUSTER LAMPS NOTE: A PC part number indicates that the bulb and base are one assembly and must be replaced as such.
Page 294 m r P W R Fuses and Circuit Breakers FUSE/CIRCUIT BREAKER PWR ACCY PWR WDO STOP/HAZ HORN/DM (NOT USED) NAME CIRCUITS PROTECTED Power Door Locks Power Windows Stop Lamps, Hazard Lamps, Chime Module Dome Lamp, Lighted Visor Mirror, Glove Box Lamp, Horn, UP Courtesy Lamps, Power Mirrors T/L CTSY Electric Shift Transfer Case Module,...
Page 295 FUSE/CIRCUIT BREAKER PWR AUX (NOT USED) ECM BATT ECM IGN (NOT USED) RDO/BATT TURN BTU (NOT USED) (NOT USED) (NOT USED) (NOT USED) NAME CIRCUITS PROTECTED HTR A/C Blower Motor, Temperature Door Motor Pwr Auxiliary Outlets Engine Computer (Battery), ABS Battery, Fuel Pump Engine Computer (Ignition), Injectors, Engine Sensors...
Page 296 Service Replacement Part and Filter Recommendations Engine (VIN) Oil Filter Air Cleaner Filter PCV Valve Spark Plugs* Fuel Filter Radiator Cap *Use copper-cored resistor type spark plugs. Air Conditioning Refrigerants Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs refrigerant, be sure the proper refrigerant is used.
Page 297: Scheduled Maintenance Services
Scheduled Maintenance Services This section covers the maintenance required for your vehicle needs these services to retain its safety. dependability. and emission control performance A Word About Maintenance Your Vehicle and the Environment Scheduled Maintenance Services Selecting The Proper Maintenance Schedule Maintenance Schedule I MaintenanceScheduleII Explanation of Scheduled Maintenance Services...
Page 298: A Word About Maintenance
A Word About Maintenance We at General Motors want to help you keep your vehicle in good working condition. But we don’t know exactly how you’ll drive it. You may drive very short distances only a few times a week. Or you may drive long distances all the time in very hot, dusty weather.
Page 299: Scheduled Maintenance Services
maintenance receipts. They may be needed to qualify your vehicle for warranty repairs. Scheduled Maintenance Services This part tells you the maintenance services you should have done and when you should schedule them. Your GM dealer knows your vehicle best and wants you to be happy with it.
Page 300 MAINTENANCE SCHEDULE 1 An Emission Control Service See “Explanation of Scheduled Maintenance Services” in the Index $ The California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of vehicle useful life, General Motors, however, urges that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 301 MAINTENANCE SCHEDULE / (continued)
Page 302 MAINTENANCE SCHEDULE 11 Miles (000) Item Service Kilometers (000) Engine Oil Change*-Every 12 Months, or Oil Filter Change*-Every 12 Months, or 2 Chassis Lubrication-Every 12 Months, or Cooling System Service* -Every 24 Months or Tire and Wheel Rotation Drive Axle Service Brake Systems Inspection** An Emission Control Service See “Explanation of Scheduled Maintenance Services”...
Page 303: Explanation Of Scheduled Maintenance Services
Explanation Of Scheduled Maintenance Services Below are explanations of the services listed in the maintenance charts. The proper fluids and lubricants to use are listed in this section. Make sure whoever services your vehicle uses these. All parts should be replaced and all necessary repairs done before you or anyone else drives the vehicle.
Page 304 TRANSMISSION SERVICE: Automatic Transmission every 15,000 miles (25 000 one or more of these conditions: In heavy city traffic. Where the outside temperature regularly reaches 90°F (32°C) or higher. In hilly or mountainous terrain. Frequent trailer pulling. Uses such as taxi, police, delivery or other commercial service. If the vehicle is not used mainly under any of these conditions, change the fluid and filter every 30,000 miles (50 000 Transmission Fluid”...
Page 305 11. FUEL TANK, CAP AND LINES INSPECTION*$ (4.3L only) Inspect the fuel tank, cap and lines for damage or leaks. Remove fuel cap, inspect gasket for an even filler neck imprint, and any damage. Replace parts as needed. 12. ENGINE ACCESSORY DRIVE BELT INSPECTION*$ belt.
Page 307 Steering Column Lock Operation - While parked, try to turn the key to LOCK in each gear shift position. With an automatic transmission, the key should turn to LOCK only when the gear shift is in “P” (Park). With manual shift, the key should turn to LOCK only when you’re in “R’...
Page 308: Periodic Maintenance Inspections
Periodic Maintenance Inspections Listed below are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let your GM dealer’s service department or other qualified service center do these jobs. Make sure any necessary repairs are completed at once. Steering and Suspension Inspection-{- and steering system for damaged, loose or missing parts, signs of wear or lack of lubrication.
Page 309: Recommended Fluids & Lubricants
Recommended Fluids & Lubricants NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM Dealer. USAGE Engine Oil Engine Coolant Hydraulic Clutch System Hydraulic Brake Systems Power Steering System Manual Steering Gear Automatic Transmission Manual Transmission: a.
Page 310 USAGE Column Shift, Transfer Case Shift Lever, Propeller NLGI Grade 2, Catagory LB or GC-LB Shaft Slip Splines and Universal Joints. Clutch Linkage. Pushrod to Chassis lubricant meeting requirements of clutch fork joint. Hood Latch Assembly: a. Pivots and spring anchor a. Engine oil (GM Part No. 1050109). b.
Page 311: Maintenance Record
Maintenance Record After each of the preceding Scheduled Maintenance Services is performed, record the date, odometer reading, services performed (list item numbers) and who performed the services in the appropriate column. In addition, retain copies of your receipts. It is suggested that receipts be kept with your Owner’s Manual.
Page 312: Service Station Checks
Service Station Checks It is important for you or a service station attendant to perform these under-hood checks at each fuel fill. Check the engine oil level and add if necessary. Check the engine coolant level and add if necessary. Check the windshield washer fluid level and add if necessary.
Page 313 Hood Release Lever See Page 6-6. Oil Filter See Page 6-1 3. Windshield Washer Fluid See Page 6-28. Power Steering Reservoir See Page 6-26. Clutch Fluid- Reservoir See Page 6-20. Brake Fluid- Reservoir See Page 6-29. Spare Tire Pressure See Page 6-45. Battery The Delco Freedom batten/...
Page 314 Notes 7- 18...
Page 315: Customer Assistance Information
Customer Assistance Information Here you will find out how to contact GMC Truck if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects. Customer Satisfaction Procedure Customer Assistance for the Hearing or Speech Impaired (TDD) ..8-3 GM Participation in BBB AUTO LINE .
Page 316: Customer Satisfaction Procedure
Vehicle delivery date and present mileage Nature of concern We encourage you to call the toll free number listed previously in order to give your inquiry prompt attention. However, if you wish to write GMC Truck, write to: GMC Truck Customer Assistance 3 1 E.
Page 317: Customer Assistance For The Hearing Or Speech Impaired (Tdd)
General Motors reserves the right to change eligibility limitations and/or to discontinue its participation in this program. Both GMC Truck and your GMC Truck dealer are committed to making sure you are completely satisfied with your new vehicle. Our experience has...
Page 318: Reporting Safety Defects To The United States Government
AUTO LINE, but you may contact the BBB at any time. The BBB will attempt to resolve the complaint by serving as an intermediary between you and GMC Truck. If this mediation is unsuccessful, an informal hearing will be scheduled where eligible customers may present their case to an impartial third-party arbitrator.
Page 319: Reporting Safety Defects To General Motors
GENERAL MOTORS In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-GMC-TRUCK (1-800462-8782) , or write: GMC Truck Consumer Relations 3 I E. Judson Street 1607-04...
Page 320: Roadside Assistance
We also provide dealer information at no charge such as location of the nearest GMC Truck dealer and their hours of operation. Roadside Assistance is available 24 hours a day, seven days a week, 365 days a year, including weekends and holidays.
Page 321: Service Publications
Individual PSP’s If you don’t want to buy all the PSP’s issued by GMC Truck for all models in the model year, you can buy individual PSP’s, such as those which may pertain to a particular model.
Page 322 What You’ll Find in the Index: A list of all PSP’s published by GMC Truck in a model year. PSP’s covering all models of GMC light trucks are listed in the same index. Ordering information so you can buy the specific PSP’s you may want.
Page 323 You can get manuals that tell how to operate and To order them, fill out the order form the address below. GMC Truck Service Publications If you have questions call us TOLL FREE at 1-800-627-5699. From outside the Continental United States, please call 1-31 3-455-801 6...
Page 324 Notes...
Page 327: Index
Index Accessory Power Outlets ........... . . Aircleaner .
Page 328 Brakes (continued) ............Braking .
Page 329 Daytime Running Lights (Canada Only) ........Indicator Light .
Page 330 Engine (continued) ..........Overheating RunningWhileParked .
Page 331 ............Gages Coolant Temperature Gage .
Page 332 Labels ......... Certification/Tire .
Page 333 Odometer Off-Road Driving (See “Driving”) Off-RoadRecovery ............Additives Disposalofused .
Page 334 Safety Belts (continued) Large Children ..........Properwear Questions &...
Page 335 ..........Tires(continued) Hub Caps and Wheel Nut Caps Inspection and Rotation...
Page 336 Warning Devices. Other ............Hazard Lights.
Page 337 Notes...
Page 338 Notes...
