Performance Data and Typical Characteristic Curves

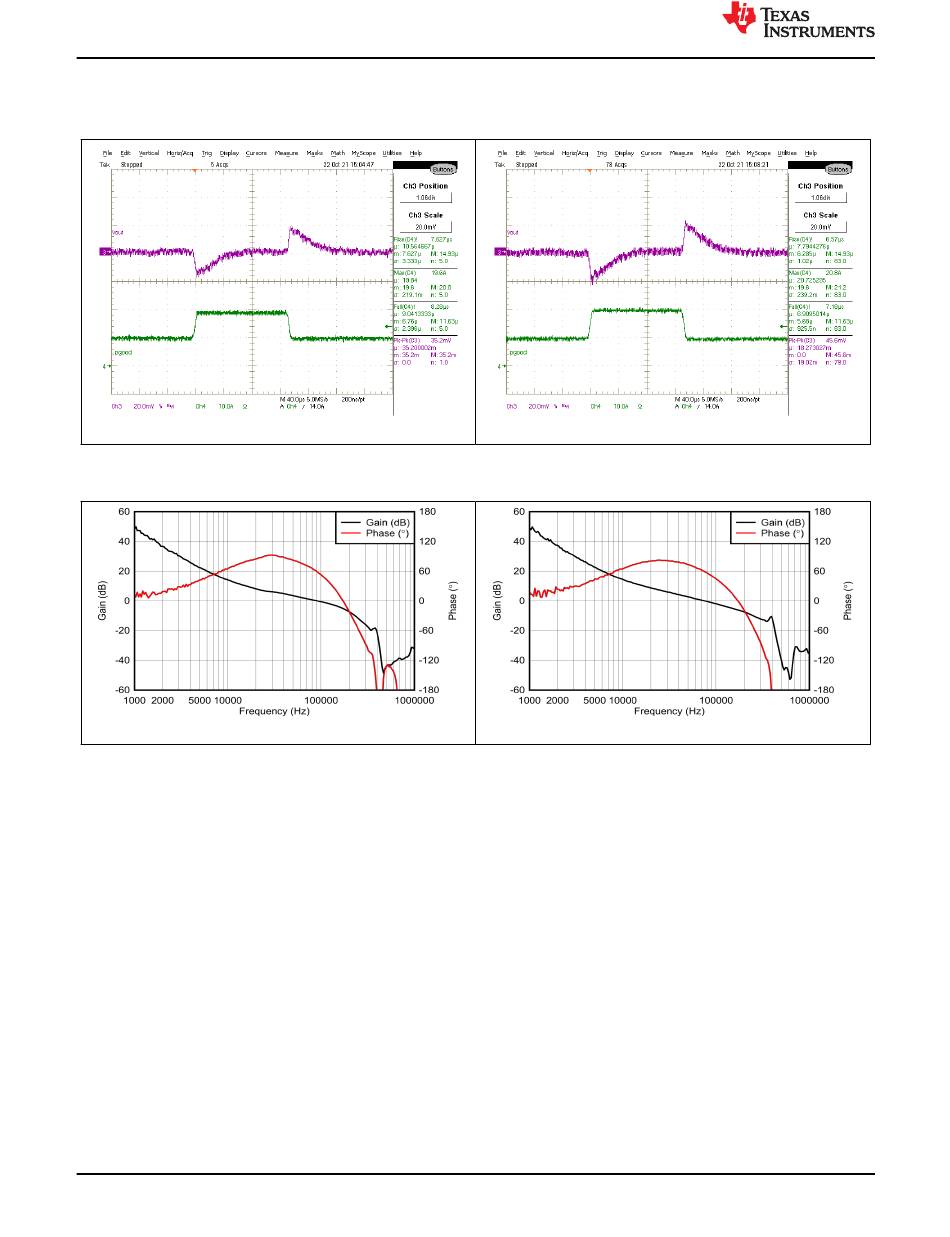

7.4 Transient Response

Figure 7-7 and Figure 7-8

Figure 7-7. VOUT_A Transient Response

7.5 Control Loop Bode Plot

Figure 7-9. VOUT_A Bode Plot, 35-A Load

12 TPSM8D6C24EVM-2V0 User's Guide
show the transient response waveform with a 10-A to 20-A transient at 1 A/µs.
Copyright © 2021 Texas Instruments Incorporated

Figure 7-8. VOUT_B Transient Response

Figure 7-10. VOUT_B Bode Plot, 35-A Load
