Chapter 1
INTRODUCTION

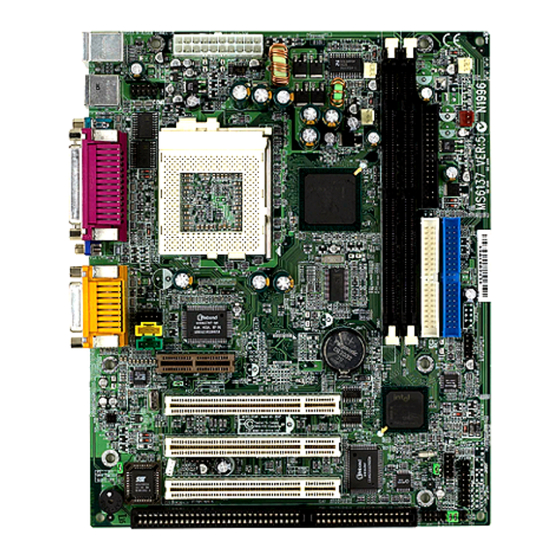

The MICRO ATX WH1 mainboard is a high-performance computer
®
mainboard based on Intel
810 chipset. The MS-6137 is designed for the
®
TM
Intel
Celeron
(PPGA) processor for inexpensive business/personal
desktop markets.
®
The Intel
810 chipset is the first generation Integrated Graphics chipset for
®
TM
the Intel
Celeron
processor. The graphics accelerator architecture
consists of dedicated multi-media engines executing in parallel to deliver
high performance 3D, 2D, and motion compensation video capabilities. An
integrated centralized memory arbiter allocates memory bandwidth to
multiple system agents to optimize system memory utilization. A new
chipset component interconnect, the hub interface, is designed into the Intel
810 chipset to provide an efficient communication channel between the
memory controller hub and I/O hub controller.
®
The Intel
810 chipset contains three core components: the Graphics and
Memory Controller Hub (GMCH/GMCH0), the I/O Controller Hub (ICHO/
ICH) and the Firmware Hub (FWH). The GMCH integrates a 66/100MHz, P6
family system bus controller, integrates 2D/3D graphics accelerator, 100MHz
SDRAM controller and high-speed hub interface for communication with the
ICHO/ICH. The ICHO/ICH integrates an Ultra ATA/33(ICHO) or Ultra ATA/
66(ICH) controller, USB host controller, LPC interface controller, FWH
interface controller, PCI interface controller, AC'97 digital controller and a
hub interface for communication with the GMCH/GMCH0.
®
®
The Intel
82802 Firmware Hub (FWH) component is part of the Intel
810
chipset. The FWH is key to enabling future security and manageability
infrastructure for the PC platform.
1-1

Advertisement

Table of Contents
loading

Summary of Contents for MSI MS-6137

  • Page 1 Chapter 1 INTRODUCTION The MICRO ATX WH1 mainboard is a high-performance computer ® mainboard based on Intel 810 chipset. The MS-6137 is designed for the ® Intel Celeron (PPGA) processor for inexpensive business/personal desktop markets. ® The Intel 810 chipset is the first generation Integrated Graphics chipset for ®...
  • Page 2: Mainboard Features

    1.1 Mainboard Features ® Support Socket370 for Intel Celeron processor. Support 300MHz, 333MHz, 366MHz, 400MHz, 433MHz, 466Mhz , 500Mhz or higher Chipset ® Intel 810 (GMCH) chipset. (421 BGA) - Integrated Graphics Controller - Intel DDM Architecture - SDRAM memory Independent of System Bus ®...
  • Page 3 On-Board Peripherals On-Board Peripherals include: - 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes. - 2 serial port (COMA + COMB) - 1 parallel port supports SPP/EPP/ECP mode - 2 USB ports and 1 USB connector(shared) - 1 IrDA connector for SIR - 1 VGA port Video...
  • Page 4 System Hardware Monitor CPU/Power Supply Fan Revolution Detect CPU Fan Control (the fan will automatically stop when the system enters suspend mode) System Voltage Detect CPU Overheat Warning. Display Actual Current Voltage Other Features Keyboard Password Wake-Up (reserved) LAN Wake-Up Internal/External Modem Wake-Up...
  • Page 5: Mainboard Layout

    SDRAM SDRAM Top: Midi/ Game Port Bottom: CD_IN Line-Out Line-In AUX_IN MODEM_IN Front USB Connector PCI SLOT 1 JGL2 JWOL1 JGL1 JGS1 PCI SLOT 2 JMDM1 JBAT1 BATT PCI SLOT 3 ISA SLOT 1 JFP1 MS-6137 MICRO ATX WH1 Mainboard...
  • Page 6: Hardware Installation

    Chapter 2 HARDWARE INSTALLATION ® The mainboard operates with Intel Celeron processor. The mainboard uses a CPU socket called Socket 370 for easy CPU installation. The CPU should always have a Heat Sink and a cooling fan attached to prevent overheating.
  • Page 7: Cpu Core Speed Derivation Procedure

    2.1-2 CPU Core Speed Derivation Procedure The mainboard CPU Bus Frequency can be set through BIOS setup CPU Clock 66MHz Core/Bus ratio then CPU core speed Host Clock x Core/Bus ratio 66MHz x 3.5 233MHz 2.1-3 Overclocking Jumper: J2 (optional) Overclocking is operating a CPU/Processor beyond its specified frequency.
  • Page 8 2.1-4 Fan Power Connectors: CPUFAN/PSFAN1 These connectors support system cooling fan with + 12V. It supports three pin head connector. When connecting the wire to the connector, always take note that the red wire is the positive and should be connected to the +12V, the black wire is Ground and should be connected to GND.
  • Page 9 A battery must be used to retain the mainboard configuration in CMOS RAM. Short 1-2 pins of JBAT1 to store the CMOS data. JBAT1 Clear Data Keep Data Note: You can clear CMOS by shorting 2-3 pin, while the system is off. Then, return to 1-2 pin position.
  • Page 10: Memory Bank Configuration

    2.3-1 Memory Bank Configuration The mainboard supports a maximum memory size of 256MB(64-bit technol- ogy) or 512MB(128-bit technology for SDRAM). It provides two 168-pin unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports 8 MB to 128 Mbytes DIMM memory module.
  • Page 11: Memory Installation Procedures

    2.3-2 Memory Installation Procedures A. How to install a DIMM Module Single Sided DIMM Double Sided DIMM 1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the DIMM memory module can only fit in one direction. 2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in.
  • Page 12: Memory Population Rules

    2.3-3 Memory Population Rules 1. Supports only SDRAM DIMM. 2. To operate properly, at least one 168-pin DIMM module must be in- stalled. 3. This mainboard supports Table Free memory, so memory can be installed on DIMM1 or DIMM 2 in any order. 4.
  • Page 13 The Keylock, Power Switch, Reset Switch, Power LED, Speaker, and HDD LED are all connected to the JFP1 connector block. Keylock Buzzer Power LED (short pin) Single Dual Color Color Speaker Power Switch Reset Switch JFP1...
  • Page 14 2.4-1 Power Switch Connect to a 2-pin push button switch. This switch has the same feature with JRMS1. 2.4-2 Reset Switch Reset switch is used to reboot the system rather than turning the power ON/ OFF. Avoid rebooting while the HDD LED is lit. You can connect the Reset switch from the system case to this pin.
  • Page 15 The mainboard also provides a standard floppy disk connector FDD that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cables. 2-10...
  • Page 16 The mainboard has a 32-bit Enhanced PCI IDE Controller that provides PIO mode 0~4, Bus Master, and Ultra DMA/33 function. It has two HDD connectors IDE1 (primary) and IDE2 (secondary). You can connect up to four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices to IDE1 and IDE2.
  • Page 17: Atx 20-Pin Power Connector: Jwr1

    2.7-1 ATX 20-pin Power Connector: JWR1 This connector supports the power button on-board. Using the ATX power supply, functions such as Modem Ring Wake-Up and Soft Power Off are supported by this mainboard. This power connector supports instant power on function which means that system will boot up instantly when the power connector is inserted on the board.
  • Page 18 2.7-2 Remote Power On/Off Switch: JSW1 (optional) Connect to a 2-pin push button switch. During OFF state, press once and the system turns on. During ON stage, push once and the system goes to sleep mode: pushing it more than 4 seconds will change its status from ON to OFF.
  • Page 19 The mainboard provides one infrared (IR) connector for IR modules. This connector is for optional wireless transmitting and receiving infrared module. You must configure the setting through the BIOS setup to use the IR function. VCC NC IRRX GND IRTX 2-14...
  • Page 20 The mainboard has a 9-pin male DIN connector for serial port COM A. This port is a 16550A high speed communication port that send/receive 16 bytes FIFOs. You can attach a mouse or a modem cable directly into this connec- tor.
  • Page 21 The mainboard provides a 25 pin female centronic connector for LPT. A parallel port is a standard printer port that also supports Enhanced Parallel Port(EPP) and Extended capabilities Parallel Port(ECP). See connector and pin definition below: Parallel Port (25-pin Female) LPT 1 PIN DEFINITION SIGNAL...
  • Page 22 ® The mainboard provides a standard PS/2 mouse mini DIN connector for ® ® attaching a PS/2 mouse. You can plug a PS/2 mouse directly into this connector. The connector location and pin definition are shown below: Pin5 Mouse Clock Pin6 Pin3 Pin4...
  • Page 23 You can connect joystick or game pad to this connector. Joystick/MIDI Line Out is a connector for Speakers or Headphones. Line In is used for external CD player, Tape layer, or other audio devices. Mic is a connector for the microphones. Line Out Line In Mic 1/8”...
  • Page 24 The mainboard provides a UHCI(Universal Host Controller Interface) Universal Serial Bus root for attaching USB devices like: keyboard, mouse and other USB devices. You can plug the USB device directly to this connector. USB Port 2 1 2 3 4 USB Port 1 SIGNAL -Data0...
  • Page 25 The mainboard provides a front Universal Serial Bus connector. This is an optional USB connector for Front Panel. USB Front Connector 2-20...
  • Page 26 This jumper is used to Enabled or Disabled the USB Front Connector. If the USB Front connector is set to enabled, the top USB port at the rear I/O panel will be disabled. If the USB Front connector is set to disabled, the USB ports at rear I/O panel will both be operational.
  • Page 27 Attach a power saving switch to JGS1. When the switch is pressed, the system immediately goes into suspend mode. Press any key and the system wakes up. JGS1 2-22...
  • Page 28 JGL1 can be connected with two-color LED. There are two types of LED that you can use: 3-pin LED or 2-pin LED(ACPI request). When the 2-pin LED is connected to JGL1, the light will turn green, when system is On. During sleep mode, the 2-pin LED will change color from Green to Orange.
  • Page 29 The JWOL1 connector is for use with LAN add-on cards that supports Wake Up on LAN function. To use this function, you need to set the “Wake-Up on LAN” to enable at the BIOS Power Management Setup. JWOL1 SIGNAL 5VSB MP_WAKEUP Note: LAN wake-up signal is active “high”.
  • Page 30 The JMDM1 connector is for use with Modem add-on card that supports the Modem Wake Up function. To use this function, you need to set the “Resume By Ring” to enable at the BIOS Power Management Setup. JMDM1 SIGNAL MDM_WAKEUP 5VSB Note: Modem wake-up signal is active “low”.
  • Page 31 The connector is for Modem with internal voice connector. SPK IN MIC OUT SPK_IN is connected to the Modem Speaker Out connector. MIC_OUT is connected to the Modem Microphone In connector. 2-26...
  • Page 32 This connector is used for DVD Add on Card with Line In connector. 2-27...
  • Page 33 This connector is for CD-ROM audio connector. 2-28...
  • Page 34 The JKBV1 jumper is for setting keyboard power. This function should be set in the BIOS for the keyboard Wake-up function. JKBV1 5V (default) 5V Standby Disable keyboard Enable keyboard power on function power on function Note: To be able to use this function, you need a power supply that provide enough power for this feature.
  • Page 35 The J1 jumper is used to clear the Keyboard Password and CMOS. When using this jumper, you need to unplug the power cord from the power source. The jumper should be shorted more than 3 sec. Normal Clear Operation Keyboard Password 2-30...
  • Page 36 This connector is connected to 2-pin connector chassis switch. If the Chassis is open, the switch will be open. The system will record this status. To clear the warning, you must enter the BIOS settting and clear the status. 2-31...
  • Page 37 This jumper is used to locked/unlocked BIOS Flash. This Jumper should be unlock when flashing/programming the BIOS. BIOS Flash BIOS Flash Unlocked Locked 2-32...
  • Page 38 This jumper is used to Enabled/Disabled the audio onboard. Enabled Disabled 2-33...
  • Page 39 This jumper is used to Enabled/Disabled the transfering of the audio signal from case speaker to audio speaker. To Audio Normal Speaker 2-34...
  • Page 40 With 2-pin LED,this connector can be connected with LED, to show the power status. With 3-pin LED, this connector can be connected with Power LED and Green LED. Green LED Power LED JGL2 2-35...
  • Page 41 This jumper is used to enable/disable the STR(Suspend to RAM) function. Enabled Disabled 2-36...
  • Page 42 The Audio/Modem Riser specification is an open industry-standard specification that defines a hardware scalable Original Equipment Manufacturer (OEM) mainboard riser board and interface, which supports both audio and modem. 2-37...
  • Page 43 The Panel link/TV-Out Interface (PTI) is a MSI in-house design which supports either Panel link or TV-out function. To be able to utilize both AMR and PTI simultaneously, you need to use MSI products like MS-5965 & MS-5966 or MS-5964 & MS-5966.
  • Page 44: Award Bios Setup

    ® Chapter 3 AWARD BIOS SETUP ® Award BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed RAM (CMOS RAM), so that it retains the Setup information when the power is turned off.
  • Page 45: Status Page Setup Menu/Option Page Setup Menu

    ® Power on the computer and press <Del> immediately to allow you to enter Setup. The other way to enter Setup is to power on the computer. When the below message appears briefly at the bottom of the screen during the POST (Power On Self Test), press <Del>...
  • Page 46: Standard Cmos Setup

    ® ® Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen. The Main Menu allows you to select from twelve setup functions and two exit choices. Use arrow keys to select among the items and press <Enter>...
  • Page 47 ® Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system’s performance. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power Management Setup Use this menu to specify your settings for power management. PnP/PCI Configuration This entry appears if your system supports PnP/PCI.
  • Page 48 ® The items in Standard CMOS Setup Menu are divided into 10 catego- ries. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
  • Page 49 ® Date The date format is <day><month> <date> <year>. Day of the week, from Sun to Sat, determined by BIOS. Read-only. month The month from Jan. through Dec. date The date from 1 to 31 can be keyed by numeric function keys.
  • Page 50 ® If the controller of HDD interface is SCSI, the selection shall be “None”. If the controller of HDD interface is CD-ROM, the selection shall be “None”. Access Mode The settings are Auto, Normal, Large,LBA. Cylinder number of cylinders Head number of heads Precomp write precom...
  • Page 51: Anti-Virus Protection

    ® CMOS Setup Utility - Copyright(C) 1984-1999 Award Software Advanced BIOS Features Anti-Virus Protection Disabled CPU Internal Cache Enabled Item Help External Cache Enabled CPU L2 Cache ECC Checking Enabled Quick Power On Self Test Disabled Menu Level > First Boot device Floppy Second Boot device HDD-0...
  • Page 52 ® CPU Internal Cache The default value is Enabled. Enabled (default) Enable cache Disabled Disable cache Note: The internal cache is built in the processor. External Cache Choose Enabled or Disabled. This option enables the level 2 cache memory. CPU L2 Cache ECC Checking Choose Enabled or Disabled.
  • Page 53 ® Boot Up NumLock Status The default value is On. On (default) Keypad is numeric keys. Keypad is arrow keys. Gate A20 Option Normal The A20 signal is controlled by keyboard controller or chipset hardware. Fast(default) The A20 signal is controlled by port 92 or chipset specific method.
  • Page 54 ® OS Selection for DRAM > 64MB ® Allows OS2 to be used with > 64 MB of DRAM. Settings are Non- OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running ® OS/2 Report No FDD For Win 95 Whether report no FDD for Win 95 or not.
  • Page 55 ® The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer. Choose the “ADVANCED CHIPSET FEATURES” from the Main Menu and the following screen will appear. CMOS Setup Utility - Copyright(C) 1984-1999 Award Software Advanced Chipset Features SDRAM CAS Latency Time...
  • Page 56 ® SDRAM CAS latency Time When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. The settings are: 2 and 3. SDRAM Cycle Time Tras/Trc Select the number of SCLKs for an access cycle. The settings are: 5/7 and 6/8.
  • Page 57: Video Bios Cacheable

    ® Video BIOS Cacheable Select Enabled allows caching of the video BIOS , resulting in better system performance. However, if any program writes to this memory area, a system error may result. The settings are: Enabled and Disabled. Memory Hole At 15M-16M You can reserve this area of system memory for ISA adapter ROM.
  • Page 58: Onchip Primary/Secondary Pci Ide

    ® CMOS Setup Utility - Copyright(C) 1984-1999 Award Software Integrated Peripherals OnChip Primary PCI IDE Enabled OnChip Secondary PCI IDE Enabled Item Help IDE Primary Master PIO Auto IDE Primary Slave PIO Auto IDE Secondary Master PIO Auto Menu Level >...
  • Page 59: Ide Primary/Secondary Master/Slave Pio

    ® IDE Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.
  • Page 60 ® IDE HDD Block Mode Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The settings are: Enabled, Disabled.
  • Page 61: Onboard Parallel Mode

    ® Onboard Parallel Port Disabled There is a built-in parallel port on the (3BCH/IRQ7)/ on-board Super I/O chipset that pro- (278H/IRQ5)/ vides Standard, ECP, and EPP features. (378H/IRQ7) It has the following options: Disable 3BCH/IRQ7 Line Printer port 0 278H/IRQ5 Line Printer port 2 378H/IRQ7 Line Printer port 1...
  • Page 62: Pwron After Pwr-Fail

    ® channels 3 or 1. The onboard parallel port is EPP Spec. compliant, so after the user chooses the onboard parallel port with the EPP function, the following message will be displayed on the screen: “EPP Mode Select.” At this time either EPP 1.7 spec.
  • Page 63: Acpi Function

    ® The Power Management Setup allows you to configure your system to most effectively save energy while operating in a manner consistent with your own style of computer use. CMOS Setup Utility - Copyright(C) 1984-1999 Award Software Power Management Setup ACPI Function Enabled ACPI Suspend Type...
  • Page 64: Acpi Suspend Type

    ® ACPI Suspend Type This item will set which ACPI suspend type will be used. Power Management This category allows you to select the type (or degree) of power saving and is directly related to the following modes: Suspend Mode HDD Power Down There are three selections for Power Management, two of which have fixed mode settings.
  • Page 65: Soft-Off By Pwrbtn

    ® Video Off In Suspend This determines the manner in which the monitor is blanked. The settings are: Yes and No. Suspend Type Select the Suspend Type. The settings are: PWRON Suspend, Stop Grant. Modem Use IRQ This determines the IRQ in which the MODEM can use. The settings are: 3, 4, 5, 7, 9, 10, 11, NA.
  • Page 66: Wake-Up On Lan

    ® Power on by Ring During Disabled, the system will ignore any incoming call from the modem. During Enabled, the system will boot up if there’s an incoming call from the modem. NOTE: If you have change the setting, you must let the system boot up until it goes to the operating system, before this function will work.
  • Page 67 ® Reload Global Timer events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything which occurs to a device which is configured as Enabled , even when the system is in a power down mode.
  • Page 68: Reset Configuration Data

    ® This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.
  • Page 69: Resource Controlled By

    ® Resource Controlled By The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and ® Play operating system such as Windows 95/98.
  • Page 70: Cpu Warning Temperature

    ® This section shows the Status of you CPU, Fan, Warning for overall system status. CMOS Setup Utility - Copyright(C) 1984-1999 Award Software PC Health Status CPU Warning Temperature Disabled Current System Temp C/102 Item Help Current CPU1 Temperature C/150 Current CPUFAN2 Speed 0RPM Current CPUFAN3 Speed...
  • Page 71 ® Current System Temp/Current CPU1 Temperature/Current CPUFAN2/CPUFAN3 Speed/IN0/1/3/+5V/+12V/-12V/-5V/ VBAT(V)/5VSB(V) This will show the CPU/FAN/System voltage chart and FAN Speed. 3-28...
  • Page 72: Auto Detect Dimm/Pci Clk

    ® This section is for setting CPU Frequency/Voltage Control. CMOS Setup Utility - Copyright(C) 1984-1999 Award Software CPU Plug & Play III Auto Detect DIMM/PCI Clk Enabled CPU Clock/Spread Spectrum Default Item Help CPU Ratio Auto Menu Level > ↑ ↓ → ← Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults Auto Detect DIMM/PCI CLK This item allows you to enable/disable auto detect DIMM/PCI Clock.
  • Page 73 ® Load Fail-Safe Defaults When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Fail-Safe Defaults (Y/N) ? N Pressing ‘Y’ loads the BIOS default values for the most stable, minimal- performance system operations.
  • Page 74 ® You can set either supervisor or user password, or both of them. The differences are: Supervisor password : can enter and change the options of the setup menus. User password Can only enter but do not have the right to change the options of the setup menus.
  • Page 75 ® You determine when the password is required within the BIOS Features Setup Menu and its Security option. If the Security option is set to “Sys- tem”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.
  • Page 76: Intel 810 Integrated Graphics Controller

    CHAPTER 4 VGA DRIVER Chapter 4 INTEL 810 INTEGRATED GRAPHICS CONTROLLER 1. Overview The Intel 810 Chipset extends Intel’s graphics capabilities into the value PC segment by incorporating 2D and 3D capabilities with the memory controller, to provide the industry with complete graphics offerings for every comput- ing segment.
  • Page 77: System Requirements

    CHAPTER 4 VGA DRIVER 1.2 System Requirements This section describes system requirements for the VGA Driver installa- tion and Usage. ® Computer Intel Celeron processor or higher Monitor VGA Support, mimimum 640x480 resolu- tion ® Operating system DOS 5.0 or higher, Windows 95/98, ®...
  • Page 78: Intel 810 Vga Driver Setup & Usage Procedures

    CHAPTER 4 VGA DRIVER 2. Intel 810 VGA Driver Setup & Usage Procedures Insert the CD-title into your CD-ROM drive. This CD will auto-run. This will display installation for VGA driver and sound driver, Intel 810/820 INF Update (only for Windows 95/98) and Trend PC-cillin 98. Just click the button for automatic installation for VGA driver.
  • Page 79 CHAPTER 4 VGA DRIVER ® 2.2 Windows NT 4.0 ® You need to install Windows NT “Service Pack 3” or higher, ® before you install Windows NT driver. 2.2-1 Display Driver Installation Procedure: Step 1: Click Start menu and select Control Panel from Settings group.
  • Page 80 CHAPTER 4 VGA DRIVER 2.2-2 Changing resolution, color depth, and refresh rate: Step 1: Click Start menu and select Control Panel from Settings group. Step 2: Select Display icon. Step 3: Select Settings. Step 4: Select Color Palette to change between 256 color, 65536 colors, and 16777216 colors.
  • Page 81: Ich Audio Driver

    CHAPTER 5 AUDIO DRIVER Chapter 5 ICH AUDIO DRIVER 1. Overview The ICH AC’ 97 digital controller provides the next generation of audio performance to the PC market. 1.1 Features PCI Bus Master for fast DMA. Fully Compliant with PC97 Power Management Specification. 1.2 System Requirements This section describes system requirements for the Audio Driver installation and Usage.
  • Page 82: Audio Driver Setup & Usage Procedures

    CHAPTER 5 AUDIO DRIVER 2. Audio Driver Setup & Usage Procedures Insert the CD-title into your CD-ROM drive. This CD will auto-run. This will display installation for VGA driver and sound driver, Intel 810/820 INF Update (only for Windows 95/98) and Trend PC-cillin 98. Just click the button for automatic installation for audio driver.
  • Page 83 CHAPTER 5 AUDIO DRIVER ® 2.2 Windows NT 4.0 2.2-1 Audio Driver Installation Procedure: Step 1: Insert the provided CD_ROM disk into the CD-ROM drive. Step 2: Look for the CD_ROM drive, double click on the CD_ROM icon. This will show the setup screen. Step 3: Click on “ADI SoundMax Drivers”...
