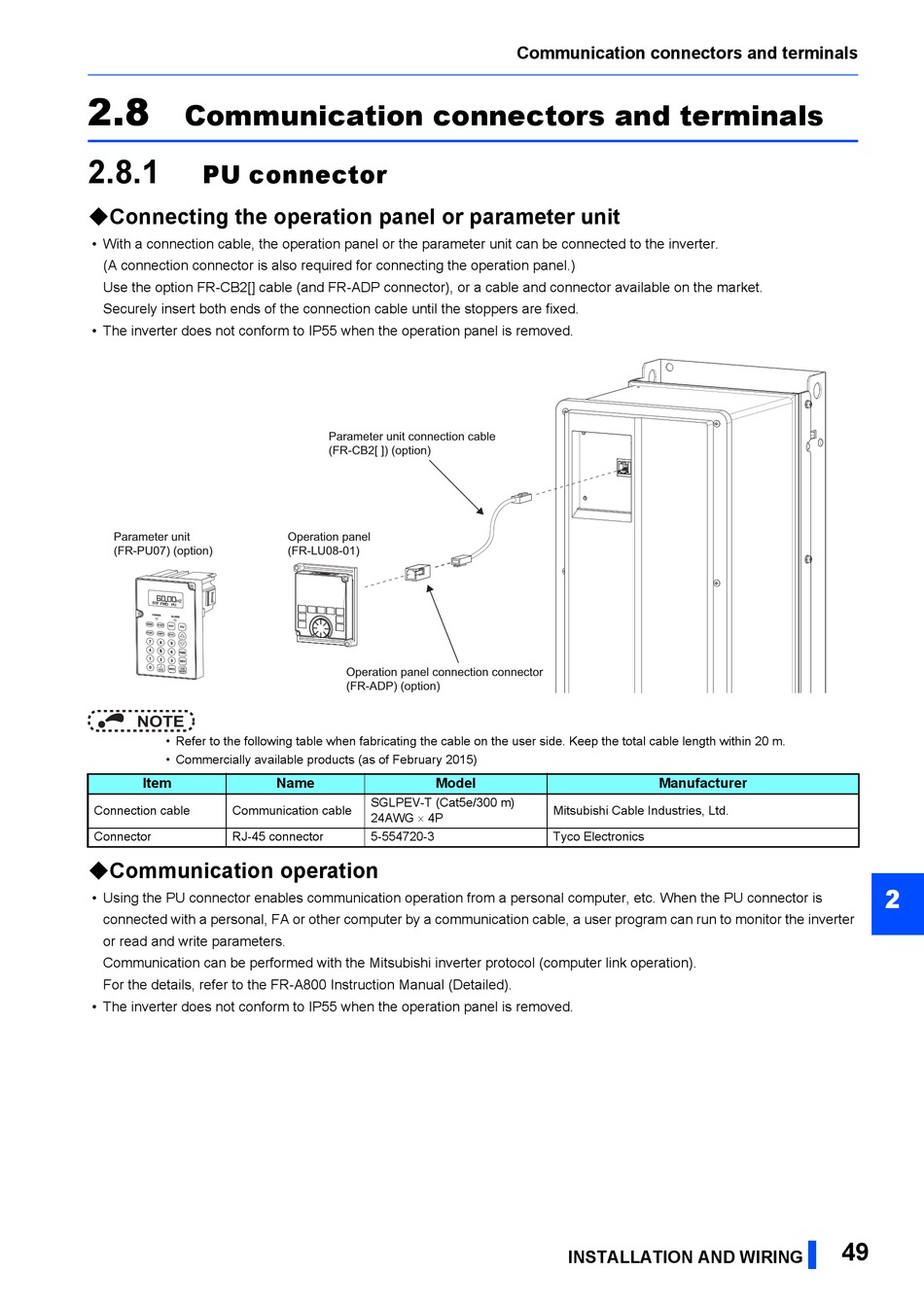

2.8

Communication connectors and terminals

2.8.1
PU connector
Connecting the operation panel or parameter unit
• With a connection cable, the operation panel or the parameter unit can be connected to the inverter.
(A connection connector is also required for connecting the operation panel.)
Use the option FR-CB2[] cable (and FR-ADP connector), or a cable and connector available on the market.
Securely insert both ends of the connection cable until the stoppers are fixed.
• The inverter does not conform to IP55 when the operation panel is removed.
Parameter unit
(FR-PU07) (option)
NOTE
• Refer to the following table when fabricating the cable on the user side. Keep the total cable length within 20 m.
• Commercially available products (as of February 2015)
Item
Connection cable Communication cable
Connector RJ-45 connector
Communication operation
• Using the PU connector enables communication operation from a personal computer, etc. When the PU connector is
connected with a personal, FA or other computer by a communication cable, a user program can run to monitor the inverter
or read and write parameters.
Communication can be performed with the Mitsubishi inverter protocol (computer link operation).
For the details, refer to the FR-A800 Instruction Manual (Detailed).
• The inverter does not conform to IP55 when the operation panel is removed.
Parameter unit connection cable
(FR-CB2[ ]) (option)
Operation panel
(FR-LU08-01)
Operation panel connection connector
(FR-ADP) (option)
Name Model
SGLPEV-T (Cat5e/300 m)
24AWG  4P
5-554720-3
Communication connectors and terminals
Manufacturer
Mitsubishi Cable Industries, Ltd.
Tyco Electronics
INSTALLATION AND WIRING
2
49
