Page 1: Table Of Contents

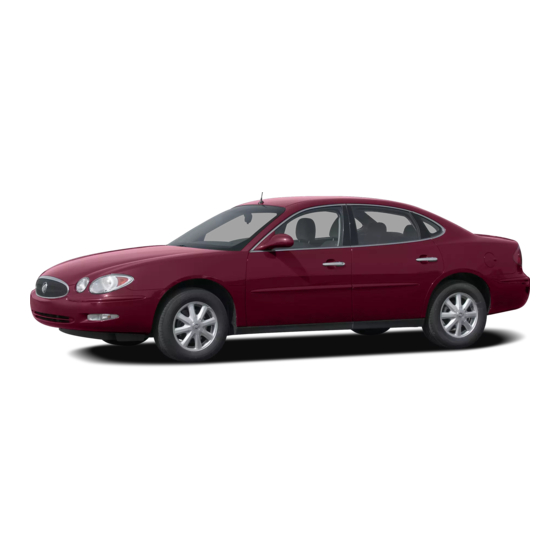

2007 Buick LaCrosse Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 9 Rear Seats ... 14 Safety Belts ... 16 Child Restraints ... 39 Airbag System ... 66 Restraint System Check Features and Controls ... 85 Keys ...
Page 2 Windshield Replacement Windshield Wiper Blade Replacement Tires ... 402 Appearance Care ... 438 Vehicle Identiﬁcation ... 448 Electrical System ... 449 Capacities and Speciﬁcations ... 401 Maintenance Schedule ... 457 ... 401 Maintenance Schedule Customer Assistance Information ... 477 Customer Assistance and Information Reporting Safety Defects ...
Page 3: How To Use This Manual
We reserve the right to make changes after that time without notice. For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Buick Motor Division whenever it appears in this manual. This manual describes features that may be available in this model, but your vehicle may not have all of them.
Page 4: Safety Warnings And Symbols
Index A good place to quickly locate information about the vehicle is the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found. Safety Warnings and Symbols There are a number of safety cautions in this book.
Page 5 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ... 9 Power Seats ... 9 Power Lumbar ... 10 Heated Seats ... 10 Reclining Seatbacks ... 11 Head Restraints ... 13 Center Seat ... 14 Rear Seats ... 14 Split Folding Rear Seat ... 14 Safety Belts ...
Page 8 Section 1 Airbag System ... 66 Where Are the Airbags? ... 68 When Should an Airbag Inﬂate? ... 71 What Makes an Airbag Inﬂate? ... 73 How Does an Airbag Restrain? ... 73 What Will You See After an Airbag Inﬂates? ...
Page 9: Front Seats
Front Seats Power Seats Driver’s Side shown, Passenger Side similar If the vehicle has power seats, the controls used to operate them are located on the outboard side of the seats. To adjust the seat, do any of the following: •...
Page 10: Power Lumbar
Power Lumbar Your driver’s seat may have power lumbar. The control is located on the outboard side of the seat cushion. Press the front of the control to increase lumbar support. Press the rear of the control to decrease lumbar support. Keep in mind that as your seating position changes, as it may during long trips, so should the position of your lumbar support.
Page 11: Reclining Seatbacks
Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 12 To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked.
Page 13: Head Restraints
Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the head restraint up to raise it.
Page 14: Rear Seats
Center Seat Your vehicle may have a front center seat. There are cupholders on the underside of the seat cushion. To use them, raise the seat cushion. This seat can also be converted to a storage area by lowering the armrest. See Center Console Storage Area on page 142.
Page 15 To lower the rear seatback, pull the tab located on the outboard side of the seatback and fold the seatback forward. To raise the rear seatback, lift the seatback up until it latches. Push and pull on the seatback to be sure it is locked in position.
Page 16: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 17: Why Safety Belts Work
A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without belts they could have been badly hurt or killed.
Page 18 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 19 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
Page 20: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
Page 21: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
Page 22: Driver Position
Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 3.
Page 23 6. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
Page 24 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 25 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 26 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 27 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 28 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 29: Shoulder Belt Height Adjustment
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 30: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 31: Center Front Passenger Position
Center Front Passenger Position Lap Belt If your vehicle has a front bench seat, someone can sit in the center position. When you sit in the center front seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.
Page 32: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 33 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
Page 34 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt.
Page 35: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 36 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat.
Page 37 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 38: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are part of the safety belt assembly. They help tighten the safety belts during the early stages of a moderate to severe frontal or near frontal crash if the threshold conditions for pretensioner activation are met.
Page 39: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 40 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 41 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 42: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 43 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for CAUTION: (Continued) CAUTION: (Continued) adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 44 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 45: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 46 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 47 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 48 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the...
Page 49 Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 50: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 51 CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the right front passenger’s airbag if it inﬂates. Never secure a child restraint in the center front seat. It is always better to secure a child restraint in the rear seat.
Page 52 Not all vehicle seating positions or child restraints have lower anchors and attachments or top tether anchors and attachments. Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B).
Page 53 Your child restraint may have a single tether (A) or a dual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor. Some child restraints that have top tethers are designed for use with or without the top tether being attached.
Page 54 To assist you in locating the top tether anchors, the top tether anchor symbol is located on the trim cover. The top tether anchors are located under the trim covers on the rear seatback ﬁller panel. Flip open the trim cover to access the anchors. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 55 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
Page 56 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been...
Page 57 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped. Refer to the child restraint instructions and the following steps: 2.1. Find the top tether anchor. 2.2.
Page 58: Securing A Child Restraint In A Rear Seat Position
If the position you are using has a ﬁxed headrest and you are using a dual tether, route the tether around the head restraint. 3. Push and pull the child restraint in different directions to be sure it is secure. Securing a Child Restraint in a Rear Seat Position If your child restraint has the LATCH system, see...
Page 59 3. Buckle the belt. Make sure the release button 4. Pull the rest of the shoulder belt all the way is positioned so you would be able to unbuckle out of the retractor to set the lock. the safety belt quickly if you ever had to.
Page 60 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 61: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Center Front Seat Position CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the right front passenger’s airbag if it inﬂates. Never secure a child restraint in the center front seat.
Page 62 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 63 See Lower Anchors and Tethers for Children (LATCH) on page 51 if your child restraint has a top tether. You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.
Page 64 5. Pull the rest of the shoulder belt all the way 6. To tighten the belt, push down on the child out of the retractor to set the lock. restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor.
Page 65 7. Push and pull the child restraint in different directions to be sure it is secure. 8. If the airbag is off, the off indicator on the instrument panel will be lit and stay lit when the key is turned to RUN or START. If a child restraint has been installed and the on indicator is lit, turn the vehicle off.
Page 66: Airbag System
Airbag System Your vehicle has a frontal airbag for the driver and a frontal airbag for the right front passenger. Your vehicle may also have roof-mounted side impact airbags. Roof-mounted side impact airbags are available for the driver and the passenger seated directly behind the driver and for the right front passenger and the passenger seated directly behind that passenger.
Page 67 CAUTION: (Continued) rollover, rear crashes, or in many side crashes. And, for some unrestrained occupants, frontal airbags may provide less protection in frontal crashes than more forceful airbags have provided in the past. Roof-mounted side impact airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your vehicle.
Page 68: Where Are The Airbags
CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 69 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted side impact airbag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows.
Page 70 If your vehicle has a roof-mounted side impact airbag for the right front passenger and the person directly behind that passenger, it is located in the ceiling above the side windows. CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 71: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in...
Page 72 Frontal airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbags could inﬂate at a different crash speed than if the vehicle hits a moving object. • If the vehicle hits an object that deforms, the airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.
Page 73: What Makes An Airbag Inﬂate
In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs were. For frontal airbags, inﬂation is determined by what the vehicle hits, the angle of the impact, and how quickly the vehicle slows down.
Page 74: What Will You See After An Airbag
What Will You See After an Airbag Inﬂates? After a frontal airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Roof-mounted side impact airbags may still be at least partially inﬂated minutes after the vehicle comes to rest.
Page 75: Passenger Sensing System
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After airbags inﬂate, you will need some new parts for the airbag system.
Page 76 The passenger sensing system works with sensors that are part of the right front passenger’s seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the passenger’s frontal airbag should be enabled (may inﬂate) or not. Accident statistics show that children are safer if they are restrained in the rear rather than the front seat.
Page 77 CAUTION: (Continued) If you need to secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat. The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: •...
Page 78 If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle and check with your dealer. The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat.
Page 79 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 80: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 81: Adding Equipment To Your
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 82: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 83: Replacing Restraint System Parts
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as...
Page 84 NOTES...
Page 85: Features And Controls
Section 2 Keys ... 87 Remote Keyless Entry (RKE) System ... 89 Remote Keyless Entry (RKE) System Operation ... 90 Doors and Locks ... 96 Door Locks ... 96 Power Door Locks ... 97 Delayed Locking ... 97 Automatic Door Lock ... 98 Programmable Automatic Door Unlock ...
Page 86 Section 2 ® OnStar System ... 126 Universal Home Remote System ... 130 Universal Home Remote System (With Three Round LED) ... 130 Universal Home Remote System (With One Triangular LED) ... 130 Universal Home Remote System Operation (With Three Round LED) ... 131 Universal Home Remote System Operation (With One Triangular LED) ...
Page 87: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 88 One key is used for the ignition and all locks. When a new vehicle is delivered, the key has a bar-coded key tag. This tag may be removed by your dealer before it is delivered. The vehicle has the PASS-Key system.
Page 89: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System Your Remote Keyless Entry (RKE) system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 90 Remote Keyless Entry (RKE) System Operation The vehicle’s doors can be locked and unlocked, and the trunk can be opened from about 3 feet (1 m) up to 60 feet (18 m) away with the Remote Keyless Entry (RKE) transmitter. If your vehicle has the remote start feature, you can also start the vehicle’s engine with the RKE transmitter.
Page 91 " (Unlock): Press the unlock button to unlock the driver’s door. If the button is pressed again within ﬁve seconds, all remaining doors will unlock. The interior lamps will come on and stay on for 20 seconds or until the ignition is turned on. If enabled through the DIC, the parking lamps can be programmed to come on for a set amount of time when the vehicle is unlocked using the...
Page 92 Notice: When replacing the battery, use care not to touch any of the circuitry. Static from your body transferred to these surfaces may damage the transmitter. To replace the battery in the RKE transmitter, do the following: 1. Insert a ﬂat object, with a thin edge, into the notch located below the panic alarm button, and separate the bottom half from the top half of the transmitter.
Page 93 Remote Vehicle Start Your vehicle may have a remote starting feature. This feature allows you to start the engine from outside of the vehicle. It may also start up the vehicle’s heating or air conditioning systems and rear window defogger. When the remote start system is active, the climate control system will heat or cool the inside of the vehicle based on the outside temperature.
Page 94 (Remote Start): If your vehicle has the remote start feature, the RKE transmitter will have a button with this symbol on it. To start the vehicle using the remote start feature, do the following: 1. Aim the transmitter at the vehicle. 2.
Page 95 The remote vehicle start feature will not operate if any of the follow occur: • The remote start system is disabled through the DIC. • The vehicle’s key is in the ignition. • A door on the vehicle is open. •...
Page 96: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 97: Power Door Locks
Power Door Locks To lock or unlock all doors from inside the vehicle, use the power door lock switch located on either front door armrest. Press the bottom of the switch to lock all doors. Press the top of the switch to unlock all doors. The driver’s and front passenger’s power door lock switch also releases the trunk lid.
Page 98: Automatic Door Lock
Automatic Door Lock The vehicle’s doors are programmed to lock when the shift lever is moved into a forward gear. If someone needs to get in or out of the vehicle after the doors have been locked, place the shift lever into PARK (P).
Page 99: Lockout Protection
When you want to open a rear door when the security lock is on, do the following: 1. Unlock the door using the remote keyless entry transmitter, if equipped, the power door lock switch, or by lifting the rear door manual lock.
Page 100: Trunk
Trunk CAUTION: It can be dangerous to drive with the trunk lid open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the trunk lid:...
Page 101 Emergency Trunk Release Handle Notice: Do not use the emergency trunk release handle as a tie-down or anchor point when securing items in the trunk as it could damage the handle. The emergency trunk release handle is only intended to aid a person trapped in a latched trunk, enabling them to open the trunk from the inside.
Page 102: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 103: Power Windows
Power Windows The switches on the driver’s door armrest are used to control each of the windows. The power window switches work while the ignition is in RUN, ACCESSORY, or while Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 110.
Page 104: Theft-Deterrent Systems
Sun Visors To block out glare, swing down the sun visors. They can be detached from the center retainer and slid along the rod to cover different areas of the front window and turned to cover the side windows. Visor Vanity Mirror Swing down the sun visors and lift the cover to expose the vanity mirror.
Page 105 Arming with the Power Lock Switch The vehicle’s content theft-deterrent alarm system can be activated when the key is removed from the ignition and the power door lock switch of either the driver’s or front passenger’s door is used to lock the vehicle. The door needs to be in the open position when pressing the power door lock switch.
Page 106 Disarming with Your Key The alarm system will disarm when the key is used to unlock the doors. The red light will stop ﬂashing when the system is disarmed. If you would like the key to disarm the alarm system, see “CONTENT THEFT”...
Page 107: Pass-Key
® PASS-Key III Operation Your vehicle is equipped with PASS-Key (Personalized Automotive Security System) theft-deterrent system. ® PASS-Key III is a passive theft-deterrent system. This means nothing special needs to be done to arm or disarm the system. It works when the key is inserted or removed from the ignition.
Page 108 It is possible for the PASS-Key accept the transponder value of a new or replacement key. Up to 10 keys may be programmed for the vehicle. The following procedure is for programming additional keys only. If all the programmed keys are lost or do not operate, see your dealer or a locksmith who can ®...
Page 109: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one constant speed, fast or slow, for the ﬁrst 500 miles (805 km).
Page 110: Retained Accessory Power (Rap)
B (ACCESSORY): This position lets the radio and windshield wipers operate while the engine is off. To use ACCESSORY, turn the key clockwise. C (RUN): This position is where the key returns to after the vehicle is started. This position displays some of the warning and indicator lights.
Page 111: Starting The Engine
Starting the Engine Place the transaxle in the proper gear. Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position — this is a safety feature. To restart when you are already moving, use NEUTRAL (N) only.
Page 112: Engine Coolant Heater
2. If the engine does not start after 5-10 seconds, especially in very cold weather (below 0°F or 18°C), it could be ﬂooded with too much gasoline. Try pushing the accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for up to a maximum of 15 seconds.
Page 113 To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is attached to the underside of the diagonal brace, which is located above the engine air cleaner/ﬁlter assembly. 3.
Page 114: Automatic Transaxle Operation
Automatic Transaxle Operation Your vehicle’s automatic transaxle may have a shift lever on the steering column or on the console between the seats. Console Shift Lever There is also a display located on the instrument panel cluster that indicates the vehicle’s gear position.
Page 115 Make sure the shift lever is fully in PARK (P) before starting the engine. The vehicle has an electronic shift lock release system. You must fully apply the regular brakes before shifting from PARK (P) when the ignition is in RUN. If you cannot shift out of PARK (P), ease pressure on the shift lever by pushing it all the way into PARK (P) as you maintain brake application.
Page 116 DRIVE (D): This position is for normal driving. It provides the best fuel economy for your vehicle. If more power is needed for passing, and the vehicle is: • Going less than 35 mph (55 km/h), push the accelerator pedal about halfway down. •...
Page 117: Parking Brake
Parking Brake To set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot. To release the parking brake, hold the regular brake pedal down with your right foot and push the parking brake pedal with your left foot.
Page 118: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 119 Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 120: Shifting Out Of Park (P)
Shifting Out of Park (P) Automatic Transaxle Shift Lock This vehicle has an electronic shift lock release system. The shift lock release is designed to: • Prevent ignition key removal unless the shift lever is in PARK (P) • Prevent movement of the shift lever out of PARK (P) unless the ignition is in a position other than OFF.
Page 121: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
Page 122: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 123: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 124: Mirrors
Mirrors Manual Rearview Mirror While sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Hold the mirror in the center to move it up or down and side to side. The day/night control at the bottom of the mirror lets you adjust the mirror to avoid glare from the lamps behind you.
Page 125: With Onstar
Automatic Dimming Rearview Mirror ® with OnStar While sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Hold the mirror in the center to move it up or down and side to side. The vehicle may have an automatic dimming rearview mirror with the OnStar The automatic dimming feature is turned on or off...
Page 126: Onstar ® System
Outside Power Heated Mirrors For information on the operation of the outside power mirrors see Outside Power Mirrors on page 125. If the vehicle has heated mirrors, they will warm up to melt ice and snow, and remove condensation when the defroster is turned on. See Dual Automatic Climate Control System on page 172 or Climate Control System on page 168.
Page 127 ® OnStar service is provided to you subject to the ® OnStar Terms and Conditions. You may cancel ® your OnStar service at any time by contacting ® OnStar as provided below. A complete OnStar ® Owners Guide and the OnStar Conditions are included in the vehicle’s OnStar Subscriber glove box literature.
Page 128 Available Services included with Directions ® & Connections Plan • All Safe and Sound Plan Services • Driving Directions - Advisor delivered or ® OnStar Turn-by-Turn Navigation (If equipped) • RideAssist • Information and Convenience Services ® OnStar Hands-Free Calling ®...
Page 129 ® How OnStar Service Works In order to provide you with OnStar ® vehicle’s OnStar system has the capability of recording and transmitting vehicle information. This information is automatically sent to an OnStar Center at the time of an OnStar Emergency button press or if your airbags or AACN system deploys.
Page 130: Universal Home Remote System
Universal Home Remote System Universal Home Remote System (With Three Round LED) The Universal Home Remote System provides a way to replace up to three hand-held radio-frequency (RF) transmitters used to activate devices such as garage door openers, security systems, and home lighting. This device complies with Part 15 of the FCC Rules.
Page 131: Operation (With Three Round Led)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The FCC Grant of Equipment Authorization Certiﬁcate number is CB2SAHL3.
Page 132 Read the instructions completely before attempting to program the transmitter. Because of the steps involved, it may be helpful to have another person available to assist you in programming the transmitter. Be sure to keep the original remote control transmitter for use in other vehicles, as well as, for future programming.
Page 133 Programming Universal Home Remote — Fixed Code Fixed Code garage door openers are used for garage doors produced prior to 1996. Fixed code uses the same coded signal every time, which is manually programmed by setting DIP switches for a unique personal code. To program up to three channels, 1.
Page 134 3. Enter these positions into the Universal Home Remote System as follows. Press and release all three buttons at the same time to put the device into programming mode. 4. The indicator light will blink slowly. In order from left to right, and within two and one-half minutes, enter each switch setting into the Universal Home Remote System.
Page 135 Programming Universal Home Remote — Rolling Code Rolling code garage door openers are used for garage doors produced after 1996 and are code protected. Rolling code means the coded signal is changed every time your remote control garage door opener is used. Programming a rolling code garage door opener involves time-sensitive actions, so read the entire procedure before you begin.
Page 136 3. Press and hold the button you would like to use to control the garage door until the garage door moves. The indicator light, above the selected button, should slowly blink. You may need to hold the button from ﬁve to 20 seconds.
Page 137: Universal Home Remote System Operation
Universal Home Remote System Operation (With One Triangular LED) Your vehicle may have the Universal Home Remote System. If there is one triangular Light Emitting Diode (LED) above the Universal Home Remote buttons, follow the instructions below. If your vehicle has three round LED above the Universal Home Remote buttons, follow the instructions under Universal Home Remote System Operation (With three round LED).
Page 138 Programming Universal Home Remote Follow these steps to program up to three channels: 1. Press and hold down the two outside Universal Home Remote buttons, releasing only when the Universal Home Remote indicator light begins to ﬂash, after 20 seconds. Do not hold down the buttons for longer than 30 seconds and do not repeat this step to program a second and/or third hand-held transmitter to the remaining...
Page 139 6. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. This can usually be found where the hanging antenna wire is attached to the motor-head unit. 7. Firmly press and release the “Learn” or “Smart”...
Page 140 Using Universal Home Remote Press and hold the appropriate Universal Home Remote button for at least half of a second. The indicator light will come on while the signal is being transmitted. Erasing Universal Home Remote Buttons To erase programming from the three Universal Home Remote buttons do the following: 1.
Page 141: Storage Areas
Storage Areas Glove Box To open the glove box, lift up on the lever. The glove box may have a light inside and a shelf located at the top of the glove box. Cupholder(s) If your vehicle is the ﬁve-passenger model, there is a cupholder in front of the center console.
Page 142: Center Console Storage Area
Center Console Storage Area If your vehicle has a ﬁve-passenger console, the center console has a padded lid that can be used as an armrest. Lift the armrest lid to access a storage bin with a coin holder and a CD holder.
Page 143: Sunroof
Sunroof The vehicle may have a sunroof. It includes a sliding glass panel and a sunshade. The sunroof control is on the headliner, by the map lamps. The sunroof control works only when the ignition is on or in ACCESSORY, or when Retained Accessory Power (RAP) is active.
Page 144 NOTES...
Page 145: Instrument Panel
Section 3 Instrument Panel Overview ... 148 Hazard Warning Flashers ... 150 Other Warning Devices ... 150 Horn ... 150 Tilt Wheel ... 151 Turn Signal/Multifunction Lever ... 152 Turn and Lane-Change Signals ... 152 Headlamp High/Low-Beam Changer ... 153 Flash-to-Pass ...
Page 146 Section 3 Anti-Lock Brake System Warning Light ... 187 Traction Control System (TCS) Warning Light ... 187 Engine Coolant Temperature Warning Light ... 188 Engine Coolant Temperature Gage ... 189 Low Coolant Warning Light ... 189 Tire Pressure Light ... 190 Malfunction Indicator Lamp ...
Page 147 NOTES...
Page 148: Instrument Panel Overview
Instrument Panel Overview...
Page 149 The main components of the instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 177. B. Interior Lamps Control. See Interior Lamps on page 161. C. Exterior Lamps Control. See Exterior Lamps on page 158. Fog Lamp Control. See Fog Lamps on page 160.
Page 150: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 151: Tilt Wheel
Tilt Wheel If the vehicle has a tilt wheel it lets you adjust the steering wheel before you drive. The steering wheel can be raised to the highest level to give the driver’s legs more room when you enter and exit the vehicle.
Page 152: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals. See Turn and Lane-Change Signals on page 152. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 153. •...
Page 153: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer To change the headlamps from low beam to high beam, push the turn signal/multifunction lever away from you. When the high beams are on, a light on the instrument panel cluster also will be on if the ignition is on.
Page 154: Windshield Washer
(Delay): You can set the wiper speed for a long or short delay between wiping cycles. This can be very useful in light rain or snow. Turn the band to choose the delay time. The closer to the top of the lever, the shorter the delay. (Low Speed): For steady wiping at low speed, turn the band away from you to the ﬁrst solid band past the delay settings.
Page 155 CAUTION: Cruise control can be dangerous where you cannot drive safely at a steady speed. So, do not use your cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause excessive wheel slip, and you could lose control.
Page 156 Setting Cruise Control Cruise control will not work if the parking brake is set, or if the master cylinder brake ﬂuid level is low. The cruise control light on the instrument panel cluster will come on after the cruise control has been set to the desired speed.
Page 157 Reducing Speed While Using Cruise Control To reduce your speed while using cruise control: • Press and hold the SET– button on the steering wheel until you reach the lower speed you want, then release it. • To slow down in very small amounts, press the SET–...
Page 158: Exterior Lamps
Exterior Lamps The control located to the left of the cluster on the instrument panel, operates the exterior lamps. (On/Off): Turn the control to this position to manually turn the headlamps on and off. This is a momentary control that will spring back to AUTO when released.
Page 159: Daytime Running Lamps (Drl)/ Automatic Headlamp System
(Parking Lamps): Turn the control to this < position to turn on the parking lamps together with the following: • Taillamps • License Plate Lamps • Sidemarker Lamps • Instrument Panel Lights (Headlamps): Turn the control to this position to turn your headlamps on, together with the previously listed lamps and lights.
Page 160: Fog Lamps
When it is dark enough outside, the DRL will turn off and the vehicle’s headlamps and parking lamps will turn on. The other lamps that come on with the headlamps will also come on. When it is bright enough outside, the headlamps will go off and the DRL will come on.
Page 161: Interior Lamps
Interior Lamps Your interior lamps control is located next to the exterior lamps control and to the left of the steering wheel on the instrument panel. (Off): Turn the control to this position to disable courtesy lamps, entry lighting, delayed entry lighting, and delayed exit lighting.
Page 162: Delayed Entry Lighting
Entry lighting includes a feature called theater dimming. With theater dimming, the lamps do not turn off at the end of the delay time. Instead, they slowly dim after the delay time and then turn off. The courtesy lamps turn off when the ignition key is turned to RUN or START.
Page 163: Perimeter Lighting
Perimeter Lighting Perimeter lighting provides a period of exterior vehicle lighting. Perimeter lighting activates when the key is removed from the ignition or the vehicle is unlocked using the Remote Keyless Entry (RKE) transmitter. The amount of time the exterior lamps will remain on can be programmed using the Driver Information Center (DIC).
Page 164: Battery Run-Down Protection
A high electrical load occurs when several of the following loads are on: headlamps, high beams, fog lamps, rear window defogger, climate control fan at high speed, heated seats, engine cooling fans, trailer loads, and loads plugged into accessory power outlets. EPM works to prevent excessive discharge of the battery.
Page 165 The URPA display is located inside the vehicle, above the rear window. It has three color-coded lights that can be seen through the rearview mirror or by turning around. CAUTION: The Ultrasonic Rear Park Assist (URPA) system does not replace driver vision. URPA does not: •...
Page 166 The ﬁrst time an object is detected while in REVERSE (R), a chime will sound and the following will occur in sequence, depending on the distance from the object: • At 5 feet (1.5 m) a chime will sound and one amber light will be lit.
Page 167: Accessory Power Outlet(S)
Accessory Power Outlet(s) The accessory power outlets enable power electrical equipment such as a cellular telephone or a CB radio to be used inside the vehicle. Your vehicle has 12-volt outlets. One outlet is located on the center console below the climate controls.
Page 168: Climate Controls
Ashtray(s) and Cigarette Lighter Your vehicle may have a removable ashtray and cigarette lighter. The cigarette lighter may be located under the climate control system. The removable ashtray can be placed into the front console cupholder. Notice: If you put papers, pins, or other ﬂammable items in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage your vehicle.
Page 169 Operation OFF: Turn the left knob to this position to turn the climate control system off. (Fan): Turn the knob by this symbol, located on the left side of the climate control panel, clockwise or counterclockwise to increase or decrease the fan speed. The fan speed will be temporarily reduced between the transition to a new mode.
Page 170 You can also select modes by using the following buttons: (Recirculate): Press this button to recirculate cabin air through the vehicle. It can be used to help reduce the outside air and odors that enter your vehicle or to help heat or cool the air inside your vehicle quicker.
Page 171: Defogging And Defrosting
Defogging and Defrosting Fog on the inside of the vehicle is a result of high humidity causing moisture to condense on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear frost or fog from the windshield. Use the defog mode to clear the windows of condensation and to warm the vehicle’s occupants.
Page 172: Dual Automatic Climate Control System
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear): Press the button to turn the rear window defogger on or off. An indicator light below the button will come on to let you know that the rear window defogger is activated.
Page 173 Automatic Operation AUTO (Automatic): Press the AUTO button for automatic control of the inside temperature, the air delivery mode, and the fan speed. There might be a delay of two to three minutes before the fan comes on when the automatic operation is used in cold weather.
Page 174 This control has four types of operation. • Automatic can set/change the temperature only. AUTO and temperature only will appear on the display. • Semi-Automatic Fan can set/change the temperature and mode. The fan operates automatically. The temperature and mode will appear on the display.
Page 175 (Fan): Press this button to increase the fan speed. Pressing the arrows cancels the automatic operation and places the system in manual or semi-automatic mode. Press the AUTO button to return to automatic operation. If the airﬂow seems low when the fan is at the highest setting, the passenger compartment air ﬁlter may need to be replaced.
Page 176 Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear fog or frost from your windshield.
Page 177: Outlet Adjustment
Rear Window Defogger The rear window defogger uses a warming grid to remove fog or frost from the rear window. The rear window defogger will only work when the engine is running. (Rear Window Defogger): Press this button to turn the rear window defogger on and off. Be sure to clear as much snow from the rear window as possible.
Page 178: Passenger Compartment Air Filter
Passenger Compartment Air Filter The passenger compartment air ﬁlter is located in the engine compartment below the air inlet grille, near the passenger’s side windshield wiper arm. See Engine Compartment Overview on page 350. The ﬁlter traps most of the pollen from the air entering the air conditioning module.
Page 179: Warning Lights, Gages, And Indicators
10. Install a new passenger compartment air ﬁlter. See Normal Maintenance Replacement Parts on page 471 for the type of ﬁlter to use. Make sure it slides under the compartment retainers. 11. Reverse Steps 1 through 8. For best climate control performance, re-installation of a clean air ﬁlter is required.
Page 180: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to let the driver know at a glance how the vehicle is running. It will show how fast the vehicle is going, about how much fuel is in the fuel tank and many other things needed to drive safely and economically.
Page 181: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your vehicle’s odometer works together with the driver information center. You can set a Trip A and Trip B odometer. See “Trip Information” under DIC Operation and Displays on page 200.
Page 182: Passenger Safety Belt Reminder Light
Passenger Safety Belt Reminder Light Several seconds after the key is turned to RUN or START, a chime will sound for several seconds to remind the front passenger to buckle their safety belt. This would only occur if the passenger airbag is enabled.
Page 183: Passenger Airbag Status Indicator
If the airbag readiness light stays on after the vehicle is started, or comes on as the vehicle is being driven, there may be an electrical problem and the airbag system may not work properly. Have the vehicle serviced right away. CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag...
Page 184 If the word ON is lit on the passenger airbag status indicator, it means that the right front passenger’s frontal airbag is enabled (may inﬂate). CAUTION: If the on indicator comes on when you have a rear-facing child restraint installed in the right front passenger’s seat, it means that the passenger sensing system has not turned off the passenger’s frontal airbag.
Page 185: Charging System Light
See Passenger Sensing System on page 75 for more on this, including important safety information. If, after several seconds, all status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing system.
Page 186: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on and the parking brake is not applied, there is a brake problem.
Page 187: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light Your vehicle may have the Anti-Lock Brake System (ABS). This light will come on when your engine is started and may stay on for several seconds. That is normal. If the ABS warning light comes on and stays on, there may be a problem with the anti-lock portion of the brake system.
Page 188: Engine Coolant Temperature
The TCS warning light will come on brieﬂy when you turn the ignition to RUN. If it does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem. If the TCS warning light stays on or comes on while you are driving, pull off the road as soon as possible and stop carefully.
Page 189: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage The vehicle has a gage that shows the engine coolant temperature. If the gage pointer moves towards the H, the engine is too hot. This reading indicates the same thing as the warning light. It means that the engine coolant has overheated.
Page 190: Tire Pressure Light
Tire Pressure Light This light should come on brieﬂy as you start the engine. This light will also come on when one or more of your tires is signiﬁcantly under-inﬂated. Stop and check your tires as soon as it is safe to do so. If underinﬂated, inﬂate them to the proper pressure.
Page 191 Notice: If you keep driving your vehicle with this light on, after awhile, your emission controls may not work as well, your fuel economy may not be as good, and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
Page 192 If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 193 Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 343. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration.
Page 194: Oil Pressure Light
Oil Pressure Light Your vehicle may have this feature. If the vehicle has an oil problem, this light may stay on after the engine is started, or come on while you are driving. This light indicates that oil is not going through the engine quickly enough to keep it lubricated.
Page 195: Change Engine Oil Light
Change Engine Oil Light If this light comes on, it means that service is required for your vehicle. See Scheduled Maintenance on page 462 and Engine Oil on page 353 for more information. After having the oil changed you will need to reset the light.
Page 196: Reduced Engine Power Light
Reduced Engine Power Light If the reduced engine power light is on, a chime will sound and a noticeable reduction in the vehicle’s performance may occur. If the reduced engine power light is on, but there is no reduction in performance, proceed to your destination.
Page 197: Low Washer Fluid Warning Light
Low Washer Fluid Warning Light This light will come on brieﬂy when the ignition is on. If the light stays on, a chime will sound indicating your windshield washer ﬂuid is low. See Windshield Washer Fluid on page 380 for more information.
Page 198: Fuel Gage
Fuel Gage The fuel gage indicates about how much fuel is left in the fuel tank when the ignition is on. When the indicator nears empty, there is still a little fuel left, but you should get more fuel soon. Here are four things that some owners ask about.
Page 199: Driver Information Center (Dic)
Check Gas Cap Light Your vehicle may have a check gas cap light. This light will come on and a chime will sound if your gas cap is not securely fastened. See Malfunction Indicator Lamp on page 190 and Filling the Tank on page 346 for more information. Driver Information Center (DIC) Your vehicle may have a Driver Information Center (DIC).
Page 200: Dic Operation And Displays
The DIC on the uplevel vehicle also allows some features to be customized or personalized. See DIC Vehicle Personalization on page 229 for more information. DIC Operation and Displays The DIC has different modes which can be accessed by pressing the DIC buttons located on the center of the instrument panel.
Page 201 (Set/Reset)*: Press this button to set or reset certain functions and to turn off or acknowledge messages on the DIC. (Option)*: Press this button to display the units, language, personalization, compass zone, and compass calibration. See DIC Vehicle Personalization on page 229 and DIC Compass (Uplevel Only) on page 206 for more information.
Page 202 There is also a retroactive trip odometer function that performs the following for each trip odometer: • If the vehicle’s speed has exceeded 3 mph (5 km/h) during the current ignition cycle, this function will set the trip odometer to the distance driven during the current ignition cycle.
Page 203 Fuel Menu Items (Uplevel Only) (Fuel): Press this button to scroll through the following menu items: Fuel Range Press the fuel button until FUEL RANGE displays. This mode shows the approximate number of remaining miles or kilometers the vehicle can be driven without refueling.
Page 204: Tire Pressure
Tire Pressure Press the gages button until FRONT TIRE PRESSURE displays. This mode shows the pressure for the front tires. To view the pressure for the rear tires, press the gages button again until REAR TIRE PRESSURE displays. The tire pressure will be shown in either pounds per square inch (psi) or kilopascals (kPa).
Page 205 Option Menu Items (Uplevel Only) (Option): Press this button to scroll through the following menu items: Units Press the option button until UNITS displays. This mode allows you to select between English or Metric units of measurement. Once in this mode, press the set/reset button to select between ENGLISH or METRIC units.
Page 206: Dic Compass (Uplevel Only)
DIC Compass (Uplevel Only) Your vehicle may have a compass in the Driver Information Center (DIC). Compass Zone Under certain circumstances, such as during a long distance cross-country trip, it will be necessary to compensate for compass variance and reset the zone through the DIC. Compass variance is the difference between the earth’s magnetic north and true geographic north.
Page 207 3. Press the set/reset button to scroll through and select the appropriate variance zone. Navigate to one of the trip/fuel menu screens to view the direction the vehicle is moving. This will be shown in the top right corner of the DIC display.
Page 208: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the uplevel DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another. Some messages may not require immediate action, but you can press any of the DIC buttons on the uplevel vehicle to acknowledge that...
Page 209 This message continues to display for two seconds if it has not been acknowledged when the engine is turned off. It also re-displays for two seconds if the message has been acknowledged, but the condition still exists when the engine is turned off. If the condition still exists, the message re-appears when the engine is turned on.
Page 210 CHARGING SYSTEM FAILURE This message displays when there is a problem with the generator and battery charging systems. Driving with this problem could drain the battery. Turn off all unnecessary accessories. Stop and turn off the vehicle as soon as it is safe to do so.
Page 211 CHECK TIRE PRESSURE This message displays when the tire pressure in one of the tires needs to be checked. This message also displays LEFT FRONT, RIGHT FRONT, LEFT REAR, or RIGHT REAR to indicate which tire needs to be checked. You can receive more than one tire pressure message at a time.
Page 212 DRIVER’S DOOR AJAR This message displays when the driver’s door is not closed properly. Make sure that the driver’s door is closed completely. This message displays while the ignition is in RUN. A chime sounds when the ignition is shifted out of PARK (P).
Page 213: Headlamps Suggested
ENGINE COOLANT HOT Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. Do not increase the engine speed above normal idling speed.
Page 214 This message continues to display for two seconds if it has not been acknowledged when the engine is turned off. It also re-displays for two seconds if the message has been acknowledged, but the condition still exists when the engine is turned off. If the condition still exists, the message re-appears when the engine is turned on.
Page 215 KEY FOB BATTERY LOW This message displays when the battery in the Remote Keyless Entry (RKE) transmitter needs to be replaced. To replace the battery, see “Battery Replacement” under Remote Keyless Entry (RKE) System Operation on page 90. This message displays while the ignition is in RUN. Press any of the DIC buttons to acknowledge this message and to clear it from the screen.
Page 216 LEFT REAR TURN LAMP OUT This message displays when the left rear turn signal bulb needs to be replaced. See Taillamps, Turn Signal, Sidemarker, Stoplamps and Back-up Lamps on page 398. This message displays while the ignition is in RUN. Press any of the DIC buttons to acknowledge this message and to clear it from the screen.
Page 217 LOW OIL LEVEL This message displays when the vehicle’s engine oil is low. Fill the oil to the proper level as soon as possible. See Engine Compartment Overview on page 350 for the engine oil ﬁll location. Also, see Engine Oil on page 353 for information on the kind of oil to use and the proper oil level.
Page 218 LOW WASHER FLUID This message displays when the windshield washer ﬂuid is low. Fill the windshield washer reservoir as soon as possible. See Engine Compartment Overview on page 350 for the location of the windshield washer reservoir. Also, see Windshield Washer Fluid on page 380 for more information.
Page 219 PARK LAMPS ON This message displays to alert the driver when the headlamps or parking lamps are on while the ignition is off and the driver’s door is opened. See Exterior Lamps on page 158 for more information. A chime sounds continuously while this message is displayed.
Page 220: Reduced Engine Power
REDUCED ENGINE POWER This message displays when the vehicle’s engine power is reduced. Reduced engine power can affect the vehicle’s ability to accelerate. If this message is on, but there is no reduction in performance, proceed to your destination. The performance may be reduced the next time the vehicle is driven.
Page 221 REMOTE START DISABLED If your vehicle has the remote start feature, this message displays if a remote start attempt is unsuccessful. This may be caused if any of the following conditions are true when a remote start attempt is made: •...
Page 222 RIGHT REAR TURN LAMP OUT This message displays when the right rear turn signal bulb needs to be replaced. See Taillamps, Turn Signal, Sidemarker, Stoplamps and Back-up Lamps on page 398. This message displays while the ignition is in RUN. Press any of the DIC buttons to acknowledge this message and to clear it from the screen.
Page 223 SERVICE BRAKE SYSTEM This message displays when a problem with the brake system has been detected. Have your vehicle serviced by your dealer as soon as possible. The brake system warning light also appears on the instrument panel cluster when this message appears on the DIC.
Page 224 SERVICE STABILITY SYSTEM ® If your vehicle has StabiliTrak displays if there has been a problem detected with ® StabiliTrak . A warning light also appears on the instrument panel cluster. See Traction Control System (TCS) Warning Light on page 187. See ®...
Page 225 SERVICE TIRE MONITOR SYSTEM This message displays if a part on the Tire Pressure Monitor (TPM) system is not working properly. If you drive your vehicle while any of the four sensors are missing or inoperable, the warning comes on in about 10 minutes. A sensor would be missing, for example, if you put different wheels on your vehicle without transferring the sensors.
Page 226: Service Vehicle Soon
SERVICE VARIABLE EFFORT STEERING If your vehicle has variable effort steering, this message displays when if this system is not functioning properly. See Steering on page 297 for more information. Have the system serviced by your dealer as soon as possible. This message displays only while the ignition is in RUN.
Page 227 STABILITY CONTROL OFF ® If your vehicle has StabiliTrak displays any time the system turns off. When this message has been displayed, StabiliTrak no longer available to assist you with directional control of the vehicle. Adjust your driving ® accordingly. See StabiliTrak System on page 296.
Page 228: Trunk Ajar
TRACTION CONTROL OFF If your vehicle has the Traction Control System (TCS), this message displays when the TCS turns off. See Traction Control System (TCS) on page 294 for more information. This message only displays while the ignition is in RUN and disappears after two seconds.
Page 229: Dic Vehicle Personalization
DIC Vehicle Personalization Your vehicle may have customization capabilities that allow you to program certain features to one preferred setting. Customization features can only be programmed to one setting on the vehicle and cannot be programmed to a preferred setting for two different drivers. The customization features include the following: •...
Page 230 Entering the Personal Program Menu 1. Turn the ignition on and place the vehicle in PARK (P). To avoid excessive drain on the battery, it is recommended that the headlamps are turned off. 2. Press the option button until PERSONAL PROGRAM displays.
Page 231 ALL KEYS WILL BE RESET This screen will only display if YES was selected on the FACTORY DEFAULTS screen. Press the set/reset button to scroll through the following choices: CANCEL (default): The features will not be set to their factory default settings and the DIC will return to the PERSONAL PROGRAM menu.
Page 232 INT (Interior) LIGHTS KEYS REMOVED This feature enables the interior lamps in the vehicle to turn on for about 25 seconds after the key is removed from the ignition. Press the option button until INT LIGHTS KEYS REMOVED appears on the DIC display. Press the set/reset button to scroll through the following choices: OFF: Removing the key from the ignition will not...
Page 233 If a door remains open, without any other door being opened or closed, the vehicle will lock after about 45 seconds. If a key is in the ignition, this feature will not lock the doors. See Delayed Locking on page 97 for more information.
Page 234 FOB LOCK FEEDBACK This feature allows you to select the type of feedback you will receive when locking the vehicle with the remote keyless entry transmitter. Press the option button until FOB LOCK FEEDBACK appears on the DIC display. Press the set/reset button to scroll through the following choices: OFF: There will be no feedback when locking the...
Page 235 Personalization Menu Items The following are personalization features that allow you to program setting for up to two drivers: PERSONALIZE KEY This feature allows you to personalize a key to be recognized as key 1 or 2. A personalized key allows you to program personalization features to a preferred setting to correspond to key 1 or 2.
Page 236 AUTO DOOR UNLOCK This feature allows automatic door unlocking to be turned off, used for the driver’s door only, or for all of the doors. Press the option button until AUTO DOOR UNLOCK appears on the DIC display. Press the set/reset button to scroll through the following choices: OFF: None of the doors will unlock when the...
Page 237 FOB UNLOCK ON 1ST PRESS This feature allows the selection of which doors will unlock on the ﬁrst press of the unlock button on the remote keyless entry transmitter. See Remote Keyless Entry (RKE) System Operation on page 90 for more information. Press the option button until FOB UNLOCK ON 1ST PRESS appears on the DIC display.
Page 238: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 286. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 239: Setting The Time
While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers. Then, when driving conditions permit, you can tune to your favorite radio stations using the presets and steering wheel controls if the vehicle has them.
Page 240: Radio With Cd (Base)
Radio with CD (Base) Playing the Radio (Power): Press this knob to turn the system on and off. (Volume): Turn this knob to increase or to decrease the volume. DISP (Display): Press this button to switch the display between the radio station frequency, band, and time of day.
Page 241 To scan preset stations, press and hold either arrow for more than four seconds. PSC will appear on the display and the radio will produce two beeps. The radio will go to a preset station, play for a few seconds, then go on to the next preset station. Press either arrow again or one of the pushbuttons to stop scanning.
Page 242: Playing A Cd
Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, push and release this knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the speaker knob until FAD appears on the display.
Page 243 When the CD is inserted, CD will appear on the display. As each new track starts to play, the track number will appear on the display. The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner.
Page 244 To scan tracks, press either arrow for more than two seconds until SCN appears on the display. The radio will go to the next track, play for 10 seconds, then go on to the next track. Press either arrow to stop scanning. DISP (Display): Press this button to see how long the current track has been playing.
Page 245: Radio With Cd (Uplevel)
Radio with CD (Uplevel) XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and Canada. XM™ offers a large variety of coast-to-coast channels including music, news, sports, talk, traffic/weather (U.S. subscribers), and children’s programming.
Page 246 SCV (Speed Compensated Volume): With SCV, the audio system adjusts automatically to make up for road and wind noise as you drive. Set the volume at the desired level. Press this button to select SPEED VOL MIN, SPEED VOL MED, or SPEED VOL MAX. Each higher setting will allow for more volume compensation at faster vehicle speeds.
Page 247 If the entire message is not displayed, parts of the message will appear every three seconds. To scroll through the message, press and release the INFO button. A new group of words will appear on the display after every press of this button. Once the complete message has been displayed, the information symbol will disappear from the display until another new message is received.
Page 248 EQ (Equalization): Press this button to select customized equalization settings designed for country/western, jazz, talk, pop, rock, classical, and custom. To return the bass and treble to the manual mode, push and release the tone knob until BASS or TREBLE appears on the display. Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, push and...
Page 249 Scanning Categories (CAT) (XM™ Satellite Radio Service Only) To scan a desired category perform the following: 1. Press the CAT button to activate category select mode. The current category will appear on the display. 2. Turn the tune knob to select a category. 3.
Page 250 The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner. If playing a CD-R, the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled.
Page 251 4 RDM (Random): Press this pushbutton to hear the tracks in random, rather than sequential, order. The random symbol will appear on the display. Press this pushbutton again to turn off random play. SEEK : Press the left arrow to go to the start of the current or the previous track.
Page 252: Radio With Cd (Mp3)
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 253: Playing The Radio
For more information, contact XM™; In the U.S. at www.xmradio.com or call 1-800-852-XMXM (9696) or in Canada at www.xmradio.ca or call 1-877-GET-XMSR (438-9677). Playing the Radio (Power): Press this knob to turn the system on and off. (Volume): Turn this knob to increase or to decrease the volume.
Page 254 Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. (Tune): Turn this knob to select radio stations. SEEK : Press and release the right or the left arrow to go to the next or to the previous station and stay there.
Page 255 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 256 Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, push and release this knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the speaker knob until FAD (fade) appears on the display.
Page 257 Scanning Categories (CAT) (XM™ Satellite Radio Service Only) To scan a desired category perform the following: 1. Press the CAT button to activate category select mode. The current category will appear on the display. 2. Turn the tune knob to select a category. 3.
Page 258 The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner. If playing a CD-R, the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled.
Page 259 SEEK : Press the left arrow to go to the start of the current or the previous track. Press the right arrow to go to the start of the next track. To scan tracks, press and hold either arrow for more than two seconds. SCAN will appear on the display.
Page 260: Radio With Six-Disc Cd
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 261 For more information, contact XM™; In the U.S. at www.xmradio.com or call 1-800-852-XMXM (9696) or in Canada at www.xmradio.ca or call 1-877-GET-XMSR (438-9677). Playing the Radio (Power): Press this knob to turn the system on and off. (Volume): Turn this knob to increase or to decrease the volume.
Page 262 To scan radio stations, press and hold either arrow for more than two seconds. SCAN will appear on the display and the radio will produce one beep. The radio will go to a station, play for a few seconds, then go on to the next station.
Page 263 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 264 Adjusting the Speakers (Balance/Fade) (Balance/Fade): To adjust the balance between the right and the left speakers, push and release this knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the speaker knob until FADE appears on the display.
Page 265 Scanning Categories (CAT) (XM™ Satellite Radio Service Only) To scan a desired category perform the following: 1. Press the CAT button to activate category select mode. The current category will appear on the display. 2. Turn the tune knob to select a category. 3.
Page 266 When a CD is inserted, the CD symbol will appear on the CD. As each new track starts to play, the track number will appear on the display. The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner.
Page 267 LOAD: Press this button to load CDs into the CD player. This CD player will hold up to six CDs. To insert one CD, do the following: 1. Turn the ignition on. 2. Press and release the LOAD button. 3. Wait for the indicator light, located to the right of the slot, to turn green.
Page 268 To eject multiple CDs, do the following: 1. Press and hold the CD eject button for two seconds. You will hear a beep and the indicator light, located to the right of the slot, will begin to ﬂash and EJECT ALL will appear on the display.
Page 269 RDM (Random): With random, you can listen to the tracks in random, rather than sequential, order, on one CD or on all of the CDs. To use random, do one of the following: • To play the tracks on the CD you are listening to in random order, press and release the random button.
Page 270 CD: Press this button to play a CD when listening to the radio. The CD symbol will appear on the display when a CD is loaded. EQ (Equalization): Press EQ to select an equalization setting while playing a CD. The equalization will be set whenever a CD is played.
Page 271 To delete tracks from the song list, perform the following steps: 1. Turn the CD player on. 2. Press the LIST button to turn song list on. LIST will appear on the display. 3. Press either SEEK arrow to select the desired track to be deleted.
Page 272: Using An Mp3
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 273 The player will be able to read and play a maximum of 50 folders, 50 playlists, 10 sessions, and 255 ﬁles. Long ﬁle names, folder names, or playlist names may use more disc memory space than necessary. To conserve space on the disc, minimize the length of the ﬁle, folder or playlist name.
Page 274 Order of Play Tracks will be played in the following order: • Play will begin from the ﬁrst track in the ﬁrst playlist and will continue sequentially through all tracks in each playlist. When the last track of the last playlist has been played, play will continue from the ﬁrst track of the ﬁrst playlist.
Page 275 If the ignition or radio is turned off with a CD in the player it will stay in the player. When the ignition or radio is turned on, the CD will start to play where it stopped, if it was the last selected audio source.
Page 276 (Repeat): With repeat, one track, the entire folder, or playlist can be repeated. Press and release this pushbutton until REPEAT TRACK, REPEAT FOLDER, or REPEAT P-LIST appears on the display. The current track, folder or playlist will continue to repeat. Press and release this pushbutton until REPEAT OFF appears on the display to turn off repeated play.
Page 277 DISP (Display): Press this button to switch between track mode, folder/playlist mode, and ID3 tag. The display will show only eight characters, but there can be up to four pages of text. If there are more than eight characters in the song, folder, or playlist name, pressing this knob within two seconds will take you to the next page of text.
Page 278: Xm Radio Messages
XM Radio Messages If you have a radio with CD (MP3), or a radio with a Six-Disc CD, you will receive these radio messages. Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language.
Page 279 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) If tuned to channel 0, this message will alternate with the Unknown Radio ID not known (should only be if...
Page 280: Theft-Deterrent Feature
Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOC or LOCKED will appear on the display.
Page 281: Radio Reception
> ® (Mute/OnStar ): Press this button to silence the system. Press this button again, or any other radio button, to turn the sound on. ® If your vehicle has OnStar , press and hold this button for more than two seconds to interact ®...
Page 282: Care Of Your Cds
FM Stereo FM stereo will give the best sound, but FM signals will reach only about 10 to 40 miles (16 to 65 km). Tall buildings or hills can interfere with FM signals, causing the sound to fade in and out. XM™...
Page 283: Backglass Antenna
Backglass Antenna The AM-FM antenna is integrated with the rear window defogger, located in the rear window. Make sure that the inside surface of the rear window is not scratched and that the lines on the glass are not damaged. If the inside surface is damaged, it could interfere with radio reception.
Page 284: Xm™ Satellite Radio Antenna System
XM™ Satellite Radio Antenna System The XM™ Satellite Radio antenna is located on the roof of your vehicle. Keep this antenna clear of snow and ice build up for clear radio reception. If your vehicle has a sunroof, the performance of the XM™...
Page 285: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 286 Defensive Driving ... 286 Drunken Driving ... 287 Control of a Vehicle ... 290 Braking ... 290 Anti-Lock Brake System (ABS) ... 291 Braking in Emergencies ... 293 Traction Control System (TCS) ... 294 Enhanced Traction System (ETS) ...
Page 286: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 16. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 287: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 288 The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka. It is the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent.
Page 289 A driver with a BAC level of 0.06 percent has doubled his or her chance of having a collision. At a BAC level of 0.10 percent, the chance of this driver having a collision is 12 times greater; at a level of 0.15 percent, the chance is 25 times greater! The body takes about an hour to rid itself of the alcohol in one drink.
Page 290: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 291: Anti-Lock Brake System (Abs)
If you keep pace with the traffic and allow realistic following distances, you will eliminate a lot of unnecessary braking. That means better braking and longer brake life. If your vehicle’s engine ever stops while you are driving, brake normally but do not pump the brakes.
Page 292 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each wheel.
Page 293: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 294: Traction Control System (Tcs)
Traction Control System (TCS) Your vehicle may have a Traction Control System (TCS) that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that one or both of the front wheels are spinning or beginning to lose traction.
Page 295: Enhanced Traction System (Ets)
To limit wheel spin, especially in slippery road conditions, you should always leave the TCS on. But you can turn the system off if you ever need to. The TCS should be turned off if the vehicle ever gets stuck in sand, mud or snow and rocking the vehicle is required.
Page 296: Stabilitrak System
The ETS operates in all transaxle shift lever positions. But the system can upshift the transaxle only as high as the chosen shift lever position, so use the lower gears only when necessary. See Automatic Transaxle Operation on page 114. This light, along with the TRACTION CONTROL OFF message, will...
Page 297: Steering
When the system activates, a STABILITY CONTROL ACTIVE message will be displayed on the Driver Information Center (DIC). See DIC Warnings and Messages on page 208. You may also hear a noise or feel vibration in the brake pedal. This is normal. Continue to steer the vehicle in the direction you want it to go.
Page 298 The traction you can get in a curve depends on the condition of your tires and the road surface, the angle at which the curve is banked, and your speed. While you are in a curve, speed is the one factor you can control. Suppose you are steering through a sharp curve.
Page 299 Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 300: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 301 • Watch for traffic signs, pavement markings, and lines. If you can see a sign up ahead that might indicate a turn or an intersection, delay your pass. A broken center line usually indicates it is all right to pass, providing the road ahead is clear.
Page 302: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 303: Driving At Night
While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration, or braking, including reducing vehicle speed by shifting to a lower gear. Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until your vehicle is skidding.
Page 304 No one can see as well at night as in the daytime. But as we get older these differences increase. A 50-year-old driver may require at least twice as much light to see the same thing at night as a 20-year-old.
Page 305: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 306 It is wise to keep your windshield wiping equipment in good shape and keep your windshield washer ﬂuid reservoir ﬁlled with washer ﬂuid. Replace your windshield wiper inserts when they show signs of streaking or missing areas on the windshield, or when strips of rubber start to separate from the inserts.
Page 307 Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle.
Page 308: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 309: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 310: Before Leaving On A Long Trip
Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up.
Page 311: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 312: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. •...
Page 313 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 314: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your trunk. Also see Tires on page 402. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning...
Page 315 Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation.
Page 316 Unless you have the Anti-Lock Brake System (ABS), you will want to brake very gently, too. If you do have ABS, see Anti-Lock Brake System (ABS) on page 291. ABS improves your vehicle’s stability when you make a hard stop on a slippery road.
Page 317 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 318: If Your Vehicle Is Stuck In Sand
You will need a well-charged battery to restart the vehicle, and possibly for signaling later on with your headlamps. Let the heater run for a while. Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold.
Page 319: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right. That will clear the area around the front wheels. If your vehicle has traction control, you should turn the traction control system off. See Traction Control System (TCS) on page 294.
Page 320 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The Tire and Loading Information label lists the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms...
Page 321 Steps for Determining Correct Load Limit 1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. 2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 322 Example 1 Item Description Maximum Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) Available Occupant and Cargo Weight Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Maximum Vehicle Capacity Weight for 1,000 lbs (453 kg)
Page 323 Example 3 Item Description Maximum Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) Available Cargo Weight Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s maximum vehicle capacity weight and seating positions.
Page 324 The label shows the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo. Never exceed the GVWR for your vehicle or the Gross Axle Weight Rating (GAWR) for either the front or rear axle.
Page 325: Towing
CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash. • Put things in the trunk of your vehicle. In a trunk, put them as far forward as you can.
Page 326: Recreational Vehicle Towing
Recreational Vehicle Towing Recreational vehicle towing means towing your vehicle behind another vehicle — such as behind a motorhome. The two most common types of recreational vehicle towing are known as dinghy towing, towing your vehicle with all four wheels on the ground, and dolly towing, towing your vehicle with two wheels on the ground and two wheels up on a device known as a dolly.
Page 327: Towing A Trailer
Dolly Towing Your vehicle can be towed using a dolly. To tow your vehicle using a dolly, follow these steps: 1. Put the front wheels on a dolly. 2. Put the gear shift lever in PARK (P). 3. Set the parking brake and then remove the ignition key.
Page 328 Trailering means changes in handling, acceleration, braking, durability, and fuel economy. Successful, safe trailering takes correct equipment, and it has to be used properly. That is the reason for this part. In it are many time-tested, important trailering tips and safety rules.
Page 329 Ask your dealer for our trailering information or advice, or you can write us at: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 In Canada, write to: General Motors of Canada Limited...
Page 330 Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of the vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo in it, and the people who will be riding in the vehicle.
Page 331 Total Weight on Your Vehicle’s Tires Be sure the vehicle’s tires are inﬂated to the upper limit for cold tires. These numbers can be found on the Tire-Loading Information label. See Loading Your Vehicle on page 319. Be sure not to go over the GVW limit for the vehicle, or the GAWR, including the weight of the trailer tongue.
Page 332 Trailer Brakes Does your trailer have its own brakes? Be sure to read and follow the instructions for the trailer brakes so you’ll be able to install, adjust and maintain them properly. • If your vehicle has anti-lock brakes, do not try to tap into your vehicle’s brake system.
Page 333 Following Distance Stay at least twice as far behind the vehicle ahead as when driving the vehicle without a trailer. This can help avoid situations that require heavy braking and sudden turns. Passing More passing distance is needed up ahead when towing a trailer.
Page 334 Driving On Grades Reduce speed and shift to a lower gear before starting down a long hill or steep downgrade. If the vehicle is not shifted down, the brakes might have to be used so much that they would get hot and no longer work well.
Page 335 When You Are Ready to Leave After Parking on a Hill 1. Apply the regular brakes and hold the pedal down while you: • Start the engine. • Shift into a gear. • Release the parking brake. 2. Let up on the brake pedal. 3.
Page 336 NOTES...
Page 337: Service And Appearance Care
Section 5 Service ... 340 Accessories and Modiﬁcations ... 341 California Proposition 65 Warning ... 341 Doing Your Own Service Work ... 342 Adding Equipment to the Outside of Your Vehicle ... 343 Fuel ... 343 Gasoline Octane ... 343 Gasoline Speciﬁcations ...
Page 338 Section 5 Windshield Wiper Blade Replacement ... 401 Tires ... 402 Tire Sidewall Labeling ... 403 Tire Terminology and Deﬁnitions ... 406 Inﬂation - Tire Pressure ... 409 Tire Pressure Monitor System ... 411 Tire Inspection and Rotation ... 416 When It Is Time for New Tires ...
Page 339 Section 5 Vehicle Identiﬁcation ... 448 Vehicle Identiﬁcation Number (VIN) ... 448 Service Parts Identiﬁcation Label ... 448 Electrical System ... 449 Add-On Electrical Equipment ... 449 Headlamp Wiring ... 449 Windshield Wiper Fuses ... 449 Service and Appearance Care Power Windows and Other Power Options ...
Page 340: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 341: Accessories And Modiﬁcations
Accessories and Modiﬁcations When you add non-GM accessories to your vehicle they can affect your vehicle’s performance and safety, including such things as, airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like anti-lock brakes, traction control and stability control.
Page 342: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 343: Fuel
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle. Fuel Use of the recommended fuel is an important part of the proper maintenance of your vehicle.
Page 344: Gasoline Speciﬁcations
Gasoline Speciﬁcations At a minimum, gasoline should meet ASTM speciﬁcation D 4814 in the United States or CAN/CGSB-3.5 in Canada. Some gasolines may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). General Motors recommends against the use of gasolines containing MMT. See Additives on page 344 for additional information.
Page 345: Fuels In Foreign Countries
However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels. Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts.
Page 346: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling.
Page 347 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 348: Checking Things Under The Hood
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 349: Hood Release
Hood Release To open the hood, do the following: 1. Pull the interior hood release handle with this symbol on it. It is located to the left of the steering column below the instrument panel. 2. Push the secondary hood release lever, located under the center of the hood above the grille, up and to the right to disengage it.
Page 350: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.6L V6 engine, this is what you will see:...
Page 351 A. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 380. B. Battery. See Battery on page 384. C. Remote Positive (+) Terminal. See Jump Starting on page 385. D. Underhood Fuse Block. See Underhood Fuse Block on page 452.
Page 352 When you open the hood on the 3.8L V6 engine, this is what you will see:...
Page 353: Engine Oil
A. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 380. B. Battery. See Battery on page 384. C. Remote Positive (+) Terminal. See Jump Starting on page 385. D. Passenger Compartment Air Filter. See Passenger Compartment Air Filter on page 178.
Page 354 When to Add Engine Oil 3.6L V6 Engine 3.8L V6 Engine If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind.
Page 355 What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 356: Engine Oil Life System
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for the engine at extremely low temperatures.
Page 357 How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change the engine oil and ﬁlter based on vehicle use. Anytime the oil is changed, reset the system so it can calculate when the next oil change is required.
Page 358: Engine Air Cleaner/Filter
Used oil can be a threat to the environment. If you change your own oil, be sure to drain all the oil from the ﬁlter before disposal. Never dispose of oil by putting it in the trash, pouring it on the ground, into sewers, or into streams or bodies of water.
Page 359 How to Inspect the Engine Air Cleaner/Filter To inspect the air cleaner/ﬁlter, remove the ﬁlter from the vehicle and lightly shake the ﬁlter to release loose dust and dirt. If the ﬁlter remains caked with dirt, a new ﬁlter is required. To inspect or replace the engine air cleaner/ﬁlter do the following: 1.
Page 360: Automatic Transaxle Fluid
Automatic Transaxle Fluid When to Check and Change Automatic Transaxle Fluid A good time to check the automatic transaxle ﬂuid level is when the engine oil is changed. Change the ﬂuid and ﬁlter at the intervals listed in Additional Required Services on page 464, and be sure to use the transaxle ﬂuid listed in Recommended Fluids and Lubricants on page 470.
Page 361 Wait at least 30 minutes before checking the transaxle ﬂuid level if you have been driving: • When outside temperatures are above 90°F (32°C). • At high speed for quite a while. • In heavy traffic — especially in hot weather. •...
Page 362 See Engine Compartment Overview on page 350 for more information on location. 1. Pull out the dipstick and wipe it with a clean rag or paper towel. 2. Push it back in all the way, wait three seconds and then pull it back out again. 3.
Page 363: Engine Coolant
Engine Coolant The cooling system in the vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in the vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst, if only DEX-COOL coolant is added. The following explains the cooling system and how to add coolant when it is low.
Page 364 What to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL engine coolant which will not damage aluminum parts. If this coolant mixture is used, nothing else needs to be added. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 365 Checking Coolant The coolant recovery tank is located in the engine compartment toward the rear of the engine on the passenger’s side of the vehicle. See Engine Compartment Overview on page 350 for more information on location. 3.8L V6 Engine shown, 3.6L V6 Engine similar The vehicle must be on a level surface when...
Page 366 Adding Coolant If more coolant is needed, add the proper ® DEX-COOL coolant mixture at the coolant recovery tank, but be careful not to spill it. If the coolant recovery tank is completely empty, add coolant to the radiator. See Engine Overheating on page 367.
Page 367: Radiator Pressure Cap
Radiator Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured. The radiator pressure cap is located in the front of the engine compartment on the passenger’s side of the vehicle.
Page 368 If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Turn it off and get everyone away from the vehicle until it cools down.
Page 369 If No Steam Is Coming From Your Engine If you get an engine overheat warning, but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 370: Overheated Engine Protection
Overheated Engine Protection Operating Mode This emergency operating mode allows your vehicle to be driven to a safe place in an emergency situation. If an overheated engine condition exists, an overheat protection mode which alternates ﬁring groups of cylinders helps prevent engine damage. In this mode, you will notice a signiﬁcant loss in power and engine performance.
Page 371 3.6L V6 Engine A. Coolant Recovery Tank B. Pressure Cap C. Electric Engine Cooling Fans CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing, and tools away from any underhood electric fan.
Page 372 When the engine is cold, the coolant level should be at or above the cold ﬁll line on the coolant recovery tank. If it is not, there may be a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump, or somewhere else in the cooling system.
Page 373 How to Add Coolant to the Coolant Recovery Tank CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture.
Page 374 If the overheat warning continues, there is one more thing you can try. You can add the proper coolant mixture directly to the cooling system through the coolant ﬁll neck under the pressure cap, but be sure the system is cool before you do it. CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you...
Page 375 2. Then keep turning the pressure cap, but now push down as you turn it. Remove the pressure cap. 3. Open the coolant air bleed valve located on the thermostat housing, near the upper radiator hose. See Engine Compartment Overview on page 350 for more information on location.
Page 376 7. Put the cap back on the coolant recovery tank, but leave the radiator pressure cap off. 8. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fans. 9.
Page 377 How to Add Coolant to the Cooling System (3.6L V6 Engine) Notice: Your engine has a speciﬁc cooling system drain and ﬁll procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. If your engine’s cooling system needs to be drained and re-ﬁlled, please see your dealer.
Page 378: Power Steering Fluid
5. Then ﬁll the coolant recovery tank to the cold ﬁll line. 6. Reinstall the coolant recovery tank cap and the pressure cap. 7. If the coolant in the recovery tank is constantly low, you should have your dealership service department inspect the vehicle for leaks.
Page 379 How to Check Power Steering Fluid To check the power steering ﬂuid, do the following: 1. Turn the key off and let the engine compartment cool down. 2. Wipe the cap and the top of the reservoir clean. 3. Unscrew the cap and wipe the dipstick with a clean rag.
Page 380: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 381: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 350 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 382 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 470. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it.
Page 383 CAUTION: The brake wear warning sound means that soon the brakes will not work well. That could lead to an accident. When you hear the brake wear warning sound, have your vehicle serviced. Notice: Continuing to drive with worn-out brake pads could result in costly brake repair. Some driving conditions or climates may cause a brake squeal when the brakes are ﬁrst applied or lightly applied.
Page 384: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco replacement battery. See Engine Compartment Overview on page 350 for battery location. Warning: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California...
Page 385: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 386 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 387 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded.
Page 388 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock. The vehicles could be damaged too. Before you connect the cables, here are some basic things you should know. Positive (+) will go to positive (+) or to a remote positive (+) terminal if the vehicle has one.
Page 389 7. Do not let the other end touch metal. Connect it to the positive (+) terminal location on the vehicle with the good battery. Use a remote positive (+) terminal if the vehicle has one. 8. Now connect the black negative ( ) cable to the negative ( ) terminal location on the vehicle with the good battery.
Page 390 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 391: Headlamp Aiming
To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2. Disconnect the black negative ( ) cable from the vehicle with the good battery. 3.
Page 392 Headlamp aiming is done with the vehicle’s low-beam headlamps. The high-beam headlamps will be correctly aimed if the low-beam headlamps are aimed properly. The vertical headlamp aiming screws are located under the hood near the headlamps. The adjustment screw can be turned with a 6 mm male hex.
Page 393 4. At the wall measure from the ground upward (A) to the recorded distance from Step 3 and mark it. Notice: Do not cover a headlamp to improve beam cut-off when aiming. Covering a headlamp may cause excessive heat build-up which may cause damage to the headlamp.
Page 394: Bulb Replacement
9. Make sure that the light from the headlamp is positioned at the bottom edge of the horizontal tape line. The lamp on the left (A) shows the correct headlamp aim. The lamp on the right (B) shows the incorrect headlamp aim. 10.
Page 395: Headlamps And Sidemarker Lamps
Headlamps and Sidemarker Lamps A. Sidemarker Lamp B. Low-Beam Headlamp C. High-Beam Headlamp Low-Beam Headlamp and Sidemarker Bulbs To replace a low-beam headlamp or sidemarker bulb, do the following: 1. Open the hood. See Hood Release on page 349 for more information. 2.
Page 396 3. Pull up on the plastic retaining clip (C) while pushing rearward on the headlamp. Align the square cut-out on the retaining clip with the notch on the headlamp. 4. Remove the screw (A) from the metal headlamp retainer to pull up and release the headlamp assembly.
Page 397: Front Turn Signal And Parking Lamps
High-Beam Headlamp Bulbs To replace the high-beam headlamp bulb, do the following: 1. Open the hood. See Hood Release on page 349 for more information. 2. Locate the high-beam headlamp bulb socket. 3. Remove the access cover from behind the bulb being replaced.
Page 398: Taillamps, Turn Signal, Sidemarker
Taillamps, Turn Signal, Sidemarker, Stoplamps and Back-up Lamps To replace a taillamp, turn signal, sidemarker, stoplamp or back-up lamp bulb, do the following: 1. Open the trunk. See Trunk on page 100 for more information. 2. Remove the convenience net if the vehicle has one.
Page 399 5. Remove the two wing nuts holding the taillamp assembly in place. 6. Pull out the taillamp assembly and disconnect the wiring harness. A. Taillamp D. Stoplamp/Taillamp/ B. Back-up Turn Signal C. Taillamp E. Sidemarker 7. Turn the bulb socket counterclockwise to remove it.
Page 400: License Plate Lamp
License Plate Lamp To replace one of these bulbs, do the following: 1. Remove the two screws holding each of the license plate lamps to the fascia. 2. Turn and pull the license plate lamp forward through the fascia opening. 3.
Page 401: Windshield Replacement
Windshield Replacement Your vehicle is equipped with an acoustic windshield. If you ever have to have your windshield replaced be sure to get an acoustic windshield so you will continue to have the beneﬁts an acoustic windshield can provide. Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking.
Page 402: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 403: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 404 (E) Tire Ply Material: The type of cord and number of plies in the sidewall and under the tread. (F) Uniform Tire Quality Grading (UTQG): Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance. For more information see Uniform Tire Quality Grading on page 421.
Page 405 (B) Tire Ply Material: The type of cord and number of plies in the sidewall and under the tread. (C) Tire Identiﬁcation Number (TIN): The letters and numbers following the DOT (Department of Transportation) code is the Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured.
Page 406: Tire Terminology And Deﬁnitions
(C) Aspect Ratio: A two-digit number that indicates the tire height-to-width measurements. For example, if the tire size aspect ratio is 60, as shown in item C of the illustration, it would mean that the tire’s sidewall is 60 percent as high as it is wide.
Page 407 Cold Tire Pressure: The amount of air pressure in a tire, measured in pounds per square inch (psi) or kilopascals (kPa) before a tire has built up heat from driving. See Inﬂation - Tire Pressure on page 409. Curb Weight: This means the weight of a motor vehicle with standard and optional equipment including the maximum capacity of fuel, oil, and coolant, but without passengers and cargo.
Page 408 Normal Occupant Weight: The number of occupants a vehicle is designed to seat multiplied by 150 lbs (68 kg). See Loading Your Vehicle on page 319. Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle.
Page 409: Inﬂation - Tire Pressure
UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire. See Uniform Tire Quality Grading on page 421.
Page 410 A Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 411: Tire Pressure Monitor System
Tire Pressure Monitor System The Tire Pressure Monitor System (TPMS) uses radio and sensor technology to check tire pressure levels. TPMS sensors are mounted onto each tire and wheel assembly, except for the spare tire. The TPMS sensors monitor the air pressure in your vehicle’s tires and transmit tire pressure readings to a receiver located in the vehicle.
Page 412 As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is signiﬁcantly under-inﬂated. Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inﬂate them to the proper pressure.
Page 413 When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Page 414 TPMS Sensor Identiﬁcation Codes Each TPMS sensor has a unique identiﬁcation code. Any time you replace one or more of the TPMS sensors or rotate the vehicle’s tires, the identiﬁcation codes need to be matched to the new tire/wheel position. The sensors are matched, to the tire/wheel positions, in the following order: driver side front tire, passenger side front tire, passenger side rear tire, and driver side rear tire...
Page 415 6. Proceed to the passenger side front tire, and repeat the procedure in Step 5. 7. Proceed to the passenger side rear tire, and repeat the procedure in Step 5. 8. Proceed to the driver side rear tire, and repeat the procedure in Step 5. 9.
Page 416: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km). Any time you notice unusual wear, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels. See When It Is Time for New Tires on page 417 and Wheel Replacement on page 422 for more information.
Page 417: When It Is Time For New Tires
CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 418: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 419 CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes, brands, or types may also cause damage to your vehicle.
Page 420: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover.
Page 421: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 422: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire...
Page 423 Each new wheel should have the same load-carrying capacity, diameter, width, offset and be mounted the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new GM original equipment parts.
Page 424: Tire Chains
Tire Chains CAUTION: If your vehicle has P225/55R17 size tires, do not use tire chains, there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 425: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag...
Page 426: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your vehicle’s hazard warning ﬂashers. See Hazard Warning Flashers on page 150 for more information. CAUTION: Changing a tire can be dangerous.
Page 427: Removing The Spare Tire And Tools
The following information will tell you next how to use the jack and change a tire. Removing the Spare Tire and Tools The equipment you will need is located in the trunk. 1. Open the trunk. See Trunk on page 100 for more information.
Page 428 4. Turn the wing nut counterclockwise and remove it. 5. Remove the compact spare tire. 6. Turn the nut holding the jack counterclockwise and remove it. Then remove the jack and wrench.
Page 429: Removing The Flat Tire And Installing
The tools you will need to change a tire include the jack (A), extension and protection guide (B), and wheel wrench (C). Removing the Flat Tire and Installing the Spare Tire You vehicle may have wheels with exposed wheel nuts. If so, go to the Removing the Wheel Nuts section.
Page 430 2. Use the wheel wrench to loosen the plastic wheel nut caps, if the vehicle has them, in a counterclockwise direction. If needed, ﬁnish loosening them by hand. The nut caps will not come off of the wheel cover. 3. Use the ﬂat end of the wheel wrench and pry along the edge of the cover until it comes off.
Page 431 3. Find the jacking location using the diagram above and corresponding triangular-shaped hoisting notches located on the underside of the vehicle’s plastic molding. The front location is about 6.5 inches (16.5 cm) from the rear edge of the front wheel well. The rear location is about 9 inches (22.8 cm) from the front edge of the rear wheel well.
Page 432 5. Raise the vehicle by turning the jack handle clockwise. Raise the vehicle far enough off the ground for the compact spare tire to ﬁt under the vehicle. 6. Remove all wheel nuts and take off the ﬂat tire.
Page 433 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 434 10. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
Page 435: Storing A Flat Or Spare Tire And Tools
11. Tighten the wheel Notice: Wheel covers will not ﬁt on your compact spare. If you try to put a wheel cover on the compact spare, you could damage the cover or the spare. Do not try to put the wheel cover on the compact spare tire.
Page 436 To store a full-size tire, do the following: 1. Install the tools in their original location in the trunk area and secure. 2. Place the tire valve stem facing down and the protector/guide placed through a wheel bolt hole. 3. Remove the protector and attach the retainer securely.
Page 437: Compact Spare Tire
A. Retainer B. Full-Size Flat Tire C. Protective Guide D. Extension Bolt Screw E. Wing Nut F. Jack G. Wheel Wrench H. Protective Guide I. Foam Holder J. Bolt Screw Full-Size Flat Tire Compact Spare Tire Although the compact spare tire was fully inﬂated when the vehicle was new, it can lose air after a time.
Page 438: Appearance Care
And do not mix the compact spare tire or wheel with other wheels or tires. They will not ﬁt. Keep the spare tire and its wheel together. Notice: Tire chains will not ﬁt your compact spare. Using them can damage your vehicle and can damage the chains too.
Page 439 Many cleaners contain solvents that may become concentrated in your vehicle’s breathing space. Before using cleaners, read and adhere to all safety instructions on the label. While cleaning your vehicle’s interior, maintain adequate ventilation by opening your vehicle’s doors and windows.
Page 440: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For soils, always try to remove them ﬁrst with plain water or club soda.
Page 441: Leather
Leather A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a soft cloth dampened with a mild soap solution can be used. Allow the leather to dry naturally. Do not use heat to dry. Never use steam to clean leather.
Page 442: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 443: Cleaning Exterior Lamps/Lenses
Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under Washing Your Vehicle on page 442. Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint ﬁnish.
Page 444: Windshield And Wiper Blades
Windshield and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap, or other material may be on the blade or windshield. Clean the outside of the windshield with a glass cleaning liquid or powder and water solution.
Page 445: Tires
Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish on chrome wheels only. Use chrome polish only on chrome-plated wheels, but avoid any painted surface of the wheel, and buff off immediately after application.
Page 446: Finish Damage
Finish Damage Any stone chips, fractures or deep scratches in the ﬁnish should be repaired right away. Bare metal will corrode quickly and may develop into major repair expense. Minor chips and scratches can be repaired with touch-up materials available from your dealer. Larger areas of ﬁnish damage can be corrected in your dealer’s body and paint shop.
Page 447: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 448: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 449: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 450: Power Windows And Other Power Options
Power Windows and Other Power Options Circuit breakers in the instrument panel fuse block protect the power windows and other power accessories. When the current load is too heavy, the circuit breaker opens and closes, protecting the circuit until the problem is ﬁxed. Fuses and Circuit Breakers The wiring circuits in the vehicle are protected from short circuits by a combination of fuses,...
Page 451 Fuses Usage DR/LCK Door Locks, Trunk TRUNK RFA/MOD Remote Keyless Entry PRK/SWTCH Ignition Key Lock CLSTR Cluster STR/WHL/ Steering Wheel Controls ILLUM Illumination ® ONSTAR/ALDL OnStar , Data Link Fuses Usage INT/ILLUM Interior Lamps PWR/SEAT Power Seat S/ROOF Sunroof CNSTR Canister Vent HVAC Climate Control System...
Page 452: Underhood Fuse Block
Underhood Fuse Block Some fuses and relays are located in the underhood fuse block on the passenger’s side of the vehicle in the engine compartment. See Engine Compartment Overview on page 350 for more information on location. Mini-Fuses Driver’s Side High-Beam Passenger’s Side High-Beam Driver’s Side Low-Beam Mini-Fuses...
Page 453 J-Style Fuses Usage Air Pump Battery Main 1 Battery Main 2 Battery Main 3 Fan 1 Battery Main 4 Anti-lock Brake System Motor Fan 2 Starter Micro-Relays Usage Headlamp High-Beam Headlamp Driver Module Fog Lamp Ignition 1 Air Conditioning Compressor Horn Powertrain Fuel Pump...
Page 454: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. Application Air Conditioning Refrigerant R134a Automatic Transaxle (Drain and Reﬁll) Cooling System Including Reservoir 3.6L V6 and 3.8L V6 Engine Oil with Filter 3.6L V6 3.8L V6 Fuel Tank 3.8L Engine (with NU6 emissions) sold new in CA, ME, VT, NY, MA (see your dealer for bordering states)
Page 455 Engine Speciﬁcations Engine VIN Code 3.6L V6 3.8L V6 Transaxle Spark Plug Gap Automatic 0.044 inches (1.1 mm) Automatic 0.060 inches (1.52 mm)
Page 456 NOTES...
Page 457: Maintenance Schedule
Section 6 Maintenance Schedule ... 458 Introduction ... 458 Maintenance Requirements ... 458 Your Vehicle and the Environment ... 459 Using the Maintenance Schedule ... 459 Scheduled Maintenance ... 462 Additional Required Services ... 464 Maintenance Footnotes ... 465 Maintenance Schedule Owner Checks and Services ...
Page 458: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and...
Page 459: Your Vehicle And The Environment
Your Vehicle and the Environment Proper vehicle maintenance not only helps to keep your vehicle in good working condition, but also helps the environment. All recommended maintenance is important. Improper vehicle maintenance can even affect the quality of the air we breathe.
Page 460 Because of all the different ways people use their vehicles, maintenance needs vary. You may need more frequent checks and replacements. So please read the following and note how you drive. If you have any questions on how to keep your vehicle in good condition, see your ®...
Page 461 Some maintenance services can be complex. So, unless you are technically qualiﬁed and have the necessary equipment, you should have ® your GM Goodwrench dealer do these jobs. When you go to your GM Goodwrench your service needs, you will know that GM-trained and supported service technicians will perform the work using genuine GM parts.
Page 462: Scheduled Maintenance
Scheduled Maintenance When the change engine oil light or CHANGE OIL SOON DIC message comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 463 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 353. Reset oil life system. See Engine Oil Life System on page 356. An Emission Control Service. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter.
Page 464: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 465: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect other brake parts, including calipers, parking brake, etc. (b) Visually inspect front and rear suspension and steering system for damaged, loose, or missing parts or signs of wear.
Page 466: Owner Checks And Services
(h) Change automatic transaxle ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: − In heavy city traffic where the outside temperature regularly reaches 90°F (32°C) or higher. − In hilly or mountainous terrain. −...
Page 467: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Check the engine oil level and add the proper oil if necessary. See Engine Oil on page 353 for further details. Notice: It is important to check your oil regularly and keep it at the proper level.
Page 468: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. 2.
Page 469 Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition to OFF in each shift lever position. • The ignition should turn to OFF only when the shift lever is in PARK (P). •...
Page 470: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 471: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Normal Maintenance Replacement Parts Part Engine Air Cleaner/Filter Engine Oil Filter 3.6L V6 3.8L V6 Passenger Compartment Air Filter Spark Plugs 3.6L V6 Engine 3.8L V6 Engine...
Page 472: Engine Drive Belt Routing
Engine Drive Belt Routing 3.6L V6 Engine 3.8L V6 Engine...
Page 473: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 458. Any additional information from Owner Checks and Services on page 466 can be added on the following record pages.
Page 474 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 475 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 476 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 477: Customer Assistance Information
Section 7 Customer Assistance and Information ... 478 Customer Satisfaction Procedure ... 478 Online Owner Center ... 481 Customer Assistance for Text Telephone (TTY) Users ... 482 Customer Assistance Offices ... 482 GM Mobility Reimbursement Program ... 483 Roadside Assistance Program ... 484 Courtesy Transportation ...
Page 478: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Buick. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your GM dealer’s sales or service departments.
Page 479 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, in the United States, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you should ﬁle with the BBB Auto Line Program to enforce your rights.
Page 480 STEP THREE — Canadian Owner: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps one and two, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration program.
Page 481: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 482: Customer Assistance For Text
1-800-263-3830. Customer Assistance Offices Buick encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Buick, the letter should be addressed to: United States — Customer Assistance Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 www.Buick.com...
Page 483: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 484: Roadside Assistance Program
In the U.S. call 1-800-252-1112. In Canada call 1-800-268-6800. Service available 24 hours a day, 365 days a year. As the proud owner of a new Buick vehicle, you are automatically enrolled in the Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 485 • Emergency Tow From a Public Roadway or Highway: Tow to the nearest dealership for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance when the vehicle is mired in sand, mud, or snow. • Flat Tire Change: Installation of your spare tire in good condition will be covered at no charge.
Page 486 While we hope you never have the occasion to use our service, it is added security while traveling for you and your family. Remember, we are only a phone call away. U.S. customers call Buick Roadside Assistance: 1-800-252-1112, TTY users, call 1-888-889-2438, Canadian customers call 1-800-268-6800.
Page 487: Courtesy Transportation
Towing and Road Service Exclusions Speciﬁcally excluded from Roadside Assistance coverage are towing or services for vehicles operated on a non-public roadway or highway, ﬁnes, impound towing caused by a violation of local, Municipal, State, Provincial, or Federal law, and mounting, dismounting or changing of snow tires, chains, or other traction devices.
Page 488 Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Shuttle service is the preferred means of offering Courtesy Transportation and participating...
Page 489: Vehicle Data Collection And Event
Additional Program Information All program options, such as shuttle service, may not be available at every dealer. Please contact your dealer for speciﬁc information about availability. All Courtesy Transportation arrangements will be administered by appropriate dealer personnel. General Motors reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms...
Page 490: Collision Damage Repair
To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 491 Recycled original equipment parts may also be used for repair. These parts are typically removed from vehicles that were total losses in prior accidents. In most cases, the parts being recycled are from undamaged sections of the vehicle. A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts is...
Page 492 If your vehicle is leased, the leasing company may require you to have insurance that assures repairs with Genuine GM Original Equipment Manufacturer (OEM) parts or Genuine Manufacturer replacement parts. Read your lease carefully, as you may be charged at the end of your lease for poor quality repairs.
Page 493 • If possible, call your insurance company from the scene of the accident. They will walk you through the information they will need. If they ask for a police report, phone or go to the police department headquarters the next day and you can get a copy of the report for a nominal fee.
Page 494: Reporting Safety Defects
If another party’s insurance company is paying for the repairs, you are not obligated to accept a repair valuation based on that insurance company’s collision policy repair limits, as you have no contractual limits with that company. In such cases, you can have control of the repair and parts choices as long as cost stays within reasonable limits.
Page 495: Reporting Safety Defects To General Motors
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. Please call us at 1-800-521-7300, or write: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 496 Owner Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 US + Processing Fee Without Portfolio: Owner’s Manual only.
Page 497 Accessories and Modiﬁcations ... 341 Accessory Power Outlet(s) ... 167 Adding Equipment to Your Airbag-Equipped Vehicle ... 81 Additives, Fuel ... 344 Add-On Electrical Equipment ... 449 Air Cleaner/Filter, Engine ... 358 Air Conditioning ... 168, 172 Airbag Passenger Status Indicator ... 183 Readiness Light ...
Page 498 Audio System(s) ... 238 Audio Steering Wheel Controls ... 280 Backglass Antenna ... 283 Care of Your CD Player ... 282 Care of Your CDs ... 282 Chime Level Adjustment ... 284 Radio with CD ... 240, 245, 252 Radio with Six-Disc CD ... 260 Setting the Time ...
Page 499 Calibration ... 206 California Fuel ... 344 California Proposition 65 Warning ... 341 Canadian Owners ... 3 Capacities and Speciﬁcations ... 454 Carbon Monoxide ... 100, 122, 314, 327 Care of Safety Belts ... 442 Your CD Player ... 282 Your CDs ...
Page 500 Cleaning (cont.) Underbody Maintenance ... 446 Washing Your Vehicle ... 442 Weatherstrips ... 442 Windshield and Wiper Blades ... 444 Climate Control System ... 168 Air Filter, Passenger Compartment ... 178 Dual Automatic ... 172 Outlet Adjustment ... 177 Collision Damage Repair ... 490 Comfort Guides, Rear Safety Belt ...
Page 501 Doing Your Own Service Work ... 342 Door Ajar Light ... 197 Automatic Door Lock ... 98 Delayed Locking ... 97 Locks ... 96 Power Door Locks ... 97 Programmable Automatic Door Unlock ... 98 Rear Door Security Locks ... 98 Driver Position, Safety Belt ...
Page 502 Engine (cont.) Overheated Protection Operating Mode ... 370 Overheating ... 367 Reduced Power Light ... 196 Starting ... 111 Enhanced Traction System (ETS) ... 295 Entry Lighting ... 161 Event Data Recorders (EDR) ... 489 Extender, Safety Belt ... 38 Exterior Lamps ...
Page 503 Gage Engine Coolant Temperature ... 189 Fuel ... 198 Speedometer ... 181 Tachometer ... 181 Garage Door Opener ... 130 Gasoline Octane ... 343 Speciﬁcations ... 344 Glove Box ... 141 GM Mobility Reimbursement Program ... 483 Hazard Warning Flashers ... 150 Head Restraints ...
Page 504 Ignition Positions ... 109 Infants and Young Children, Restraints ... 42 Inﬂation - Tire Pressure ... 409 Instrument Panel Overview ... 148 Instrument Panel (I/P) Brightness ... 161 Cluster ... 180 Interior Lamps ... 161 Jump Starting ... 385 Keyless Entry System ... 89 Keys ...
Page 505 Light (cont.) Door Ajar ... 197 Engine Coolant Temperature Warning ... 188 Headlamps Suggested ... 196 Highbeam On ... 196 Low Coolant Warning ... 189 Low Fuel Warning ... 198 Low Washer Fluid Warning ... 197 Malfunction Indicator ... 190 Oil Pressure ...
Page 506 Maintenance Schedule (cont.) Normal Maintenance Replacement Parts ... 471 Owner Checks and Services ... 466 Recommended Fluids and Lubricants ... 470 Scheduled Maintenance ... 462 Using ... 459 Your Vehicle and the Environment ... 459 Malfunction Indicator Light ... 190 Message DIC Warnings and Messages ...
Page 507 Paint, Damage ... 446 Park Aid ... 164 Park (P) Shifting Into ... 118 Shifting Out of ... 120 Parking Assist ... 164 Brake ... 117 Over Things That Burn ... 121 Passenger Airbag Status Indicator ... 183 Passenger Compartment Air Filter ... 178 Passenger Sensing System ...
Page 508 Rear Door Security Locks ... 98 Rear Safety Belt Comfort Guides ... 35 Rear Seat Passengers, Safety Belts ... 32 Rearview Mirror, Automatic Dimming ... 124 Rearview Mirror, Automatic Dimming with ® OnStar ... 125 ® Rearview Mirror with OnStar Rearview Mirrors ...
Page 509 Safety Belts (cont.) Questions and Answers About Safety Belts ... 20 Rear Safety Belt Comfort Guides ... 35 Rear Seat Passengers ... 32 Right Front Passenger Position ... 30 Safety Belt Extender ... 38 Safety Belt Use During Pregnancy ... 30 Safety Belts Are for Everyone ...
Page 510 Starting Your Engine ... 111 Steering ... 297 Steering Wheel Controls, Audio ... 280 Steering Wheel, Tilt Wheel ... 151 Storage Areas Center Console Storage Area ... 142 Convenience Net ... 142 Cupholder(s) ... 141 Glove Box ... 141 Stuck in Sand, Mud, Ice, or Snow ... 318 Sun Visors ...
Page 511 Towing Recreational Vehicle ... 326 Towing a Trailer ... 327 Your Vehicle ... 325 Traction Control System (TCS) ... 294 Control System Warning Light ... 187 Enhanced Traction System (ETS) ... 295 ® StabiliTrak System ... 296 Transaxle Fluid, Automatic ... 360 Transaxle Operation, Automatic ...
Page 512 Warning Lights, Gages and Indicators ... 179 Warnings DIC Warnings and Messages ... 208 Hazard Warning Flashers ... 150 Other Warning Devices ... 150 Safety and Symbols ... 4 Vehicle Damage ... 5 Washer Fluid, Low Warning Light ... 197 Wheels Alignment and Tire Balance ...
