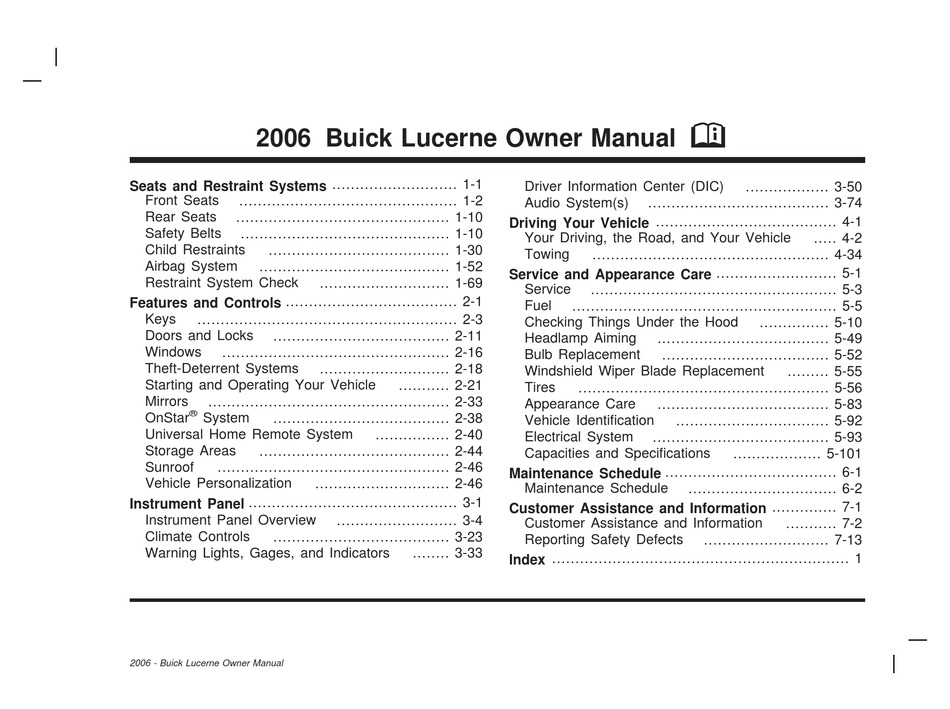

Page 1 2006 Buick Lucerne Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-10 Safety Belts ... 1-10 Child Restraints ... 1-30 Airbag System ... 1-52 Restraint System Check ... 1-69 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Buick Motor Division whenever it appears in this manual. Keep this manual in the vehicle, so it will be there if it is needed when you are on the road.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Manual Passenger Seat ...1-2 Power Seats ...1-2 Power Lumbar ...1-3 Heated Seats ...1-4 Heated and Cooled Seats ...1-5 Reclining Seatbacks ...1-6 Head Restraints ...1-9 Center Seat ...1-10 Rear Seats ...1-10 Rear Seat Pass-Through Door ...1-10 Safety Belts ...1-10 Safety Belts: They Are for Everyone ...1-10 Questions and Answers About Safety Belts ...1-15...
Page 8: Front Seats
Front Seats Manual Passenger Seat Lift the bar located under the front of the seat to unlock it. Slide the seat to where you want it and release the bar. Try to move the seat with your body to be sure the seat is locked in place.
Page 9: Power Lumbar
To adjust the seat, do any of the following: • Move the seat forward or rearward by sliding the control forward or rearward. • Raise or lower the front part of the seat cushion by moving the front of the control up or down. •...
Page 10 Heated Seats Your vehicle may have heated front seats. To operate the heated seats, the ignition must be on. The buttons are located on the front doors forward of the door handle. Driver’s Side Buttons shown (Heated Seat Cushion and Seatback): Press this button to turn on the heated seat cushion and seatback.
Page 11 Heated and Cooled Seats The front seats may have the heated and cooled seat feature. To heat or cool the seats, the ignition must be on. The buttons are located on the front doors forward of the door handle. Driver’s Side Buttons shown (Heated Seat Cushion and Seatback): Press this button to heat the seat cushion and seatback.
Page 12: Reclining Seatbacks
Reclining Seatbacks Manual Reclining Seatbacks CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
Page 13: Power Reclining Seatbacks
To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
Page 14 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
Page 15: Head Restraints
Head Restraints Pull the head restraint up to raise it. Press the release button, located at the base of the head restraint, and push the head restraint down to lower it. Adjust the head restraint so that the top of the restraint is closest to the top of the occupant’s head.
Page 16: Rear Seats
Center Seat Your vehicle may have a front center seat. This seat can be converted to a storage area by lowering the seatback. See Center Flex Storage Unit on page 2-45. For information on safety belts for this position, see Center Front Passenger Position on page 1-24. 1-10 Rear Seats Rear Seat Pass-Through Door...
Page 17 CAUTION: (Continued) You can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passengers’ belts are fastened properly too. CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle.
Page 18: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 1-12...
Page 19 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-13...
Page 20 or the instrument panel... 1-14 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.
Page 21 Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But you can unbuckle a safety belt, even if you are upside down.
Page 22: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-30 or Infants and Young Children on page 1-33.
Page 23 Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-30. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 24 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. 1-18 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 25 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 26 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-20 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 27 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 28: Shoulder Belt Height Adjustment
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 29: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 30: Center Front Passenger Position
Center Front Passenger Position Lap Belt If your vehicle has a front bench seat, someone can sit in the center position. When you sit in the center front seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.
Page 31: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 32 3. To make the lap part tight, pull up on the shoulder part. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the pelvic bones. And you would be less likely to slide under the lap belt.
Page 33: Rear Safety Belt Comfort Guides
CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body. To unlatch the belt, just push the button on the buckle. Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides will provide added safety belt comfort for older children who have outgrown...
Page 34 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 1-28 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top.
Page 35: Safety Belt Pretensioners
CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 36: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer will order you an extender. It is free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 37 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 38 What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck? If the child is sitting in a seat next to a window, move the child toward the center of the vehicle.
Page 39: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 40 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 41 CAUTION: Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders.
Page 42: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 43 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 44 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 45 When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 46: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 47: Lower Anchors And Tethers For Children (Latch)
Wherever you install a child restraint, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle —...
Page 48 Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 1-42 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 49 Some top tether-equipped child restraints are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 50 The top tether anchors are located under the trim covers on the rear seatback ﬁller panel. Flip open the trim cover to access the anchors. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 51 CAUTION: Each top tether anchor and lower anchor in the vehicle is designed to hold only one child restraint. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash.
Page 52: Securing A Child Restraint In A Rear Seat Position
If the position you are using has a ﬁxed head restraint and you are using a single tether, route the tether over the head restraint. If the position you are using has a ﬁxed head restraint and you are using a dual tether, route the tether around the head restraint.
Page 53 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-47...
Page 54: Securing A Child Restraint In The Center Front Seat Position
5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 55: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-40. In addition, your vehicle has the passenger sensing system.
Page 56 There is no top tether anchor at the right front seating position. Do not secure a child seat in this position if a national or local law requires that the top tether be anchored or if the instructions that come with the child restraint say that the top tether must be anchored.
Page 57 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 58: Airbag System
If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint. If after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion.
Page 59 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 60 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 61: Where Are The Airbags
There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-36 for more information.
Page 62 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. 1-56 The seat-mounted side impact airbag for the driver is in the side of the driver’s seatback closest to the door.
Page 63 The seat-mounted side impact airbag for the right front passenger is in the side of the passenger’s seatback closest to the door. The roof-mounted side impact airbag for the driver and the person seated directly behind the driver is in the ceiling above the side windows.
Page 64 The roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger is in the ceiling above the side windows. 1-58 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 65: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 66 Frontal airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbags could inﬂate at a different crash speed than if the vehicle hits a moving object. • If the vehicle hits an object that deforms, the airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.
Page 67: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag. The inﬂator, airbag and related hardware are all part of the airbag modules inside the steering wheel, instrument panel, the side of the front seatbacks closest to the door and the ceiling...
Page 68: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize the airbags inﬂated. Some components of the airbag module — the steering wheel hub for the driver’s airbag, the instrument panel for the right front passenger’s bag, the side of the seatback closest to the door for seat-mounted side impact airbags, and the area along the ceiling of your...
Page 69: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 70 The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger’s frontal airbag and seat-mounted side impact airbag should be enabled (may inﬂate) or not.
Page 71 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag if: • the right front passenger seat is unoccupied • the system determines that an infant is present in a rear-facing infant seat •...
Page 72 For some children who have outgrown child restraints and for very small adults, the passenger sensing system may or may not turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag, depending upon the person’s seating posture and body build.
Page 73: Servicing Your Airbag-Equipped Vehicle
CAUTION: (Continued) adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag. See Airbag Readiness Light on page 3-36 for more on this, including important safety information. Aftermarket equipment, such as seat covers, can affect how well the passenger sensing system operates.
Page 74: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, front end or side sheet metal or height, they may keep the airbag system from working properly.
Page 75: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 76: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 77: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-5 Remote Keyless Entry System Operation ...2-6 Doors and Locks ...2-11 Door Locks ...2-11 Power Door Locks ...2-11 Delayed Locking ...2-12 Programmable Automatic Door Locks ...2-13 Rear Door Security Locks ...2-13 Lockout Protection ...2-14 Trunk ...2-14 Windows ...2-16 Power Windows ...2-17...
Page 78 Section 2 Storage Areas ...2-44 Glove Box ...2-44 Cupholder(s) ...2-44 Front Storage Area ...2-44 Center Console Storage Area ...2-45 Center Flex Storage Unit ...2-45 Features and Controls Rear Seat Armrest ...2-46 Convenience Net ...2-46 Sunroof ...2-46 Vehicle Personalization ...2-46 Memory Seat and Mirrors ...2-47...
Page 79: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 80 One key is used for the ignition, the driver’s door and the glovebox lock. When a new vehicle is delivered, the dealer removes the key tag from the key and gives it to the ﬁrst owner. Each tag has a code on it that tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 81: Remote Keyless Entry System
Remote Keyless Entry System Your keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 82: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation The vehicle’s doors can be locked and unlocked, and the trunk can be unlatched from about 3 feet (1 m) up to 60 feet (18 m) away with the remote keyless entry transmitter. If your vehicle has the remote start feature you can also start your vehicle with the remote keyless entry transmitter.
Page 83 (Lock): Press the lock button to lock all the doors. If enabled through the Driver Information Center (DIC), the parking lamps will ﬂash once to indicate locking has occurred. If enabled through the DIC, the horn will chirp when the lock button is pressed again within ﬁve seconds of the previous press of the lock button.
Page 84: Battery Replacement
Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about four years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
Page 85: Remote Vehicle Start
Remote Vehicle Start Your vehicle may have a remote starting feature. This feature allows you to start the engine from outside the vehicle. It may also start the vehicle’s heating or air conditioning systems, rear window defogger, and heated seats. See Heated Seats on page 1-4 and Heated and Cooled Seats on page 1-5 for additional information.
Page 86 When you enter the vehicle during a remote start, and the engine is still running, turn the key to the RUN position to drive the vehicle. If the vehicle is left running it will automatically shut off after 10 minutes unless a time extension has been done.
Page 87: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 88: Delayed Locking
Delayed Locking This feature allows the driver to delay the actual locking of the doors. When the driver’s power door lock switch or remote keyless entry transmitter lock button is pressed with the key removed from the ignition, and the driver’s door open, a chime will sound three times to signal that the delayed locking system is active.
Page 89: Programmable Automatic Door Locks
Programmable Automatic Door Locks Your vehicle is programmed so that, when the doors are closed, the ignition is on, and the shift lever is moved out of PARK (P), all the doors will lock. The doors will unlock every time you stop the vehicle and move the shift lever into PARK (P).
Page 90: Lockout Protection
When you want to open a rear door when the security lock is on, do the following: 1. Unlock the door using the remote keyless entry transmitter, if the vehicle has one, the power door lock switch, or by lifting the rear door manual lock.
Page 91 Remote Trunk Release The remote trunk release button is located in the glovebox. Press the button to open the trunk. To use this feature, your vehicle must be in PARK (P) or NEUTRAL (N). You can also press the remote trunk release button on the Remote Keyless Entry (RKE) transmitter to open the trunk.
Page 92: Windows
Rear Seat Pass-Through Your vehicle has a small door in the rear seat. This door allows you to access the trunk from inside the vehicle. The rear seat armrest must be down for the pass-through door to open. To release the pass-through door, move the release up with your ﬁngers.
Page 93: Power Windows
Power Windows The power window switches are located on the driver’s door armrest. In addition, each door has a switch for its own window. The front power window switches operate with one position for up and two positions for down movement and the rear power window switches operate with one position for up and one for down movement.
Page 94: Sun Visors
Sun Visors To block out glare, swing down the visor. The visors can also be removed from the center mount and moved to the side to block glare from the side. Lighted Visor Vanity Mirror Your sun visors may have lighted vanity mirrors. When you open the cover to the visor vanity mirror, the lamp will turn on.
Page 95: Arming With The Power Lock Switch
Arming with the Power Lock Switch The alarm system will arm when you use either power lock switch to lock the doors while any door or the trunk is open and the key is removed from the ignition. Arming with the Remote Keyless Entry Transmitter The alarm system will arm when you use your remote keyless entry transmitter to lock the doors, if the...
Page 96: Pass-Key ® Iii
® PASS-Key III+ Operation Your vehicle is equipped with PASS-Key (Personalized Automotive Security System) ® theft-deterrent system. PASS-Key III+ is a passive theft-deterrent system. This means you do not have to do anything special to arm or disarm the system. It works when you insert or remove the key from the ignition.
Page 97: Starting And Operating Your Vehicle
To program the new key do the following: 1. Verify that the new key has a stamped on it. 2. Insert the already programmed key in the ignition and start the engine. If the engine will not start, see your dealer for service. 3.
Page 98: Ignition Positions
Ignition Positions With the ignition key in the ignition, the key can be turned to four different positions: Notice: Using a tool to force the key from the ignition switch could cause damage or break the key. Use the correct key and turn the key only with your hand.
Page 99: Starting The Engine
Starting the Engine Move your shift lever to PARK (P) or NEUTRAL (N). The engine will not start in any other position — that is a safety feature. To restart when you are already moving, use NEUTRAL (N) only. Notice: Shifting into PARK (P) with the vehicle moving could damage the transaxle.
Page 100: Engine Coolant Heater
Engine Coolant Heater If your vehicle has this feature, in very cold weather, 0°F ( 18°C) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 101: Automatic Transaxle Operation
Automatic Transaxle Operation Your automatic transaxle has a shift lever located on the steering column. PARK (P): This position locks your front wheels. It is the best position to use when you start your engine because your vehicle cannot move easily. CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the...
Page 102 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transaxle. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 103 AUTOMATIC OVERDRIVE ( ): This position is for normal driving. If you need more power for passing, and you are: • Going less than about 35 mph (55 km/h), push your accelerator pedal about halfway down. • Going about 35 mph (55 km/h) or more, push the accelerator all the way down.
Page 104: Parking Brake
Parking Brake The parking brake pedal is located to the left of the regular brake pedal, near the driver’s door. To set the parking brake, hold the regular brake pedal down with your right foot and push the parking brake pedal down with your left foot.
Page 105: Shifting Into Park (P)
Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 106: Shifting Out Of Park (P)
Torque Lock If you are parking on a hill and you do not shift your transaxle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 107: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 108: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 109: Mirrors
Mirrors Manual Rearview Mirror While sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Grip the mirror in the center to move it up or down and side to side. The control at the bottom of the mirror is the day/night feature that allows adjustment to the mirror so that the glare of headlamps from behind is reduced.
Page 110: Compass Calibration
Mirror Operation MIRROR: Press this button to turn the automatic dimming feature on or off. (On/Off): For mirrors equipped with OnStar controls, press and hold this button for several seconds to turn on the automatic dimming feature on or off. The indicator light will come on when this feature is on.
Page 111: Compass Variance
Compass Variance Compass variance is the difference between earth’s magnetic north and true geographic north. The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if the vehicle is outside zone eight.
Page 112: Outside Power Mirrors
Outside Power Mirrors The controls for the outside power mirrors are located on the driver’s door armrest. Press the left or right side of the selector switch located beneath the control pad to choose the left or right mirror. To adjust the mirror, press one of the four arrows located on the control pad to move the mirror in the direction you want it to go.
Page 113: Outside Convex Mirror
Outside Convex Mirror The passenger’s side mirror is convex. A convex mirror’s surface is curved so more can be seen from the driver’s seat. CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on your right.
Page 114: Onstar System
® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call ®...
Page 115 ® OnStar Personal Calling ® As an OnStar subscriber, the Personal Calling capability allows you to make hands-free calls using a wireless system that is integrated into the vehicle. Calls can be placed nationwide using simple voice commands with no additional contracts and no additional roaming charges.
Page 116: Universal Home Remote System
Universal Home Remote System The Universal Home Remote System, a combined universal transmitter and receiver, provides a way to replace up to three hand-held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems, and home lighting.
Page 117: System Operation
Universal Home Remote System Operation Do not use the Universal Home Remote with any garage door opener that does not have the stop and reverse feature. This includes any garage door opener model manufactured before April 1, 1982. If you have a newer garage door opener with rolling codes, please be sure to follow Steps 6 through 8 to complete the programming of your Universal Home Remote Transmitter.
Page 118 3. Simultaneously press and hold both the desired Universal Home Remote button and the hand-held transmitter button. Do not release the buttons until Step 4 has been completed. Some entry gates and garage door openers may require you to substitute Step 3 with the procedure noted in “Gate Operator and Canadian Programming”...
Page 119: Gate Operator And Canadian Programming
Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to time out or quit after several seconds of transmission. This may not be long enough for Universal Home Remote to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to time out in the same manner.
Page 120: Storage Areas
Reprogramming a Single Universal Home Remote Button To program a device to Universal Home Remote using a Universal Home Remote button previously trained, follow these steps: 1. Press and hold the desired Universal Home Remote button. Do not release the button. 2.
Page 121: Center Console Storage Area
Center Console Storage Area If your vehicle has a full ﬂoor console it has two storage areas. To access the upper tray storage, lift the left lever located in the front of the armrest lid. To access the lower storage area, lift the right lever. If your vehicle has a center seat console it will have two storage areas.
Page 122: Rear Seat Armrest
Rear Seat Armrest Your vehicle has a rear seat armrest with cupholders. To access, pull the tab on the armrest forward. Convenience Net The vehicle may have a convenience net located on the back wall of the trunk. The net is not for larger, heavier loads. Store those in the trunk as far forward as possible.
Page 123: Memory Seat And Mirrors
Memory Seat and Mirrors Your vehicle may have the memory package. The controls for this feature are located on the driver’s door panel, and are used to program and recall memory settings for the driver’s seat and the outside mirrors. To save your positions in memory, do the following: 1.
Page 124 Easy Exit Seat The control for this feature is located on the driver’s door panel between buttons 1 and 2. With the vehicle in PARK (P), the exit position can be recalled by pressing the exit button. You will hear a single beep.
Page 125 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-8 Rainsense™ II Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-11 Exterior Lamps ...3-14...
Page 126 Section 3 ® StabiliTrak Indicator Light ...3-42 Engine Coolant Temperature Warning Light ...3-43 Engine Coolant Temperature Gage ...3-43 Tire Pressure Light ...3-44 Malfunction Indicator Lamp ...3-44 Oil Pressure Light ...3-47 Security Light ...3-48 Fog Lamp Light ...3-48 Cruise Control Light ...3-48 Highbeam On Light ...3-48 Fuel Gage ...3-49 Driver Information Center (DIC) ...3-50...
Page 127 NOTES...
Page 128: Instrument Panel Overview
Instrument Panel Overview...
Page 129 The main components of your instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-31. B. Driver Information Center (DIC) Buttons (If Equipped). See DIC Controls and Displays on page 3-50. C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7.
Page 130: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel above the radio.
Page 131: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 3-7. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-8. •...
Page 132: Headlamp High/Low-Beam Changer
Turn Signal On Chime If your turn signal is left on for more than 0.8 miles (1.3 km), a chime will sound at each ﬂash of the turn signal. To turn off the chime, move the turn signal lever to the off position. Headlamp High/Low-Beam Changer To change the headlamps from low beam to high beam, push the turn signal lever away from you.
Page 133: Rainsense™ Ii Wipers
Be sure to clear ice and snow from the wiper blades before using them. If they are frozen to the windshield, carefully loosen or thaw them. If your blades do become worn or damaged, replace with new blades or blade inserts. Heavy snow or ice can overload the wiper motor.
Page 134: Windshield Washer
Windshield Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. (Washer Fluid): Press and release this paddle, located at the top of the turn signal/multifunction lever, to spray washer ﬂuid on the windshield.
Page 135: Cruise Control
Cruise Control With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h).
Page 136 Setting Cruise Control Cruise control will not work if your parking brake is set, or if the master cylinder brake ﬂuid level is low. The cruise control light on the instrument panel cluster will come on after the cruise control has been set to the desired speed.
Page 137 Reducing Speed While Using Cruise Control To reduce your speed while using cruise control: • Press and hold the SET– button on the steering wheel until you reach the lower speed you want, then release it. • To slow down in very small amounts, press the SET–...
Page 138: Exterior Lamps
Exterior Lamps The exterior lamps control is located on the instrument panel to the left of the steering wheel. It controls the following systems: • Headlamps • Taillamps • Parking Lamps • License Plate Lamps • Instrument Panel Lights • Fog Lamps 3-14 The exterior lamps control has four positions:...
Page 139: Wiper Activated Headlamps
Wiper Activated Headlamps This feature turns on the low-beam headlamps, instrument panel cluster backlighting and taillamps when the windshield wipers have been in use for about six seconds. If the wiper activated headlamps are on and the ignition switch is turned to C (RUN), the wiper activated headlamps will continue.
Page 140: Fog Lamps
Fog Lamps (Fog Lamps): If your vehicle is equipped with fog lamps, it is located on the exterior lamps control. The exterior lamps control is located on the instrument panel to the left of the steering column. Your ignition must be in C (RUN) for the fog lamps to illuminate.
Page 141: Courtesy Lamps
Courtesy Lamps If it is dark enough outside, when any door is opened, several lamps go on. They make it easy for you to enter and leave the vehicle. Turn these lamps on manually by turning the instrument panel brightness control completely clockwise.
Page 142: Front Reading Lamps
Front Reading Lamps The front reading lamps, located on the headliner, are turned on or off by pressing one of the buttons located near each lamp. Battery Load Management The battery load management feature is designed to monitor the vehicle’s electrical load and determine when the battery is in a heavy discharge condition.
Page 143: How The System Works
CAUTION: Even with the Ultrasonic Rear Park Assist system, the driver must check carefully before backing up. The system does not operate above speeds of 5 mph (8 km/h). The system does not detect objects more than 8 feet (2.5 meters) behind the vehicle.
Page 144 How the System Works when Backing If the shift lever is in REVERSE (R), URPA detects objects close to the rear bumper. The ﬁrst time an object is detected a single beep will sound. If an object is detected at a REVERSE (R) speed between 0 mph (0 km/h) and 5 mph (8 km/h), the following describes what will occur based on your distance to a detected object located behind the vehicle:...
Page 145: Accessory Power Outlet(S)
• The ultrasonic sensors are not kept clean. So, be sure to keep your vehicle’s rear bumper free of mud, dirt, snow, ice, and slush. For cleaning instructions, see Washing Your Vehicle on page 5-87. If the DIC still displays the PARK ASSIST OFF message after cleaning the bumper and driving forward at a speed of at least 15 mph (25 km/h), see your dealer.
Page 146: Ashtray(S) And Cigarette Lighter
Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should. The repairs would not be covered by your warranty. Do not use equipment exceeding maximum amperage rating. Check with your dealer before adding electrical equipment. When adding electrical equipment, be sure to follow the proper installation instructions included with the equipment.
Page 147: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling, and ventilation for your vehicle. If your vehicle has the remote start feature and it is activated, the climate control system will automatically cool the vehicle if the temperature is greater than 90°F (32°C) and heat the vehicle if the temperature is below 37°F (3°C).
Page 148: Defogging And Defrosting
(Floor): This mode directs most of the air to the ﬂoor outlets with some air directed toward the side window outlets and a little air directed to the windshield. In this mode, the system will automatically use outside air. If recirculation is selected, it will stay on for three minutes to reduce windshield fogging.
Page 149: Rear Window Defogger
See “Rear Window Defogger” later in this section for information on clearing the rear window of fog or ice. Turn the right knob to select the defog or defrost mode. (Defog): This mode directs half of the air to the windshield and the side window outlets and half to the ﬂoor outlets.
Page 150: Dual Automatic Climate Control System
Dual Automatic Climate Control System With this system you can control the heating, cooling, and ventilation for your vehicle. If your vehicle has the remote start feature and it is activated, the climate control system will automatically cool the vehicle if the temperature is greater than 90°F (32°C) and heat the vehicle if the temperature is below 37°F (3°C).
Page 151 After your vehicle is started, the display will show the interior temperature settings. When the ENG/MET (English/metric) button on the Driver Information Center (DIC) is pressed, the display will show readings in Fahrenheit or Celsius. Use the ENG/MET button to toggle between them. AUTO (Automatic Air Conditioning): If the AUTO position is selected on the fan or mode control,...
Page 152 (Floor): Turn the control to this mode to direct most of the air to the ﬂoor outlets with some air directed to the side window outlets and the windshield. The mode control can also be used to select the ﬂoor/defog mode. Information on defogging and defrosting can be found later in this section.
Page 153 Sensors The solar sensor, located in the defrost grille, middle of the instrument panel, monitors the solar radiation. Do not cover the solar sensor or the system will not work properly. There is also an interior temperature sensor located next to the steering wheel that measures the temperature of the air inside your vehicle.
Page 154 Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear fog from your windshield, defog and defrost.
Page 155: Outlet Adjustment
Outlet Adjustment Use the levers located in the middle of the front outlets to change the direction of the airﬂow and use the shutoff wheels to adjust the amount of airﬂow. You can adjust the rear seat outlet direction of the airﬂow using the lever in the center of each outlet.
Page 156 To access the passenger compartment air ﬁlter, do the following: 1. Press the tabs back and left to remove the cover. 2. Then, insert a tool behind the push pin located on the inboard side of the air ﬁlter compartment to carefully pry the pin out.
Page 157: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 158: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, how much fuel you have, and many other things you will need to drive safely and economically. Your vehicle has this cluster or one very similar to it.
Page 159: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles or kilometers. Your vehicle has a tamper resistant odometer. You may wonder what happens if your vehicle needs a new odometer installed.
Page 160: Passenger Safety Belt Reminder Light
Passenger Safety Belt Reminder Light Several seconds after the key is turned to RUN or START, a chime will sound for several seconds to remind the front passenger to buckle their safety belt. This would only occur if the passenger airbag is enabled.
Page 161: Passenger Airbag Status Indicator
CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the airbag readiness light stays on after you start your...
Page 162 If the word ON or the on symbol is lit on the passenger airbag status indicator, it means that the right front passenger’s frontal airbag and seat-mounted side impact airbag are enabled (may inﬂate). CAUTION: If the on indicator comes on when you have a rear-facing child restraint installed in the right front passenger’s seat, it means that the passenger sensing system has not...
Page 163: Charging System Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag and seat-mounted side impact airbag. See Passenger Sensing System on page 1-63 for more on this, including important safety information.
Page 164: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there is a brake problem. Have your brake system inspected right away.
Page 165: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light With the anti-lock brake system, the light(s) will come on when your engine is started and may stay on for several seconds. That’s normal. If the light stays on, turn the ignition to OFF. Or, if the light comes on when you’re driving, stop as soon as possible and turn the ignition off.
Page 166: Stabilitrak Indicator Light
If the traction control system is manually turned off, this light will come on and the TRACTION CONTROL OFF message will appear on the DIC. When the system is active, the light will ﬂash while the system is limiting wheel spin or assisting you in controlling the vehicle. You may also feel or hear the system working.
Page 167: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light The engine coolant temperature warning light will come on when the engine has overheated. If this happens you should pull over and turn off the engine as soon as possible. See Engine Overheating on page 5-27 for more information. Notice: Driving with the engine coolant temperature warning light on could cause your vehicle to overheat.
Page 168: Tire Pressure Light
Tire Pressure Light This light should come on brieﬂy as you start the engine. It will then come on only when a ﬂat or low tire pressure condition exists. See Check Tire Pressure System on page 5-63 for more information. Malfunction Indicator Lamp Check Engine Light Your vehicle is equipped...
Page 169: If The Light Is On Steady
This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
Page 170 Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-5. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration.
Page 171: Maintenance Schedule
Oil Pressure Light CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced.
Page 172: Security Light
Security Light For information regarding this light, see PASS-Key Operation on page 2-20. Fog Lamp Light The fog lamps light will come on when the fog lamps are in use. The light will go out when the fog lamps are turned off. See Fog Lamps on page 3-16 for more information.
Page 173: Fuel Gage
Fuel Gage United States Canada The fuel gage shows about how much fuel is in your tank. It works only when the ignition is on. When the indicator moves to the edge of the low fuel warning band, the low fuel warning light will come on and a chime will sound.
Page 174: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). All messages will appear in the DIC display located below the speedometer in the instrument panel cluster. The DIC buttons are located on the instrument panel, to the left of the instrument panel cluster. The DIC comes on when the ignition is on.
Page 175 (Customization): Press this button to customize the feature settings on your vehicle. See DIC Vehicle Customization on page 3-65 for more information. (Set/Reset): Press this button to set or reset certain functions and to turn off or acknowledge messages on the DIC. Trip/Fuel Menu Items (Trip/Fuel): Press this button to scroll through the following menu items:...
Page 176 Fuel Range Press the trip/fuel button until FUEL RANGE displays. This display shows the approximate number of remaining miles (mi) or kilometers (km) the vehicle can be driven without refueling. The fuel range estimate is based on an average of the vehicle’s fuel economy over recent driving history and the amount of fuel remaining in the fuel tank.
Page 177 Vehicle Information Menu Items (Vehicle Information): Press this button to scroll through the following menu items: Oil Life Press the vehicle information button until OIL LIFE REMAINING displays. This display shows an estimate of the oil’s remaining useful life. If you see 99% OIL LIFE REMAINING on the display, that means 99% of the current oil life remains.
Page 178 Reset Tire Pressure System Press the vehicle information button until PRESS RESET TIRE SYSTEM displays. This display allows you to reset the tire pressure system. See Check Tire Pressure System on page 5-63 for more information. Once in this display, press the set/reset button to reset the system.
Page 179 Navigate to one of the trip/fuel menu screens to view the direction the vehicle is moving. This will be shown in the top right corner of the DIC display. 4. If you need to calibrate the compass, use the compass calibration procedure. See “Compass Calibration Procedure”...
Page 180: Dic Warnings And Messages
Customization Menu Items (Customization): Press this button to enter the feature settings menu. This display allows you to customize the feature settings on your vehicle. See DIC Vehicle Customization on page 3-65 for more information. DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition.
Page 181: Check Tire Pressure
CHECK TIRE PRESSURE This warning message and the tire pressure light on the instrument panel cluster will appear when the air pressure in one of the tires is too low or too high. Check the vehicle’s tire pressure as soon as possible, and ﬁll or deﬂate the affected tire to the appropriate level.
Page 182: Engine Overheated Stop Engine
ENGINE OVERHEATED IDLE ENGINE Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. Do not increase the engine speed above normal idling speed.
Page 183: Oil Pressure Low Stop Engine
HEATED WASH (Washer) FLUID SYSTEM OFF This message will display when you manually turn off the heated windshield washer ﬂuid system or when the system automatically turns off. See “Heated Washer Fluid” under Windshield Washer on page 3-10 for more information.
Page 184 PARK ASSIST OFF After the vehicle has been started, this message will remind the driver that the Ultrasonic Rear Parking Assist (URPA) system has been turned off. Press the set/reset button to acknowledge this message and clear it from the DIC display. To turn the URPA system back on, see “Park Assist”...
Page 185: Service Air Bag
SERVICE A/C (Air Conditioning) SYSTEM This message will display when the electronic sensors that control the air conditioning and heating systems are no longer working. Have the climate control system serviced by your GM dealer if you notice a drop in heating and air conditioning efficiency.
Page 186: Service Suspension System
SERVICE PARK ASSIST This message will display if there is a problem with the Ultrasonic Rear Parking Assist (URPA) system. Do not use this system to help you park. See Ultrasonic Rear Parking Assist (URPA) on page 3-18 for more information.
Page 187: Service Transmission
SERVICE TRACTION CONTROL If your vehicle has the traction control system, this message will display when the system is not functioning properly. A warning light will also appear on the instrument panel cluster. See Traction Control System (TCS) Warning Light on page 3-41. See Traction Control System (TCS) on page 4-9 for more information.
Page 188: Trunk Open
TIGHTEN GAS CAP This message may be displayed if the gas cap is not on, or is not fully tightened. Check the gas cap to ensure that it is on properly. See Filling the Tank on page 5-8 for more information. TIRE PRESSURE SYSTEM RESET This message will display after the tire pressure system has been reset.
Page 189: Dic Vehicle Customization
DIC Vehicle Customization Your vehicle has customization capabilities that allow you to program certain features to one preferred setting. Customization features can only be programmed to one setting on the vehicle and cannot be programmed to a preferred setting for two different drivers. All of the customization options may not be available on your vehicle.
Page 190 DISPLAY LANGUAGE This feature allows you to select the language in which the DIC messages will appear. Press the customization button until the DISPLAY LANGUAGE screen appears on the DIC display. Press the set/reset button to access the settings for this feature.
Page 191 AUTO DOOR UNLOCK This feature allows you to select whether or not the door(s) will automatically unlock. It also allows you to select which doors and when they will automatically unlock. See Programmable Automatic Door Locks on page 2-13 for more information. Press the customization button until AUTO DOOR UNLOCK appears on the DIC display.
Page 192 HORN & LIGHTS ON (default): The exterior lamps will ﬂash when you press the lock button on the remote keyless entry transmitter, and the horn will sound when the lock button is pressed again within ﬁve seconds of the previous command. NO CHANGE: No change will be made to this feature.
Page 193 DELAY DOOR LOCK This feature allows you to select whether or not the locking of the vehicle’s doors will be delayed. The locking of the vehicle’s doors is delayed for up to 10 seconds after a power door lock switch is pressed when a door is open, or after the lock button on the remote keyless entry transmitter is pressed while a door is open.
Page 194 APPROACH LIGHTING This feature allows you to select whether or not to have the exterior lights turn on brieﬂy during low light periods after unlocking the vehicle using the remote keyless entry transmitter. Press the customization button until APPROACH LIGHTING appears on the DIC display. Press the set/reset button to access the settings for this feature.
Page 195 Press the customization button until PARK TILT MIRRORS appears on the DIC display. Press the set/reset button to access the settings for this feature. Then press the customization button to scroll through the following choices: OFF (default): Neither outside mirror will be tilted down when the vehicle is shifted into REVERSE (R).
Page 196 MEMORY SEAT RECALL If the vehicle has this feature, it allows you to select your preference for the memory seat recall feature. See Memory Seat and Mirrors on page 2-47 for more information. Press the customization button until MEMORY SEAT RECALL appears in the display.
Page 197 FACTORY SETTINGS This feature allows you to set all of the customization features back to their factory default settings. Press the customization button until FACTORY SETTINGS appears on the DIC display. Press the set/reset button to access the settings for this feature. Then press the customization button to scroll through the following choices: RESTORE ALL (default): The customization features...
Page 198: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 4-2. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 199: Setting The Time (Without Date Display)
Added sound equipment may interfere with the operation of your vehicle’s engine, radio, or other systems, and even damage them. Your vehicle’s systems may interfere with the operation of sound equipment that has been added. Notice: The chime signals related to safety belts, parking brake, and other functions of your vehicle operate through the radio/entertainment system.
Page 200: (With Date Display)
Setting the Time (With Date Display) If your vehicle has a radio with a single CD player, the radio will have a clock button for setting the time and date. Press the clock button and the HR, MIN, MM, DD, YYYY (hour, minute, month, day, and year) will appear on the display.
Page 201: Radio With Cd (Base)
Radio with CD (Base) Playing the Radio (Power/Volume): Press this knob to turn the system on and off. Turn this knob clockwise or counterclockwise to increase or decrease the volume. The radio remembers the previous volume setting whenever the radio is turned on. You can still manually adjust the volume by using the volume knob.
Page 202: Setting Preset Stations
Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, or AM. 3.
Page 203 Playing a CD (Single CD Player) Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If the ignition or radio is turned off with a CD in the player, it will stay in the player.
Page 204 © ¨ SEEK : Press the left SEEK arrow to go to the start of the current track, if more than ten seconds have played. Press the right SEEK arrow to go to the next track. If either SEEK arrow is held or pressed multiple times, the player will continue moving backward or forward through the CD.
Page 205 CD Messages CHECK DISC: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 206: Radio With Cd (Mp3)
Radio with CD (MP3) Radio with CD (MP3) shown, Radio with Six-Disc CD (MP3) similar 3-82 Radio Data System (RDS) The audio system has a Radio Data System (RDS). The RDS feature is available for use only on FM stations that broadcast RDS information.
Page 207: Playing The Radio
Playing the Radio (Power/Volume): Press this knob to turn the system on and off. Turn this knob clockwise or counterclockwise to increase or decrease the volume. Speed Compensated Volume (SCV): The radio has Speed Compensated Volume (SCV). When SCV is on, the radio volume automatically adjusts to compensate for road and wind noise as you speed up or slow down while driving.
Page 208: Storing A Radio Station As A Favorite
Storing a Radio Station as a Favorite Drivers are encouraged to set up their radio station favorites while the vehicle is parked. Tune to your favorite stations using the presets, favorites button, and steering wheel controls if the vehicle has this feature. See Defensive Driving on page 4-2.
Page 209: Setting The Tone (Bass/Treble)
Setting the Tone (Bass/Treble) BASS/MID/TREB (Bass, Midrange, or Treble): To adjust bass, midrange, or treble, press the tune knob until the tone control labels appear on the display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the tune knob clockwise or counterclockwise to adjust the highlighted setting.
Page 210: Finding A Category (Cat) Station
Finding a Category (CAT) Station CAT (Category): The CAT button is used to ﬁnd XM™ stations while the radio is in the XM™ mode. To ﬁnd XM™ channels within a desired category, perform the following: 1. Press the BAND button until the XM™ frequency is displayed.
Page 211 Radio Display Condition Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. XM Updating Updating encryption code No XM Signal Loss of signal Loading XM Acquiring channel audio (after four second delay) Channel Off Air Channel not in service Channel Unavail...
Page 212 XM™ Radio Messages (cont’d) Radio Display Condition Message No CAT Info Category Name not available No Information No Text/Informational message available CAT Not Found No channel available for the chosen category ® XM Theftlocked Theftlock active XM Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 213: Playing A Cd(S) (Six-Disc Cd Player)
Playing a CD (Single CD Player) Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. Playing a CD(s) (Six-Disc CD Player) LOAD : Press this button to load CDs into the CD player.
Page 214 Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you could damage the CD player. When using the CD player, use only CDs in good condition without any label, load one CD at a time, and keep the CD player and the loading slot free of foreign materials, liquids, and debris.
Page 215 RDM (Random): With random, you can listen to the tracks in random, rather than sequential order, on one CD or all CDs in a six-disc CD player. To use random, do one of the following: • Press the CD/AUX button, or for a single CD player, insert a disc partway into the slot of the CD player.
Page 216 MP3/WMA Format If you burn your own MP3/WMA disc on a personal computer: • Make sure the MP3 ﬁles are recorded on a CD-R or CD-RW disc. • Do not mix standard audio and MP3 ﬁles on one disc. • The CD player is able to read and play a maximum of 50 folders, 50 playlists, and 255 ﬁles.
Page 217 Root Directory The root directory of the CD-R is treated as a folder. If the root directory has compressed audio ﬁles, the directory will be displayed as F1 ROOT. All ﬁles contained directly under the root directory will be accessed prior to any root directory folders. However, playlists (Px) will always be accessed before root folders or ﬁles.
Page 218 File System and Naming The song name that will be displayed will be the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio will display the ﬁle name without the extension (such as .mp3) as the track name.
Page 219 Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you could damage the CD player. When using the CD player, use only CDs in good condition without any label, load one CD at a time, and keep the CD player and the loading slot free of foreign materials, liquids, and debris.
Page 220 FWD (Fast Forward): Press and hold this button to advance playback quickly within an MP3 ﬁle. You will hear sound at a reduced volume. Release this button to resume playing the ﬁle. The elapsed time of the ﬁle will appear on the display. RDM (Random): With random, you can listen to MP3 ﬁles on the CD-R in random, rather than sequential order, on one CD-R or all discs in a six-disc CD player.
Page 221 To change from playback by artist to playback by album, press the pushbutton located below the Sort By label. From the sort screen, push one of the buttons below the album button. Press the pushbutton below the back label to return to the main music navigator screen.
Page 222: Navigation/Radio System
Using the Auxiliary Input Jack Your radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. You can however, connect an external audio device such as an iPod, laptop computer, MP3 player, CD changer, or cassette tape player, etc.
Page 223: Audio Steering Wheel Controls
Audio Steering Wheel Controls The audio steering wheel controls may be different depending on your vehicles options. Some audio controls can be adjusted at the steering wheel. They include the following: (Next/Previous): Press the up or the down arrow to go to the next or to the previous radio station stored as a favorite.
Page 224: Radio Reception
Radio Reception You may experience frequency interference and static during normal radio reception if items such as cellphone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet. The range for most AM stations is greater than for FM, especially at night.
Page 225: Care Of The Cd Player
Care of the CD Player The use of CD lens cleaners for CD players is not advised, due to the risk of contaminating the internal lens of the CD optics with lubricants. Backglass Antenna The AM-FM antenna is integrated with the rear window defogger, located in the rear window.
Page 226 NOTES 3-102...
Page 227: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-6 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-8 Traction Control System (TCS) ...4-9 ® StabiliTrak System ...4-10 Panic Brake Assist ...4-10 Steering ...4-11 Off-Road Recovery ...4-13...
Page 228: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-10. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 229: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 230 It is the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml of liquor each) within an hour, the person’s BAC would be close to 0.12 percent. A person who consumes food just before or during drinking will have a somewhat lower BAC level.
Page 231 The body takes about an hour to rid itself of the alcohol in one drink. No amount of coffee or number of cold showers will speed that up. “I will be careful” is not the right answer. What if there is an emergency, a need to take sudden action, as when a child darts into the street? A person with even a moderate BAC might not be able to react quickly enough to avoid...
Page 232: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you are driving on snow or ice, it is easy to ask more of those control systems than the tires and road can provide.
Page 233: Anti-Lock Brake System (Abs)
If your engine ever stops while you are driving, brake normally but do not pump your brakes. If you do, the pedal may get harder to push down. If your engine stops, you will still have some power brake assist. But you will use it when you brake.
Page 234: Braking In Emergencies
ABS can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 235: Traction Control System (Tcs)
Traction Control System (TCS) Your vehicle has a traction control system that limits wheel spin. This is especially useful in slippery road conditions. The system operates only if it senses that the front wheels are spinning too much or beginning to lose traction.
Page 236: Stabilitrak ® System
® StabiliTrak System Your vehicle may have this feature. The StabiliTrak system is an advanced computer controlled system that helps the driver maintain directional control of the vehicle in difficult driving conditions. This is accomplished by selectively applying any one of the vehicle’s brakes and reducing engine power.
Page 237: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 238: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 239: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 240 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 241: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked.
Page 242: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. •...
Page 243: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 244: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road. Hydroplaning does not happen often.
Page 245: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 246: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. 4-20 The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 247: Before Leaving On A Long Trip
When you want to leave the freeway, move to the proper lane well in advance. If you miss your exit, do not, under any circumstances, stop and back up. Drive on to the next exit. The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted.
Page 248: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 249 CAUTION: If you do not shift down, your brakes could get so hot that they would not work well. You would then have poor braking or even none going down a hill. You could crash. Shift down to let your engine assist your brakes on a steep downhill slope.
Page 250: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your trunk. Also see Tires on page 5-56. 4-24 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 251: Driving On Snow Or Ice
Driving on Snow or Ice Most of the time, those places where the tires meet the road probably have good traction. However, if there is snow or ice between the tires and the road, you can have a very slippery situation. You will have a lot less traction, or grip, and will need to be very careful.
Page 252: If You Are Caught In A Blizzard
Your Anti-Lock Brake System (ABS) improves your vehicle’s stability when you make a hard stop on a slippery road. Even though you have ABS, you will want to begin stopping sooner than you would on dry pavement. See Anti-Lock Brake System (ABS) on page 4-7.
Page 253 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 254: If Your Vehicle Is Stuck In Sand, Mud, Ice Or Snow
If Your Vehicle is Stuck in Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
Page 255: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry;...
Page 256 The Tire and Loading Information label also shows the tire size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D). For more information on tires and inﬂation see Tires on page 5-56 and Inﬂation - Tire Pressure on page 5-62. There is also important loading information on the Certiﬁcation label.
Page 257 Example 1 Loading Your Vehicle Item Description Vehicle Capacity Weight 1,000 lbs (453 kg) for Example 1 = Subtract Occupant Weight 150 lbs 300 lbs (136 kg) (68 kg) Available Occupant and 700 lbs (317 kg) Cargo Weight = Example 2 Loading Your Vehicle Total Item...
Page 258 Example 3 Loading Your Vehicle Item Description Vehicle Capacity Weight 1,000 lbs (453 kg) for Example 3 Subtract Occupant Weight 200 lbs 1,000 lbs (453 kg) (91 kg) Available Cargo Weight 0 lbs (0 kg) Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 259 CAUTION: Do not load your vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR). If you do, parts on your vehicle can break, and it can change the way your vehicle handles.
Page 260: Towing
Automatic Level Control This feature keeps the rear of your vehicle level as the load changes. It is automatic, you do not need to adjust anything. This type of level control is fully automatic and will provide a better leveled riding position as well as better handling under a variety of passenger and loading conditions.
Page 261: Dinghy Towing
Dinghy Towing Notice: If you tow your vehicle with all four wheels on the ground, the drivetrain components could be damaged. The repairs would not be covered by your warranty. Do not tow your vehicle with all four wheels on the ground. Your vehicle was not designed to be towed with all four wheels on the ground.
Page 262: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 263: If You Do Decide To Pull A Trailer
You can ask your dealer for our trailering information or advice, or you can write us at: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 In Canada, write to:...
Page 264: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 265: Safety Chains
Hitches It is important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you will need the right hitch. Here are some rules to follow: • The rear bumper on your vehicle is not intended for hitches.
Page 266: Driving With A Trailer
Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you will want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 267: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. Check with your dealer. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 268: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • Start your engine. • Shift into a gear. • Release the parking brake. 2. Let up on the brake pedal. 3.
Page 269: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling the Tank ...5-8 Filling a Portable Fuel Container ...5-10...
Page 270 Section 5 Different Size Tires and Wheels ...5-68 Uniform Tire Quality Grading ...5-68 Wheel Alignment and Tire Balance ...5-70 Wheel Replacement ...5-70 Tire Chains ...5-71 If a Tire Goes Flat ...5-72 Changing a Flat Tire ...5-72 Removing the Spare Tire and Tools ...5-74 Removing the Flat Tire and Installing the Spare Tire ...5-75 Storing a Flat or Spare Tire and Tools ...5-81...
Page 271: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 272: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 273: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 274: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 275: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts. That damage would not be covered under your warranty.
Page 276: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 277 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 278: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 279: Hood Release
Hood Release To open the hood, do the following: 1. Pull the hood release handle inside the vehicle. It is located next to the parking brake pedal near the ﬂoor. 2. Then go to the front of the vehicle and pull the secondary hood release to the right.
Page 280: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 3.8L V6 engine, here is what you will see: 5-12...
Page 281 A. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-27. B. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-39. C. Remote Positive (+) Battery Terminal. See Jump Starting on page 5-44. D. Underhood Fuse Block. See Underhood Fuse Block on page 5-93.
Page 282 When you open the hood on the 4.6L V8 engine, here is what you will see: 5-14...
Page 283: Engine Oil
A. Underhood Fuse Block. See Underhood Fuse Block on page 5-93. B. Remote Positive (+) Battery Terminal. See Jump Starting on page 5-44. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-39. D. Engine Coolant Surge Tank. See Cooling System (3.8L V6 Engine) on page 5-29 or Cooling System (4.6L V8 Engine) on page 5-34.
Page 284: When To Add Engine Oil
When to Add Engine Oil V6 Engine V8 Engine 5-16 If the oil is below the cross-hatched area at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use.
Page 285: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 286: Engine Oil Life System
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for your engine at extremely low temperatures.
Page 287: Engine Air Cleaner/Filter
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a CHANGE ENGINE OIL SOON message being turned on, reset the system.
Page 288: How To Inspect The Engine Air Cleaner/Filter
How to Inspect the Engine Air Cleaner/Filter To inspect the air cleaner/ﬁlter, remove the ﬁlter from the vehicle and lightly shake the ﬁlter to release loose dust and dirt. If the ﬁlter remains caked with dirt, a new ﬁlter is required. To inspect or replace the ﬁlter, do the following: 1.
Page 289: Automatic Transaxle Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 290 Checking the Fluid Level Prepare your vehicle as follows: 1. Park your vehicle on a level place. Keep the engine running. 2. With the parking brake applied, place the shift lever in PARK (P). 3. With your foot on the brake pedal, move the shift lever through each gear range, pausing for about three seconds in each range.
Page 291: Engine Coolant
How to Add Automatic Transaxle Fluid Refer to the Maintenance Schedule to determine what kind of transaxle ﬂuid to use. See Recommended Fluids and Lubricants on page 6-12. If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level into the cross-hatched area on the dipstick.
Page 292: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 293 Adding Coolant If you need more coolant, add the proper ® DEX-COOL coolant mixture at the coolant recovery tank, but be careful not to spill it. CAUTION: Turning the radiator pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 294 Checking Coolant (4.6L V8 Engine) The engine coolant surge tank is located toward the rear of the engine compartment on the passenger’s side of the vehicle. For more information on location, see Engine Compartment Overview on page 5-12. CAUTION: Turning the surge tank pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 295: Radiator Pressure Cap
Radiator Pressure Cap Notice: The radiator cap on your vehicle is a pressure-type cap and must be tightly installed to prevent coolant loss and possible engine damage from overheating. Be sure the arrows on the cap line up with the overﬂow tube on the radiator ﬁller neck.
Page 296: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 297: Cooling System (3.8L V6 Engine)
Cooling System (3.8L V6 Engine) When you decide it is safe to lift the hood, here is what you will see: A. Radiator Pressure Cap B. Coolant Recovery Tank C. Electric Engine Cooling Fans CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 298 The coolant level should be at or above the FULL COLD mark when the engine is cold. The coolant level should be above the FULL COLD mark under normal operating conditions. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system.
Page 299 How to Add Coolant to the Coolant Recovery Tank CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture.
Page 300: How To Add Coolant To The Radiator
If the overheat warning continues, there is one more thing you can try. You can add the proper coolant mixture directly to the radiator, but be sure the cooling system is cool before you do it. CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly.
Page 301 3.1. Clean the area around the engine oil ﬁll tube and cap before removing. Twist the oil ﬁll tube, with cap attached, counterclockwise and remove it. 3.2. Lift the engine cover shield at the front, slide the catch tab out of the engine bracket and remove the cover shield.
Page 302: Cooling System (4.6L V8 Engine)
8. Then ﬁll the coolant recovery tank to the FULL COLD mark. 9. Put the cap back on the coolant recovery tank, but leave the radiator pressure cap off. 10. Start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 303 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down.
Page 304: How To Add Coolant To The Coolant Surge Tank
How to Add Coolant to the Coolant Surge Tank If you have not found a problem yet, check to see if coolant is visible in the surge tank. If coolant is visible but the level is not at the FULL COLD mark located on the side of the surge tank, add enough of a 50/50 mixture of clean, drinkable water and DEX-COOL coolant at the coolant surge tank to bring the level to...
Page 305 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 306: Power Steering Fluid
Power Steering Fluid See Engine Compartment Overview on page 5-12 for information on the location of the power steering ﬂuid reservoir. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 307: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 308: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 309: Brake Wear
Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it. This will help keep dirt from entering the reservoir. CAUTION: With the wrong kind of ﬂuid in your brake system, your brakes may not work well, or they may not even work at all.
Page 310: Battery
Brake Pedal Travel See your dealer if the brake pedal does not return to normal height, or if there is a rapid increase in pedal travel. This could be a sign of brake trouble. Brake Adjustment Every time you apply the brakes, with or without the vehicle moving, your brakes adjust for wear.
Page 311 CAUTION: A battery that is not properly vented can let sulfuric acid fumes into the area under the rear seat cushion. These fumes can damage your rear seat safety belt systems. You may not be able to see this damage, and the safety belts might not provide the protection needed in a crash.
Page 312: Jump Starting
Vehicle Storage If you are not going to drive your vehicle for 25 days or more, remove the black, negative ( ) cable from the battery. This will help keep your battery from running down. CAUTION: Batteries have acid that can burn you and gas that can explode.
Page 313 Notice: Ignoring these steps could result in costly damage to your vehicle that would not be covered by your warranty. Trying to start your vehicle by pushing or pulling it will not work, and it could damage your vehicle. 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system.
Page 314 Access the remote positive (+) terminal by removing the cover. CAUTION: An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. 5-46 CAUTION: Using a match near a battery can cause battery gas to explode.
Page 315 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 316 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 317: Headlamp Aiming
Headlamp Aiming The vehicle has a visual optical headlamp aiming system. The aim of the headlamps have been preset at the factory and should need no further adjustment. However, if the vehicle is damaged in an accident, the aim of the headlamps may be affected and adjustment may be necessary.
Page 318 To adjust the vertical aim, do the following: 1. Open the hood. See Hood Release on page 5-11 for more information. 2. Locate the aim dot on the lens of the low-beam headlamp. 3. Measure the distance from the ground to the aim dot on the low-beam headlamp.
Page 319 7. Locate the vertical headlamp aiming screws, which are under the hood near each headlamp assembly. The adjustment screw can be turned with a 6 mm male hex. 8. Turn the vertical aiming screw until the headlamp beam is aimed to the horizontal tape line. Turn it clockwise or counterclockwise to raise or lower the angle of the beam.
Page 320: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-55. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 321 2. Remove the convenience net, if the vehicle has one. 3. Remove the plastic wing nuts retaining the trunk trim. 4. Pull back the trunk trim. 5. Remove the three hex nuts holding the taillamp assembly in place. 6. Pull out the taillamp assembly. 7.
Page 322: Taillamps And Back-Up Lamps
Taillamps and Back-Up Lamps A. Taillamp B. Back-up Lamp To replace an auxiliary taillamp or back-up lamp bulb, do the following: 1. Open the trunk. See Trunk on page 2-14 for more information. 5-54 2. Remove the three fasteners from the trunk trim. 3.
Page 323: Windshield Wiper Blade Replacement
Replacement Bulbs Exterior Lamps Bulb Number Back-up Lamp Sidemarker and Auxiliary Taillamp Stoplamp, Taillamp, and Turn 3057K Signal Lamp For replacement bulbs not listed here, contact your dealer. Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking.
Page 324: Tires
4. Replace the blade assembly with a new one. Allowing the wiper blade arm to touch the windshield when no wiper blade is installed could damage the windshield. Any damage that occurs would not be covered by your warranty. Do not allow the wiper blade arm to touch the windshield.
Page 325: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 326 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 327: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 328 Aspect Ratio: The relationship of a tire’s height to its width. Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim.
Page 329 Normal Occupant Weight: The number of occupants a vehicle is designed to seat multiplied by 150 lbs (68 kg). See Loading Your Vehicle on page 4-29. Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle.
Page 330: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 331: Check Tire Pressure System
Remove the valve cap from the tire valve stem. Press the tire gage ﬁrmly onto the valve to get a pressure measurement. If the cold tire inﬂation pressure matches the recommended pressure on the Tire and Loading Information label, no further adjustment is necessary. If the inﬂation pressure is low, add air until you reach the recommended amount.
Page 332 The system can alert you about a low tire — but it does not replace normal tire maintenance. See Tires on page 5-56. When the tire pressure warning light and the CHECK TIRE PRESSURE message comes on, you should stop as soon as you can and check all your tires for damage.
Page 333: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km). Any time you notice unusual wear rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels. See When It Is Time for New Tires on page 5-66 and Wheel Replacement on page 5-70 for more information.
Page 334: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining.
Page 335 CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes, brands, or types may also cause damage to your vehicle.
Page 336: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability and resistance to rollover.
Page 337 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 338: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis.
Page 339: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 340: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 341 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire. To help prevent the vehicle from moving: 1.
Page 342: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The equipment you will need is located in the trunk. 1. If your vehicle has a center retainer, turn it counterclockwise to remove it. 2. Lift and remove the compact spare tire cover. 5-74 3.
Page 343: Removing The Flat Tire And Installing The Spare Tire
The tools you will be using include the jack (A) and the wheel wrench (B). Removing the Flat Tire and Installing the Spare Tire 1. Place the wheel wrench securely over the wheel nut. Turn the wheel wrench counterclockwise to loosen all the wheel nuts, but do not remove them yet.
Page 344 2. Turn the jack handle clockwise to raise the jack lift head. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 345 5. Put the compact spare tire near the ﬂat tire. CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack.
Page 346 7. Remove all wheel nuts and take off the ﬂat tire. 5-78 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 347 9. Install the compact spare tire. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 10. Put the wheel nuts back on with the rounded end of the nuts toward the wheel.
Page 348 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
Page 349: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. After you have put the compact spare tire on your vehicle, you will need to store the ﬂat tire in your trunk.
Page 350: Compact Spare Tire
1. Open the trunk. See Trunk on page 2-14 for more information. 2. Install the spare tire (F) with the valve stem up, and line up the wheel nut hole with the bolt (I). Then place the spare tire on the compartment ﬂoor. 3.
Page 351: Appearance Care
Appearance Care Cleaning the Inside of Your Vehicle Your vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on your upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces. Regular vacuuming is recommended to remove particles from your upholstery.
Page 352: Fabric/Carpet
Do not clean your vehicle using the following cleaners or techniques: • Never use a knife or any other sharp object to remove a soil from any interior surface. • Never use a stiff brush. It can cause damage to your vehicle’s interior surfaces.
Page 353: Leather
To clean, use the following instructions: 1. Saturate a lint-free, clean white cloth with water or club soda. 2. Wring the cloth to remove excess moisture. 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled.
Page 354: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt. Never use spot lifters or removers on plastic surfaces.
Page 355: Washing Your Vehicle
Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability. The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often with lukewarm or cold water. Do not wash the vehicle in the direct rays of the sun.
Page 356: Windshield And Wiper Blades
Windshield and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap, or other material may be on the blade or windshield. Clean the outside of the windshield with a glass cleaning liquid or powder and water solution.
Page 357: Tires
Use chrome polish only on chrome-plated wheels, but avoid any painted surface of the wheel, and buff off immediately after application. Notice: If you drive your vehicle through an automatic car wash that has silicone carbide tire cleaning brushes, you could damage the aluminum or chrome-plated wheels.
Page 358: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan, and exhaust system even though they have corrosion protection.
Page 359: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Usage Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil and Remover asphalt. Chrome Cleaner and Use on chrome or Polish stainless steel. White Sidewall Tire Removes soil and black Cleaner marks from whitewalls.
Page 360: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 361: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 362: Underhood Fuse Block
Underhood Fuse Block The underhood fuse block is located on the passenger’s side of the engine compartment. Remove the fuse cover and secondary service cover to access the fuse block. 5-94...
Page 363 Fuses Usage Spare Driver’s Side Low-Beam Passenger’s Side Low-Beam Airbag Ignition Engine Control Module Transaxle Ignition Spare Spare Spare High-Beam Headlamp High-Beam Headlamp Windshield Washer Pump Spare Climate Controls, Instrument Panel Cluster Spare Fog Lamps Horn Windshield Wiper Driver’s Side Corner Lamp Passenger’s Side Corner Lamp Oxygen Sensor Powertrain...
Page 364: Rear Underseat Fuse Block
Relays Usage Cooling Fan 1 Cooling Fan Crank Powertrain Spare Run/Crank Cooling Fan 2 Windshield Wiper Air Pump Windshield Wiper High Air Conditioning Air Solenoid Rear Underseat Fuse Block The rear fuse block is located under the rear seat on the driver’s side.
Page 365 To reinstall the rear seat cushion, do the following: CAUTION: A safety belt that is not properly routed through the seat cushion or is twisted will not provide the protection needed in a crash. CAUTION: (Continued) CAUTION: (Continued) If the safety belt has not been routed through the seat cushion at all, it will not be there to work for the next passenger.
Page 366 J-Case Fuses Usage Climate Control Fan Rear Defogger Electronic Leveling Control/Compressor 5-98 Fuses Usage Ampliﬁer (Option) Not Used Interior Lamps Courtesy/Passenger Side Front Turn Signal...
Page 367 Fuses Usage Canister Vent Magnetic Ride Control Module (Option) Electronic Leveling Control/Module Not Used Not Used Switch Dimmer Fuel Pump Body Control Module Logic Airbag Accessory Power Outlets Driver’s Side Turn Signal Passenger Side Rear Turn Signal Sunroof Center High-Mounted Stoplamp, Back-up Lamps Rear Door Locks Not Used...
Page 368 Fuses Usage Heated/Cooled Seats, Ignition 3 (Option) Ignition Switch Not Used Circuit Usage Breakers Front Passenger’s Seat, Memory Seat Module Driver’s Power Seat, Memory Seat Module Door Module, Power Windows Not Used Resistor Usage Terminating Resistor 5-100 Relays Usage Retained Accessory Power Park Lamps Run (Option) Daytime Running Lamps...
Page 369: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Automatic Transaxle- Drain and Reﬁll 3.8L V6 Engine 4.6L V8 Engine Engine Cooling System 3.8L V6 Engine 4.6L V8 Engine...
Page 370 Engine VIN Code 3.8L V6 4.6L V8 5-102 Engine Speciﬁcations Transmission Automatic Automatic Spark Plug Gap 0.060 in (1.52 mm) 0.050 in (1.27 mm)
Page 371 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 372: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 373 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-29. • are driven on reasonable road surfaces within legal driving limits.
Page 374: Scheduled Maintenance
Scheduled Maintenance When the CHANGE ENGINE OIL SOON message in the Driver Information Center (DIC) comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 375 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-18. An Emission Control Service. Visually check for any leaks or damage. See footnote (k). Inspect engine air cleaner ﬁlter.
Page 376: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 377: Maintenance Footnotes
Additional Required Services (cont’d) Service and Miles (Kilometers) Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (j). Inspect engine accessory drive belt. An Emission Control Service. See footnote (n). Maintenance Footnotes †...
Page 378 (d) Visually inspect wiper blades for wear or cracking. Replace wiper blades that appear worn or damaged or that streak or miss areas of the windshield. (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors, and anchorages are working properly.
Page 379: Owner Checks And Services
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability, and emission control performance of your ® vehicle. Your GM Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 380: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 381 Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition to OFF in each shift lever position. • The ignition should turn to OFF only when the shift lever is in PARK (P). •...
Page 382: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol.
Page 383: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Normal Maintenance Replacement Parts Part Engine Air Cleaner/Filter Engine Oil Filter 3.8L V6 Engine 4.6L V8 Engine Passenger Compartment Air Filter Spark Plugs 3.8L V6 4.6L V8...
Page 384: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages. You should retain all maintenance receipts.
Page 385 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-15...
Page 386 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 387: Customer Assistance And Information
Section 7 Customer Assistance and Information Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9...
Page 388: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Buick. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your GM dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 389: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 390: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Buick encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Buick, refer to the addresses below. United States — Customer Assistance Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 www.Buick.com...
Page 391: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 392: Roadside Assistance Program
Roadside Assistance Program Call 1-800-252-1112 for Buick Roadside Assistance. As the proud owner of a new Buick vehicle, you are automatically enrolled in the Buick Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 393: Courtesy Transportation
Buick Roadside Assistance: 1-800-252-1112, text telephone (TTY) users, call 1-888-889-2438. Buick reserves the right to limit services or reimbursement to an owner or driver when, in Buick’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 394: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Participating dealers can provide you with shuttle service to get you to your destination with minimal...
Page 395: Vehicle Data Collection And Event Data Recorders
Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer. Please contact your dealer for speciﬁc information about availability. All Courtesy Transportation arrangements will be administered by appropriate dealer personnel. Canadian Vehicles: For warranty repairs during the Complete Vehicle Coverage period of the General Motors of Canada New Vehicle Limited Warranty,...
Page 396: Collision Damage Repair
Unlike the data recorders on many airplanes, these on-board systems do not record sounds, such as conversation of vehicle occupants. To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: •...
Page 397 Recycled original equipment parts may also be used for repair. These parts are typically removed from vehicles that were total losses in prior accidents. In most cases, the parts being recycled are from undamaged sections of the vehicle. A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts is not...
Page 398 If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 399: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 400: Reporting Safety Defects To The Canadian Government
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. Please call us at 1-800-521-7300, or write: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 7-14 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 401: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 402 NOTES 7-16...
Page 403 Accessories and Modiﬁcations ... 5-3 Accessory Power Outlet(s) ... 3-21 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-68 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-93 Air Cleaner/Filter, Engine ... 5-19 Air Conditioning ... 3-23, 3-26 Airbag Passenger Status Indicator ... 3-37 Readiness Light ...
Page 404 Audio System(s) (cont.) Navigation/Radio System, see Navigation Manual ... 3-98 Radio with CD ... 3-77, 3-82 Setting the Time ... 3-75, 3-76 Theft-Deterrent Feature ... 3-98 Understanding Radio Reception ... 3-100 XM™ Satellite Radio Antenna System ... 3-101 Automatic Transaxle Fluid ...
Page 405 Chains, Tire ... 5-71 Charging System Light ... 3-39 Check Engine Light ... 3-44 Tire Pressure System ... 5-63 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ... 5-90 Child Restraints Child Restraint Systems ... 1-36 Infants and Young Children ... 1-33 Lower Anchors and Tethers for Children ...
Page 406 Courtesy Lamps ... 3-17 Cruise Control ... 3-11 Cruise Control Light ... 3-48 Cupholder(s) ... 2-44 Customer Assistance Information Courtesy Transportation ... 7-7 Customer Assistance for Text Telephone (TTY) Users ... 7-4 Customer Assistance Offices ... 7-4 Customer Satisfaction Procedure ... 7-2 GM Mobility Reimbursement Program ...
Page 407 Electrical System Add-On Equipment ... 5-93 Fuses and Circuit Breakers ... 5-93 Power Windows and Other Power Options ... 5-93 Rear Underseat Fuse Block ... 5-96 Underhood Fuse Block ... 5-94 Engine Air Cleaner/Filter ... 5-19 Battery ... 5-42 Check and Service Engine Soon Light ... 3-44 Coolant ...
Page 408 Fuses Fuses and Circuit Breakers ... 5-93 Rear Underseat Fuse Block ... 5-96 Underhood Fuse Block ... 5-94 Gage Engine Coolant Temperature ... 3-43 Fuel ... 3-49 Speedometer ... 3-35 Tachometer ... 3-35 Garage Door Opener ... 2-40 Gasoline Octane ... 5-5 Speciﬁcations ...
Page 409 Instrument Panel Overview ... 3-4 Instrument Panel (I/P) Brightness ... 3-16 Cluster ... 3-34 Jump Starting ... 5-44 Keyless Entry System ... 2-5 Keys ... 2-3 Labeling, Tire Sidewall ... 5-57 Lamps Battery Load Management ... 3-18 Cornering ... 3-16 Courtesy ...
Page 410 Loading Your Vehicle ... 4-29 Lockout Protection ... 2-14 Locks Delayed Locking ... 2-12 Door ... 2-11 Lockout Protection ... 2-14 Power Door ... 2-11 Programmable Automatic Door Locks ... 2-13 Rear Door Security Locks ... 2-13 Loss of Control ... 4-15 Lumbar Power Controls ...
Page 411 Navigation/Radio System, see Navigation Manual ... 3-98 New Vehicle Break-In ... 2-21 Normal Maintenance Replacement Parts ... 6-13 Odometer ... 3-35 Odometer, Trip ... 3-35 Off-Road Recovery ... 4-13 Engine ... 5-15 Pressure Light ... 3-47 Oil, Engine Oil Life System ... 5-18 Older Children, Restraints ...
Page 412 Power (cont.) Inadvertent Battery Saver ... 3-18 Lumbar Controls ... 1-3 Retained Accessory (RAP) ... 2-22 Seat ... 1-2 Steering Fluid ... 5-38 Windows ... 2-17 Pretensioners, Safety Belt ... 1-29 Programmable Automatic Door Locks ... 2-13 Questions and Answers About Safety Belts ... 1-15 Radiator Pressure Cap ...
Page 413 Retained Accessory Power (RAP) ... 2-22 Right Front Passenger Position, Safety Belts ... 1-23 Roadside Assistance Program ... 7-6 Rocking Your Vehicle to Get it Out ... 4-28 Running the Engine While Parked ... 2-32 Safety Belt Passenger Reminder Light ... 3-36 Pretensioners ...
Page 414 Shifting Into Park (P) ... 2-29 Shifting Out of Park (P) ... 2-30 Shoulder Belt Height Adjuster ... 1-22 Signals, Turn and Lane-Change ... 3-7 Spare Tire Compact ... 5-82 Installing ... 5-75 Removing ... 5-74 Storing ... 5-81 Speciﬁcations, Capacities ... 5-101 Speedometer ...
Page 415 Tires (cont.) Inﬂation - Tire Pressure ... 5-62 Inspection and Rotation ... 5-65 Installing the Spare Tire ... 5-75 Removing the Flat Tire ... 5-75 Removing the Spare Tire and Tools ... 5-74 Storing a Flat or Spare Tire and Tools ... 5-81 Tire Sidewall Labeling ...
Page 416 Warning Lights, Gages and Indicators ... 3-33 Warnings DIC Warnings and Messages ... 3-56 Hazard Warning Flashers ... 3-6 Other Warning Devices ... 3-6 Safety and Symbols ... iii Vehicle Damage ... iv Wheels Alignment and Tire Balance ... 5-70 Different Size ...

Buick 2006 Lucerne Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Universal Home Remote System

Storage Areas

Sunroof

Vehicle Personalization

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

Headlamp Aiming

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Buick 2006 Lucerne

Summary of Contents for Buick 2006 Lucerne
