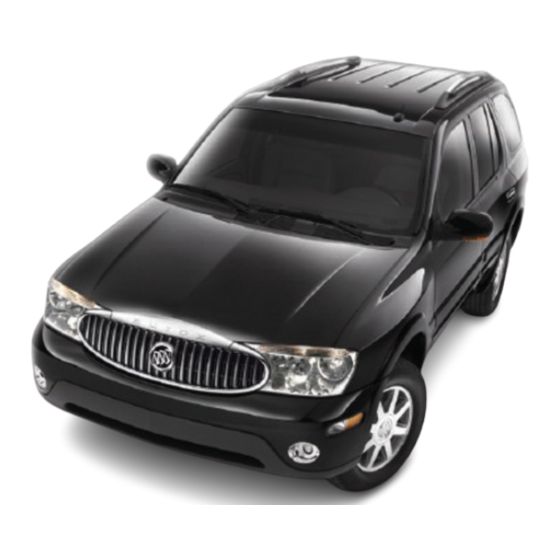

Page 1 2006 Buick Rainier Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-6 Safety Belts ... 1-8 Child Restraints ... 1-26 Airbag System ... 1-48 Restraint System Check ... 1-62 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
GENERAL MOTORS, GM, the GM Emblem, BUICK, the BUICK Emblem, and the name RAINIER are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without notice.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Power Seats ...1-2 Power Lumbar ...1-3 Heated Seats ...1-3 Power Reclining Seatbacks ...1-4 Head Restraints ...1-5 Rear Seats ...1-6 Rear Seat Operation ...1-6 Safety Belts ...1-8 Safety Belts: They Are for Everyone ...1-8 Questions and Answers About Safety Belts ...1-12 How to Wear Safety Belts Properly ...1-13 Driver Position ...1-13 Safety Belt Use During Pregnancy ...1-19...
Page 8: Front Seats
Front Seats Power Seats The power seat controls are located on the outboard side of the front seat cushions. The horizontal control adjusts the seat cushion and the vertical control adjusts the seatback. • Move the front of the horizontal seat control up or down to adjust the front portion of the cushion.
Page 9: Power Lumbar
Power Lumbar Your vehicle has power lumbar on the driver’s and front passenger’s seats. The seatback lumbar support can be adjusted by moving the control located on the outboard side of the seat cushions. To increase or decrease support, hold the control forward or rearward.
Page 10: Power Reclining Seatbacks
To heat only the seatback, press the button with the words BACK ONLY. An indicator light on the switch will glow to designate that only the seatback is being heated. Additional presses will cycle through the heat levels for the seatback only. The feature will shut off automatically when the ignition is turned off.
Page 11: Head Restraints
CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
Page 12: Rear Seats
Adjust the head restraint so that the top of the restraint is closest to the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Rear Seats Rear Seat Operation Your vehicle has a 60/40 folding rear seat which lets you fold the seatbacks down for more cargo space.
Page 13 The rear seatback levers are located on the outboard side of each rear seatback. Pull the seatback toward you as you lift up on the lever. The head restraint will automatically fold out of the way when the seatback is folded down. To raise the seatback, lift up the seatback and push until it locks into the upright position.
Page 14 Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 15: Why Safety Belts Work
Your vehicle has a light that comes on as a reminder to buckle up. See Safety Belt Reminder Light on page 3-28. In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash.
Page 16 Put someone on it. 1-10 Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 17 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield... 1-11...
Page 18 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-12 Questions and Answers About Safety Belts...
Page 19 If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 20 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-25. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 21 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 22 What is wrong with this? The belt is buckled in the wrong place. 1-16 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 23 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 24 What is wrong with this? The belt is twisted across the body. 1-18 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 25 To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 26 Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-13. The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature.
Page 27 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
Page 28 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 29 To unlatch the belt, push the button on the buckle. Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When attached to a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 30 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 1-24 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured.
Page 31 4. Buckle, position, and release the safety belt as described in Rear Seat Passengers on page 1-20. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 32: Safety Belts
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-26 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 33 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 34 1-28 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 35: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 36 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 37 CAUTION: Newborn infants need complete support, including support for the head and neck. This is necessary because a newborn infant’s neck is weak and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing seat settles into the restraint, so the crash forces can be distributed across the strongest part of an infant’s body, the back and shoulders.
Page 38: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 39 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 40 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 41 When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 42: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 43: Lower Anchors And Tethers For Children (Latch)
Lower Anchors and Tethers for Children (LATCH) Your vehicle has the LATCH system. The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system Make sure that a LATCH-compatible child restraint...
Page 44 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.
Page 45 To assist you in locating the lower anchors, each seating position with lower anchors has two labels, near the crease between the seatback and the seat cushion, showing where the anchors are located. The labels are located above a ﬂap, at the base of the seatback, in the rear outside seating positions.
Page 46 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchors, or use the vehicle’s safety belts to secure the restraint,...
Page 47 Refer to your child restraint manufacturer instructions and the instructions in this manual. 1.1. Find the lower anchors for the desired seating position. 1.2. Pull the strap at the center of the seat where the seat cushion meets the seatback. This will allow you to fold the seat cushion up and out of the way.
Page 48: Securing A Child Restraint In A
Securing a Child Restraint in a Rear Outside Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-37. If your child restraint does not have the LATCH system, you will be using the lap-shoulder belt to secure the child restraint in this position.
Page 49 4. Pull the rest of the shoulder belt all the way out 5. To tighten the belt, push down on the child restraint, of the retractor to set the lock. pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 50: Securing A Child Restraint In The Center Rear Seat Position
6. If your child restraint manufacturer recommends using a top tether, attach and tighten the top tether to the top tether anchor. Refer to the instructions that came with the child restraint and to Lower Anchors and Tethers for Children (LATCH) on page 1-37.
Page 51 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag if the system detects a rear-facing child restraint, no system is fail-safe, and no one...
Page 52 2. Put the child restraint on the seat. 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 53 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 54: Airbag System
Airbag System Your vehicle has a frontal airbag for the driver and a frontal airbag for the right front passenger. Your vehicle may also have roof-mounted side impact airbags designed for either side impact or rollover deployment. Roof-mounted side impact airbags are available for the driver and the passenger seated directly behind the driver and for the right front passenger and the passenger seated directly behind that passenger.
Page 55 CAUTION: (Continued) Roof-mounted side impact airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your vehicle. They are not designed to inﬂate in frontal or in rear crashes. If the vehicle is equipped with rollover capable airbags, it has been designed to deploy the roof-mounted side impact airbags in the event of a vehicle rollover.
Page 56: Where Are The Airbags
CAUTION: Anyone who is up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 57 The right front passenger’s airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted airbag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows. 1-51...
Page 58 If your vehicle has a roof-mounted airbag for the right front passenger and the person directly behind that passenger, it is located in the ceiling above the side windows. 1-52 CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 59: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 60: What Makes An Airbag Inﬂate
Your vehicle may or may not have a roof-mounted airbag and a rollover sensor. See Airbag System on page 1-48. These “rollover capable” airbags are intended to inﬂate in moderate to severe side crashes or during a rollover. A roof-mounted airbag will inﬂate if the crash severity is above the system’s designed “threshold level.”...
Page 61: What Will You See After An Airbag Inﬂates
Roof-mounted side impact airbags would not help you in many types of collisions, including many frontal or near frontal collisions, and rear impacts, primarily because an occupant’s motion is not toward those airbags. Airbags should never be regarded as anything more than a supplement to safety belts, and then only in moderate to severe frontal or near-frontal collisions for the driver’s and right front passenger’s...
Page 62: Passenger Sensing System
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 63 The passenger sensing system will turn off the right front passenger’s frontal airbag under certain conditions. The driver’s airbag and the side airbags are not part of the passenger sensing system. The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt.
Page 64 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • the right front passenger seat is unoccupied • the system determines that an infant is present in a rear-facing infant seat • the system determines that a small child is present in a forward-facing child restraint •...
Page 65 If a person of adult-size is sitting in the right front passenger’s seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, turn the vehicle off and ask the person to place the seatback in the fully upright position, then sit upright in the seat, centered on the seat cushion, with the person’s legs comfortably extended.
Page 66: Servicing Your Airbag-Equipped Vehicle
Aftermarket equipment, such as seat covers, can affect how well the passenger sensing system operates. You may want to consider not using seat covers or other aftermarket equipment if your vehicle has the passenger sensing system. See Adding Equipment to Your Airbag-Equipped Vehicle on page 1-61 for more information about modiﬁcations that can affect how the system operates.
Page 67 Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, front end or side sheet metal or height, they may keep the airbag system from working properly.
Page 68: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 69 If belts are cut or damaged, replace them. Collision damage also may mean you will need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system was not being used at the time of the collision.
Page 70 NOTES 1-64...
Page 71: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-4 Remote Keyless Entry System Operation ...2-5 Doors and Locks ...2-7 Door Locks ...2-7 Power Door Locks ...2-8 Delayed Locking ...2-8 Programmable Automatic Door Locks ...2-9 Rear Door Security Locks ...2-11 Lockout Protection ...2-11 Liftgate/Liftglass ...2-12 Windows ...2-13 Power Windows ...2-14...
Page 72 Section 2 Automatic Dimming Rearview Mirror with Compass ...2-35 Automatic Dimming Rearview Mirror with Compass and Temperature Display ...2-37 Outside Power Mirror ...2-39 Outside Curb View Assist Mirror ...2-40 Outside Convex Mirror ...2-40 Outside Heated Mirrors ...2-40 ® OnStar System ...2-41 Universal Home Remote System ...2-43 Universal Home Remote System Operation ...2-43 Features and Controls...
Page 73: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 74: Remote Keyless Entry System
This vehicle has one double-sided key for the ignition and door lock. It will ﬁt with either side up. When a new vehicle is delivered, the dealer provides the owner with a pair of identical keys and a key code number. The key code number tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 75: Remote Keyless Entry System Operation
Changes or modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment. At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 76: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 77: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 78: Power Door Locks
Power Door Locks The power door lock switches are located on the driver’s and front passenger’s door armrests. Press the lock symbol to lock all of the doors. To unlock the doors, press the other side of the switch. Delayed Locking This feature delays the locking of the doors and the liftgate when using the power lock or the remote keyless entry system.
Page 79: Programmable Automatic Door Locks
Programmable Automatic Door Locks Your vehicle is equipped with an automatic lock/unlock feature which enables you to program your vehicle’s power door locks. You can program this feature through the Driver Information Center (DIC), or by the following method. See DIC Vehicle Customization on page 3-52. Programmable Locking Feature Following are the two locking modes that can be programmed:...
Page 80: Programmable Unlocking Feature
Programmable Unlocking Feature The following is the list of available programming options: Mode 1: Driver’s door unlocks when the transmission is shifted into PARK (P). Mode 2: All doors unlock when the transmission is shifted into PARK (P). Mode 3: All doors unlock when the key is removed from the ignition.
Page 81: Rear Door Security Locks
Rear Door Security Locks Your vehicle may have this feature. You can lock the rear doors so they cannot be opened from the inside by passengers. To use one of these locks do the following: 1. Open one of the rear doors. You will ﬁnd a security lock lever located on the inside edge of each rear door.
Page 82: Liftgate/Liftglass
Liftgate/Liftglass CAUTION: It can be dangerous to drive with the liftgate or liftglass open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the...
Page 83: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 84: Power Windows
Power Windows The controls for the power windows are located on the armrest on each of the side doors. With power windows, the switches operate the windows when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 2-18.
Page 85: Sun Visors
Sun Visors Sun Visors with Slide Rod Your vehicle may have this feature. Pull the sun visor down to block glare. Detach the sun visor from the center mount and slide it along the rod from side-to-side to cover the driver or passenger side of the front window.
Page 86: Testing The Alarm
If a locked door is opened without the key or the remote keyless entry transmitter, the alarm will go off. The headlamps and parking lamps will ﬂash for two minutes, and the horn will sound for 30 seconds, then will turn off to save the battery power.
Page 87: Passlock
® Passlock Your vehicle is equipped with the ® Passlock theft-deterrent system. ® Passlock is a passive theft-deterrent system that enables fuel if the ignition lock cylinder is turned with a valid key. If a correct key is not used or the ignition lock cylinder is tampered with, the fuel system is disabled and the vehicle will not start.
Page 88: Ignition Positions
Ignition Positions Use the key to turn the ignition switch to four different positions. A (LOCK): This position locks the ignition and transmission. It is a theft-deterrent feature. You will only be able to remove the key when the ignition is turned to LOCK.
Page 89: Starting The Engine
Starting the Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position — that is a safety feature. To restart when you are already moving, use NEUTRAL (N) only. Notice: Do not try to shift to PARK (P) if your vehicle is moving.
Page 90: Adjustable Throttle And Brake Pedal
Adjustable Throttle and Brake Pedal If your vehicle has this feature, you can change the position of the throttle and brake pedals. This feature is designed for shorter drivers, since the pedals cannot move farther away from the standard position, but can move closer for better pedal reach.
Page 91: Displacement On Demand™ (Dod™)
CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a ﬁre. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord will not reach, use a heavy-duty three-prong extension cord rated for at least 15 amps.
Page 92: Automatic Transmission Operation
Automatic Transmission Operation There are several different positions for your gear shift lever. PARK (P): This position locks the rear wheels. It is the best position to use when you start the engine because your vehicle cannot move easily. CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set.
Page 93 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 94: Parking Brake
SECOND (2): This position gives you more power but lower fuel economy than THIRD (3). You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use the brakes off and on. You can also use SECOND (2) for starting the vehicle from a stop on slippery road surfaces.
Page 95: Shifting Into Park (P)
Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts. Verify that the parking brake is fully released and the brake warning light is off before driving. If you are towing a trailer and you must park on a hill, see Towing a Trailer on page 4-52.
Page 96: Shifting Out Of Park (P)
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 97: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 98: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 99: Mirrors
Mirrors Manual Rearview Mirror Your vehicle may have this feature. While sitting in a comfortable driving position, adjust the rearview mirror so you can see clearly behind your vehicle. Grip the mirror in the center to move it up or down and side to side.
Page 100: Compass Calibration
Mirror Operation While sitting in a comfortable position, adjust the rearview mirror so you can see clearly behind your vehicle. Grip it in the center and move it up or down and side to side. The day/night control, located at the bottom of the mirror, adjusts the mirror to reduce headlamp glare from behind during evening or dark conditions.
Page 101 To adjust for compass variance do the following: 1. Find the current location and variance zone number on the following zone map. 2. Press and hold the on/off button until a zone number appears in the display. 3. Once a zone number appears in the display, press the on/off button quickly until the correct zone number appears in the display.
Page 102: Compass Operation
Compass Operation Press the on/off button once to turn the compass on or off. There is a compass display in the window in the upper right corner of the mirror face. The compass displays a maximum of two characters. For example, “NE” is displayed for north-east.
Page 103: Temperature Display
Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display Your vehicle may have this feature. When on, an automatic dimming mirror automatically dims to the proper level to minimize glare from lights behind you after dark. The mirror also includes a dual display in the upper right corner of the mirror face.
Page 104: Automatic Dimming Mirror Operation
Automatic Dimming Mirror Operation The automatic dimming mirror function is turned on automatically each time the ignition is started. To operate the automatic dimming mirror, do the following: 1. Make sure the green indicator light, located to the left of the on/off button, is lit. If it’s not, press and hold the on/off button for approximately six seconds until the green light comes on, indicating that the mirror is in automatic dimming mode.
Page 105: Cleaning The Mirror
Compass Calibration The compass may need calibration if one of the following occurs: • After approximately ﬁve seconds, the display does not show a compass heading (N for North, for example), there may be a strong magnetic ﬁeld interfering with the compass. Such interference may be caused by a magnetic antenna mount, magnetic note pad holder or a similar magnetic item.
Page 106 Compass Operation Press the on/off button once to turn the compass on or off. There is a compass display in the window in the upper right corner of the mirror face. The compass displays a maximum of two characters. For example, “NE” is displayed for north-east.
Page 107: Display
Automatic Dimming Rearview Mirror with Compass and Temperature Display If the vehicle is equipped with an automatic mirror, it will, when on, automatically dim to the proper level to minimize glare from lights behind you after dark. The mirror also includes a display in the upper right corner of the mirror face.
Page 108 Compass Calibration The compass may need calibration if one of the following occurs: • If CAL is displayed while driving in the vehicle. • After approximately ﬁve seconds, the display does not show a compass heading (N for North, for example), there may be a strong magnetic ﬁeld interfering with the compass.
Page 109: Outside Power Mirror
3. Press the COMP button on the bottom of the mirror until the new zone number appears in the display. After you stop pressing the button, the display will show a compass direction within a few seconds. Passenger Airbag Indicator The mirror may be equipped with a passenger airbag indicator on the mirror glass, just above the buttons.
Page 110: Outside Curb View Assist Mirror
If you reach the mirror’s end of the travel position in any direction, the mirror will enter a ratcheting mode. This action is harmless. It is a warning that the mirror can go no further. To stop this action, back the mirror up by moving the control in the opposite direction.
Page 111: Onstar System
® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call ®...
Page 112: Steering Wheel Controls
Directions and Connections • All Safe and Sound Plan Services • Driving Directions • RideAssist • Information and Convenience Services ® OnStar Personal Calling ® As an OnStar subscriber, the Personal Calling capability allows you to make hands-free calls using a wireless system that is integrated into the vehicle.
Page 113: Universal Home Remote System
Universal Home Remote System The Universal Home Remote System, a combined universal transmitter and receiver, provides a way to replace up to three hand-held transmitters used to activate devices such as gate operators, garage door openers, entry door locks, security systems, and home lighting.
Page 114: Programming Universal Home Remote
Keep the original hand-held transmitter for use in other vehicles as well as for future Universal Home Remote programming. It is also recommended that upon the sale of the vehicle, the programmed Universal Home Remote buttons should be erased for security purposes. See “Erasing Universal Home Remote Buttons”...
Page 115: Gate Operator And Canadian Programming
6. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. This can usually be found where the hanging antenna wire is attached to the motor-head unit. 7. Firmly press and release the “Learn” or “Smart” button.
Page 116: Storage Areas
Using Universal Home Remote Press and hold the appropriate Universal Home Remote button for at least half of a second. The indicator light will come on while the signal is being transmitted. Erasing Universal Home Remote Buttons To erase programming from the three Universal Home Remote buttons do the following: 1.
Page 117: Overhead Console
Overhead Console Your vehicle may have this feature. The overhead console may include reading lamps, a Universal Home Remote and a sunroof switch. See Sunroof on page 2-50 and Universal Home Remote System on page 2-43 for more information. Center Console Storage Area If equipped, squeeze the front lever while lifting the top to open it.
Page 118: Rear Floor Storage Lid
To slide the crossrails to where you want them, pull up on the lever on each side of the crossrail. This will release the crossrail and allow you to slide it. When the crossrail is where you want it, press down on the levers to lock it into place.
Page 119: Convenience Net
Convenience Net Your vehicle may have this feature. A convenience net in the rear of your vehicle helps keep small items in place during sharp turns or quick stops and starts. The net is not designed to retain these items during off-road use.
Page 120: Cargo Tie Downs
Cargo Tie Downs There may be cargo tie downs in the rear of your vehicle that allow you to strap cargo in and keep it from moving. 2-50 Sunroof The vehicle may be equipped with a power sliding sunroof. To open or close the sunroof, the ignition must be on or accessory, or Retained Accessory Power (RAP) must be active.
Page 121: Vehicle Personalization
Vehicle Personalization In addition to the following features, your vehicle may also have features that can be programmed through the Driver Information Center (DIC). See DIC Vehicle Customization on page 3-52 for more information. Memory Seat If your vehicle has this feature, the controls for the memory function are located on the...
Page 122: Easy Exit Seat
Easy Exit Seat The control for the easy exit seat function is located on the driver’s door below the memory buttons 1 and 2. The easy exit seat button is used to program and recall the desired driver’s seat position when exiting/entering the vehicle.
Page 123 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-9 Rainsense™ Wipers ...3-9 Windshield Washer ...3-10 Rear Window Wiper/Washer ...3-10 Cruise Control ...3-11...
Page 124 Section 3 Malfunction Indicator Lamp ...3-36 Oil Pressure Gage ...3-38 Security Light ...3-39 Cruise Control Light ...3-39 Reduced Engine Power Light ...3-40 Highbeam On Light ...3-40 Service All-Wheel Drive Light ...3-41 Check Gages Warning Light ...3-41 Gate Ajar Light ...3-41 Fuel Gage ...3-42 Low Fuel Warning Light ...3-42 Check Gas Cap Light ...3-42...
Page 125 NOTES...
Page 126: Instrument Panel Overview
Instrument Panel Overview...
Page 127 The main components of your instrument panel are the following: A. Exterior Lamp Control. See Headlamps on page 3-13. Dome Lamp Override Button. See Dome Lamp Override on page 3-16. Instrument Panel Brightness Control. See Instrument Panel Brightness on page 3-16. Fog Lamp Button (If Equipped). See Fog Lamps on page 3-15.
Page 128: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on top of the steering column.
Page 129: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals • Headlamp High/Low-Beam Changer • Flash-to-Pass Feature • Windshield Wipers • Windshield Washer • Cruise Control Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions.
Page 130: Headlamp High/Low-Beam Changer
If a bulb is burned out, replace it to help avoid an accident. If the arrows don’t go on at all when you signal a turn, check the fuse. See Fuses and Circuit Breakers on page 5-95 and check for burned-out bulbs. If you have a trailer towing option with added wiring for the trailer lamps, a turn signal ﬂasher is used.
Page 131: Windshield Wipers
Windshield Wipers (Mist): For a single wiping cycle, turn the band to mist. Hold it there until the wipers start. Then let go. The wipers will stop after one wipe. If you want more wipes, hold the band on mist longer. (Off): To stop the wipers, move the band to off.
Page 132: Windshield Washer
Windshield Washer (Windshield Washer): To spray washer ﬂuid on the windshield, press the windshield washer paddle. The wipers will clear the window and then either stop or return to your preset speed. CAUTION: In freezing weather, do not use your washer until the windshield is warmed.
Page 133: Cruise Control
Cruise Control Your vehicle has cruise control. The controls are located on the end of the turn signal/ multifunction lever. (On): Move the switch to this position to turn the cruise control system on. (Resume/Accelerate): Move the switch to this position to resume a set speed or to accelerate.
Page 134 Setting Cruise Control 1. Move the cruise control switch to on. 2. Get up to the speed you want. 3. Press the set button at the end of the lever and release it. 4. Take your foot off the accelerator pedal. The accelerator pedal will not go down.
Page 135: Headlamps
Passing Another Vehicle While Using Cruise Control Use the accelerator pedal to increase your speed. When you take your foot off the pedal, your vehicle will slow down to the cruise control speed you set earlier. Using Cruise Control on Hills How well your cruise control will work on hills depends upon your speed, load and the steepness of the hills.
Page 136: Daytime Running Lamps (Drl)
(Parking Lamps): Turn the knob to this symbol to manually turn on the following: • Parking Lamps • Sidemarker Lamps • Taillamps • License Plate Lamps • Instrument Panel Lights (Headlamps): Turn the knob to this symbol to turn on all the lamps listed as well as the headlamps. Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day.
Page 137: Fog Lamps
The system may also turn on your lights when driving through a parking garage, heavy overcast weather or a tunnel. This is normal. There is a delay in the transition between the daytime and nighttime operation of the Daytime Running Lamps (DRL) and the automatic headlamp systems, so that driving under bridges or bright overhead street lights does not affect the system.
Page 138: Instrument Panel Brightness
Instrument Panel Brightness Press the knob located next to the exterior lamps knob to extend it. Turn the knob to adjust the instrument panel lights. Turn the knob all the way up to turn on the interior lamps. Press the knob back into its stored position when you’re not using it.
Page 139: Entry Lighting
Entry Lighting Your vehicle is equipped with entry lighting. When any door is opened, the dome lamps will come on as long as the dome override lamp override button is not pressed in. When all the doors are closed, the lamps will stay on for a short period of time and will then turn off automatically.
Page 140: Accessory Power Outlet(S)
Accessory Power Outlet(s) With the accessory power outlets, you can plug in auxiliary electrical equipment such as a cellular telephone or CB radio. The ﬁrst outlet is located to the right of the cigarette lighter on the instrument panel. The second outlet is located on the rear of the center console.
Page 141: Climate Controls
Climate Controls Dual Automatic Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. When your vehicle is ﬁrst started and the climate control system is on, or if the climate control system has been turned on, the display will show the driver’s temperature setting for ﬁve seconds.
Page 142: Automatic Operation
Driver’s Side Temperature Knob: Turn this knob clockwise or counterclockwise to manually raise or lower the temperature on the driver’s side of the vehicle. The display will show the temperature setting decreasing or increasing and an arrow pointing toward the driver. This knob can also adjust the passenger’s side temperature setting simultaneously if the two zones are linked as described in Passenger’s Side Temperature Knob.
Page 143 Manual Operation To change the current setting, select one of the following: (Fan): This button allows you to manually adjust the fan speed. Press the up arrow to increase fan speed and the down arrow to decrease fan speed. The display will change to show you the selected fan speed and the driver’s side temperature setting for ﬁve seconds.
Page 144: Defogging And Defrosting
A/C (Air Conditioning): Press this button to manually turn the air conditioning system on or off. When the system is on, the system will automatically begin to cool and dehumidify the air inside of your vehicle. The air conditioning symbol will appear on the display when the air conditioning is on and will turn off when the air conditioning is off.
Page 145: Outlet Adjustment
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear): Press this button to turn the rear window defogger on or off. An indicator light in the button will come on to let you know that the rear window defogger is activated.
Page 146: Rear Climate Control System
Rear Climate Control System The lower buttons on the rear seat audio are used to adjust the rear seat climate controls. The temperature of the air coming through the rear outlets is determined by the front passenger’s temperature setting. 3-24 (Fan) Press this button to adjust the fan speed.
Page 147: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 148: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
Page 149: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). The odometer mileage can be checked without the vehicle running.
Page 150: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will sound for several seconds to remind you and your passengers to buckle your safety belts. The driver safety belt light will also come on and stay on for several seconds, then it will ﬂash for several more.
Page 151: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensors, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 152: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system, Your rearview mirror has a passenger airbag status indicator. Passenger Airbag Status Indicator – United States Passenger Airbag Status Indicator – Canada When the ignition key is turned to RUN or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 153 CAUTION: Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag if the system detects a rear-facing child restraint, no system is failsafe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.
Page 154: Charging System Light
Charging System Light The charging system light will come on brieﬂy when you turn on the ignition, but the engine is not running, as a check to show you it is working. It should go out once the engine is running. If it stays on, or comes on while you are driving, you may have a problem with the charging system.
Page 155: Brake System Warning Light
Brake System Warning Light When the ignition is on, the brake system warning light will come on when you set your parking brake. The light will stay on if your parking brake doesn’t release fully. If it stays on after your parking brake is fully released, it means you have a brake problem.
Page 156: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light With the anti-lock brake system, this light will come on when you start your engine and may stay on for several seconds, that is normal. A chime may also sound when the light comes on. If the light stays on, or comes on when you are driving, your vehicle needs service.
Page 157: Stabilitrak ® Indicator Light
® StabiliTrak Indicator Light This warning light should come on brieﬂy when the engine is started. During most driving conditions, this light will not come ® on. If the StabiliTrak System is actively controlling the stability and/or traction of the vehicle, this light will blink.
Page 158: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle is equipped with a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 159: If The Light Is Flashing
If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 160: Oil Pressure Gage
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
Page 161: Maintenance Schedule
CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced. Notice: Lack of proper engine oil maintenance may damage the engine.
Page 162: Reduced Engine Power Light
Reduced Engine Power Light This light is displayed when a noticeable reduction in the vehicle’s performance may occur. The vehicle may be driven at a reduced speed when the reduced engine power light is on but acceleration and speed may be reduced. The performance may be reduced until the next time you drive your vehicle.
Page 163: Service All-Wheel Drive Light
Service All-Wheel Drive Light This light should come on brieﬂy when you turn on the ignition, as a check to show you it is working. The service all-wheel drive light comes on to indicate that there may be a problem with the drive system and service is required.
Page 164: Fuel Gage
Fuel Gage United States When the ignition is on, the fuel gage tells you about how much fuel you have remaining. Here are four things that some owners ask about. None of these show a problem with your fuel gage: •...
Page 165: Driver Information Center (Dic)
Driver Information Center (DIC) The Driver Information Center (DIC) display is located on the instrument panel cluster, below the speedometer. If your vehicle has DIC buttons, they are located on the steering wheel. The DIC can display information such as the trip odometer, fuel economy, customization features, and warning/status messages.
Page 166: Dic Operation And Displays
DIC Operation and Displays The DIC comes on when the ignition is on. After a short delay the DIC will display the information that was last displayed before the engine was turned off. If a problem is detected, a warning message will appear on the display.
Page 167: Fuel Information Button
You can also reset the TRIP A or TRIP B while they are displayed by pressing the reset stem on the cluster. If you press and hold the reset stem or the select button for four seconds, the display will show the distance traveled since the last ignition cycle for TRIP A or TRIP B.
Page 168: Select Button
Average Fuel Economy: Press the fuel information button until AVG. ECON appears on the display. This mode shows how many miles per gallon (MPG), liters per 100 kilometers (L/100 km), or kilometers per liter (km/L) your vehicle is getting based on current and past driving conditions.
Page 169: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. More than one message may appear at one time.
Page 170: Driver Door Ajar
DRIVER DOOR AJAR If the driver’s door is not fully closed, this message will appear on the display and you will hear a chime. Stop and turn off the vehicle, check the door for obstacles, and close the door again. Check to see if the message still appears on the DIC.
Page 171: Left Rear Door Ajar
LEFT REAR DOOR AJAR If the driver’s side rear door is not fully closed this message will appear on the display and you will hear a chime. Stop and turn off the vehicle, check the door for obstacles, and close the door again. Check to see if the message still appears on the DIC.
Page 172: Right Rear Door Ajar
RIGHT REAR DOOR AJAR If the passenger’s side rear door is not fully closed this message will appear on the display and you will hear a chime. Stop and turn off the vehicle, check the door for obstacles, and close the door again. Check to see if the message still appears on the DIC.
Page 173: Tighten Fuel Cap
STABILITRAK OFF The STABILITRAK OFF message will be displayed ® when you press the StabiliTrak button for more than ﬁve seconds or when stability control has been automatically disabled. The StabiliTrak located on the transmission shift handle. To limit wheel spin and realize the full beneﬁts of the stability enhancement system, you should normally leave ®...
Page 174: Dic Vehicle Customization
TURN SIGNAL ON If a turn signal is left on for 3/4 of a mile (1.2 km), this message will appear on the display and you will hear a chime. Move the turn signal/multifunction lever to the off position. Press the select button to acknowledge this message and clear it from the DIC display.
Page 175 Unlock Doors Press the customization button until UNLOCK DOORS: IN PARK appears in the display. To select your preference for automatic unlocking, press the select button while UNLOCK DOORS: IN PARK is displayed on the DIC. Pressing the select button will scroll through the following choices: UNLOCK DOORS: IN PARK (default): All of the doors will unlock when the vehicle is shifted into PARK (P).
Page 176: Unlock Feedback
Unlock Feedback Press the customization button until UNLOCK FEEDBACK: LAMPS appears in the display. To select your preference for the feedback you will receive when unlocking the vehicle with the remote keyless entry transmitter, press the select button while UNLOCK FEEDBACK: LAMPS is displayed on the DIC.
Page 177 Perimeter Lights Press the customization button until PERIMETER LIGHTS: ON appears in the display. To select your preference for perimeter lighting, press the select button while PERIMETER LIGHTS: ON is displayed on the DIC. Pressing the select button will scroll through the following choices: PERIMETER LIGHTS: ON (default): The headlamps and back-up lamps will come on for 40 seconds, if...
Page 178 Curb View Press the customization button until CURB VIEW: OFF appears in the display. To select your preference for curb view, press the select button while CURB VIEW: OFF is displayed on the DIC. Pressing the select button will scroll through the following choices: CURB VIEW: OFF (default): The passenger’s outside mirror will not be tilted down when the vehicle is shifted into REVERSE (R).
Page 179 Language Press the customization button until LANGUAGE: ENGLISH appears in the display. To select your preference for display language, press the select button while LANGUAGE: ENGLISH is displayed on the DIC. Pressing the select button will scroll through the following languages: •...
Page 180: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 4-2. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 181: Setting The Time
Here are some ways in which you can help avoid distraction while driving. While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers.
Page 182: Radio With Cd (Base)
Radio with CD (Base) Base Radio Shown, Bose ® If your vehicle has the Bose audio system, your ® vehicle will have six Bose ampliﬁed speakers. 3-60 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 183: Playing The Radio
XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous Untied States and in Canada (if available). XM™ offers over 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 184: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE: Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 185 Setting the Tone (Bass/Midrange/Treble) AUDIO: Push and release the AUDIO knob until BASS, ® MID (without Bose ), or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass, midrange (without Bose or treble level.
Page 186: Rds And Xm
Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. TYPE and a PTY will appear on the display. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 187: Radio Messages
Setting Preset PTYs (RDS Only) These buttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 188 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 189 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 190: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the INFO knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 191 3 REV (Reverse): Press and hold this pushbutton to quickly reverse within a track. Press and hold this pushbutton for less than two seconds to reverse at six times the normal playing speed. Press and hold it for more than two seconds to reverse at 17 times the normal playing speed.
Page 192: Radio With Cd (Mp3)
CD Messages If the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 193 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 194 For XM™ (if equipped), press the DISPL knob while in XM™ mode to retrieve four different categories of information related to the current song or channel: Artist, Song Title, Category or PTY, Channel Number/Channel Name. To change the default on the display, press the DISPL knob until you see the display you want, then press and hold this knob for two seconds.
Page 195 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 196 To adjust the balance or the fade to the middle position while it is displayed, push the AUDIO knob, then push it again and hold it until you hear one beep. To adjust all tone and speaker controls to the middle position, push and hold the AUDIO knob when no tone or speaker control is displayed.
Page 197 INFO (Information): If the current station has a message, the information symbol will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
Page 198 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signl Loss of signal Loading Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no longer...
Page 199 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 200 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in, and READING will appear on the display. The CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the DISPL knob.
Page 201 4 FWD (Forward): Press and hold this pushbutton to advance quickly within a track. Press and hold this pushbutton for less than two seconds to advance at six times the normal playing speed. Press and hold it for more than two seconds to advance at 17 times the normal playing speed.
Page 202: Mp3 Format
Using an MP3 CD MP3 Format If you burn your own MP3 disc on a personal computer: • Make sure the MP3 ﬁles are recorded on a CD-R disc. • Make sure to ﬁnalize the disc when burning an MP3 disc, using multiple sessions.
Page 203 When the CD contains only playlists and compressed audio ﬁles, but no folders, all ﬁles will be located under the root folder. The folder down and the folder up buttons will search playlists (Px) ﬁrst and then go to the root folder.
Page 204 If the ignition or radio is turned off with a CD in the player it will stay in the player. When the ignition or radio is turned on, the CD will start to play where it stopped, if it was the last selected audio source. As each new track starts to play, the track number will appear on the display.
Page 205 4 FWD (Forward): Press and hold this pushbutton to advance quickly within a track. Press and hold this pushbutton for less than two seconds to advance at 10 times the normal playing speed. Press and hold it for more than two seconds to advance at 20 times the normal playing speed.
Page 206 INFO (Information): INFO will appear on the display whenever a current track has ID3 tag information. Press this button to display the artist name and album contained in the tag. INFO will disappear from the display when the information in the ID3 tag has ﬁnished. BAND: Press this button to listen to the radio when a CD is playing.
Page 207: Radio With Cassette And Cd
Radio with Cassette and CD Base Radio Shown, Bose ® If your vehicle has the Bose audio system, your ® vehicle will have six Bose ampliﬁed speakers. Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 208 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and in Canada (if available). XM™ offers over 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 209 Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE : Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 210 Setting the Tone (Bass/Midrange/Treble) AUDIO: Push and release the AUDIO knob until BASS, ® MID (without Bose ), or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass, midrange (without Bose or treble level.
Page 211 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. TYPE and a PTY will appear on the display. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 212 Setting Preset PTYs (RDS Only) These buttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 213 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 214 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 215: Playing A Cassette Tape
Playing a Cassette Tape The tape player is built to work best with tapes that are up to 30 to 45 minutes long on each side. Tapes longer than that are so thin they may not work well in this player. The longer side with the tape visible should face to the right.
Page 216 3 REV (Reverse): Press this pushbutton to quickly reverse the tape. The radio will play while the tape reverses. Press it again to return to playing speed. The station frequency and REV will appear on the display. Select stations during reverse operation by using TUNE and SEEK.
Page 217: Cassette Tape Messages
Cassette Tape Messages CHK TAPE (Check Tape): If this message appears on the display, the tape will not play due to one of the following errors: • The tape is tight and the player cannot turn the tape hubs. Remove the tape. Hold the tape with the open end down and try to turn the right hub counterclockwise with a pencil.
Page 218 Playing a CD Insert a CD part way into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the INFO knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 219 3 REV (Reverse): Press and hold this pushbutton to quickly reverse within a track. Press and hold this pushbutton for less than two seconds to reverse at six times the normal playing speed. Press and hold it for more than two seconds to reverse at 17 times the normal playing speed.
Page 220 CD Messages If the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 221: Radio With Six-Disc Cd
Radio with Six-Disc CD Base Radio Shown, Bose ® If your vehicle has the Bose audio system, your ® vehicle will have six Bose ampliﬁed speakers. Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 222 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and in Canada (if available). XM™ offers over 100 coast-to-coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 223 Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE : Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 224 Setting the Tone (Bass/Midrange/Treble) AUDIO: Push and release the AUDIO knob until BASS, ® MID (without Bose ), or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass, midrange (without Bose or treble level.
Page 225 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. P-TYPE and the last selected PTY will appear on the display. 2.
Page 226 Setting Preset PTYs (RDS Only) These pushbuttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 227 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 228 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 229 Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source. When a CD is inserted, the CD symbol will appear on the display.
Page 230 To insert multiple CDs, do the following: 1. Turn the ignition on. 2. Press and hold the LOAD button for two seconds. You will hear a beep and the indicator light, located to the right of the slot, will begin to ﬂash and MULTI LOAD # will appear on the display.
Page 231 If the CD is not removed, after 25 seconds, the CD will be automatically pulled back into the player. If CD is pushed back into the player, before the 25-second time period is complete, the player will sense an error and will try to eject the CD several times before stopping.
Page 232: Using Song List Mode
© ¨ SEEK : Press the left arrow to go to the start of the current track, if more than ten seconds have played. Press the right arrow to go to the next track. If either arrow is pressed more than once, the player will continue moving backward or forward through the CD.
Page 233 To play the song list, press the SONG LIST button. One beep will be heard and S-LIST will appear on the display. The recorded tracks will begin to play in the order they were saved. Seek through the song list by using the SEEK or TYPE arrows.
Page 234 CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 235: Navigation/Radio System
Navigation/Radio System Your vehicle may have a navigation radio system. The navigation system has built-in features intended to minimize driver distraction. Technology alone, no matter how advanced, can never replace your own judgment. See the navigation system manual for some tips to help you reduce distractions while driving. Rear Seat Entertainment System Your vehicle may have a DVD Rear Seat Entertainment (RSE) system.
Page 236: Stereo Rca Jacks
When using the wired headphones, if the front seat passengers play a CD in the Radio with Six-Disc CD (if equipped) or use XM™ Satellite Radio Service (if equipped), you will hear the audio for these sources, instead of the DVD or CD that is currently playing through the RSE.
Page 237 To use the auxiliary inputs on the RSE system, connect an external auxiliary device to the color-coded RCA jacks and turn both the auxiliary device and the RSE system power on. If the RSE system had been previously in the DVD player mode, pressing the SRCE button on the faceplate or the remote control will switch the RSE system between the auxiliary device and the DVD player.
Page 238: Dvd Player
Video Screen The video screen is located in the overhead console. To use the video screen, push forward on the release latch and the screen will fold down. Adjust the screen’s position as desired. When the video screen is not in use, push it up into its latched position.
Page 239 DVD Player Buttons (Without Sunroof) (Power): Press this button to turn the RSE system on and off. The power indicator light will illuminate when the power is on. (Eject): Press this button to eject a DVD or CD. SRCE (Source): Press this button to switch between the DVD player and an auxiliary source.
Page 240: Playing A Disc
DVD Player Buttons (With Sunroof) (Play/Pause): Press this button to start play of a DVD or CD. Press this button while a DVD or CD is playing to pause it. Press this button again to continue the play of the DVD or CD. (Stop/Eject): Press this button to stop playing, rewinding, or fast forwarding a DVD or CD.
Page 241: Remote Control
Ejecting a Disc (DVD Player without Sunroof) Press the eject button on the DVD player faceplate to eject the disc. There is not an eject button on the remote control. If a disc is ejected from the player, but is not removed, the DVD player will reload the disc after a short period of time.
Page 242: Remote Control Buttons
Remote Control Buttons (Power): Press this button to turn the DVD player on and off. (Title): Press this button to return the DVD to the main menu of the DVD. (Menu Navigation Arrows): Use the arrow buttons to navigate through a menu. (Set-up Menu): Press this button to adjust the color, tint, brightness, contrast, display mode, and dynamic range compression.
Page 243 (Illumination): Press this button to turn the remote control backlight on. The backlight will time out after about 7 to 10 seconds if no other button is pressed while the backlight is on. (Main DVD Menu): Press this button to access the DVD menu.
Page 244 If the remote control is to be stored for a long period of time, remove the batteries and keep them in a cool, dry place. Problem Recommended Action No power. The ignition might not be in on or accessory. The parental control button might have been turned on.
Page 245 Problem Recommended Action After stopping the player, I If the stop button was push Play but sometimes pressed one time, the the DVD starts where DVD player will resume I left off and sometimes playing where the DVD at the beginning. was stopped.
Page 246: Rear Seat Audio (Rsa)
DVD Messages The following errors may be displayed on the video screen: Disc Format Error: This message will be displayed if a disc is inserted upside down, if the disc is not readable, or if the format is not compatible with the DVD player. Load/Eject Error: This message will be displayed if the disc is not properly loaded or ejected.
Page 247 (Power): Press this button to turn the system on or off. The rear speakers will be muted when the power is turned on. (Volume): Turn this knob to increase or to decrease the volume. The left volume knob controls the left wired headphones and the right volume knob controls the right wired headphones.
Page 248: Theft-Deterrent Feature
Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOCKED will appear on the display. When the radio and vehicle are turned off, the blinking red light indicates that THEFTLOCK ®...
Page 249: Radio Reception
PROG (Program): Press this button to play a station you have programmed on the radio preset pushbuttons. The radio will only seek preset stations with a strong signal that are in the selected band. When a CD is playing in the CD changer, press this button to go to the next available CD, if multiple CDs are loaded.
Page 250: Care Of The Cassette Tape Player
XM™ Satellite Radio Service XM™ Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada (if available). Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or tunnels may cause loss of the XM™...
Page 251: Care Of Your Cds And Dvds
4. Insert the scrubbing action cleaning cassette. 5. Eject the cleaning cassette after the manufacturer’s recommended cleaning time. After the cleaning cassette is ejected, the broken tape detection feature will be active again. A non-scrubbing action, wet-type cleaner which uses a cassette with a fabric belt to clean the tape head can be used.
Page 252: Fixed Mast Antenna
Fixed Mast Antenna The ﬁxed mast antenna can withstand most car washes without being damaged. If the mast should ever become slightly bent, straighten it out by hand. If the mast is badly bent, replace it. Check occasionally to make sure the mast is still tightened to the fender.
Page 253: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-5 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-8 Locking Rear Axle ...4-8 ® StabiliTrak System ...4-9 All-Wheel Drive (AWD) System ...4-13 Steering ...4-13 Off-Road Recovery ...4-15...
Page 254: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-8. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 255: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 256 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 257: Control Of A Vehicle
Statistics show that the chance of being in a collision increases sharply for drivers who have a BAC of 0.05 percent or above. A driver with a BAC level of 0.06 percent has doubled his or her chance of having a collision.
Page 258: Braking
Braking See Brake System Warning Light on page 3-33. Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about three-fourths of a second.
Page 259: Anti-Lock Brake System (Abs)
Anti-Lock Brake System (ABS) Your vehicle has anti-lock brakes. ABS is an advanced electronic braking system that will help prevent a braking skid. When you start your engine and begin to drive away, your anti-lock brake system will check itself. You may hear a momentary motor or clicking noise while this test is going on.
Page 260: Braking In Emergencies
The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 261: Stabilitrak System
® StabiliTrak System Your vehicle is equipped with StabiliTrak Stability Control (ESC) which combines antilock brake, traction and stability control systems and helps the driver maintain directional control of the vehicle in most driving conditions. Traction control activates when the controller senses ®...
Page 262 TRACTION CONTROL OFF - The driver can modify the engine speed management system by momentarily ® pressing the StabiliTrak button on the transmission ® shift handle. The StabiliTrak light will come on and TRACTION CONTROL OFF will be displayed. For vehicles without a DIC, the StabiliTrak light will come on.
Page 263 The following chart describes the StabiliTrak be displayed on the instrument panel cluster. Vehicles with a DIC ® StabiliTrak DIC Message Indicator Light None Solid Traction Control Off Solid StabiliTrak StabiliTrak Blinking Active ® system events and the corresponding messages and lights that will Vehicles without a DIC ®...
Page 264 Vehicles with a DIC ® StabiliTrak DIC Message Indicator Light Service Solid StabiliTrak StabiliTrak Solid Not Ready ® Notice: If the StabiliTrak light comes on due to heavy braking and/or because the traction control system has been continuously active, do not allow the wheel(s) of one axle to spin excessively.
Page 265: Power Steering
If the SERVICE STABILITRAK message (or StabiliTrak service light) does not clear itself after restarting the vehicle, you should see your dealer for service. Adding non-GM accessories can affect your vehicle’s performance. See Accessories and Modiﬁcations on page 5-3 for more information. All-Wheel Drive (AWD) System Your vehicle may have this feature.
Page 266: Steering In Emergencies
What should you do if this ever happens? Ease up on the accelerator pedal, steer the vehicle the way you want it to go, and slow down. Speed limit signs near curves warn that you should adjust your speed. Of course, the posted speeds are based on good weather and road conditions.
Page 267: Off-Road Recovery
An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
Page 268: Passing
Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
Page 269: Loss Of Control
Remember that your passenger side outside mirror is convex. The vehicle you just passed may seem to be farther away from you than it really is. • Try not to pass more than one vehicle at a time on two-lane roads. Reconsider before passing the next vehicle.
Page 270: Off-Road Driving
Off-Road Driving This off-road guide is for vehicles that have all-wheel drive. If your vehicle does not have all-wheel drive, you should not drive off-road unless you are on a level, solid surface. Many of the same design features that help make your vehicle responsive on paved roads during poor weather conditions —...
Page 271: Environmental Concerns
CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks. • Unsecured cargo on the load ﬂoor can be tossed about when driving over rough terrain.
Page 272: Traveling To Remote Areas
Traveling to Remote Areas It makes sense to plan your trip, especially when going to a remote area. Know the terrain and plan your route. You are much less likely to get bad surprises. Get accurate maps of trails and terrain. Try to learn of any blocked or closed roads.
Page 273: Scanning The Terrain
Scanning the Terrain Off-road driving can take you over many different kinds of terrain. You need to be familiar with the terrain and its many different features. Here are some things to consider. Surface Conditions: Off-roading can take you over hard-packed dirt, gravel, rocks, grass, sand, mud, snow, or ice.
Page 274 Driving on Off-Road Hills Off-road driving often takes you up, down, or across a hill. Driving safely on hills requires good judgment and understanding of what your vehicle can and cannot do. There are some hills that simply cannot be driven, no matter how well built the vehicle.
Page 275: Driving Uphill
Driving Uphill Once you decide you can safely drive up the hill, you need to take some special steps. • Use a low gear and get a ﬁrm grip on the steering wheel. • Get a smooth start up the hill and try to maintain your speed.
Page 276 What should I do if my vehicle stalls, or is about to stall, and I cannot make it up the hill? If this happens, there are some things you should do, and there are some things you must not do. First, here is what you should do: •...
Page 277: Driving Downhill
Driving Downhill When off-roading takes you downhill, you will want to consider a number of things: • How steep is the downhill? Will I be able to maintain vehicle control? • What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? •...
Page 278: Driving Across An Incline
Am I likely to stall when going downhill? It is much more likely to happen going uphill. But if it happens going downhill, here is what to do. 1. Stop your vehicle by applying the regular brakes. Apply the parking brake. 2.
Page 279 • Hidden obstacles can make the steepness of the incline even worse. If you drive across a rock with the uphill wheels, or if the downhill wheels drop into a rut or depression, your vehicle can tilt even more. For reasons like these, you need to decide carefully whether to try to drive across an incline.
Page 280: Stalling On An Incline
Stalling on an Incline If your vehicle stalls when you are crossing an incline, be sure you, and any passengers, get out on the uphill side, even if the door there is harder to open. If you get out on the downhill side and the vehicle starts to roll over, you will be right in its path.
Page 281: Driving In Water
Hard packed snow and ice offer the worst tire traction. On these surfaces, it is very easy to lose control. On wet ice, for example, the traction is so poor that you will have difficulty accelerating. And, if you do get moving, poor steering and difficult braking can cause you to slide out of control.
Page 282: Driving At Night
After Off-Road Driving Remove any brush or debris that has collected on the underbody, chassis, or under the hood. These accumulations can be a ﬁre hazard. After operation in mud or sand, have the brake linings cleaned and checked. These substances can cause glazing and uneven braking.
Page 283: Driving In Rain And On Wet Roads
What you do in the daytime can also affect your night vision. For example, if you spend the day in bright sunshine you are wise to wear sunglasses. Your eyes will have less trouble adjusting to night. But if you are driving, do not wear sunglasses at night.
Page 284 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 285: Driving Through Deep Standing Water
Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle. If you cannot avoid deep puddles or standing water, drive through them very slowly.
Page 286: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-34 Here are ways to increase your safety in city driving: •...
Page 287: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 288: Before Leaving On A Long Trip
Just before you leave the lane, glance quickly over your shoulder to make sure there is not another vehicle in your blind spot. Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance.
Page 289: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 290: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-38 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 291 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 292: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 5-52. 4-40 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and reﬂective warning triangles.
Page 293 What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall.
Page 294: If You Are Caught In A Blizzard
If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 295 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 296: If Your Vehicle Is Stuck In Sand, Mud, Ice Or Snow
If Your Vehicle is Stuck in Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
Page 297: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it was designed to carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 298 There is also important loading information on the vehicle Certiﬁcation/Tire label. It tells you the Gross Vehicle Weight Rating (GVWR) and the Gross Axle Weight Rating (GAWR) for the front and rear axle. See “Certiﬁcation/Tire Label” later in this section. Steps for Determining Correct Load Limit 1.
Page 299 Example 2 Item Description Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight Total Item 1,000 lbs (453 kg) 750 lbs (136 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 300 Your vehicle has an electronically controlled air suspension system that automatically keeps your vehicle level as you load and unload your vehicle. See Electronically Controlled Air Suspension System on page 4-50 for additional information. Certiﬁcation/Tire Label A vehicle speciﬁc Certiﬁcation/Tire label is found on the rear edge of the driver’s door.
Page 301 CAUTION: Do not load your vehicle any heavier than the Gross Vehicle Weight Rating (GVWR), or either the maximum front or rear Gross Axle Weight Rating (GAWR). If you do, parts on your vehicle can break, and it can change the way your vehicle handles.
Page 302: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-6. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 303: Indicator Light
The ignition has to be on for the system to inﬂate, in order to raise the vehicle to the standard ride height after loading. The system can lower the vehicle to the standard ride height after unloading with the ignition on and also for up to 30 minutes after the ignition has been turned off.
Page 304: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 305: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 306: Weight Of The Trailer Tongue
Look in the following chart to ﬁnd the maximum trailer weight for your vehicle. Vehicle 2WD (L6 Engine) AWD (L6 Engine) 2WD (V8 Engine) AWD (V8 Engine) The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversion.
Page 307 The trailer tongue weight (A) should be 10 percent to 15 percent of the total loaded trailer weight, up to a maximum or 400 lbs (181 kg) with a weight carrying hitch. The trailer tongue weight (A) should be 10 to 15 percent of the total loaded trailer weight, up to a maximum of 750 lbs (340 kg) with a weight distributing hitch.
Page 308 Consider the following example: A vehicle model base weight is 5,500 lbs (2 495 kg); 2,800 lbs (1 270 kg) at the front axle and 2,700 lbs (1 225 kg) at the rear axle. It has a GVWR of 7,200 lbs (3 266 kg), a RGAWR of 4,000 lbs (1 814 kg) and a GCWR (Gross Combination Weight Rating) of 14,000 lbs (6 350 kg).
Page 309 Since tongue weight is usually at least 10 percent of total loaded trailer weight, you can expect that the largest trailer your vehicle can properly handle is 6,000 lbs (2 721 kg). It is important that you make sure your vehicle does not exceed any of its ratings —...
Page 310: Trailer Brakes
If you will be pulling a trailer that, when loaded, will weigh more than 4,000 lbs (1 814 kg) be sure to use a properly mounted weight-distributing hitch and sway control of the proper size. This equipment is very important for proper vehicle loading and good handling when driving.
Page 311: Driving With A Trailer
Driving with a Trailer CAUTION: If you have a rear-most window open and you pull a trailer with your vehicle, carbon monoxide (CO) could come into your vehicle. You cannot see or smell CO. It can cause unconsciousness or death. See Engine Exhaust on page 2-27.
Page 312: Following Distance
Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You’ll need more passing distance up ahead when you’re towing a trailer.
Page 313: Driving On Grades
Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you don’t shift down, you might have to use your brakes so much that they would get hot and no longer work well. You can tow in DRIVE (D).
Page 314: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine, • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3.
Page 315: Trailer Wiring Harness
Trailer Wiring Harness Your vehicle is equipped with a seven-wire trailer towing harness. This harness has a seven-pin universal heavy-duty trailer connector (if equipped with the trailering package) that is attached to a bracket on the hitch platform. If your vehicle is not equipped with the heavy-duty trailer connector, you may purchase one from your dealer.
Page 316 NOTES 4-64...
Page 317: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling the Tank ...5-8 Filling a Portable Fuel Container ...5-10...
Page 318 Section 5 Tire Inspection and Rotation ...5-60 When It Is Time for New Tires ...5-61 Buying New Tires ...5-62 Different Size Tires and Wheels ...5-63 Uniform Tire Quality Grading ...5-64 Wheel Alignment and Tire Balance ...5-65 Wheel Replacement ...5-66 Tire Chains ...5-67 Accessory Inﬂator ...5-68 If a Tire Goes Flat ...5-69 Changing a Flat Tire ...5-70...
Page 319: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 320: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 321: Adding Equipment To The Outside Of Your Vehicle
Your vehicle has an airbag system. Before attempting to do your own service work, see Servicing Your Airbag-Equipped Vehicle on page 1-60. You should keep a record with all parts receipts and list the mileage and the date of any service work you perform.
Page 322: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 323: Fuels In Foreign Countries
Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines may be available in your area. General Motors recommends that you use these gasolines if they comply with the speciﬁcations described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.
Page 324: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 325 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 326: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 327: Hood Release
Hood Release 1. To open the hood, ﬁrst pull the handle with this symbol on it. It is located inside the vehicle under the instrument panel on the driver’s side. 2. Then go to the front of the vehicle and release the secondary hood release.
Page 328: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 4.2L L6 engine, here is what you will see: 5-12...
Page 329 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. B. Engine Coolant Recovery Tank. See Cooling System on page 5-28. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-35. D. Power Steering Fluid Reservoir. See Power Steering Fluid on page 5-34.
Page 330 When you open the hood on the 5.3L V8 engine, here is what you will see: 5-14...
Page 331: Engine Oil
A. Engine Coolant Recovery Tank. See Cooling System on page 5-28. B. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-35. D. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-15.
Page 332: When To Add Engine Oil
When to Add Engine Oil L6 Engine V8 Engine If the oil is below the L mark for the L6 engine or the cross-hatched area at the tip of the dipstick for the V8 engine, you will need to add at least one quart/liter of oil.
Page 333: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 334: Engine Oil Life System
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for your engine at extremely low temperatures.
Page 335: How To Reset The Engine Oil Life System
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a CHANGE ENGINE OIL message being turned on, reset the system.
Page 336: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter See Engine Compartment Overview on page 5-12 for the location of the engine air cleaner/ﬁlter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 337: Automatic Transmission Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 338: How To Check Automatic Transmission Fluid
How to Check Automatic Transmission Fluid Because this operation can be a little difficult, you may choose to have this done at the dealership service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick. Notice: Too much or too little ﬂuid can damage your transmission.
Page 339 Then, without shutting off the engine, follow these steps: 1. Flip the handle up and then pull out the dipstick and wipe it with a clean rag or paper towel. The automatic transmission dipstick handle with this symbol on it is located in the engine compartment on the passenger’s side of the vehicle.
Page 340: Engine Coolant
How to Add Automatic Transmission Fluid Refer to the Maintenance Schedule to determine what kind of transmission ﬂuid to use. See Recommended Fluids and Lubricants on page 6-12. Add ﬂuid only after checking the transmission ﬂuid while it is hot. A cold check is used only as a reference. If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level up to the HOT area for a hot check.
Page 341: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will.
Page 342: Radiator Pressure Cap
Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the coolant recovery tank. CAUTION: Turning the radiator pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly. With the coolant recovery tank, you will almost never have to add coolant at the radiator.
Page 343: If Steam Is Coming From Your Engine
If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 344: Cooling System
If the warning continues and you have not stopped, pull over, stop, and park your vehicle right away. If there is still no sign of steam, you can push down the accelerator until the engine speed is about twice as fast as normal idle speed for at least three minutes while you are parked.
Page 345 5.3L V8 Engine A. Coolant Recovery Tank B. Radiator Pressure Cap C. Engine Fan If the coolant inside the coolant recovery tank is boiling, do not do anything else until it cools down. The vehicle should be parked on a level surface. The coolant level should be at least up to the FULL COLD mark.
Page 346 If there seems to be no leak, start the engine again. The engine cooling fan speed should increase when idle speed is doubled by pushing the accelerator pedal down. If it does not, your vehicle needs service. Turn off the engine. Notice: Engine damage from running your engine without coolant is not covered by your warranty.
Page 347 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. When the coolant in the coolant recovery tank is at the FULL COLD mark, start your vehicle.
Page 348: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise about one full turn. If you hear a hiss, wait for that to stop.
Page 349 4. Then ﬁll the coolant recovery tank to the FULL COLD mark. 5. Put the cap back on the coolant recovery tank, but leave the radiator pressure cap off. 6. Start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 350: Engine Fan Noise
Engine Fan Noise Your vehicle has a clutched engine cooling fan. When the clutch is engaged, the fan spins faster to provide more air to cool the engine. In most everyday driving conditions the clutch is not engaged. This improves fuel economy and reduces fan noise.
Page 351: Windshield Washer Fluid
3. Unscrew the cap and wipe the dipstick with a clean rag. 4. Replace the cap and completely tighten it. 5. Remove the cap again and look at the ﬂuid level on the dipstick. For vehicles with the 4.2L L6 engine, the level should be at the C (Cold) mark.
Page 352: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 353: Checking Brake Fluid
Checking Brake Fluid You can check the brake ﬂuid without taking off the cap. Look at the brake ﬂuid reservoir. The ﬂuid level should be above MIN. If it is not, have your brake system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the MIN, but not over the MAX mark.
Page 354: Brake Wear
Brake Wear Your vehicle has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 355: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
Page 356: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 357 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 358 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 359 8. Now connect the black negative ( ) cable to the negative ( ) terminal of the good battery. Use a remote negative ( ) terminal if the vehicle has one. Do not let the other end touch anything until the next step.
Page 360 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 361: All-Wheel Drive
All-Wheel Drive When to Check Lubricant It is not necessary to regularly check ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should be on a level...
Page 362: Front Axle
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. The proper level is from 0 to 3/8 inch (0 to 10 mm) below the bottom of the ﬁller plug hole, located on the rear axle.
Page 363: Bulb Replacement
If the level is below the bottom of the ﬁller plug hole, located on the front axle, you may need to add some lubricant. When the differential is cold, add enough lubricant to raise the level to 1/2 inch (12 mm) below the ﬁller plug hole.
Page 364: Headlamps, Front Turn Signal, Sidemarker, And Parking Lamps
Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps To replace a bulb, do the following: 1. Open the hood. See Hood Release on page 5-11 for more information. 2. Remove the grille by grasping and pulling it forward. 3. Lift the inner quick release clips. 4.
Page 365: Replacement Bulbs
4. Unclip the wiring harness (A) and remove the three socket retaining screws (B). 5. Remove the socket by releasing the retaining tabs. 6. Holding the socket, pull the bulb to release it from the socket. 7. Reinstall by reversing Steps 1 through 6. Replacement Bulbs Exterior Lamp Front Parking and...
Page 366: Windshield Replacement
Windshield Replacement Your vehicle is equipped with an acoustic windshield. If you ever have to have your windshield replaced be sure to get an acoustic windshield so you will continue to have the beneﬁts an acoustic windshield can provide. Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking.
Page 367 4. To install the new wiper insert, slide the insert (D), notched end last, into the end with two blade claws (A). Slide the insert all the way through the blade claws at the opposite end (B). The plastic caps (C) will be forced off as the insert is fully inserted.
Page 368: Tires
Backglass Wiper Blade Replacement See Windshield Wiper Blade Replacement on page 5-50 for instructions on how to change the backglass wiper blade. The backglass wiper blade will not lock in a vertical position like the windshield wiper blade, so care should be used when pulling it away from the vehicle.
Page 369: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into the sidewall. The following illustrations are examples of a typical P-Metric and a LT-Metric tire sidewall. Passenger (P-Metric) Tire (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 370 Light Truck (LT-Metric) Tire (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description. See the “Tire Size” illustration later in this section for more detail. (B) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC...
Page 371: Tire Size
Tire Size The following examples show the different parts of a tire size. Passenger (P-Metric) Tire Light Truck (LT-Metric) Tire (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 372: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 373 Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Inﬂation Pressure: The maximum air pressure to which a cold tire may be inﬂated. The maximum air pressure is molded onto the sidewall. Maximum Load Rating: The load rating for a tire at the maximum permissible inﬂation pressure for that tire.
Page 374: Inﬂation - Tire Pressure
UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire. See Uniform Tire Quality Grading on page 5-64.
Page 375: How To Check
A Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar), below the driver’s door latch. This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 376: Tire Inspection And Rotation
Tire Inspection and Rotation Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km). Any time you notice unusual wear, rotate your tires as soon as possible and check wheel alignment. Also check for damaged tires or wheels. See When It Is Time for New Tires on page 5-61 and Wheel Replacement on page 5-66 for more information.
Page 377: When It Is Time For New Tires
CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 378: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 379: Different Size Tires And Wheels
If you must replace your vehicle’s tires with those that do not have a TPC Spec number, make sure they are the same size, load range, speed rating, and construction type (radial and bias-belted tires) as your vehicle’s original tires. Your vehicle’s original equipment tires are listed on the Tire and Loading Information Label.
Page 380: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 381: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 382: Wheel Replacement
Wheel Replacement Replace any wheel that is bent, cracked or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired). See your dealer if any of these conditions exist.
Page 383: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 384: Accessory Inﬂator
Accessory Inﬂator Your vehicle has an accessory inﬂator system. You can inﬂate things like basketballs and bicycle tires. You can also use it to bring your tire pressure up to the proper pressure. It is not designed to inﬂate large objects which will require more than ﬁve minutes to inﬂate, such as an air mattress.
Page 385: If A Tire Goes Flat
4. Press and release the switch to turn the air inﬂator on. The indicator light will remain on when the inﬂator is running. The system has an internal clock to prevent the system from overheating. The system will allow about ﬁve minutes of running time, then the compressor will stop.
Page 386: Changing A Flat Tire
A rear blowout, particularly on a curve, acts much like a skid and may require the same correction you would use in a skid. In any rear blowout remove your foot from the accelerator pedal. Get the vehicle under control by steering the way you want the vehicle to go.
Page 387 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire. To help prevent the vehicle from moving: 1.
Page 388: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The jacking equipment you will need is stored under the rear seat on the passenger’s side of the vehicle. See Rear Seat Operation on page 1-6 for more information. 5-72 To release the jack from its holder, turn the knob on the jack counterclockwise to lower the jack head.
Page 389: The Spare Tire
The following instructions explain how to remove the underbody-mounted spare located underneath your vehicle. Notice: If you remove or restow a tire from/to the storage position under the vehicle when it is supported by a jack, you could damage the tire and/or your vehicle.
Page 390: Removing The Flat Tire And Installing The Spare Tire
5. Tilt the retainer at the end of the cable when the tire has been completely lowered, and pull it through the wheel opening. 6. Pull the tire out from under the vehicle. Notice: If you drive away before the spare tire or secondary latch system cable has been reinstalled, you could damage your vehicle.
Page 391 3. Place the handle, extension and wheel wrench onto the jack. Front Position A. Front Frame/Rear Axle B. Jack C. Handle 4. Place the jack in the appropriate position nearest the ﬂat tire. Getting under a vehicle when it is jacked up is dangerous.
Page 392 CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall. To help avoid personal injury and vehicle damage, be sure to ﬁt the jack lift head into the proper location before raising the vehicle.
Page 393 6. Remove all the wheel nuts and take off the ﬂat tire. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 394 8. Place the spare tire on the wheel-mounting surface. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 9. Put the nuts on by hand. Make sure the rounded end is toward the wheel.
Page 395 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new original equipment wheel nuts.
Page 396: Secondary Latch System
Secondary Latch System Your vehicle has an underbody-mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop the spare tire from suddenly falling off your vehicle if the cable holding the spare tire is damaged. For the secondary latch to work, the tire must be stored with the valve stem pointing up.
Page 397 3. Loosen the cable by turning the wheel wrench counterclockwise three or four turns. 4. Repeat this procedure at least two times. If the spare tire lowers to the ground, continue with Step 2 of Removing the Spare Tire and Tools on page 5-72.
Page 398: Storing A Flat Or Spare Tire And Tools
12. Turn the wheel wrench counterclockwise to lower the spare the rest of the way. 13. Tilt the retainer at the end of the cable and pull it through the wheel opening. Pull the tire out from under the vehicle. 5-82 Notice: If you drive away before the spare tire or secondary latch system cable has been reinstalled,...
Page 399 CAUTION: The underbody-mounted spare tire needs to be stored with the valve stem pointing up. If the spare tire is stored with the valve stem pointing downward, its secondary latch won’t work properly and the spare tire could loosen and suddenly fall from your vehicle. If this happened when your vehicle was being driven, the tire might contact a person or another vehicle, causing injury and, of course, damage...
Page 400 5. Raise the tire fully against the underside of the vehicle. Continue turning the wheel wrench (A) clockwise until you hear two clicks or feel it skip twice. This indicates that the tire is secure and the cable is tight. The spare tire hoist cannot be overtightened.
Page 401: Spare Tire
Spare Tire Your vehicle, when new, had a fully-inﬂated spare tire. A spare tire may lose air over time, so check its inﬂation pressure regularly. See Inﬂation - Tire Pressure on page 5-58 and Loading Your Vehicle on page 4-45 for information regarding proper tire inﬂation and loading your vehicle.
Page 402 When cleaning your vehicle’s interior, only use cleaners speciﬁcally designed for the surfaces being cleaned. Permanent damage may result from using cleaners on surfaces for which they were not intended. Use glass cleaner only on glass. Remove any accidental over-spray from other surfaces immediately.
Page 403: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For soils, always try to remove them ﬁrst with plain water or club soda.
Page 404: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt. Never use spot lifters or removers on plastic surfaces.
Page 405: Cleaning Exterior Lamps/Lenses
Do not wash the vehicle in the direct rays of the sun. Use a car washing soap. Do not use strong soaps or chemical detergents. Be sure to rinse the vehicle well, removing all soap residue completely. GM-approved cleaning products can be obtained from your dealer. See Vehicle Care/Appearance Materials on page 5-93.
Page 406: Windshield, Backglass, And Wiper Blades
Exterior painted surfaces are subject to aging, weather and chemical fallout that can take their toll over a period of years. You can help to keep the paint ﬁnish looking new by keeping your vehicle garaged or covered whenever possible. Protecting Exterior Bright Metal Parts Bright metal parts should be cleaned regularly to keep their luster.
Page 407: Tires
Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish on chrome wheels only. The surface of these wheels is similar to the painted surface of the vehicle. Do not use strong soaps, chemicals, abrasive polishes, abrasive cleaners, cleaners with acid, or abrasive cleaning brushes on them because the surface could be damaged.
Page 408: Finish Damage
Finish Damage Any stone chips, fractures or deep scratches in the ﬁnish should be repaired right away. Bare metal will corrode quickly and may develop into major repair expense. Minor chips and scratches can be repaired with touch-up materials available from your GM dealer. Larger areas of ﬁnish damage can be corrected in your GM dealer’s body and paint shop.
Page 409: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Tire Removes soil and black Cleaner marks from whitewalls.
Page 410: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 411: Headlamps
Headlamps The headlamp wiring is protected by four fuses. An electrical overload will cause a lamp to go on and off. If this happens, have your headlamp wiring checked right away. Windshield Wiper Fuses The windshield wiper motor is protected by a circuit breaker and a fuse.
Page 412: Engine Compartment Fuse Block
Engine Compartment Fuse Block 5-96 The fuse block is located under the hood in the engine compartment on the driver’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. Remove the primary cover by pressing the two locking tabs.
Page 413 Fuses Usage Electrically-Controlled Air Suspension Passenger’s Side High-Beam Headlamp L6 Engine Fuses Passenger’s Side Low-Beam Headlamp Back-Up-Trailer Lamps Usage 5-97...
Page 414 Fuses Driver’s Side High-Beam Headlamp Driver’s Side Low-Beam Headlamp Rear Window Washer Automatic Transfer Case Windshield Washer Powertrain Control Module B Fog Lamps Stoplamp Cigarette Lighter Not Used Electric Adjustable Pedal Truck Body Controller, Ignition 1 Crank Airbag Trailer Electric Brake Cooling Fan Horn Ignition E...
Page 415 Relays Usage Blank or Headlamp Washer Rear Window Washer Fog Lamps Horn Fuel Pump Windshield Washer High-Beam Headlamp Air Conditioning Cooling Fan Headlamp Driver Module Relays Usage Starter Electric Adjustable Pedal Air Injection Reactor (AIR) Solenoid Powertrain Vehicle Stability Enhancement System (StabiliTrak Miscellaneous Usage...
Page 416 Fuses Electrically-Controlled Air Suspension Passenger’s Side High-Beam Headlamp 5-100 V8 Engine Usage Fuses Usage Passenger’s Side Low-Beam Headlamp Back-Up-Trailer Lamps Driver’s Side High-Beam Headlamp...
Page 417 Fuses Usage Driver’s Side Low-Beam Headlamp Rear Window Washer Automatic Transfer Case Windshield Washer Powertrain Control Module B Fog Lamps Stoplamp Cigarette Lighter Ignition Coils Canister Vent Truck Body Controller, Ignition 1 Crank Airbag Trailer Electric Brake Cooling Fan Horn Ignition E Electronic Throttle Control Instrument Panel Cluster, Driver...
Page 418: Rear Underseat Fuse Block
Relays Headlamp Washer Rear Window Washer Fog Lamps Horn Fuel Pump Windshield Wipers/Washer High-Beam Headlamp Air Conditioning Cooling Fan Headlamp Driver Module Starter Electric Adjustable Pedal Powertrain Miscellaneous Instrument Panel Battery 5-102 Rear Underseat Fuse Block Usage Usage...
Page 419 Fuses Usage Right Door Control Module Left Door Control Module Endgate Module 2 Truck Body Controller 3 Rear Fog Lamps Blank Truck Body Controller 2 Power Seats Rear Wiper Driver Door Module Ampliﬁer Passenger Door Module Rear Climate Controls Left Rear Parking Lamps Blank Vehicle Center High-Mounted Stop Lamp...
Page 420 Fuses Unlock Blank Blank ® OnStar Overhead Battery, ® OnStar System Sunroof Rainsense™ Wipers Parking Lamps Truck Body Controller Accessory Truck Body Controller 5 Front Wipers Vehicle Stop Transmission Control Module Heat Ventilation Air Conditioning B Front Parking Lamps Left Turn Signal 5-104 Usage Fuses...
Page 421: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Cooling System 4.2L L6 Engine 5.3L V8 Engine Engine Oil with Filter 4.2L L6 5.3L V8 Fuel Tank Transfer Case Lubricant...
Page 422 NOTES 5-106...
Page 423 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 424: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 425 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-45. • are driven on reasonable road surfaces within legal driving limits.
Page 426: Scheduled Maintenance
Owner Checks and Services on page 6-9 tells you what should be checked, when to check it, and what you can easily do to help keep your vehicle in good condition. The proper replacement parts, ﬂuids, and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-12 and Normal Maintenance Replacement Parts on page 6-14.
Page 427 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-18. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner ﬁlter.
Page 428: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 429: Maintenance Footnotes
Service and Miles (Kilometers) V8 engine only: Inspect spark plug wires. An Emission Control Service. Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. See footnote (l).
Page 430 (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors, and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 431: Owner Checks And Services
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability, and emission control performance of your ® vehicle. Your GM Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 432: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 433: Ignition Transmission Lock Check
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • The ignition should turn to LOCK only when the shift lever is in PARK (P). •...
Page 434: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol. Engine Oil GM Goodwrench the requirements for your vehicle.
Page 435 Usage Fluid/Lubricant Chassis Lubricant (GM Part No. U.S. 12377985, in Chassis Canada 88901242) or lubricant Lubrication meeting requirements of NLGI #2, Category LB or GC-LB. SAE 75W-90 Synthetic Axle Lubricant Front and (GM Part No. U.S. 12378261, Rear Axle in Canada 10953455) meeting GM Speciﬁcation 9986115.
Page 436: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Part Automatic Transmission Filter Kit Engine Air Cleaner/Filter Engine Oil Filter 4.2L L6 Engine 5.3L V8 Engine Spark Plugs 4.2L L6 Engine 5.3L V8 Engine Wiper Blades Front –...
Page 437: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages. You should retain all maintenance receipts.
Page 438 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 439 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 440 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 441: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Collision Damage Repair ...7-10 Customer Assistance and Information...
Page 442: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Buick. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your GM dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 443: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 444: Customer Assistance For Text
Customer Assistance Offices Buick encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Buick, refer to the addresses below. United States — Customer Assistance Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 www.Buick.com...
Page 445: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 446: Roadside Assistance Program
Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road. Call Buick’s Roadside Assistance toll-free number at 1-800-252-1112 to speak with a Buick Roadside Assistance representative 24 hours a day, 365 days a year.
Page 447: Courtesy Transportation
Buick Roadside Assistance: 1-800-252-1112, text telephone (TTY) users, call 1-888-889-2438. Buick reserves the right to limit services or reimbursement to an owner or driver when, in Buick’s judgement, the claims become excessive in frequency or type of occurrence.
Page 448: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Participating dealers can provide you with shuttle service to get you to your destination with minimal...
Page 449: Vehicle Data Collection And Event
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled Warranty and Owner Assistance Information furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 450: Collision Damage Repair
Unlike the data recorders on many airplanes, these on-board systems do not record sounds, such as conversation of vehicle occupants. To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: •...
Page 451 In most cases, the parts being recycled are from undamaged sections of the vehicle. A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts is not known. Such parts are not covered by your GM New Vehicle Limited Warranty, and any related failures are not covered by that warranty.
Page 452 If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 453: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 454: Reporting Safety Defects To The Canadian Government
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. Please call us at 1-800-521-7300, or write: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 7-14 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 455: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 456 NOTES 7-16...
Page 457 Accessories and Modiﬁcations ... 5-3 Accessory Inﬂator ... 5-68 Accessory Power Outlet(s) ... 3-18 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-61 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-94 Adjustable Throttle and Brake Pedal ... 2-20 Air Cleaner/Filter, Engine ... 5-20 Air Conditioning ...
Page 458 Audio System(s) (cont.) Fixed Mast Antenna ... 3-130 Navigation/Radio System, see Navigation Manual ... 3-113 Radio with Cassette and CD ... 3-85 Radio with CD ... 3-60, 3-70 Radio with Six-Disc CD ... 3-99 Rear Seat Audio (RSA) ... 3-124 Setting the Time ...
Page 459 Charging System Light ... 3-32 Check Engine Light ... 3-36 Gages Warning Light ... 3-41 Check Gas Cap Light ... 3-42 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ... 5-92 Child Restraints Child Restraint Systems ... 1-32 Infants and Young Children ...
Page 460 Customer Assistance Information (cont.) Reporting Safety Defects to the Canadian Government ... 7-14 Reporting Safety Defects to the United States Government ... 7-13 Roadside Assistance Program ... 7-6 Service Publications Ordering Information ... 7-14 Daytime Running Lamps ... 3-14 Defensive Driving ... 4-2 Delayed Locking ...
Page 461 Engine Air Cleaner/Filter ... 5-20 Battery ... 5-39 Check and Service Engine Soon Light ... 3-36 Coolant ... 5-24 Coolant Heater ... 2-20 Coolant Temperature Gage ... 3-35 Engine Compartment Overview ... 5-12 Exhaust ... 2-27 Fan Noise ... 5-34 Oil ...
Page 462 Gage Check Gages Warning Light ... 3-41 Engine Coolant Temperature ... 3-35 Fuel ... 3-42 Oil Pressure ... 3-38 Speedometer ... 3-27 Tachometer ... 3-27 Voltmeter Gage ... 3-32 Garage Door Opener ... 2-43 Gasoline Octane ... 5-5 Speciﬁcations ... 5-5 Gate Ajar Light ...
Page 463 Jump Starting ... 5-40 Keyless Entry System ... 2-4 Keys ... 2-3 Labeling, Tire Sidewall ... 5-53 Lamps Battery Run-Down Protection ... 3-17 Dome ... 3-16 Dome Lamp Override ... 3-16 Fog ... 3-15 Reading ... 3-17 LATCH System Child Restraints ... 1-37 Liftgate/Liftglass ...
Page 464 Loss of Control ... 4-17 Low Fuel Warning Light ... 3-42 Luggage Carrier ... 2-47 Lumbar Power Controls ... 1-3 Maintenance Schedule Additional Required Services ... 6-6 At Each Fuel Fill ... 6-9 At Least Once a Month ... 6-9 At Least Once a Year ...
Page 465 Odometer ... 3-27 Odometer, Trip ... 3-27 Off-Road Driving ... 4-18 Off-Road Recovery ... 4-15 Engine ... 5-15 Pressure Gage ... 3-38 Oil, Engine Oil Life System ... 5-18 Older Children, Restraints ... 1-26 Online Owner Center ... 7-3 ® ®...
Page 466 Questions and Answers About Safety Belts ... 1-12 Radiator Pressure Cap ... 5-26 Radios ... 3-58 Care of Your Cassette Tape Player ... 3-128 Care of Your CD and DVD Player ... 3-129 Care of Your CDs and DVDs ... 3-129 Navigation/Radio System, see Navigation Manual ...
Page 467 Reporting Safety Defects Canadian Government ... 7-14 General Motors ... 7-14 United States Government ... 7-13 Restraint System Check Checking the Restraint Systems ... 1-62 Replacing Restraint System Parts After a Crash ... 1-62 Retained Accessory Power (RAP) ... 2-18 Right Front Passenger Position, Safety Belts ...
Page 468 Service (cont.) California Proposition 65 Warning ... 5-4 Doing Your Own Work ... 5-4 Engine Soon Light ... 3-36 Publications Ordering Information ... 7-14 Servicing Your Airbag-Equipped Vehicle ... 1-60 Setting the Time ... 3-59 Sheet Metal Damage ... 5-91 Shifting Into Park (P) ...
Page 469 Tires (cont.) Inﬂation - Tire Pressure ... 5-58 Inﬂator, Accessory ... 5-68 Inspection and Rotation ... 5-60 Installing the Spare Tire ... 5-74 Removing the Flat Tire ... 5-74 Removing the Spare Tire and Tools ... 5-72 Secondary Latch System ... 5-80 Spare Tire ...
Page 470 Warning Lights, Gages and Indicators ... 3-25 Warnings DIC Warnings and Messages ... 3-47 Hazard Warning Flashers ... 3-6 Other Warning Devices ... 3-6 Safety and Symbols ... iii Vehicle Damage ... iv Wheels Alignment and Tire Balance ... 5-65 Different Size ...

Buick 2006 Rainier Maintenance Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Universal Home Remote System

Storage Areas

Sunroof

Vehicle Personalization

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

All-Wheel Drive

Rear Axle

Front Axle

Bulb Replacement

Windshield Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Buick 2006 Rainier

Summary of Contents for Buick 2006 Rainier
