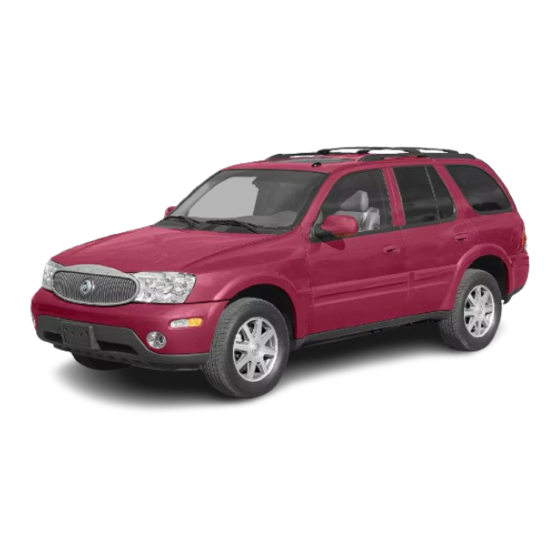

Buick 2005 Rainier Owner's Manual

Hide thumbs Also See for 2005 Rainier:

page of 452

/ 452
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

2005 Buick Rainier Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Rear Seats

............................................... 1-5

Safety Belts

.............................................. 1-7

Child Restraints

....................................... 1-26

Airbag System

......................................... 1-46

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-3

Doors and Locks

....................................... 2-7

Windows

................................................. 2-14

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-30

OnStar

System

...................................... 2-40

HomeLink

Transmitter

Storage Areas

......................................... 2-46

Sunroof

.................................................. 2-50

Vehicle Personalization

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-19

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(s)

....................................... 3-56

............................ 1-61

............................ 2-16

........... 2-18

............................. 2-42

............................. 2-51

.......................... 3-4

........ 3-25

.................. 3-43

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-50

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-5

Checking Things Under the Hood

All-Wheel Drive

........................................ 5-46

Rear Axle

............................................... 5-46

Front Axle

............................................... 5-47

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-53

Appearance Care

..................................... 5-83

Vehicle Identiﬁcation

Electrical System

...................................... 5-92

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance and Information .............. 7-1

Customer Assistance and Information

Reporting Safety Defects

Index ................................................................ 1

............... 5-10

.................................... 5-48

......... 5-51

................................. 5-91

................... 5-102

................................ 6-2

........... 7-2

........................... 7-10

..... 4-2

Table of Contents

Chapters

Table of Contents

Summary of Contents for Buick 2005 Rainier

Page 1 2005 Buick Rainier Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-5 Safety Belts ... 1-7 Child Restraints ... 1-26 Airbag System ... 1-46 Restraint System Check ... 1-61 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
GENERAL MOTORS, GM, the GM Emblem, BUICK, and the BUICK Emblem are registered trademarks, and the name Rainier is a trademark of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without notice.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Power Seats ...1-2 Power Lumbar ...1-2 Heated Seats ...1-3 Power Reclining Seatbacks ...1-4 Head Restraints ...1-5 Rear Seats ...1-5 Rear Seat Operation ...1-5 Safety Belts ...1-7 Safety Belts: They Are for Everyone ...1-7 Questions and Answers About Safety Belts ...1-11 How to Wear Safety Belts Properly ...1-12 Driver Position ...1-12 Safety Belt Use During Pregnancy ...1-19...
Page 8: Front Seats
Front Seats Power Seats The power seat controls are located on the outboard side of the front seat cushions. The horizontal control adjusts the seat cushion and the vertical control adjusts the seatback. • Move the front of the horizontal seat control up or down to adjust the front portion of the cushion.
Page 9: Heated Seats
Heated Seats Your vehicle may have heated front seats. The buttons used to control this feature are located on the front door armrests. The engine must be running for the heated seat feature to work. To heat the entire seat, press the horizontal button with the heated seat symbol.
Page 10: Power Reclining Seatbacks
Power Reclining Seatbacks Your vehicle may have this feature. The vertical power seat control described earlier allows the seatback to recline. See Power Seats on page 1-2 for more information. But don’t have a seatback reclined if your vehicle is moving.
Page 11: Rear Seats
Head Restraints Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. The head restraints lock into place when raised. To release the head restraint and lower it, press the tab located on the top of the seatback.
Page 12 The rear seatback levers are located on the outboard side of the rear seatbacks. Pull the seatback toward you as you lift up on the lever. The head restraint will automatically fold out of the way when the seatback is folded down. To raise the seatbacks, lift up the seatbacks and push on them until they lock into the upright position.
Page 13 Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she can not wear a safety belt properly.
Page 14: Why Safety Belts Work
Your vehicle has a light that comes on as a reminder to buckle up. See Safety Belt Reminder Light on page 3-28. In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash.
Page 15 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 16 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 1-10...
Page 17 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident...
Page 18 If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 19 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 20 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 21 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 22 What is wrong with this? The belt is buckled in the wrong place. 1-16 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 23 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 24 What is wrong with this? The belt is twisted across the body. 1-18 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 25 To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 26 Right Front Passenger Position To learn how to wear the right front passenger’s safety belt properly, see Driver Position on page 1-12. The right front passenger’s safety belt works the same way as the driver’s safety belt — except for one thing. If you ever pull the shoulder portion of the belt out all the way, you will engage the child restraint locking feature.
Page 27 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
Page 28 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 29 Rear Safety Belt Comfort Guides for Children and Small Adults Rear shoulder belt comfort guides provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When attached to a shoulder belt, the comfort guide better positions the belt away from the neck and head.
Page 30 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt and insert the two edges of the belt into the slots of the guide. 1-24 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top.
Page 31 4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-20. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 32: Safety Belts
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-26 What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 33 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 34 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 35 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms.
Page 36: Child Restraints
1-30 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 37 For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.
Page 38: Child Restraint Systems
Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous ﬂat surface. Make sure that the infant’s head rests toward the center of the vehicle.
Page 39 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness.
Page 40 How do child restraints work? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
Page 41: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors recommends that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 42: Top Strap
Top Strap Some child restraints have a top strap, or “top tether.” It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored.
Page 43: Top Strap Anchor Location
CAUTION: Each top tether bracket is designed to anchor only one child restraint. Attaching more than one child restraint to a single bracket could cause the anchor to come loose or even break during a crash. A child or others could be injured if this happens.
Page 44: Lower Anchorages And Top Tethers For Children (Latch System)
Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle has the LATCH system. You will ﬁnd anchors in the outside seating positions in the second row. This system, designed to make installation of child restraints easier, does not use the vehicle’s safety belts. Instead, it uses vehicle anchors and child restraint attachments to secure the restraints.
Page 45 A. Lower Anchorage B. Lower Anchorage In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback at each lower anchor position.
Page 46: Securing A Child Restraint Designed For
Securing a Child Restraint Designed for the LATCH System 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-38.
Page 47 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-41...
Page 48: Securing A Child Restraint In The Center Seat Position
5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 49: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-35. In addition, your vehicle has a passenger sensing system.
Page 50 There is no top strap anchor at the right front seating position. Do not secure a child seat in this position if a national or local law requires that the top strap be anchored or if the instructions that come with the child restraint say that the top strap must be anchored.
Page 51 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 52: Airbag System
If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint. If after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion.
Page 53 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
Page 54: Where Are The Airbags
CAUTION: Both frontal and roof-mounted airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts helpkeep you in position for airbag inﬂation before and during a crash.
Page 55 The right front passenger’s airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted airbag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows. 1-49...
Page 56 If your vehicle has a roof-mounted airbag for the right front passenger and the person directly behind that passenger, it is located in the ceiling above the side windows. 1-50 CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 57: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inﬂate and help...
Page 58 Your vehicle may or may not have a roof-mounted airbag. See Airbag System on page 1-46. These “rollover capable” airbags are designed to inﬂate in moderate to severe side crashes or during a rollover. A roof-mounted airbag will inﬂate if the crash severity is above the system’s designed “threshold level.”...
Page 59: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. In the case of a “rollover capable” roof-mounted airbag, the sensing system detects that the vehicle is about to roll over. For both frontal and roof-mounted airbags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag.
Page 60: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After an airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Some components of the airbag module — the steering wheel hub for the driver’s airbag, the instrument panel for the right front passenger’s bag or the ceiling of your vehicle near the side windows —...
Page 61: Passenger Sensing System
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 62 Passenger Airbag Status Indicator – United States Passenger Airbag Status Indicator – Canada The passenger sensing system will turn off the right front passenger’s frontal airbag under certain conditions. The driver’s airbag and the side airbags are not part of the passenger sensing system. 1-56 The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt.
Page 63 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Even though the passenger sensing system is designed to turn off the passenger’s frontal airbag if the system detects a rear-facing child restraint, no system is fail-safe, and no one...
Page 64 If after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion. If this happens, slightly recline the vehicle’s seatback and adjust the seat cushion if possible.
Page 65 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 66: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are airbag system parts in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 67: Restraint System Check
Because I have a disability, I have to get my vehicle modiﬁed. How can I ﬁnd out whether this will affect my airbag system? Changing or moving any parts of the front seats, safety belts, the airbag sensing and diagnostic module (located under the driver’s seat), or the inside rearview mirror can affect the operation of the airbag system.
Page 68: Replacing Restraint System Parts
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 69: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-4 Remote Keyless Entry System Operation ...2-5 Doors and Locks ...2-7 Door Locks ...2-7 Power Door Locks ...2-8 Delayed Locking ...2-9 Programmable Automatic Door Locks ...2-9 Rear Door Security Locks ...2-12 Lockout Protection ...2-12 Liftgate/Liftglass ...2-13 Windows ...2-14 Power Windows ...2-15...
Page 70 Section 2 ® OnStar System ...2-40 ® HomeLink Transmitter ...2-42 ® Programming the HomeLink Storage Areas ...2-46 Glove Box ...2-46 Overhead Console ...2-46 Center Console Storage Area ...2-47 Assist Handles ...2-47 Features and Controls Luggage Carrier ...2-47 Rear Floor Storage Lid ...2-48 Convenience Net ...2-49 Transmitter ...2-43 Cargo Cover ...2-49...
Page 71: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 72: Remote Keyless Entry System
This vehicle has one double-sided key for the ignition and door lock. It will ﬁt with either side up. When a new vehicle is delivered, the dealer provides the owner with a pair of identical keys and a key code number. The key code number tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 73: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 74: Battery Replacement
(Lock): Press lock to lock all the doors. Press lock again within three seconds and the horn may chirp. (Panic): Press the horn symbol to make the horn sound. The headlamps and taillamps will also ﬂash for up to 30 seconds. This can be turned off by pressing the horn button again, or by waiting for 30 seconds, or by starting the vehicle.
Page 75: Doors And Locks
To replace the battery in the remote keyless entry transmitter do the following: 1. Insert a thin coin in the slot between the covers of the transmitter housing. Gently pry the transmitter apart. 2. Remove and replace the battery with a three-volt CR2032 or equivalent battery.
Page 76: Power Door Locks
There are several ways to lock and unlock your vehicle. You can use the remote keyless entry transmitter or you can use your key to unlock your door from the outside. You can lock or unlock the door from the inside by sliding the manual lever forward or rearward.
Page 77: Delayed Locking
Delayed Locking This feature delays the locking of the doors and the tailgate when using the power lock or the remote keyless entry system. The ﬁrst time you attempt to lock the doors with the driver’s door open, three chimes will signal that delayed locking is being used.
Page 78: Programmable Locking Feature
Programmable Locking Feature Following are the two locking modes that can be programmed: Mode 1: All doors lock when the transmission is shifted out of PARK (P). Mode 2: All doors lock when the vehicle speed is greater than 8 mph (13 km/h). The automatic door locks were pre-programmed at the factory to lock all the doors when the transmission is shifted into gear.
Page 79 Mode 3: All doors unlock when the key is removed from the ignition. Mode 4: No automatic door unlock. The automatic door locks were pre-programmed at the factory to unlock all doors once the transmission is shifted to PARK (P). The following instructions detail how to program your door locks differently than the factory setting.
Page 80: Rear Door Security Locks
Rear Door Security Locks Your vehicle may have this feature. You can lock the rear doors so they can’t be opened from the inside by passengers. To use one of these locks do the following: 1. Open one of the rear doors. You will ﬁnd a security lock lever located on the inside edge of each rear door.
Page 81: Liftgate/Liftglass
Liftgate/Liftglass CAUTION: It can be dangerous to drive with the liftgate or liftglass open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the...
Page 82: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 83: Power Windows
Power Windows The controls for the power windows are located on the armrest on each of the side doors. With power windows, the switches operate the windows when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 2-19.
Page 84: Sun Visors
Sun Visors To block out glare, you can pull the visor down. You can also slide the visor along the rod from side-to-side to cover the driver or passenger front window. Visor Vanity Mirror Pull the sun visor down to expose the vanity mirror. Lighted Visor Vanity Mirror Your vehicle may have this feature.
Page 85: Testing The Alarm
Remember, the theft-deterrent system won’t activate if you lock the doors with a key or use the manual door lock. It activates only if you use a power door lock switch with the door open, or with the remote keyless entry transmitter.
Page 86: Passlock
® Passlock Your vehicle is equipped with the Passlock theft-deterrent system. ® Passlock is a passive theft-deterrent system that enables fuel if the ignition lock cylinder is turned with a valid key. If a correct key is not used or the ignition lock cylinder is tampered with, the fuel system is disabled and the vehicle will not start.
Page 87: Ignition Positions
Ignition Positions Use the key to turn the ignition switch to four different positions. A (Lock): This position locks the ignition and transmission. It is a theft-deterrent feature. You will only be able to remove the key when the ignition is turned to LOCK.
Page 88: Starting Your Engine
Starting Your Engine Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position — that is a safety feature. To restart when you are already moving, use NEUTRAL (N) only. Notice: Do not try to shift to PARK (P) if your vehicle is moving.
Page 89: Adjustable Throttle And Brake Pedal
Adjustable Throttle and Brake Pedal If your vehicle has this feature, you can change the position of the throttle and brake pedals. This feature is designed for shorter drivers, since the pedals cannot move farther away from the standard position, but can move closer for better pedal reach.
Page 90: Automatic Transmission Operation
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located on the driver’s side of the engine compartment, behind the battery. 3. Plug it into a normal, grounded 110-Volt AC outlet. CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock.
Page 91 CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 92 NEUTRAL (N): In this position, the engine does not connect with the wheels. To restart when you are already moving, use NEUTRAL (N) only. CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, your vehicle could move very rapidly.
Page 93: All-Wheel Drive
SECOND (2): This position gives you more power but lower fuel economy than THIRD (3). You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use the brakes off and on. You can also use SECOND (2) for starting the vehicle from a stop on slippery road surfaces.
Page 94: Shifting Into Park (P)
To release the parking brake, hold the regular brake pedal down. Pull the parking brake lever up until you can press in the button at the end of the lever. Hold the button in as you move the parking brake lever all the way down. Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts.
Page 95: Shifting Out Of Park (P)
Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 96: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass or other things that can burn. 2-28 Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 97: Running Your Engine While You Are Parked
Running Your Engine While You Are Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 98: Mirrors
Mirrors Manual Rearview Mirror While sitting in a comfortable driving position, adjust the rearview mirror so you can see clearly behind your vehicle. Grip the mirror in the center to move it up or down and side to side. The day/night control, located at the bottom of the mirror, adjusts the mirror to reduce headlamp glare from behind during evening or dark conditions.
Page 99: Compass Calibration
Mirror Operation While sitting in a comfortable position, adjust the rearview mirror so you can see clearly behind your vehicle. Grip it in the center and move it up or down and side to side. The day/night control, located at the bottom of the mirror, adjusts the mirror to reduce headlamp glare from behind during evening or dark conditions.
Page 100: Compass Variance
Compass Variance Compass variance is the difference between earth’s magnetic north and true geographic north. The mirror is set to zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight. Under certain conditions, such as during a long-distance, cross-country trip, it will be necessary to adjust for compass variance.
Page 101: Manual Rearview Mirror With Onstar And Compass
Manual Rearview Mirror with ® OnStar and Compass The vehicle may have a manual rearview mirror with ® OnStar and an eight-point compass display located in the upper right. ® Control buttons for the OnStar system are at the bottom of the mirror. See your GM dealer for more ®...
Page 102 Compass Variance Compass variance is the difference between earth’s magnetic north and true geographic north. The mirror is set to zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight. Under certain conditions, such as during a long-distance, cross-country trip, it will be necessary to adjust for compass variance.
Page 103: Manual Rearview Mirror With Compass And Temperature
Manual Rearview Mirror with Compass and Temperature The vehicle may have a manual rearview mirror with an eight-point compass and temperature display located in the upper right. When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.
Page 104 Press and hold the on/off button for nine seconds to activate the compass calibration mode. CAL will be displayed in the compass window on the mirror. The mirror can be calibrated by driving the vehicle in circles at 5 mph (8 km/h) or less until the display shows a direction.
Page 105: Manual Rearview Mirror With Onstar Compass, And Temperature Display
Manual Rearview Mirror with ® OnStar , Compass, and Temperature Display The vehicle may have a manual rearview mirror with ® OnStar and an eight-point compass and temperature display located in the upper right. ® Control buttons for the OnStar system are at the bottom of the mirror.
Page 106 Press and hold the on/off button for nine seconds to activate the compass calibration mode. CAL will be displayed in the compass window on the mirror. The mirror can be calibrated by driving the vehicle in circles at 5 mph (8 km/h) or less until the display shows a direction.
Page 107: Outside Power Mirror
Outside Power Mirror The control is located on the driver’s door. 1. Turn the knob toward the mirror you desire to adjust. 2. Move the control in the direction you want the mirror to go. 3. Adjust the mirror in all four directions. Adjust it so you can see some of the side of your vehicle and the area behind your vehicle.
Page 108: Outside Convex Mirror
Outside Convex Mirror CAUTION: A convex mirror can make things (like other vehicles) look farther away than they really are. If you cut too sharply into the right or left lane, you could hit a vehicle. Check your inside mirror or glance over your shoulder before changing lanes.
Page 109 Safe and Sound Plan • Advanced Automatic Collision Notiﬁcation • Automatic Notiﬁcation of Airbag Deployment • Emergency Services • Roadside Assistance • Stolen Vehicle Tracking • AccidentAssist • Remote Door Unlock/Vehicle Alert • Remote Diagnostics • Information and Convenience Services •...
Page 110: Homelink Transmitter
® OnStar Steering Wheel Controls A steering wheel control can be used to interact with the ® OnStar personal calling feature. Press the control with this symbol on the steering wheel to place a phone call. When calling into voice mail systems, or to dial directory numbers, press the control, say the number(s), then say “dial.”...
Page 111: Programming The Homelink Transmitter
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Changes and modiﬁcations to this system by other than an authorized service facility could void authorization to use this equipment.
Page 112 2. Position the end of your hand-held transmitter about 1 to 3 inches (3 to 8 cm) away from the ® HomeLink buttons while keeping the indicator light in view. 3. Simultaneously press and hold both the desired ® button on HomeLink and the hand-held transmitter button.
Page 113: Gate Operator And Canadian Programming
Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to “time out” or quit after several seconds of transmission. This may not be long enough for ® HomeLink to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to “time out”...
Page 114: Storage Areas
Reprogramming a Single HomeLink Button To program a device to HomeLink button previously trained, follow these steps: 1. Press and hold the desired HomeLink not release the button. 2. The indicator light will begin to ﬂash after 20 seconds. While still holding the HomeLink button, proceed with Step 2 under “Programming ®...
Page 115: Center Console Storage Area
Center Console Storage Area If your vehicle has this console compartment, squeeze the front lever while lifting the top to open it. Your vehicle’s console will be equipped with cupholders located on the front and rear of the storage compartment. The console may also contain one or more of the following components: •...
Page 116: Rear Floor Storage Lid
To slide the crossrails to where you want them, pull up on the lever on each side of the crossrail. This will release the crossrail and allow you to slide it. When the crossrail is where you want it, press down on the levers to lock it into place.
Page 117: Convenience Net
Convenience Net Your vehicle may have this feature. A convenience net in the rear of your vehicle helps keep small items in place during sharp turns or quick stops and starts. The net is not designed to retain these items during off-road use.
Page 118: Sunroof
Cargo Tie Downs There may be cargo tie downs in the rear of your vehicle that allow you to strap cargo in and keep it from moving. 2-50 Sunroof The vehicle may be equipped with a power sliding sunroof. To open or close the sunroof, the ignition must be on or Retained Accessory Power (RAP) must be active.
Page 119: Vehicle Personalization
Vehicle Personalization Memory Seat If your vehicle has this feature, the controls for the memory function are located on the driver’s door. These buttons are used to program and recall memory settings for the driver’s seating position, both outside mirror positions and the adjustable pedals, if equipped. The settings for these features can be saved for up to two drivers.
Page 120: Easy Exit Seat
Easy Exit Seat The control for the easy exit seat function is located on the driver’s door below the memory buttons 1 and 2. The easy exit seat button is used to program and recall the desired driver’s seat position when exiting/entering the vehicle.
Page 121 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-9 Rainsense™ Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-11 Headlamps ...3-14...
Page 122 Section 3 Highbeam On Light ...3-40 Service All-Wheel Drive Light ...3-41 Check Gages Warning Light ...3-41 Gate Ajar Light ...3-41 Fuel Gage ...3-42 Low Fuel Warning Light ...3-42 Check Gas Cap Light ...3-42 Driver Information Center (DIC) ...3-43 DIC Operation and Displays ...3-44 DIC Warnings and Messages ...3-47 DIC Vehicle Customization ...3-50 Audio System(s) ...3-56...
Page 123 NOTES...
Page 124: Instrument Panel Overview
Instrument Panel Overview...
Page 125 The main components of your instrument panel are the following: A. Exterior Lamp Control. See Headlamps on page 3-14. Dome Lamp Override Button. See Dome Lamp Override on page 3-17. Instrument Panel Brightness Control. See Instrument Panel Brightness on page 3-16. Fog Lamp Button (If Equipped). See Fog Lamps on page 3-16.
Page 126: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on top of the steering column.
Page 127: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals • Headlamp High/Low-Beam Changer • Flash-to-Pass Feature • Windshield Wipers • Windshield Washer • Cruise Control (If Equipped) Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions.
Page 128: Headlamp High/Low-Beam Changer
If a bulb is burned out, replace it to help avoid an accident. If the arrows don’t go on at all when you signal a turn, check the fuse. See Fuses and Circuit Breakers on page 5-93 and check for burned-out bulbs. If you have a trailer towing option with added wiring for the trailer lamps, a different turn signal ﬂasher is used.
Page 129: Windshield Wipers
Windshield Wipers (Mist): For a single wiping cycle, turn the band to mist. Hold it there until the wipers start. Then let go. The wipers will stop after one wipe. If you want more wipes, hold the band on mist longer. (Off): To stop the wipers, move the band to off.
Page 130: Windshield Washer
Windshield Washer (Windshield Washer): To spray washer ﬂuid on the windshield, press the windshield washer paddle. The wipers will clear the window and then either stop or return to your preset speed. CAUTION: In freezing weather, do not use your washer until the windshield is warmed.
Page 131: Cruise Control
Cruise Control If your vehicle has cruise control, the controls are located on the end of the turn signal/multifunction lever. (On): Move the switch to this position to turn the cruise control system on. (Resume/Accelerate): Move the switch to this position to resume a set speed or to accelerate.
Page 132 CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 133 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed: • Use the accelerator pedal to get to the higher speed. Press the button at the end of the lever, then release the button and the accelerator pedal. You’ll now cruise at the higher speed.
Page 134: Headlamps
Headlamps Your exterior lamps knob is located on your instrument panel to the left of the steering wheel. (Off): Turn the knob to this symbol and release it to turn off the Daytime Running Lamps (DRL) and the automatic headlamps. An indicator will illuminate when the position is selected.
Page 135: Automatic Headlamp System
The DRL system will make your headlamps come on at reduced brightness when the following conditions are met: • The ignition is on. • The exterior lamps knob is in automatic headlamp mode. • The light sensor detects daytime light. •...
Page 136: Fog Lamps
Fog Lamps Your vehicle may have this feature. Use your fog lamps for better vision in foggy or misty conditions. Your ignition must be in RUN for your fog lamps to work. The fog lamp button is located on the instrument panel to the right of the exterior lamps knob.
Page 137: Dome Lamp Override
Dome Lamp Override The dome override button is located below the exterior lamps knob. To turn the dome lamps off, press the button. The dome lamps will remain off when a door is open. This will override the illuminated entry feature unless you use your keyless entry transmitter to unlock the vehicle.
Page 138: Battery Run-Down Protection
Battery Run-Down Protection This feature shuts off the dome, courtesy and vanity if they are left on for more than 20 minutes when the ignition is off. This will keep your battery from running down. If the battery run-down protection shuts off the interior lamps, it may be necessary to do one of the following to return to normal operation: •...
Page 139: Ashtrays And Cigarette Lighter
Ashtrays and Cigarette Lighter Your vehicle may have this feature. The ashtray is removable and ﬁts into the front cupholder. Notice: If you put papers or other ﬂammable items in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage your vehicle.
Page 140 Outside Air Temperature Display A new outside temperature reading will be displayed if the vehicle has been off for more than three hours. If the vehicle has been off for less than three hours, the old temperature reading may be displayed because underhood heat is affecting the true outside temperature.
Page 141: Automatic Operation
Automatic Operation AUTO (Automatic): When automatic operation is active, the system will control the inside temperature, the air delivery mode, and the fan speed. Use the steps below to place the entire system in automatic mode: 1. Press the AUTO button. When AUTO is selected, the air conditioning operation and air inlet mode will be automatically controlled.
Page 142 (Floor): This mode directs most of the air to the ﬂoor outlets. Some air also comes out of the defroster and side window outlets. The recirculation button cannot be selected in ﬂoor mode. (Recirculation): Press this button to turn recirculation mode on or off. When this button is pressed, an indicator light in the button will also come on to let you know that it is activated.
Page 143: Defogging And Defrosting
Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. You can use either defog or front defrost to clear fog or frost from your windshield.
Page 144: Outlet Adjustment
Outlet Adjustment Use the air outlets located in the center and on the side of your instrument panel to direct the airﬂow. Operation Tips • Keep the hood and front air inlets free of ice, snow, or any other obstruction (such as leaves). The heater and defroster will work far better, reducing the chance of fogging the inside of your windows.
Page 145: Climate Controls Personalization
Climate Controls Personalization If your vehicle is equipped with the Driver Information Center (DIC), you can store and recall the climate control settings for temperature, air delivery mode and fan speed for two different drivers. The personal choice settings recalled are determined by the transmitter used to enter the vehicle.
Page 146: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, about how much fuel you’ve used, and many other things you’ll need to know to drive safely and economically.
Page 147: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). The odometer mileage can be checked without the vehicle running.
Page 148: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to RUN or START, a chime will be provided for several seconds to remind people to buckle their safety belts. The driver safety belt light will also be provided and stay on for several seconds, then it will ﬂash for several more.
Page 149: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensors, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 150: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system, Your rearview mirror has a passenger airbag status indicator. Passenger Airbag Status Indicator – United States Passenger Airbag Status Indicator – Canada 3-30 When the ignition key is turned to RUN or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 151: Charging System Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag. See Passenger Sensing System on page 1-55 for more on this, including important safety information. If, after several seconds, all status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing...
Page 152: Voltmeter Gage
Voltmeter Gage When your engine is not running, but the ignition is in RUN, this gage shows your battery’s state of charge in DC volts. When the engine is running, the gage shows the condition of the charging system. Readings between the low and high warning zones indicate the normal operating range.
Page 153 United States This light should come on brieﬂy when you turn the ignition key to RUN. If it doesn’t come on then, have it ﬁxed so it will be ready to warn you if there’s a problem. If the light comes on while you are driving, pull off the road and stop carefully.
Page 154: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light With the anti-lock brake system, this light will come on when you start your engine and may stay on for several seconds. That’s normal. A chime may also sound when the light comes on. If the light stays on, or comes on when you’re driving, your vehicle needs service.
Page 155: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle is equipped with a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 156: If The Light Is On Steady
This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
Page 157 Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-5. Poor fuel quality will cause your engine not to run as efficiently as designed. You may notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration.
Page 158: Maintenance Schedule
Oil Pressure Gage United States The oil pressure gage shows the engine oil pressure in psi (pounds per square inch) when the engine is running. Canadian vehicles indicate pressure in kPa (kilopascals). Oil pressure may vary with engine speed, outside temperature and oil viscosity, but readings above the low pressure zone indicate the normal operating range.
Page 159: Change Engine Oil Light
Change Engine Oil Light When this light comes on, it means that an oil change and other maintenance procedures are required for your vehicle. See Scheduled Maintenance on page 6-4 and Engine Oil on page 5-16 for more information. Once the engine oil has been changed, the change engine oil light must be reset.
Page 160: Cruise Control Light
Cruise Control Light The cruise light appears whenever you set your cruise control. Reduced Engine Power Light This light is displayed when a noticeable reduction in the vehicle’s performance may occur. The vehicle may be driven at a reduced speed when the reduced engine power light is on but acceleration and speed may be reduced.
Page 161: Service All-Wheel Drive Light
Service All-Wheel Drive Light This light should come on brieﬂy when you turn on the ignition, as a check to show you it is working. The service all-wheel drive light comes on to indicate that there may be a problem with the drive system and service is required.
Page 162: Fuel Gage
Fuel Gage United States When the ignition is on, the fuel gage tells you about how much fuel you have remaining. Here are four things that some owners ask about. None of these show a problem with your fuel gage: •...
Page 163: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle may have this feature. The Driver Information Center (DIC) display is located on the instrument panel cluster, below the speedometer. The DIC buttons, if equipped, are located on the steering wheel. The DIC can display information such as the trip odometer, fuel economy, customization features and warning/status messages.
Page 164: Dic Operation And Displays
DIC Operation and Displays The DIC comes on when the ignition is on. After a short delay the DIC will display the current driver and the information that was last displayed before the engine was turned off. If a problem is detected, a warning message will appear on the display.
Page 165: Fuel Information Button
You can also reset the TRIP A or TRIP B while they are displayed by pressing the reset stem on the cluster. If you press and hold the reset stem or the select button for four seconds, the display will show the distance traveled since the last ignition cycle for TRIP A or TRIP B.
Page 166: Select Button
Press and hold the select button for one second while AVG ECON is displayed to reset the average fuel economy. Average fuel economy will then be calculated starting from that point. If the average fuel economy is not reset, it will be continually updated each time you drive. Engine Oil Life System: Press the fuel information button until ENGINE OIL LIFE appears on the display.
Page 167: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. More than one message may appear at one time.
Page 168: Ice Possible
ENGINE COOLANT HOT/ENGINE OVERHEATED If the cooling system temperature gets hot, this message will appear in the DIC and you will hear a chime. See Engine Overheating on page 5-27 for the proper course of action. This message will clear when the coolant temperature drops to a safe operating temperature.
Page 169: Rear Access Open
OIL PRESSURE LOW/STOP ENGINE If low oil pressure levels occur, this message will be displayed on the DIC. Stop the vehicle as soon as safely possible and do not operate it until the cause of the low oil pressure has been corrected. Check your oil as soon as possible and have your vehicle serviced by your GM dealer.
Page 170: Dic Vehicle Customization
SERVICE BRAKE SYSTEM If a problem occurs with the brake system this message will appear on the DIC. If this message appears, stop as soon as possible and turn off the vehicle. Restart the vehicle and check for the message on the DIC display. If the message is still displayed, or appears again when you begin driving, the brake system needs service.
Page 171 Lock Doors Press the customization button until LOCK DOORS: IN GEAR appears in the display. To select your preference for automatic locking, press the select button while LOCK DOORS: IN GEAR is displayed on the DIC. Pressing the select button will scroll through the following choices: LOCK DOORS: IN GEAR (default): The doors will lock when the vehicle is shifted out of PARK (P).
Page 172: Unlock Feedback
LOCK FEEDBACK: HORN: The horn will chirp the second time you press the button with the lock symbol on the remote keyless entry transmitter. LOCK FEEDBACK: BOTH: The parking lamps will ﬂash each time you press the button with the lock symbol on the remote keyless entry transmitter and the horn will chirp the second time you press the lock button.
Page 173 • HEADLAMP DELAY: 2 MIN • HEADLAMP DELAY: 3 MIN • HEADLAMP DELAY: OFF The amount of time you choose will be the amount of time that the headlamps stay on after you turn off the vehicle. If you choose OFF, the headlamps will turn off as soon as you turn off the vehicle.
Page 174 Curb View Press the customization button until CURB VIEW: OFF appears in the display. To select your preference for curb view, press the select button while CURB VIEW: OFF is displayed on the DIC. Pressing the select button will scroll through the following choices: CURB VIEW: OFF (default): The passenger’s outside mirror will not be tilted down when the vehicle is shifted into REVERSE (R).
Page 175 Language To select your preference for display language, press the select button while LANGUAGE is displayed on the DIC. Pressing the select button will scroll through the following languages: • ENGLISH • FRANCAIS (French) • ESPANOL (Spanish) Choose one of the available options and press the customization button while it is displayed on the DIC to select it.
Page 176: Audio System(S)
Audio System(s) Notice: Before adding any sound equipment to your vehicle, like a tape player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer. Also, check federal rules covering mobile radio and telephone units.
Page 177: Radio With Cd (Base Level)
Radio with CD (Base Level) Base Radio Shown, Bose ® If your vehicle has the Bose audio system, your ® vehicle will have six Bose ampliﬁed speakers. Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information.
Page 178: Playing The Radio
XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous Untied States. XM™ offers 100 coast to coast channels including music, news, sports, talk, and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 179: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE: Turn this knob to select radio stations. © ¨ SEEK : Press either the SEEK or the TYPE arrows to go to the next or to the previous station and stay there.
Page 180 Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass or treble level. If a station is weak or noisy, decrease the treble.
Page 181: Rds And Xm
Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. TYPE and a PTY will appear on the display. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 182: Radio Messages
Setting Preset PTYs (RDS Only) These buttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 183 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 184 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 185: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the INFO knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 186 4 FWD (Forward): Press and hold this pushbutton to quickly advance within a track. Press and hold this pushbutton for less than two seconds to advance at six times the normal playing speed. Press and hold it for more than two seconds to advance at 17 times the normal playing speed.
Page 187: Radio With Cd (Mp3)
CD Messages If the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play.
Page 188 • Display messages from radio stations • Seek to stations with traffic announcements This system relies upon receiving speciﬁc information from these stations and will only work when the information is available. In rare cases, a radio station may broadcast incorrect information that will cause the radio features to work improperly.
Page 189 AUTO VOL (Automatic Volume): With automatic volume, the audio system adjusts automatically to make up for road and wind noise as you drive. Set the volume at the desired level. Press this button to select LOW, MEDIUM, or HIGH. AVOL will appear on the display.
Page 190 5. Press and hold one of the six numbered pushbuttons until you hear a beep. Whenever that numbered pushbutton is pressed, the station that was set will return and the equalization that was selected will be stored for that pushbutton. 6.
Page 191 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the SEEK TYPE button to activate program type select mode. TYPE and a PTY will appear on the display. 2.
Page 192 INFO (Information): If the current station has a message, the information symbol will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
Page 193 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signl Loss of signal Loading Acquiring channel audio (after 4 second delay) Off Air Channel not in service CH Unavl Channel no longer...
Page 194 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Check XM...
Page 195 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in, and READING will appear on the display. The CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the DISPL knob.
Page 196: Mp3 Format
6 RDM (Random): Press this pushbutton to hear the tracks in random, rather than sequential, order. RDM ON will appear on the display. RDM and the track number will appear on the display when each track starts to play. Press RDM again to turn off random play. RDM OFF will appear on the display.
Page 197 The player will be able to read and play a maximum of 50 folders, 50 playlists, 10 sessions, and 255 ﬁles. Long ﬁle, folder, or playlist names or a combination of a large number of ﬁles and folders or playlists may cause the player to be unable to play up to the maximum number of ﬁles, folders, playlists, or sessions.
Page 198 Order of Play Tracks will be played in the following order: • Play will begin from the ﬁrst track in the ﬁrst playlist and will continue sequentially through all tracks in each playlist. When the last track of the last playlist has been played, play will continue from the ﬁrst track of the ﬁrst playlist.
Page 199 The CD player can play the smaller 3 inch (8 cm) single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner. If playing a CD-R the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled.
Page 200 When in random, pressing and releasing either SEEK arrow will take you to the next or previous random track. Press and release this pushbutton again to turn off random play. NO RDM will appear on the display. SEEK : Press the left arrow to go to the start of the previous track.
Page 201: Radio With Cassette And Cd
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 202 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 203 For XM™ (if equipped), press the INFO knob while in XM™ mode to retrieve four different categories of information related to the current song or channel: Artist, Song Title, Category or PTY, Channel Number/Channel Name. To change the default on the display, press the INFO knob until you see the display you want, then hold the knob until the display ﬂashes.
Page 204 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 205 Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push and release the AUDIO knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and the rear speakers, push and release the AUDIO knob until FADE appears on the display.
Page 206 SCAN: Scan the stations within a PTY by performing the following: 1. Press the TYPE button to activate program type select mode. TYPE and the last selected PTY will appear on the display. 2. Turn the TYPE knob or press and release the TYPE button to select a PTY.
Page 207 RDS Messages INFO (Information): If the current station has a message, the information symbol will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
Page 208 Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no longer...
Page 209 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
Page 210: Playing A Cassette Tape
Playing a Cassette Tape The tape player is built to work best with tapes that are up to 30 to 45 minutes long on each side. Tapes longer than that are so thin they may not work well in this player. The longer side with the tape visible should face to the right.
Page 211 3 REV (Reverse): Press this pushbutton to quickly reverse the tape. The radio will play while the tape reverses. Press it again to return to playing speed. The station frequency and REV will appear on the display. Select stations during reverse operation by using TUNE and SEEK.
Page 212: Cassette Tape Messages
Cassette Tape Messages CHK TAPE (Check Tape): If this message appears on the display, the tape will not play due to one of the following errors: • The tape is tight and the player cannot turn the tape hubs. Remove the tape. Hold the tape with the open end down and try to turn the right hub counterclockwise with a pencil.
Page 213 Playing a CD Insert a CD part way into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the INFO knob. If the ignition or radio is turned off with the CD in the player, it will stay in the player.
Page 214 6 RDM (Random): Press this pushbutton to hear the tracks in random, rather than sequential, order. RDM ON will appear on the display. RDM and the track number will appear on the display when each track starts to play. Press this pushbutton again to turn off random play. RDM OFF will appear on the display.
Page 215: Radio With Six-Disc Cd
If any error occurs repeatedly or if an error cannot be corrected, contact your GM dealer. If the radio displays an error message, write it down and provide it to your GM dealer when reporting the problem. Listening to a DVD If your vehicle has the Rear Seat Entertainment (RSE) system and a DVD is playing, the DVD symbol will appear on the radio display indicating that the DVD is...
Page 216 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 217 For XM™ (if equipped), press the INFO knob while in XM™ mode to retrieve four different categories of information related to the current song or channel: Artist, Song Title, Category or PTY, Channel Number/Channel Name. To change the default on the display, press the INFO knob until you see the display you want, then hold the knob until you hear a beep.
Page 218 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2.
Page 219 Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, push and release the AUDIO knob until BAL appears on the display. Turn the knob to move the sound toward the right or the left speakers. To adjust the fade between the front and rear speakers, push and release the AUDIO knob until FAD appears on the display.
Page 220 BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. AF ON will appear on the display. The radio may switch to stations with a stronger frequency.
Page 221 Radio Messages CAL ERR (Calibration Error): The audio system has been calibrated for your vehicle from the factory. If CAL ERR appears on the display, it means that the radio has not been conﬁgured properly for the vehicle and must be returned to your GM dealer for service. Radio Display Message XL (Explicit Language...
Page 222 Radio Display Message CH Unavail Channel no longer available No Info Artist Name/Feature not available No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID...
Page 223 Radio Display Message Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr Hardware failure Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source.
Page 224 LOAD: Press this button to load CDs into the CD player. This CD player will hold up to six CDs. To insert one CD, do the following: 1. Turn the ignition on. 2. Press and release the LOAD button. 3. Wait for the indicator light, located to the right of the slot, to turn green.
Page 225 To eject multiple CDs, do the following: 1. Press and hold the CD eject button for ﬁve seconds. You will hear a beep and the indicator light, located to the right of the slot, will begin to ﬂash and EJECT ALL will appear on the display. 2.
Page 226 RDM (Random): With random, you can listen to the tracks in random, rather than sequential, order, on one CD or on all of the CDs. To use random, do one of the following: • To play the tracks on the CD you are listening to in random order, press and release the RDM button.
Page 227: Using Song List Mode
Using Song List Mode The six-disc CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature, perform the following steps: 1. Turn the CD player on and load it with at least one CD.
Page 228 To delete the entire song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST will appear on the display. 3. Press and hold the SONG LIST button for more than four seconds.
Page 229: Rear Seat Entertainment System
Listening to a DVD If your vehicle has the Rear Seat Entertainment (RSE) system and a DVD is playing, the DVD symbol will appear on the radio display indicating that the DVD is available and can be listened to through your vehicle’s speakers.
Page 230: Stereo Rca Jacks
Headphones The RSE system includes two sets of wireless headphones. Each set of headphones has an ON/OFF control. An indicator light will illuminate on the headphones when they are on. If the light does not illuminate, the batteries may need to be replaced. See “Battery Replacement”...
Page 231 To use the auxiliary inputs on the RSE system, connect an external auxiliary device to the color-coded RCA jacks and turn both the auxiliary device and the RSE system power on. If the RSE system had been previously in the DVD player mode, pressing the SRCE button on the faceplate or the remote control will switch the RSE system between the auxiliary device and the DVD player.
Page 232: Dvd Player
Video Screen The video screen is located in the overhead console. To use the video screen, push forward on the release latch and the screen will fold down. Adjust the screen’s position as desired. When the video screen is not in use, push it up into its latched position.
Page 233 DVD Player Buttons (Power): Press this button to turn the RSE system on and off. The power indicator light will illuminate when the power is on. (Eject): Press this button to eject a DVD or CD. SRCE (Source): Press this button to switch between the DVD player and an auxiliary source.
Page 234: Playing A Disc
Playing a Disc To play a disc, gently insert the disc with the label side up into the loading slot. The DVD player will continue loading the disc and the player will automatically start, if the vehicle is in RUN, ACCESSORY, or when RAP is active.
Page 235: Remote Control Buttons
Remote Control Buttons (Power): Press this button to turn the DVD player on and off. (Title): Press this button to return the DVD to the main menu of the DVD. (Menu Navigation Arrows): Use the arrow buttons to navigate through a menu. (Set-up Menu): Press this button to adjust the color, tint, brightness, contrast, display mode, and dynamic range compression.
Page 236 1 through 0 (Numeric Keypad): The numeric keypad provides you with the capability of direct chapter, title, and track number selection. 10 (Double Digit Entries): Press this button to select chapter, title, and track numbers greater than 9. Press this button before inputting the number. (Clear): Press this button within three seconds after inputting a number to clear the number(s).
Page 237 Battery Replacement To change the batteries, do the following: 1. Remove the battery compartment door located on the bottom of the remote control. 2. Replace the two AA batteries in the compartment. Make sure that they are installed correctly, using the diagram on the inside of the battery compartment.
Page 238 Problem Recommended Action After stopping the player, I If the stop button was push Play but sometimes pressed one time, the the DVD starts where I DVD player will resume left off and sometimes at playing where the DVD the beginning. was stopped.
Page 239: Navigation/Radio System
DVD Messages The following errors may be displayed on the video screen: Disc Format Error: This message will be displayed if a disc is inserted upside down, if the disc is not readable, or if the format is not compatible with the DVD player. Load/Eject Error: This message will be displayed if the disc is not properly loaded or ejected.
Page 240: Rear Seat Audio (Rsa)
Rear Seat Audio (RSA) This feature allows rear seat passengers to listen to any of the sources: radio, cassette tapes, CDs, or DVDs. However, the rear seat passengers can only control the sources that the front seat passengers are not listening to.
Page 241: Theft-Deterrent Feature
To scan preset stations, press and hold the SEEK button. The radio will go to a preset station, play for a few seconds, then go the next preset station. The display will show the selections. This function is inactive if the front seat passengers are listening to the radio.
Page 242: Radio Reception
PROG (Program): Press this button to play a station you have programmed on the radio preset pushbuttons. The radio will only seek preset stations with a strong signal that are in the selected band. When a CD is playing in the CD changer, press this button to go to the next available CD, if multiple CDs are loaded.
Page 243: Care Of Your Cassette Tape Player
Care of Your Cassette Tape Player A tape player that is not cleaned regularly can cause reduced sound quality, ruined cassettes, or a damaged mechanism. Cassette tapes should be stored in their cases away from contaminants, direct sunlight, and extreme heat. If they are not, they may not operate properly or may cause failure of the tape player.
Page 244: Care Of Your Cds And Dvds
Cassettes are subject to wear and the sound quality may degrade over time. Always make sure the cassette tape is in good condition before the tape player is serviced. Care of Your CDs and DVDs Handle discs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust.
Page 245: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-5 Anti-Lock Brake System (ABS) ...4-6 Braking in Emergencies ...4-8 Traction Assist System (TAS) ...4-8 Locking Rear Axle ...4-9 Steering ...4-10 Off-Road Recovery ...4-12 Passing ...4-12...
Page 246: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-7. Defensive driving really means “be ready for anything.”...
Page 247 Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological and developmental reasons for these laws.
Page 248 There is a gender difference, too. Women generally have a lower relative percentage of body water than men. Since alcohol is carried in body water, this means that a woman generally will reach a higher BAC level than a man of her same body weight will when each has the same number of drinks.
Page 249: Control Of A Vehicle
CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Please do not drink and drive or ride with a driver who has been drinking.
Page 250: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 251 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 252: Braking In Emergencies
Remember: Anti-lock does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 253: Locking Rear Axle
• The vehicle is driven on an extremely rough road. When the vehicle leaves the rough surface, slows down or stops, the light will go off and TAS will be on again. This is normal. • A Traction Assist System, Anti-Lock Brake System or engine-related problem has been detected and the vehicle needs service.
Page 254: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips Driving on Curves It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 255: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 256: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 257 • Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 258: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked.
Page 259: Operating Your All-Wheel-Drive Vehicle Off Paved Roads
Operating Your All-Wheel-Drive Vehicle Off Paved Roads This off-road guide is for vehicles that have all-wheel drive. If your vehicle does not have all-wheel drive, you should not drive off-road unless you are on a level, solid surface. Many of the same design features that help make your vehicle responsive on paved roads during poor weather conditions —...
Page 260 Loading Your Vehicle for Off-Road Driving There are some important things to remember about how to load your vehicle. • The heaviest things should be on the load ﬂoor and forward of your rear axle. Put heavier items as far forward as you can.
Page 261: Environmental Concerns
Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads and areas that have been specially set aside for public off-road recreational driving;...
Page 262: Scanning The Terrain
Controlling your vehicle is the key to successful off-road driving. One of the best ways to control your vehicle is to control your speed. Here are some things to keep in mind. At higher speeds: • you approach things faster and you have less time to scan the terrain for obstacles.
Page 263 When you drive over obstacles or rough terrain, keep a ﬁrm grip on the steering wheel. Ruts, troughs or other surface features can jerk the wheel out of your hands if you are not prepared. When you drive over bumps, rocks, or other obstacles, your wheels can leave the ground.
Page 264: Driving Uphill
Approaching a Hill When you approach a hill, you need to decide if it is one of those hills that is just too steep to climb, descend or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top.
Page 265 • Ease up on your speed as you approach the top of the hill. • Attach a ﬂag to the vehicle to make you more visible to approaching traffic on trails or hills. • Sound the horn as you approach the top of the hill to let opposing traffic know you are there.
Page 266: Driving Downhill
Here are some things you must not do if you stall, or are about to stall, when going up a hill. • Never attempt to prevent a stall by shifting into NEUTRAL (N) to rev-up the engine and regain forward momentum. This will not work. Your vehicle will roll backwards very quickly and you could go out of control.
Page 267 CAUTION: Heavy braking when going down a hill can cause your brakes to overheat and fade. This could cause loss of control and a serious accident. Apply the brakes lightly when descending a hill and use a low gear to keep vehicle speed under control.
Page 268: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: •...
Page 269: Stalling On An Incline
Stalling on an Incline If your vehicle stalls when you are crossing an incline, be sure you, and any passengers, get out on the uphill side, even if the door there is harder to open. If you get out on the downhill side and the vehicle starts to roll over, you will be right in its path.
Page 270: Driving In Water
Driving in Mud, Sand, Snow or Ice When you drive in mud, snow or sand, your wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud — the deeper the mud, the lower the gear.
Page 271 If the water is not too deep, drive slowly through it. At faster speeds, water splashes on your ignition system and your vehicle can stall. Stalling can also occur if you get your tailpipe under water. And, as long as your tailpipe is under water, you will never be able to start your engine.
Page 272: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. 4-28 Here are some tips on night driving. •...
Page 273: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to re-adjust to the dark. When you are faced with severe glare, as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps, slow down a little.
Page 274 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 275: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 276: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-32 Here are ways to increase your safety in city driving: •...
Page 277: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 278: Before Leaving On A Long Trip
Just before you leave the lane, glance quickly over your shoulder to make sure there is not another vehicle in your blind spot. Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night.
Page 279: Highway Hypnosis
Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
Page 280: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 281 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 282: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 5-53. 4-38 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and reﬂective warning triangles.
Page 283 What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing (32°F;...
Page 284: If You Are Caught In A Blizzard
Your anti-lock brakes improve your vehicle’s stability when you make a hard stop on a slippery road. Even though you have an anti-lock braking system, you will want to begin stopping sooner that you would on dry pavement. See Anti-Lock Brake System (ABS) on page 4-6.
Page 285 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 286: If You Are Stuck: In Sand, Mud, Ice Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can.
Page 287: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn your steering wheel left and right. That will clear the area around your front wheels. Then shift back and forth between REVERSE (R) and a forward gear, spinning the wheels as little as possible. Release the accelerator pedal while you shift, and press lightly on the accelerator pedal when the transmission is in gear.
Page 288 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 289 5. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. 6. If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle.
Page 290 Example 2 Item Description Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight 4-46 Total Item 1,000 lbs (453 kg) 750 lbs (136 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 291 Certiﬁcation/Tire Label A vehicle speciﬁc Certiﬁcation/Tire label is found on the rear edge of the driver’s door. The label shows the size of your vehicle’s original tires and the inﬂation pressures needed to obtain the gross weight capacity of your vehicle. This is called Gross Vehicle Weight Rating (GVWR).
Page 292: Electronically Controlled Air Suspension System
Using heavier suspension components to get added durability might not change your vehicle’s weight ratings. Ask your dealer to help you load your vehicle the right way. Notice: Overloading your vehicle may cause damage. Repairs would not be covered by your warranty.
Page 293: Indicator Light
The ignition has to be on for the system to inﬂate, in order to raise the vehicle to the standard ride height after loading. The system can lower the vehicle to the standard ride height after unloading with the ignition on and also for up to 30 minutes after the ignition has been turned off.
Page 294: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-5. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 295: If You Do Decide To Pull A Trailer
To identify the trailering capacity of your vehicle, you should read the information in “Weight of the Trailer” that appears later in this section. Trailering is different than just driving your vehicle by itself. Trailering means changes in acceleration, braking, handling, durability and fuel economy.
Page 296: Weight Of The Trailer Tongue
Vehicle 2WD (L6 Engine) AWD (L6 Engine) 2WD (V8 Engine) AWD (V8 Engine) The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversion. The GCWR for your vehicle should not be exceeded.
Page 297 The trailer tongue weight (A) should be 10 percent to 15 percent of the total loaded trailer weight, up to a maximum or 400 lbs (181 kg) with a weight carrying hitch. The trailer tongue weight (A) should be 10 to 15 percent of the total loaded trailer weight, up to a maximum of 900 lbs (408 kg) with a weight distributing hitch.
Page 298: Safety Chains
Hitches It’s important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you’ll need the right hitch. Weight Distributing Hitches and Weight Carrying Hitches (A) Body to Ground Distance, (B) Front of Vehicle When using a weight-distributing hitch, the hitch must be adjusted so the distance (A) remains the same both before and after coupling the trailer to the tow vehicle.
Page 299: Trailer Brakes
Trailer Brakes If your trailer weighs more than 1,500 lbs (680 kg) loaded, then it needs its own brakes — and they must be adequate. Be sure to read and follow the instructions for the trailer brakes so you’ll be able to install, adjust and maintain them properly.
Page 300: Following Distance
Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 301: Making Turns
Making Turns Notice: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid making very sharp turns while trailering. When you’re turning with a trailer, make wider turns than normal.
Page 302: Parking On Hills
Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, here’s how to do it: 1.
Page 303: Trailer Wiring Harness
Trailer Wiring Harness Your vehicle is equipped with a seven-wire trailer towing harness. This harness has a seven-pin universal heavy-duty trailer connector that is attached to a bracket on the hitch platform. The seven-wire harness contains the following trailer circuits: •...
Page 304 NOTES 4-60...
Page 305: Service And Appearance Care
Section 5 Service ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-5 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling Your Tank ...5-7 Filling a Portable Fuel Container ...5-9 Checking Things Under the Hood ...5-10 Hood Release ...5-10...
Page 306 Section 5 If a Tire Goes Flat ...5-68 Changing a Flat Tire ...5-69 Removing the Spare Tire and Tools ...5-70 Removing the Flat Tire and Installing the Spare Tire ...5-72 Secondary Latch System ...5-77 Storing a Flat or Spare Tire and Tools ...5-80 Spare Tire ...5-82 Appearance Care ...5-83 Fabric/Carpet ...5-83...
Page 307: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 308: Doing Your Own Service Work
Doing Your Own Service Work If you want to do some of your own service work, you will want to use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-11.
Page 309: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 310: Additives
Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that will help prevent engine and fuel system deposits from forming, allowing your emission control system to work properly. In most cases, you should not have to add anything to your fuel.
Page 311: Fuels In Foreign Countries
Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to ﬁnd. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel would not be covered by your warranty.
Page 312 The tethered fuel cap is located behind a hinged fuel door on the driver’s side of the vehicle. To remove the fuel cap, turn it slowly to the left (counterclockwise). While refueling, hang the tethered fuel cap from the hook on the fuel door. CAUTION: If you spill fuel and then something ignites it, you could be badly burned.
Page 313: Filling A Portable Fuel Container
CAUTION: If a ﬁre starts while you are refueling, do not remove the nozzle. Shut off the ﬂow of fuel by shutting off the pump or by notifying the station attendant. Leave the area immediately. Notice: If you need a new fuel cap, be sure to get the right type.
Page 314: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: Things that burn can get on hot engine parts and start a ﬁre. These include liquids like fuel, oil, coolant, brake ﬂuid, windshield washer and other ﬂuids, and plastic or rubber. You or others could be burned. Be careful not to drop or spill things that will burn onto a hot engine.
Page 315 2. Then go to the front of the vehicle and release the secondary hood release. 3. Lift the hood, release the prop rod from its retainer and put the prop rod into the slot in the hood. Before closing the hood, be sure all the ﬁller caps are on properly.
Page 316: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the L6 engine, here is what you will see: 5-12...
Page 317 A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. B. Engine Coolant Recovery Tank. See Cooling System on page 5-29. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-36. D. Power Steering Fluid Reservoir. See Power Steering Fluid on page 5-35.
Page 318 When you open the hood on the V8 engine, here is what you will see: 5-14...
Page 319 A. Engine Coolant Recovery Tank. See Cooling System on page 5-29. B. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-20. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-36. D. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-16.
Page 320: Engine Oil
Engine Oil Checking Engine Oil It is a good idea to check your engine oil every time you get fuel. In order to get an accurate reading, the oil must be warm and the vehicle must be on level ground. The engine oil dipstick handle is a yellow loop.
Page 321: When To Add Engine Oil
When to Add Engine Oil If the oil is at or below the L mark for the L6 engine or the cross-hatched area at the tip of the dipstick for the V8 engine, then you will need to add at least one quart of oil.
Page 322 5-18 • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50. Oils meeting these requirements should also have the starburst symbol on the container.
Page 323: Engine Oil Life System
Notice: Use only engine oil identiﬁed as meeting GM Standard GM6094M and showing the American Petroleum Institute Certiﬁed For Gasoline Engines starburst symbol. Failure to use the recommended oil can result in engine damage not covered by your warranty. ® GM Goodwrench oil meets all the requirements for your vehicle.
Page 324: Engine Air Cleaner/Filter
How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a change engine oil light being turned on, reset the system.
Page 325: When To Inspect
When to Inspect Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace at the ﬁrst oil change after 50,000 miles (83 000 km). See Scheduled Maintenance on page 6-4 for more information. If you are driving in dusty/dirty conditions, inspect the ﬁlter at each engine oil change.
Page 326: Automatic Transmission Fluid
Automatic Transmission Fluid When to Check and Change A good time to check your automatic transmission ﬂuid level is when the engine oil is changed. Change both the ﬂuid and ﬁlter every 50,000 miles (83 000 km) if the vehicle is mainly driven under one or more of these conditions: •...
Page 327 Get the vehicle warmed up by driving about 15 miles (24 km) when outside temperatures are above 50°F (10°C). If it is colder than 50°F (10°C), drive the vehicle in THIRD (3) until the engine temperature gage moves and then remains steady for 10 minutes. A cold ﬂuid check can be made after the vehicle has been sitting for eight hours or more with the engine off, but this is used only as a reference.
Page 328: Engine Coolant
3. If the ﬂuid level is in the acceptable range, push the dipstick back in all the way; then ﬂip the handle down to lock the dipstick in place. How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transmission ﬂuid to use.
Page 329: What To Use
A 50/50 mixture of clean, drinkable water and ® DEX-COOL coolant will: • Give freezing protection down to 34°F ( 37°C). • Give boiling protection up to 265°F (129°C). • Protect against rust and corrosion. • Help keep the proper engine temperature. •...
Page 330: Checking Coolant
Checking Coolant The engine coolant recovery tank is in the engine compartment on the passenger’s side of the vehicle. The cap has this symbol on it. See Engine Compartment Overview on page 5-12 for more information on location. The vehicle must be on a level surface. When your engine is cold, the coolant level should be at FULL COLD, or a little higher.
Page 331: Radiator Pressure Cap
Radiator Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured. See Engine Compartment Overview on page 5-12 for information on location. Engine Overheating You will ﬁnd a coolant temperature gage on your vehicle’s instrument panel.
Page 332: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 333: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: L6 Engine V8 Engine A. Coolant Recovery Tank B. Radiator Pressure Cap C. Engine Fan If the coolant inside the coolant recovery tank is boiling, do not do anything else until it cools down.
Page 334 The coolant level should be at least up to the FULL COLD mark. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 335 How to Add Coolant to the Coolant Recovery Tank If you have not found a problem yet, but the coolant level is not at the FULL COLD mark, add a 50/50 mixture of clean, drinkable water and DEX-COOL engine coolant at the coolant recovery tank. See Engine Coolant on page 5-24 for more information.
Page 336: How To Add Coolant To The Radiator
If the overheat warning continues, there is one more thing you can try. You can add the proper coolant mixture directly to the radiator, but be sure the cooling system is cool before you do it. CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly.
Page 337 3. Fill the radiator with the proper DEX-COOL coolant mixture, up to the base of the ﬁller neck. See Engine Coolant on page 5-24 for more information about the proper coolant mixture. ® 4. Then ﬁll the coolant recovery tank to the FULL COLD mark.
Page 338: Engine Fan Noise
6. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan. 7. By this time, the coolant level inside the radiator ﬁller neck may be lower. If the level is lower, add more of the proper DEX-COOL through the ﬁller neck until the level reaches the base of the ﬁller neck.
Page 339: Power Steering Fluid
Power Steering Fluid See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 340: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 341: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 342: Checking Brake Fluid
Checking Brake Fluid You can check the brake ﬂuid without taking off the cap. Look at the brake ﬂuid reservoir. The ﬂuid level should be above MIN. If it is not, have your brake system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the MIN, but not over the MAX mark.
Page 343: Brake Wear
Brake Wear Your vehicle has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 344: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts. When you replace parts of your braking system —...
Page 345: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 346 4. Open both hoods and locate the batteries. Find the positive (+) and negative ( ) terminals on each battery. Your vehicle has a remote negative ( ) jump starting terminal. You should always use this remote terminal instead of the terminal on the battery.
Page 347 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock. The vehicles could be damaged too. Before you connect the cables, here are some basic things you should know. Positive (+) will go to positive (+) or to a remote positive (+) terminal if the vehicle has one.
Page 348 8. Now connect the black negative ( ) cable to the negative ( ) terminal of the good battery. Use a remote negative ( ) terminal if the vehicle has one. Do not let the other end touch anything until the next step.
Page 349 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 350: All-Wheel Drive
All-Wheel Drive Transfer Case When to Check Lubricant It is not necessary to regularly check ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should...
Page 351: Front Axle
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. The proper level is from 0 to 3/8 inch (0 to 10 mm) below the bottom of the ﬁller plug hole. What to Use To determine what kind of lubricant to use, see Recommended Fluids and Lubricants on page 6-12.
Page 352: Bulb Replacement
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the ﬁller plug hole, you may need to add some lubricant. When the differential is cold, add enough lubricant to raise the level to 1/2 inch (12 mm) below the ﬁller plug hole.
Page 353: Headlamps, Front Turn Signal, Sidemarker, And Parking Lamps
Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps To replace a bulb, do the following: 1. Open the hood. See Hood Release on page 5-10 for more information. 2. Remove the grille by grasping and pulling it forward. 3. Lift the inner quick release clips. 4.
Page 354: Replacement Bulbs
4. Unclip the wiring harness (A) and remove the three socket retaining screws (B). 5. Remove the socket by releasing the retaining tabs. 6. Holding the socket, pull the bulb to release it from the socket. 7. Reinstall by reversing Steps 1 through 6. 5-50 Replacement Bulbs Exterior Lamp...
Page 355: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking. Notice: Allowing the wiper blade arm to touch the windshield when no wiper blade is installed could damage the windshield. Any damage that occurs would not be covered by your warranty.
Page 356 4. To install the new wiper insert, slide the insert (D), notched end last, into the end with two blade claws (A). Slide the insert all the way through the blade claws at the opposite end (B). The plastic caps (C) will be forced off as the insert is fully inserted.
Page 357: Tires
Backglass Wiper Blade Replacement See Windshield Wiper Blade Replacement on page 5-51 for instructions on how to change the backglass wiper blade. The backglass wiper blade will not lock in a vertical position like the windshield wiper blade, so care should be used when pulling it away from the vehicle.
Page 358: Tire Sidewall Labelling
Tire Sidewall Labelling Useful information about a tire is molded into the sidewall. The following illustrations are examples of a typical P-Metric and a LT-Metric tire sidewall. Passenger (P-Metric) Tire (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 359 (G) Maximum Cold Inﬂation Load Limit: Maximum load that can be carried and the maximum pressure needed to support that load. For information on recommended tire pressure see Inﬂation - Tire Pressure on page 5-59 and Loading Your Vehicle on page 4-43. Light Truck (LT-Metric) Tire (A) Tire Size: The tire size code is a combination of letters and numbers used to deﬁne a particular...
Page 360: Tire Size
(G) Single Tire Maximum Load: Maximum load that can be carried and the maximum pressure needed to support that load when used as a single. For information on recommended tire pressure see Inﬂation - Tire Pressure on page 5-59 and Loading Your Vehicle on page 4-43.
Page 361: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 362 Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Inﬂation Pressure: The maximum air pressure to which a cold tire may be inﬂated. The maximum air pressure is molded onto the sidewall. Maximum Load Rating: The load rating for a tire at the maximum permissible inﬂation pressure for that tire.
Page 363: Inﬂation - Tire Pressure
Treadwear Indicators: Narrow bands, sometimes called “wear bars,” that show across the tread of a tire when only 1/16 inch (1.6 mm) of tread remains. See When It Is Time for New Tires on page 5-62. UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear.
Page 364: Tire Inspection And Rotation
A Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar), below the driver’s door latch. This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 365 The purpose of regular rotation is to achieve more uniform wear for all tires on the vehicle. The ﬁrst rotation is the most important. See Scheduled Maintenance on page 6-4. When rotating your tires, always use the correct rotation pattern shown here. After the tires have been rotated, adjust the front and rear inﬂation pressures as shown on the Tire and Loading Information label.
Page 366: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. Some commercial truck tires may not have treadwear indicators.
Page 367: Uniform Tire Quality Grading
CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes or types (radial and bias-belted tires) the vehicle may not handle properly, and you could have a crash. Using tires of different sizes may also cause damage to your vehicle.
Page 368: Wheel Alignment And Tire Balance
Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 369: Wheel Replacement
Wheel Replacement Replace any wheel that is bent, cracked or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired). See your dealer if any of these conditions exist.
Page 370: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You can’t know how it’s been used or how far it’s been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 371: Accessory Inﬂator
Accessory Inﬂator Your vehicle may be equipped with an accessory inﬂator system. You can inﬂate things like basketballs and bicycle tires. You can also use it to bring your tire pressure up to the proper pressure. It is not designed to inﬂate large objects which will require more than ﬁve minutes to inﬂate, such as an air mattress.
Page 372: If A Tire Goes Flat
To reinstall the cover, line up the tabs at the back of the cover, put it in place and latch the tabs. A continuous ﬂashing indicator light may also indicate a malfunction in the air suspension system. See “Electronically Controlled Air Suspension System” under Loading Your Vehicle on page 4-43 for more information.
Page 373: Changing A Flat Tire
CAUTION: Lifting a vehicle and getting under it to do maintenance or repairs is dangerous without the appropriate safety equipment and training. The jack provided with your vehicle is designed only for changing a ﬂat tire. If it is used for anything else, you or others could be badly injured or killed if the vehicle slips off the jack.
Page 374: Removing The Spare Tire And Tools
When you have a ﬂat tire, use the following example as a guide to assist you in the placement of wheel blocks. The following information will tell you next how to use the jack and change a tire. 5-70 Removing the Spare Tire and Tools The jacking equipment you will need is stored under the rear seat on the passenger’s side of the vehicle.
Page 375 The tools you’ll be using include the wheel wrench (A), wheel blocks (B), extension(s) (socket end) (C), handle (jack end) (D), and jack (E). The following instructions explain how to remove the underbody-mounted spare underneath your vehicle. Notice: If you remove or restow a tire from/to the storage position under the vehicle when it is supported by a jack, you could damage the tire and/or your vehicle.
Page 376: Removing The Flat Tire And Installing The Spare Tire
3. Tilt the retainer at the end of the cable when the tire has been completely lowered, and pull it through the wheel opening. 4. Pull the tire out from under the vehicle. Notice: If you drive away before the spare tire or secondary latch system cable has been reinstalled, you could damage your vehicle.
Page 377 Front A. Front Frame/Rear Axle B. Jack C. Handle D. Extension(s) E. Wheel Wrench 4. Place the jack in the appropriate position nearest the ﬂat tire. CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed.
Page 378 5. Raise the vehicle by turning the jack handle clockwise. Raise the vehicle far enough off the ground so there is enough room for the spare tire to ﬁt. 6. Remove all the wheel nuts and take off the ﬂat tire. 5-74 CAUTION: Rust or dirt on the wheel, or on the parts to...
Page 379 7. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. 8. Place the spare on the wheel-mounting surface. CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident.
Page 380 11. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. 5-76 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident.
Page 381: Secondary Latch System
12. Use the wrench to tighten the wheel nuts ﬁrmly in a crisscross sequence as shown. Secondary Latch System Your vehicle has an underbody-mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop the spare or ﬂat road tire from suddenly falling off your vehicle if the cable holding the spare tire is damaged.
Page 382 To release the spare tire from the secondary latch, do the following: 1. Check under the vehicle to see if the cable is visible. If it is not visible, proceed to Step 6. 2. If visible, ﬁrst try to tighten the cable by turning the wheel wrench clockwise until you hear two clicks or feel it skip twice.
Page 383 9. Lower the jack by turning the wheel wrench counterclockwise. Keep lowering the jack until the spare tire slides off the jack or is hanging by the cable. 10. Disconnect the jack handle from the jack and carefully remove the jack. Use one hand to push against the spare while ﬁrmly pulling the jack out from under the spare tire with the other hand.
Page 384: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. 5-80 CAUTION: The underbody-mounted spare tire needs to be...
Page 385 Follow this diagram to store the underbody-mounted spare. A. Wheel Wrench B. Hoist Shaft C. Extension D. Retainer E. Spare or Flat Tire (Valve Stem Pointed Up) 1. Put the tire on the ground at the rear of the vehicle, with the valve stem pointed up and to the rear.
Page 386: Spare Tire
A. Handle D. Extension B. Wheel Wrench E. Wheel Blocks C. Instruction Label and Jack 5-82 Spare Tire Your vehicle, when new, had a fully-inﬂated spare tire. A spare tire may lose air over time, so check its inﬂation pressure regularly. See Inﬂation - Tire Pressure on page 5-59 and Loading Your Vehicle on page 4-43 for information regarding proper tire inﬂation and loading your vehicle.
Page 387: Appearance Care
Appearance Care Cleaning products can be hazardous. Some are toxic. Other cleaning products can burst into ﬂames if a match is struck near them or if they get on a hot part of the vehicle. Some are dangerous if their fumes are inhaled in an enclosed space.
Page 388: Special Fabric Cleaning Problems
Most stains can be removed with club soda water. To clean, use the following instructions: 1. For liquids: blot with a clean, soft, white cloth. For solids: remove as much as possible and then vacuum or brush. 2. Apply club soda water to a clean, soft, white cloth. Do not over-saturate;...
Page 389: Vinyl
Stains caused by oil and grease can be cleaned with an approved GM cleaner and a clean, white cloth. 1. Carefully scrape off excess stain. 2. Clean with cool water and allow to dry completely. 3. If a stain remains, follow the “Using Cleaner on Fabric”...
Page 390: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 391: Cleaning Exterior Lamps/Lenses
Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under Washing Your Vehicle on page 5-86. Finish Care Occasional waxing or mild polishing of your vehicle by hand may be necessary to remove residue from the paint ﬁnish.
Page 392: Windshield, Backglass, And Wiper Blades
Windshield, Backglass, and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap or other material may be on the blade or windshield. Clean the outside of the windshield with a full-strength glass cleaning liquid.
Page 393: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle.
Page 394: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials See your GM dealer for more information on purchasing the following products. Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner and Use on chrome or Polish stainless steel.
Page 395: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 396: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 397: Fuses And Circuit Breakers
Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of ﬁres caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 398 L6 Engine 5-94...
Page 399 Fuses Usage Electrically-Controlled Air Suspension Passenger’s Side High-Beam Headlamp Passenger’s Side Low-Beam Headlamp Back-Up-Trailer Lamps Driver’s Side High-Beam Headlamp Driver’s Side Low-Beam Headlamp Rear Window Washer Automatic Transfer Case Windshield Washer Powertrain Control Module B Fog Lamps Stoplamp Cigarette Lighter Ignition Coils Electric Adjustable Pedal Fuses...
Page 400 Fuses Trailer Anti-lock Brakes (ABS) Ignition A Blower Motor Ignition B Passenger’s Side Trailer Turn Driver’s Side Trailer Turn Hazard Flashers Headlamp Driver Module Air Injection Reactor (AIR) Solenoid Air Injection Reactor (AIR) Pump Relays Blank or Headlamp Washer Rear Window Washer 5-96 Usage Usage...
Page 401 V8 Engine 5-97...
Page 402 Fuses Electrically-Controlled Air Suspension Passenger’s Side High-Beam Headlamp Passenger’s Side Low-Beam Headlamp Back-Up-Trailer Lamps Driver’s Side High-Beam Headlamp Driver’s Side Low-Beam Headlamp Rear Window Washer Automatic Transfer Case Windshield Washer Powertrain Control Module B Fog Lamps Stoplamp Cigarette Lighter Ignition Coils Canister Vent Truck Body Controller, Ignition 1 Crank...
Page 403: Rear Underseat Fuse Block
Fuses Usage Truck Body Controller 1 Electric Adjustable Pedal Relays Usage Headlamp Washer Rear Window Washer Fog Lamps Horn Fuel Pump Windshield Wipers/Washer High-Beam Headlamp Air Conditioning Cooling Fan Headlamp Driver Module Starter Electric Adjustable Pedal Powertrain Miscellaneous Usage Instrument Panel Battery Rear Underseat Fuse Block 5-99...
Page 404 5-100 Fuses Usage Right Door Control Module Left Door Control Module Endgate Module 2 Truck Body Controller 3 Rear Fog Lamps Blank Truck Body Controller 2 Power Seats Rear Wiper Driver Door Module Ampliﬁer Passenger Door Module Rear Climate Controls Left Rear Parking Lamps Blank Vehicle Center High-Mounted Stop...
Page 405 Fuses Usage Blank Blank ® OnStar Overhead Battery, OnStar System Sunroof Rainsense™ Wipers Parking Lamps Truck Body Controller Accessory Truck Body Controller 5 Front Wipers Vehicle Stop Transmission Control Module Heat Ventilation Air Conditioning B Front Parking Lamps Left Turn Signal Fuses Heat Ventilation Air Conditioning I Truck Body Controller 4...
Page 406: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Cooling System 4200 L6 5300 V8 Differential Fluid – Front Differential Fluid –...
Page 407 Engine VIN Code VORTEC™ 4200 L6 VORTEC™ 5300 V8 Engine Speciﬁcations Transmission Automatic Automatic Spark Plug Gap 0.042 inches (1.07 mm) 0.040 inches (1.01 mm) 5-103...
Page 408 NOTES 5-104...
Page 409 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 410: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts and recommended ﬂuids and...
Page 411 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-43. • are driven on reasonable road surfaces within legal driving limits.
Page 412: Scheduled Maintenance
The proper replacement parts, ﬂuids and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-12 and Normal Maintenance Replacement Parts on page 6-14. When your vehicle is serviced, make sure these are used. All parts should be replaced and all necessary repairs done before you or anyone else drives the vehicle.
Page 413 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. See Engine Oil on page 5-16. Reset oil life system. See Engine Oil Life System on page 5-19. An Emission Control Service. Visually check for any leaks or damage. See footnote (j). Inspect engine air cleaner ﬁlter.
Page 414: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 415: Maintenance Footnotes
Service and Miles (Kilometers) V8 engine only: Inspect spark plug wires. An Emission Control Service. Engine cooling system service (or every 5 years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. Maintenance Footnotes †...
Page 416 (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 417: Owner Checks And Services
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your ® vehicle. Your GM Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 418: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 419: Ignition Transmission Lock Check
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • The ignition should turn to LOCK only when the shift lever is in PARK (P). •...
Page 420: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines starburst symbol.
Page 421 Usage Fluid/Lubricant AUTO-TRAK II Fluid (GM Part No. Transfer Case U.S. 12378508, in Canada 10953626). Hood Latch Assembly, Lubriplate Lubricant Aerosol (GM Secondary Part No. U.S. 12346293, in Latch, Pivots, Canada 992723) or lubricant Spring Anchor meeting requirements of NLGI #2, Category LB or GC-LB.
Page 422: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Part Automatic Transmission Filter Kit Engine Air Cleaner/Filter Engine Oil Filter 4200 L6 5300 V8 Fuel Filter Spark Plugs 4200 L6 5300 V8 Wiper Blades Front –...
Page 423: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2 in this section. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages.
Page 424 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
Page 425 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 426 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 427 Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-5 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Customer Assistance and Information Reporting Safety Defects ...7-10...
Page 428: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Buick. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your GM dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 429: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 430: Customer Assistance For Text Telephone (Tty) Users
To assist customers who are deaf, hard of hearing, or speech-impaired and who use Text Telephones (TTYs), Buick has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Buick by dialing: 1-800-83-BUICK. TTY users in Canada can dial 1-800-263-3830.
Page 431: Gm Mobility Reimbursement Program
1-800-263-3830. Roadside Assistance Program Call 1-800-252-1112 for Buick Roadside Assistance. As the proud owner of a new Buick vehicle, you are automatically enrolled in the Buick Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 432: Canadian Roadside Assistance
Buick Roadside Assistance: 1-800-252-1112, text telephone (TTY) users, call 1-888-889-2438. Buick reserves the right to limit services or reimbursement to an owner or driver when, in Buick’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 433: Courtesy Transportation
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Buick helps minimize your inconvenience by providing several transportation options. Depending on the circumstances,...
Page 434: Additional Program Information
Courtesy Rental Vehicle Your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle that you obtain if your vehicle is kept for a warranty repair. Reimbursement will be limited to a maximum of $30 a day and must be supported by receipts.
Page 435: Vehicle Data Collection And Event Data Recorders
Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for airbag deployment and, if so equipped, to provide anti-lock braking and to help the driver control the vehicle in difficult driving situations.
Page 436: Reporting Safety Defects
Reporting Safety Defects Reporting Safety Defects to the United States Government If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
Page 437: Reporting Safety Defects To General Motors
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify us. Please call us at 1-800-521-7300, or write: Buick Customer Assistance Center P.O. Box 33136 Detroit, MI 48232-5136 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 438: Current And Past Model Order Forms
Owner’s Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner’s manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner’s Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 Without Portfolio: Owner’s Manual only.
Page 439 Accessory Inﬂator ... 5-67 Accessory Power Outlets ... 3-18 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-60 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-92 Adjustable Throttle and Brake Pedal ... 2-21 Air Cleaner/Filter, Engine ... 5-20 Air Conditioning ... 3-19 Airbag Passenger Status Indicator ...
Page 440 Audio System(s) ... 3-56 Audio Steering Wheel Controls ... 3-121 Care of Your Cassette Tape Player ... 3-123 Care of Your CD and DVD Player ... 3-124 Care of Your CDs and DVDs ... 3-124 Chime Level Adjustment ... 3-124 Fixed Mast Antenna ...
Page 441 Care of Safety Belts ... 5-86 Your Cassette Tape Player ... 3-123 Your CD and DVD Player ... 3-124 Your CDs and DVDs ... 3-124 Cargo Cover ... 2-49 Center Console Storage Area ... 2-47 Chains, Tire ... 5-66 Charging System Light ... 3-31 Check Engine Light ...
Page 442 Content Theft-Deterrent ... 2-16 Control of a Vehicle ... 4-5 Convenience Net ... 2-49 Coolant Engine Temperature Gage ... 3-34 Heater, Engine ... 2-21 Cooling System ... 5-29 Cruise Control Lever ... 3-11 Cruise Control Light ... 3-40 Customer Assistance Information Courtesy Transportation ...
Page 443 Electrical System Add-On Equipment ... 5-92 Engine Compartment Fuse Block ... 5-93 Fuses and Circuit Breakers ... 5-93 Headlamps ... 5-92 Power Windows and Other Power Options ... 5-92 Rear Underseat Fuse Block ... 5-99 Windshield Wiper Fuses ... 5-92 Engine Air Cleaner/Filter ...
Page 444 Fuses Engine Compartment Fuse Block ... 5-93 Fuses and Circuit Breakers ... 5-93 Rear Underseat Fuse Block ... 5-99 Windshield Wiper ... 5-92 Gage Check Gages Warning Light ... 3-41 Engine Coolant Temperature ... 3-34 Fuel ... 3-42 Oil Pressure ... 3-38 Speedometer ...
Page 445 Instrument Panel Brightness ... 3-16 Cluster ... 3-26 Overview ... 3-4 Jump Starting ... 5-41 Keyless Entry System ... 2-4 Keys ... 2-3 Labelling, Tire Sidewall ... 5-54 Lamps Battery Run-Down Protection ... 3-18 Dome ... 3-16 Dome Lamp Override ... 3-17 Fog ...
Page 446 Locking Rear Axle ... 4-9 Lockout Protection ... 2-12 Locks Delayed Locking ... 2-9 Door ... 2-7 Lockout Protection ... 2-12 Power Door ... 2-8 Programmable Automatic Door Locks ... 2-9 Rear Door Security Locks ... 2-12 Loss of Control ... 4-14 Low Fuel Warning Light ...
Page 447 Odometer ... 3-27 Odometer, Trip ... 3-27 Off-Road Recovery ... 4-12 Change Engine Oil Light ... 3-39 Engine ... 5-16 Pressure Gage ... 3-38 Older Children, Restraints ... 1-26 Online Owner Center ... 7-3 ® OnStar System ... 2-40 Operating Your All-Wheel-Drive Vehicle Off Paved Roads ...
Page 448 Questions and Answers About Safety Belts ... 1-11 Radiator Pressure Cap ... 5-27 Radios ... 3-56 Care of Your Cassette Tape Player ... 3-123 Care of Your CD and DVD Player ... 3-124 Care of Your CDs and DVDs ... 3-124 Navigation/Radio System ...
Page 449 Restraint Systems Checking ... 1-61 Replacing Parts ... 1-62 Retained Accessory Power (RAP) ... 2-19 Right Front Passenger Position, Safety Belts ... 1-20 Roadside Assistance Program ... 7-5 Rocking Your Vehicle to Get it Out ... 4-43 Running Your Engine While You Are Parked ... 2-29 Safety Belt Pretensioners ...
Page 450 Spare Tire ... 5-82 Installing ... 5-72 Removing ... 5-70 Storing ... 5-80 Speciﬁcations, Capacities ... 5-102 Speedometer ... 3-27 Starting Your Engine ... 2-20 Steering ... 4-10 Steering Wheel Controls, Audio ... 3-121 Steering Wheel, Tilt Wheel ... 3-6 Storage Areas Center Console Storage Area ...
Page 451 Top Strap ... 1-36 Top Strap Anchor Location ... 1-37 Towing Recreational Vehicle ... 4-50 Towing a Trailer ... 4-50 Your Vehicle ... 4-50 Traction Assist System (TAS) ... 4-8 Transmission Fluid, Automatic ... 5-22 Transmission Operation, Automatic ... 2-22 Trip Odometer ...
Page 452 Windshield Washer ... 3-10 Fluid ... 5-36 Windshield Wiper Blade Replacement ... 5-51 Fuses ... 5-92 Rainsense™ Wipers ... 3-9 Windshield Wipers ... 3-9 Winter Driving ... 4-38 XM™ Satellite Radio Antenna System ... 3-124 Your Vehicle and the Environment ... 6-2...

Buick 2005 Rainier Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Homelink Transmitter

Storage Areas

Sunroof

Vehicle Personalization

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

All-Wheel Drive

Rear Axle

Front Axle

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for Buick 2005 Rainier

Summary of Contents for Buick 2005 Rainier
