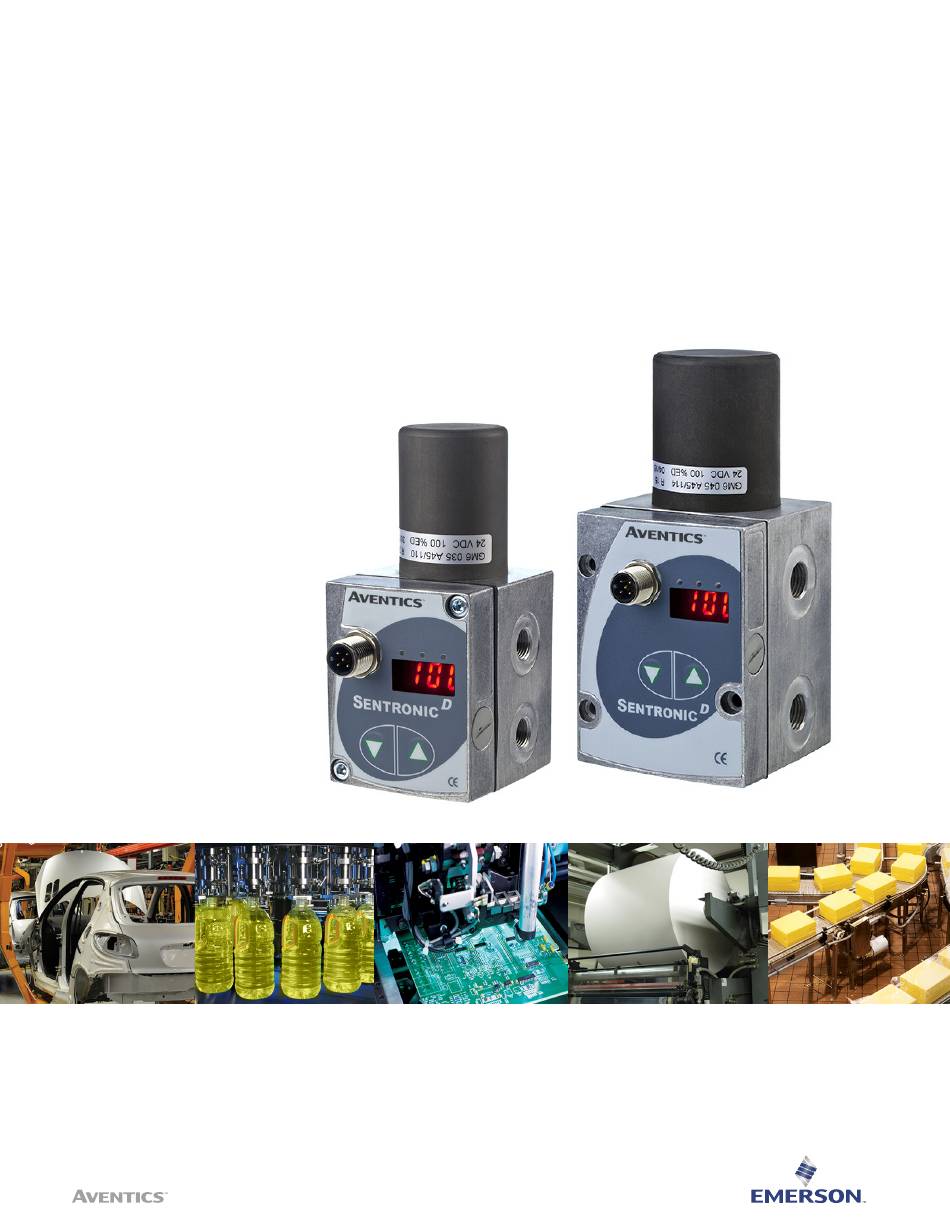

- Page 1 Sentronic Digital Electronic Pressure Regulator Installation Manual...
-
Page 2: Table Of Contents
The information in this manual is subject to change without notice. In no event shall Emerson be liable for technical or editorial errors or omissions. Neither is any liability assumed for accidental or consequential damages arising out of or in connection with the supply or use of the information contained herein. -
Page 3: Sentronic
Notes: 1 = 0 - 20 mA See Accessories section for required manifold sub-base. 2 = 4 - 20 mA Only available for 608 DN 4mm size. Feedback input is needed for dual loop units. Visit our website at Emerson.com/AVENTICS... -
Page 4: Operating Elements
If the coil current exceeds 1000 mA (DN8) or 560 mA (DN4) for more than 20 seconds, the output current is limited to max. 70% every 4 seconds to prevent the valve from overheating. The yellow LED flashes. Visit our website at Emerson.com/AVENTICS... -
Page 5: Electrical Connection
Analog output (feedback) Digital output (pressure switch) Body EMC shield *A 6-wire cable with separate common for the command signal is used for cable lengths over 2 m to minimize the voltage drop for the command signal. Visit our website at Emerson.com/AVENTICS... -
Page 6: Analog Setpoint - Outlet Pressure
0.5 PMR SHUT-OFF 10 V 50 mV 20 mA 0.1 mA 20mA 4.08 mA Span adjustment The span can be set to max. 100% of the maximum outlet pressure (PMR). It can only be decreased. Visit our website at Emerson.com/AVENTICS... -
Page 7: Pneumatic Connection
Offset: 0 % Span: 100 % Ramp: no ramp Shut-off: ON; the valve is exhausted at a command signal below 0.5% Controller structure: PID Proportional gain: 4.0 Integration time: 0.1 sec Derivation time: 8 msec Visit our website at Emerson.com/AVENTICS... -
Page 8: Field-Programmable Settings
200 mA/4.8W, short-circuit protected HIGH (24 VDC) if feedback=setpoint LOW (open) if feedback≠setpoint Overvoltage: Shut-off at a voltage level higher than 30 volts (+10%). Low voltage: Shut-off at a voltage level lower than 19.5 volts (-10 %). Visit our website at Emerson.com/AVENTICS... -
Page 9: Accessories
RS 232 cable converter; 2m cable with 9-pin Sub-D (plug connector) 88100732 RS 232 cable converter; 2m cable with 9-pin Sub-D (screw connector) 833-993708 Manifold ships with required hardware and gaskets for connecting manifolds together. 9. Maintenance and Care No special maintenance or care required. Visit our website at Emerson.com/AVENTICS... - Page 10 Weight: 1.23 (0.56) M4 hole for earth screw G1/8”, G1/4” G1/8”, G1/4” Hole for M4 screw (*) Hole for Programming M4 screw (*) Interface Connector Fixing holes: M4 thread Inline version: DN 8 Weight: 2.49 (1.13) Visit our website at Emerson.com/AVENTICS...
- Page 11 Dimensions: Inches (mm), Weight in lbs (kg) Manifold version: DN 4 Weight: 1.23 (0.56) Manifold: DN 4 1.61 (41) 1.38 (35) Hole for 2.12 (54) M4 screw 0.31 (8) 0.79 (20) 1.69 (43) 0.55 (14) 1.93 (49) Hole for M4 screw Visit our website at Emerson.com/AVENTICS...
- Page 12 Dimensions: Inches (mm), Weight in lbs (kg) Manifold version: DN 8 Weight: 2.49 (1.13) 2.01 (51) Manifold: DN 8 1.81 (46) Hole for 2.68 (68) 0.31 (8) 1.02 (26) M4 screw 2.01 (51) 0.71 (18) 2.40 (61) Hole for M4 screw Visit our website at Emerson.com/AVENTICS...
