Mercury Engine Gauges
®
NOTE: This feature is available only when connected to the Mercury SmartCraft Connect gateway.

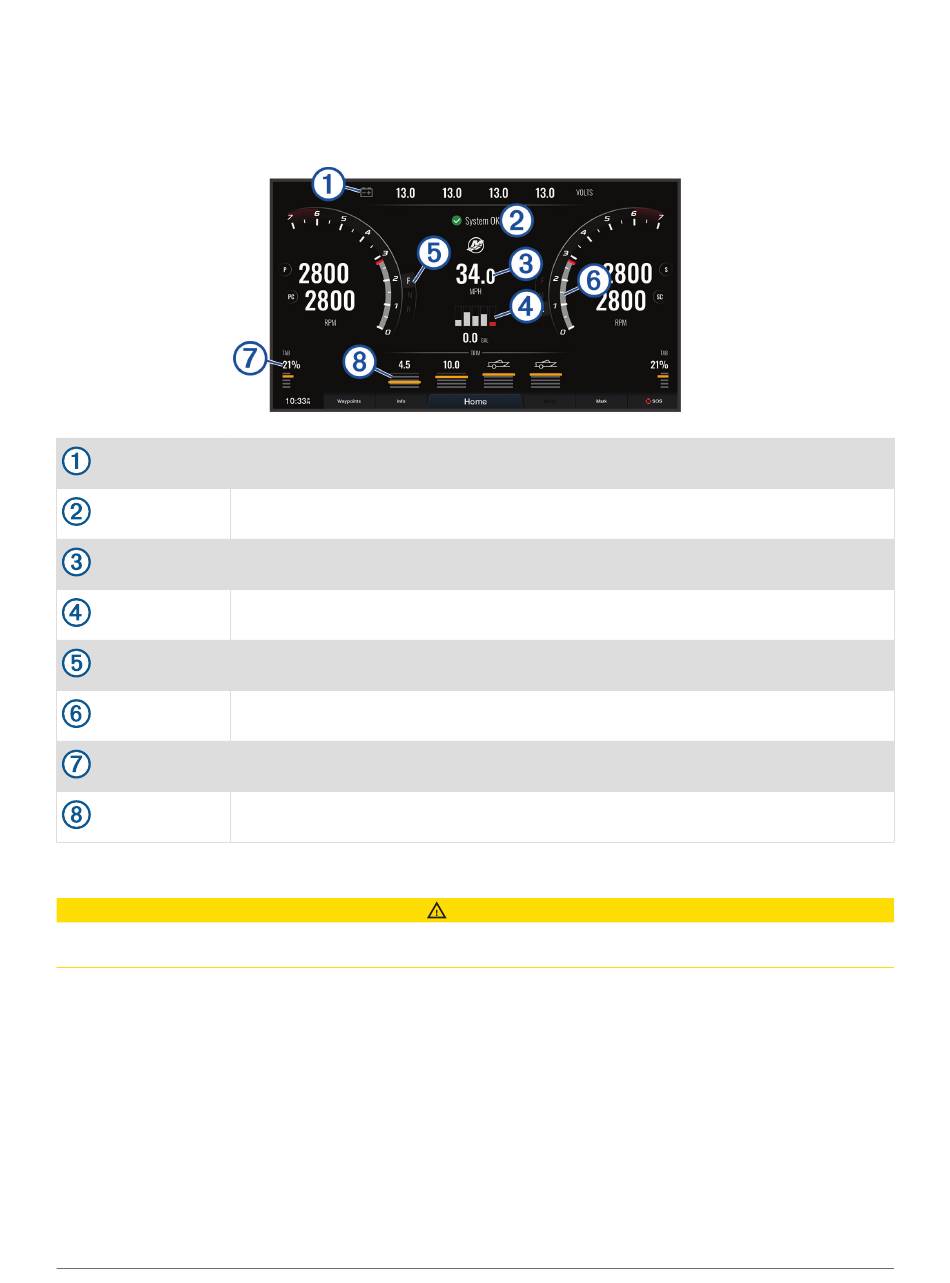

Select A/V, Gauges, Controls > Mercury to view the Mercury engine gauges. This screen varies based on the
engine network.
Engine voltage
Boat status
Boat speed
Fuel
Transmission gear
Engine speed
Trim tabs
Engine trim

Setting the Fuel Alarm

The Beeper setting must be turned on to make alarms audible
to set audible alarms could lead to injury or property damage.
Before you can set a fuel level alarm, a compatible fuel flow sensor must be connected to the chartplotter.
You can set an alarm to sound when the total amount of remaining onboard fuel reaches the level you specify.
1 Select Settings > Alarms > Fuel > Set Total Fuel Onboard > On.
2 Enter the remaining amount of fuel that triggers the alarm, and select Done.

Setting the Fuel Capacity of the Vessel

1 Select Settings > My Vessel > Fuel Capacity.
2 Enter the combined total capacity of the fuel tanks.
116
CAUTION
(Sounds and Display Settings, page 143). Failure
Gauges and Graphs
