Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and ful l your needs for many
years to come. Scandinavian design combines clean lines, everyday
functionality and high quality. These are key characteristics of all our
products and the reason they are greatly appreciated throughout the
world.
To get the most out of your new machine, we recommend that you read
the operating instructions before using the machine. The operating
instructions also include information on how you can help protect the
environment.
Operating Instructions

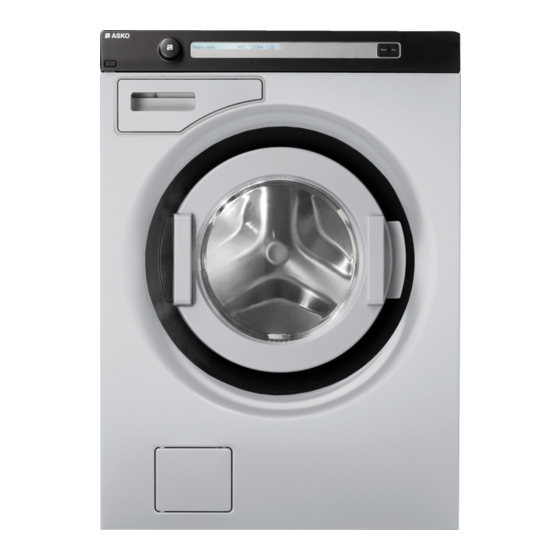

Washing Machine
PROFESSIONAL WMC622PG
WARNING: Read the instructions before using the machine.
Advertisement
Table of Contents
Related Manuals for Asko PROFESSIONAL WMC622PG
Summary of Contents for Asko PROFESSIONAL WMC622PG
- Page 1 Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and ful l your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.
-
Page 2: Table Of Contents
Contents Before using your machine for the fi rst Advice and tips before washing time Washing Transport protection Sort your laundry. Packing material Turn on the main power switch Washer door Open the washer door and load the Language selection washing Checking water hardness Add detergent and fabric softener, as... - Page 3 Contents Troubleshooting The washer door will not open The machine will not start After power failure Wet washing still in the machine Error messages Heating fault Technical information Information on energy labelling Energy labelling Technical data Transport protection Installation Positioning the washing machine Adjusting the feet Connection to water supply Drainage connection...
-
Page 4: Before Using Your Machine For The Fi Rst Time
Before using your machine for the fi rst time Transport protection Checking water hardness Remove any transport protection devices before The quantity of detergent needed depends, installing the machine. See the "Transport amongst other things, on how hard the water protection"... -
Page 5: Safety Instructions
Safety instructions safety or performance must be carried General out by a qualifi ed professional. • Read the operating instructions and • Damaged mains cables must only be keep them in a safe place. replaced by a qualifi ed electrician. •... -
Page 6: Safety Instructions
Safety instructions Installation See the "Installation" chapter. Overfl ow guard function If the machine’s water level rises above the normal level, the overfl ow guard function begins to pump water out and shuts off the water intake. If the water level has not dropped within 60 seconds, the program is terminated. -
Page 7: Child Safety
Child safety Keep an eye on children! • Always close the washer door and start the programme immediately after you have added detergent. • Do not allow small children to use or play with the washing machine. • Store detergent and fabric softener out of the reach of children. -
Page 8: Description Of The Washing Machine
Description of the washing machine 1. Main power switch 2. Dispenser 3. Programme panel 4. Serial number plate (on inside of washer door) 5. Drainage pump cover 6. Drainage pump (behind cover) 7. Washer door... -
Page 9: Dispenser
Dispenser 1. Pre-wash 2. Main wash with liquid detergent. Use the separator (A). 3. Main wash with powder detergent. Do not use the separator. 4. Fabric softener 5. Release button 6. Child safety catch... -
Page 10: Advice And Tips Before Washing
Advice and tips before washing Hot water connection Here are some tips that may help you before washing. (depending on the model) Hot water intake has a positive eff ect on grease Sorting your laundry stains and certain pigment stains, such as oil, Sort items according to: soot and coff... -
Page 11: Detergents
Advice and tips before washing NOTE! Viscose and acetates are fragile when wet. Detergents Eco-labelled detergents are less harmful to the environment. Detergent overdosing does not give better washing results; it merely causes a greater impact on the environment. Try to use less detergent, and increase only if you are not satisfi... -
Page 12: Washing
Washing Sort your laundry. Wash ball or net See the "Advice and tips before washing" If you use a wash ball or net, place it directly in chapter. the drum and select a programme without pre- Place underwired bras in a laundry net. wash. -
Page 13: Select The Programme
Washing Select the programme Programme selector Time remaining Start Main power switch Program Stop The display shows the programme name, the White, 90 °C water temperature and the spin speed. The Programme for normally to heavily soiled washing machine has a number of preselected laundry. - Page 14 Washing Synthetics, 40 °C Disinfection, 40 °C Programme for synthetics, delicate blended Programme where the temperature reached materials and permanent press cotton. Suitable during the main wash is maintained above 40 °C for shirts and blouses. Follow the washing for 20 minutes. instructions for each garment.
- Page 15 Washing Programme chart Water consumption (approx. liter) 1)+2) Cold Program Standard cotton 1200 1,50 3:25 Standard cotton 1200 0,90 3:05 Heavy wash 1200 2,60 2:05 Heavy wash 1200 1,40 1:40 Standard cotton 1200 1,07 3:05 Standard cotton 1200 0,91 2:55 White 1200 2,40...
- Page 16 Washing Adjustment of the displayed washing time Unevenly distributed laundry or lumps of Advanced technology allows the appliance laundry in the washing machine drum can cause to sense the amount of laundry and add the problems such as vibration and noisy operation. required amount of water during the washing The appliance can sense such lumps and will process.
-
Page 17: Close The Washer Door And Press The Start Button
Washing Close the washer door and Once the program has fi nished press the Start button The text "Done" is shown on the display for 10 minutes. The machine then turns off . NOTE! Once the program is fi nished, the washer door will automatically unlock. -
Page 18: Settings
Settings You can change the following Water intake settings: (depending on the model) • Language Connecting to both the hot and cold water • Temperature °C/°F supplies reduces the wash time and reduces • Water intake the washing machine's electricity consumption. •... -
Page 19: Care And Cleaning
Care and cleaning Cleaning the trap and the drainage Cleaning the detergent compartment pump Pull out the detergent compartment using the The washing machine has a trap where smaller release button. objects such as coins and hairpins can collect. To clean the trap and the drainage pump, do as follows: 1. -
Page 20: Rinse Holes Under The Agitator
Care and cleaning Rinse holes under the agitator If you suspect that objects such as nails or paper clips may have fallen into the wash drum, you should check the space under the agitator. Such objects can rust and cause spots on clothing. -
Page 21: Troubleshooting
Troubleshooting The washer door will not open D Push the tool downwards to open the washer 1. Check that the main power switch is on. door. 2. Has the power supply been cut off ? Check the house fuses (circuit breakers). If the temperature in the drum exceeds 60 °C, then the door lock will remain activated. -
Page 22: Error Messages
Troubleshooting Error messages Heating fault If an error occurs during the programme a • Turn off the appliance and wait for a few message is shown on the display. To exit the seconds. message after taking measures, turn the • Turn the appliance back on and repeat the machine off... -
Page 23: Technical Information
Technical information Information on energy labelling Information sheet pursuant to the Commission Regulations (EU) No. 1061/2010 and 1015/2010 Model WM70.C Maximum washing load 6 kg Energy effi ciency class Annual energy consumption (AE 186 kWh per year Power consumption Standard cotton 60 °C with a full load (E 1,07 kWh t,60... -
Page 24: Energy Labelling
Technical information Information for test institute Energy labelling European test standard: EN 60456 Washing program: Standard cotton , 60 °C, 1200 rpm, 6 kg cotton Connection: Cold water 15 °C Test method for noise measurement: IEC-60704-2-4 Technical data Height: 850 mm Width: 595 mm Depth:... -
Page 25: Transport Protection
Transport protection Remove the three transport bolts and the plastic plugs for locking the machine for transport before using the machine. NOTE! If the machine is to be transported, the bolts and plastic plugs for locking the machine during transport must be installed to prevent damage to the machine through shaking. -
Page 26: Installation
Installation Positioning the washing machine The washing machine can be installed as a built-in or freestanding unit. Place the machine on a fi rm surface with easy access to the plug. A. Built-in The washing machine can be installed under a counter top with a working height of 850-900 mm. -
Page 27: Drainage Connection
Installation Drainage connection Electrical installation The machine is supplied with a drainage hose If the machine is delivered from the factory attached, which must be connected to a drain. with a plug attached, it can be connected to an See the examples below. The height must be earthed wall socket. -
Page 28: Service
Service Before contacting the service division Model designation Before you contact the service division, make sure that you know the model designation, type designation and serial number. The model designation can be found on the panel. The type designation and serial number Type plate can be found on the type plate on the inside of the washer door. - Page 29 Your notes...
- Page 30 Your notes...
- Page 31 Your notes...
-
Page 32: Quick Guide
The selected programme is shown in the display. CLOSE THE WASHER DOOR AND PRESS THE START BUTTON The time remaining is shown in hours and minutes. We reserve the right to make changes. Gorenje, Partizanska 12, 3320 Velenje, Slovenija www.asko.com WM70.C en (03-20) PROFESSIONAL WMC622PG...
