- Page 1 USER MANUAL WM85.C-P Washing machine WMC89XXP Carefully read the instructions for use before using the washing machine.
-
Page 2: Table Of Contents
Contents Introduction ..........STEP 5: Choose the program...... Safety precautions ........STEP 6: Choosing the program settings ..Washing machine description ....STEP 7: Start the wash ......... Detergent compartment ......STEP 8: End of program ......Before using for the first time ....Settings ............ -
Page 3: Introduction
Introduction Dear Customer, We thank you for purchasing this quality ASKO product. We hope it meets all your expectations. Scandinavian design combines pure lines, everyday functionality, and high quality. These are the key characteristics of all our products, and the reason why they are highly appreciated across the globe. -
Page 4: Safety Precautions
Keep the instruction manual handy, near the washing machine. • Instructions for use are available on our website at www.asko.com. • The appliance has to be connected to the water and power supply by a trained expert. - Page 5 Safety precautions • Only use the washing machine for washing laundry, as described in the instruction manual. The machine is not intended for dry cleaning. • In case of incorrect appliance connection, incorrect use, or servicing by an unauthorized person, the user shall bear the cost of any damage.
- Page 6 Safety precautions instructed about the use of the appliance by a person responsible for their safety. • Emergency door opening tool is located on the back side of the dispenser. • Maximum washing capacity in kg is indicated on the rating plate (or in the PROGRAM TABLE).
- Page 7 Safety precautions regarding safe use of the washing machine, and if they understand the hazards of inappropriate use. Make sure children do not play with the appliance. Make sure the children do not clean the washing machine or perform any maintenance tasks without supervision.
-
Page 8: Washing Machine Description

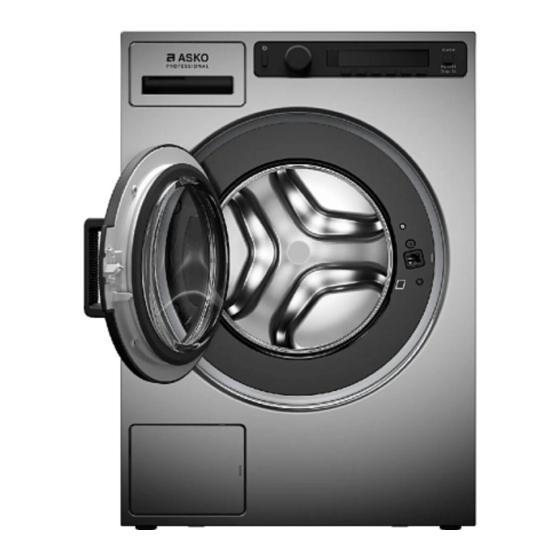

Washing machine description 1. Main switch (ON/OFF) 2. Program selector knob 3. Display unit 4. Program settings buttons 5. Button (start/pause) 6. Detergent compartment 7. QR and AUID code (on the inside of the washing machine door) 8. Rating plate with information about the washing machine (on the inside of the washing machine door) 9. -
Page 9: Detergent Compartment
Detergent compartment Prewash compartment Compartment for main wash liquid detergent. Use the foldable barrier (3). Compartment for main wash powder detergent. Do not use the foldable barrier (3). Softener / conditioner compartment Tab for detergent compartment removal... -
Page 10: Before Using For The First Time
Before using for the first time Packaging Remove all packaging. Please sort the materials in compliance with local recommendations (see chapter "DISPOSAL"). Transport protection Before using the appliance, remove the three transport bolts and plastic plugs which protect the appliance during transport. Release and remove the bolts as shown in the figures. -
Page 11: Cleaning
Before using for the first time Table continued from last page Art. No. 551188 Plastic cap (transport lock) Cleaning Disconnect the washing machine from the power mains and open the door. Clean the washing machine drum with a damp cloth and a mild detergent. In the case of a 3 phase connection of the appliance, switch off the main socket switch. -
Page 12: Installation And Connection
INFORMATION! If the appliance is installed on a plinth or a similar structure, then the appliance must be fixed to it, to avoid the risk of falling. ASKO original accessories are available for this purpose, complete with fixing instructions. Surface for positioning The most suitable surface for installation is concrete. - Page 13 Installation and connection Washing machine installation clearances Opening the washing machine door (top view)
-
Page 14: Adjusting The Feet
Stacking an ASKO dryer on top of an ASKO washing machine To stack an ASKO dryer on top of a washing machine, use the extra vacuum feet and the tipping guard (A+B), supplied in the cardboard box in the ASKO dryer drum. -
Page 15: Connection To Water Supply
Installation and connection For any further moving of the appliance, use the transport rods (the washing machine drum has to be blocked). (See chapter TRANSPORT PROTECTION.) Connection to water supply INFORMATION! The machine has to be connected to water supply by an adequately trained person. Use the water supply hose to connect the appliance. -
Page 16: Connecting To Hot/Cold Water Supply
Installation and connection Connecting to hot/cold water supply (Only available in some models) If your appliance has connections for both hot and cold water, then connect one hose to the cold water connection and the other hose to the hot water connection, as indicated on the back of the appliance: COLD = cold and HOT = hot. - Page 17 Installation and connection Drain hose can also be connected directly to the washbasin drain via a siphon. In this case, the hose, should be 600 900 mm above the floor. Internal hose diameter should be at least 18 mm. See figure. At least 18 mm...
-
Page 18: Connecting To The Power Mains
Installation and connection Connecting to the power mains ELECTRIC SHOCK! After installation, the washing machine should stand still for two hours before it is connected to the power mains. Connect the appliance to an earthed power outlet. After installation, the wall outlet should be freely accessible. -
Page 19: Coin Operation
Installation and connection Coin operation (Only available in some models) The machine is prepared for coin operation. Owner/distributor can find detailed informations in Service manual. Such installation must be carried out by a qualified professional. The coin meter shall be able to short circuit two signal lines for periods of up to 10 minutes. This will allow the user to load the appliance, choose a program and start the program after inserting the coins. -
Page 20: Tips Before Washing
Tips before washing This chapter includes several tips on how to prepare the laundry for washing. Laundry sorting Sort the laundry according to: • how soiled it is, • colour, • material. Clothing 1. Close the zips and hook-and-loop fasteners so that they do not damage the fabric. 2. -
Page 21: Dyed Cotton
Tips before washing Table continued from last page Bleaching not allowed Dry cleaning Dry cleaning with all agents Perchloroethylene R11, R113, petroleum Dry cleaning in kerosene, pure alcohol, and R113 Dry cleaning not allowed Ironing Ironing with a hot iron with a maximum temperature of 200 °C Ironing with a hot iron with a maximum temperature of 150°C Ironing with a warm iron with a maximum temperature of 110°C Ironing not allowed... -
Page 22: Wool
Tips before washing Wool These fabrics are intended for either machine or hand wash. The Wool Wash program is equally gentle or even gentler than an actual hand wash. Wool in particular is sensitive to washing and similar procedures. Viscose and synthetic fibres Materials made of viscose and some synthetic fibres are highly sensitive, and require a lot of space in order not to crease. -
Page 23: Washing Process Step By Step (1-8)
Washing process step by step (1-8) STEP 1: Sort the laundry See chapter "TIPS BEFORE WASHING". INFORMATION! Use a washing net for underwire bras. Empty the pockets. Coins, nails etc. could damage the machine and the fabric. STEP 2: Turn on the main switch. Turning on Press the on/off button. -
Page 24: Step 4: Add The Detergent And The Conditioner
Washing process step by step (1-8) STEP 4: Add the detergent and the conditioner. Recommended amount of detergent is usually specified on the detergent packaging. When washing a smaller amount of laundry, the amount of detergent used can be decreased. Observe manufacturers' recommendations regarding the type of detergent suitable for certain temperatures, load size, and water hardness. - Page 25 Washing process step by step (1-8) Contact the service department about which programs are available and how to change the pre-selected programs or. See section: SETTINGS. Choose the program by rotating the program selector knob in either direction. Confirm the program selection by pressing the button under the program.
- Page 26 Washing process step by step (1-8) Table continued from last page Programe (factory default Description program) SYNTHETIC 40 °C Program for synthetics, delicate blended fabrics and permanent press cotton. Suitable for shirts and blouses. WOOL/HAND 30°C A gentle laundry program for wool, silk and garments that should be washed by hand.
-
Page 27: Step 6: Choosing The Program Settings
Washing process step by step (1-8) Table continued from last page Programe (factory default Description program) CLEANING This program is used to clean the drum and to remove detergent residue and bacteria. The drum must be empty. PROGRAMS A - J Program slot that can be programmed for your needs. -
Page 28: Step 7: Start The Wash
Washing process step by step (1-8) STEP 7: Start the wash Close the washing machine door and press the Start /Pause button. Start (pressed briefly start/resume) Pause (short press of the button - pause) Stop (press and hold for 3 seconds stop or cancel) Remaining time Depending on the selected program, anticipated washing time will be displayed in hours and minutes. -
Page 29: Step 8: End Of Program
Washing process step by step (1-8) Choose "Stop program". The program is canceled and the water is pumped out of the machine if necessary. Only then will you be able to open the washing machine door. Use the Program selector knob to select a new program. -
Page 30: Settings
Settings Only appliance owner/distributor may change the settings! (owner/distributor should check Service manual) On display Setting Description Max. RPM no Drain --> max. rpm Setting affect all programs Drain Valve/Drain Setting of draining via valve or pump, depending on the type of appliance;... - Page 31 Settings Table continued from last page On display Setting Description Child Lock On/Off Choose between switching the Child lock On or Off. When the child lock is activated, no other function can be selected. Programmes Selected program will be shown on display •...
- Page 32 Settings Table continued from last page On display Setting Description Add clothes On/Off User can pause the program and select option "Add clothes", door will be unlocked and user can add laundry. Add Clothes function is available in Wash phase on majority of the programs.
-
Page 33: Cleaning And Maintenance
Cleaning and maintenance Cleaning the filter The washing machine has a filter that will retain smaller objects such as coins, buttons, hair etc. Before cleaning, drain the water from the washing machine using the Drain program, and disconnect the washing machine from the power mains. Open the pump filter cover using appropriate tools (emergency door opening tool is located on the back side of the dispenser). -
Page 34: Cleaning The Detergent Compartment And Door Rubber Gasket
Cleaning and maintenance Cleaning the detergent compartment and door rubber gasket Press the tab to completely remove the detergent compartment from its housing. Rinse and thoroughly clean the tray. You may also remove the cap from the plug in the conditioner compartment (A). -
Page 35: Cleaning The Appliance Exterior
Cleaning and maintenance Cleaning the appliance exterior Clean the appliance exterior and the display unit using a soft damp cotton cloth and water. Do not use solvents or abrasive cleaners that could damage the appliance (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). INFORMATION! Do not clean the washing machine with a jet of water! ELECTRIC SHOCK! - Page 36 Cleaning and maintenance Insert a screwdriver or a similar tool into the slot in the rib and carefully push it to the left. Hold the rib with the other hand and pull it towards you. Lift the drum rib. Remove any objects. Place the rib into the installation slot indicated with "F"...
-
Page 37: Errors What To Do
Errors what to do? Disturbances from the environment (e.g. the power grid) may result in various error reports (see Troubleshooting table). In such case: • Switch off the appliance, wait for 1 minute, switch the appliance back on, and repeat the washing program. - Page 38 Errors what to do? Table continued from last page Problem/error Cause What to do? • UKS* (*unbalance system) • Program time is extended due to the need updated on the stability system engaged to redistribute the laundry in the drum. display unit).
- Page 39 Errors what to do? Table continued from last page Problem/error Cause What to do? which contain ingredients • Try removing any residues with a brush. (zeolites) for water softening. These ingredients may be deposited on the laundry. • Water pressure not high •...
- Page 40 Errors what to do? Table continued from last page Problem/error Cause What to do? • Drain pump filter is • Make sure the drain pump filter is clean. Noisy (loud) drain clogged. pump • Make sure the filter housing is clean. •...
-
Page 41: Manual Opening Of Washing Machine Door
Errors what to do? Manual opening of washing machine door ELECTRIC SHOCK! Washing machine door may be opened manually if the appliance is not connected to the power mains and if the water has been pumped out of the machine. A. -
Page 42: Failure Display
Errors what to do? Failure display In case of a failure while a program is in progress, the relevant Error XX is indicated on the display unit. Press the INFO button to display the error description. Switch off the appliance and turn it back on. - Page 43 Errors what to do? Table continued from last page Error Error indication on the What to do? display unit Water level sensor error Turn the appliance OFF and then switch it again ON. Start the program again. If the error reoccurs, call service technician.
- Page 44 Errors what to do? Unevenly distributed laundry or lumps of laundry in the washing machine drum may cause problems such as vibration and noisy operation. The washing machine will sense this and activate the UKS* (*unbalance system). Smaller loads (e.g. one towel, one sweater, one bathrobe etc.) or clothes made of materials with special geometrical properties are virtually impossible to distribute evenly across the washing machine drum (slippers, large items etc.).
-
Page 45: Service
Service Before calling a service technician When you contact a service centre, please state the model (1), type (2), and serial number (3) of your washing machine. Model, type, and serial number are indicated on the rating (type) plate located on the washing machine door casing. -
Page 46: Technical Information
Technical information PRODUCT INFORMATION SHEET ACCORDING TO EU-REGULATION NO. 2019/2014 (depending on the model) Supplier’s name or trade mark: Supplier’s adress Model identifier: General product parameters: Parameter Value Parameter Value Rating capacity (kg) Dimensions in cm Height 85,0 Width 59,5 Depth 70,6 55,7... - Page 47 Technical information Table continued from last page Airborne acoustical Airborne acoustical [A/B/C/D] noise emissions in the noise emissions class spinning phase (spinning phase) (dB(A) re 1 pW) Off-mode (W) 0,48 Standby mode (W) 0,48 Delay start (W) (if Networked standby (W) applicable) (if applicable) Minimum duration of the guarantee offered by...
-
Page 48: (A) Rated Capacity
Technical information PRODUCT INFORMATION SHEET ACCORDING TO EU-REGULATION NO. 2019/2014 (depending on the model) Supplier’s name or trade mark: Supplier’s adress Model identifier: General product parameters: Parameter Value Parameter Value Rating capacity (kg) Dimensions in cm Height 85,0 Width 59,5 Depth 70,6 52,2... - Page 49 Technical information Table continued from last page Airborne acoustical Airborne acoustical [A/B/C/D] noise emissions in the noise emissions class spinning phase (spinning phase) (dB(A) re 1 pW) Off-mode (W) 0,48 Standby mode (W) 0,48 Delay start (W) (if Networked standby (W) applicable) (if applicable) Minimum duration of the guarantee offered by...
-
Page 50: Performance Data
Technical information Performance data Program Maximum load Temp. °C Eco 40-60 9 /4,5* /2 White/Colour 9 /4,5* kg Synthetics 3,5 kg PRODUCT INFORMATION SHEET According to EU-Regulation No. 2019/2014 40 °C program for testing institutes. The 40 °C option has to be set. * Half load Energy labelling European test standard... -
Page 51: Program Chart
Program chart WMC8943PC 9kg_1400_3kW Water consumption (approximately, in litres) Program Eco 40-60 1400 0,90 2:57 Heavy wash 60°C 1400 1,50 2:00 Heavy wash 90°C 1400 2,50 2:34 White/Color 20°C 1400 0,16 0:40 White/Color 40°C 1400 0,48 0:49 White/Color 60°C 1400 1,70 0:59 White/Color 60°C *... - Page 52 Program chart Table continued from last page Water consumption (approximately, in litres) Program Disinfection 60°C 1400 2,00 2:52 Disinfection 90°C 1400 3,40 3:02 Allergy Cotton 60°C 1400 1,50 2:50 Allergy Cotton 90°C 1400 3,00 3:24 Allergy Synthetic 40°C 1200 0,46 1:40 Allergy Synthetic 60°C 1200...
-
Page 53: Wmc8947Pi
Program chart WMC8947PI 9kg_1400_7kW Water consumption (approximately, in litres) Program Eco 40-60 1400 0,86 2:42 Heavy wash 60°C 1400 1,30 1:45 Heavy wash 90°C 1400 2,30 1:54 White/Color 20°C 1400 0,14 0:40 White/Color 40°C 1400 0,42 0:49 White/Color 60°C 1400 1,40 0:59 White/Color 60°C *... - Page 54 Program chart Table continued from last page Water consumption (approximately, in litres) Program Disinfection 60°C 1400 1,80 2:37 Disinfection 90°C 1400 3,20 2:24 Allergy Cotton 60°C 1400 1,30 2:35 Allergy Cotton 90°C 1400 2,80 2:47 Allergy Synthetic 40°C 1200 0,40 1:37 Allergy Synthetic 60°C 1200...
-
Page 55: Adjustment Of The Displayed Washing Time
Program chart supply, and selected options or settings. In the examples specified here, the draining is set to Normal and no additional options are selected. Maximum or nominal load applies to laundry prepared pursuant to the IEC 60456 standard. Setting possible on the program * Half Adjustment of the displayed washing time Advanced technology allows the appliance to sense the amount of laundry and add the required... -
Page 56: Removal
Removal Disposal / recycling of packaging Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. -
Page 57: Quick Guide
Quick guide Sort the laundry. Close the zippers. Empty the pockets and turn them inside out. Check the laundry care symbols. Sort the laundry based on how heavily soiled it is, by colour, and by material. Switch on the main ON/OFF switch Open the washing machine door and insert the laundry. - Page 58 Gorenje, Partizanska 12, 3320 Velenje, Slovenija • www.asko.com 820911 -a13 We reserve the right to make changes.
