Operating Instructions
Washing Machine
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and ful l your needs
for many years to come. Scandinavian design combines clean
lines, everyday functionality and high quality. These are key
characteristics of all our products and the reason they are
greatly appreciated throughout the world.
To get the most from your new machine, we recommend that
you read the operating instructions before using the machine.
The operating instructions also include information on how
you can help protect the environment.

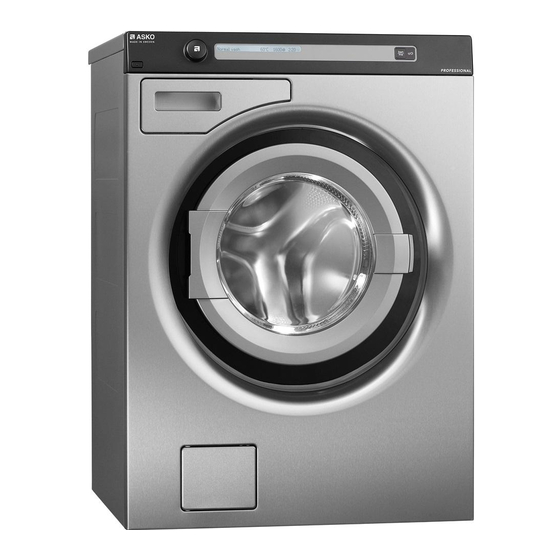

ASKO Professional WMC64P

Advertisement

Table of Contents
loading

Related Manuals for Asko WMC64P

Summary of Contents for Asko WMC64P

  • Page 1 Operating Instructions Washing Machine Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and ful l your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.

  • Page 2: Table Of Contents

    Contents Before using your machine for Settings the first time You can change the following Transport protection settings: Packing material Door opening Washer door Language Language selection Temperature Checking water hardness Child-safe Safety instructions Care and cleaning General Cleaning the trap and the drainage pump Installation Cleaning the detergent...

  • Page 3: Before Using Your Machine For The First Time

    Before using your machine for the first time Transport protection Remove any transport protection devices before installing the machine. See the "Transport protection" chapter. Packing material Sort waste materials in accordance with local guidelines. Washer door • The washer door will not open until the machine is connected to the electricity supply.

  • Page 4: Safety Instructions

    • Installation should be carried out by qualified fall below freezing, do as follows: ASKO technicians. • Empty the filter and the drainage pump. See • The machine should only be used for washing the "Care and cleaning"...

  • Page 5: Child Safety

    Child safety Keep an eye on children! Child safety catch • Always close the door and start the programme Do as follows to open the settings menu: immediately once you have added detergent. 1. Turn off the machine using the main power •...

  • Page 6: Description Of The Washing Machine

    Description of the washing machine 1. Main power switch 2. Detergent compartment 3. Program panel 4. Serial number plate (on inside of washer door) 5. Drainage pump cover 6. Drainage pump (behind cover) 7. Washer door Detergent compartment 1. Pre-wash 2.

  • Page 7: Advice And Tips Before Washing

    Advice and tips before washing Here are some tips that may help you before Coloured cotton washing. Coloured cotton items with the washing instruction Sorting your laundry 60 °C should be washed at 60 °C for the first time in order to remove any excess dye. If you do not Sort items according to: do so, there is a risk that the colour will run.
  • Page 8 Advice and tips before washing NOTE! Due to environmental concerns, we discourage the use of strong chemicals. When using agents for bleaching or stain removal, there is a risk of rust (corrosion) and discolouration of the machine.

  • Page 9: Washing

    Washing Sort your laundry. NOTE! See the "Advice and Tips before washing" Detergent overdosing does not give better section. washing results; it merely causes a greater Place underwired bras in a laundry net. impact on the environment; can also hinder the wash performance.

  • Page 10: Select The Program

    Washing Select the program Spin Program name Start/Stop Temperature Time remaining Door opening The display shows the program name, the water White, 90 °C temperature and the spin speed. Program for normal to heavily soiled laundry. The washing machine has a number of Follow the washing instructions for each garment.
  • Page 11 Washing Wool/hand wash, 30 °C Disinfection, 40 °C A gentle laundry program for wool, silk and Program where the temperature reached during garments that should be washed by hand. This the main wash is maintained for 20 minutes. program has a short spin. Disinfection at this temperature requires special detergent.
  • Page 12 Washing Program chart Water consump- Energy consump- Program time Pre- (approx. hrs and Number Spin Speed Max. load tion tion Program wash Temp. °C of Rinses ( kg) (approx. liter) (approx. kWh) min.) Normal Wash, 60 °C 1400 1,20 3:05 Normal wash, 40 °C 1400 0,70...

  • Page 13: Close The Washer Door And Press The Start/Stop Button

    Washing Close the washer door and Once the program has finished press the Start/Stop button Once a program has finished, "Done" appears on the display. Time remaining The washer door opens automatically once the 'Program started' is shown on the display. program has finished.

  • Page 14: Settings

    Settings You can change the following settings: • Language • Child-safe • Door opening • Temperature °C/°F Do as follows to open the settings menu: 1. Turn off the machine using the main power switch. 2. Press and hold the Door opening button and then press the main power switch. Then press the Door opening button 5 times within 10 seconds.

  • Page 15: Care And Cleaning

    Care and cleaning Cleaning the trap and the drainage Cleaning the detergent pump compartment The washing machine has a trap where smaller NOTE! objects such as coins and hairpins can collect. Do not run the detergent compartment through To clean the trap and the drainage pump, do as a dishwasher! follows: 1.

  • Page 16: Cleaning The Inside Of The Machine To Avoid Unpleasant Smells

    Care and cleaning Cleaning the inside of the machine to avoid unpleasant smells Modern detergents often allow clothes to be washed at low temperatures. This means that small deposits can build up in the machine. These, in turn, may lead to unpleasant smells developing; especially if constantly using cold wash.

  • Page 17: Rinse Holes Under The Agitator

    Care and cleaning Rinse holes under the agitator If you have hard water If you suspect that objects such as nails or paper If you live in an area with hard water (high clips may have fallen into the wash drum, you limescale content), a greyish-white coating may should check the space under the agitator.

  • Page 18: Troubleshooting

    Troubleshooting The washer door will not open If in the future the washer door does not open when the wash program has finished, call the 1. Check that the main power switch is on. service division. 2. Is there power? Check your home’s fuses (circuit breakers).

  • Page 19: Error Messages

    Troubleshooting Water inlet fault Error messages Check: If an error occurs during the program a message • that the tap on the water pipe is open. is shown on the display. To exit the message after • that the filter in the machine’s water inlet is not taking measures, turn the machine off and then blocked.

  • Page 20: Technical Information

    Technical information Technical data Height: 850 mm Width: 595 mm Depth: 585 mm Weight: 73 kg Cylinder volume: 60 l Max. washing capacity: 7 kg Spin speed (rpm): 400-1400 Rated power: See type plate. Heater output: See type plate. Water pressure: 0,1-1 MPa 1-10 kp/cm 10-100 N/cm...
  • Page 21 Technical information Loading procedure for standard test: When loading the machine for testing according to AS/NZS 2040:2005 it shall be loaded according to the table below. Garments are placed on top of each other in layers and the soil swatches should be placed inside the wash drum in the direction shown in the table, seen from above.

  • Page 22: Transport Protection

    Transport protection Remove the three transport bolts and the plastic plugs for locking the machine for transport before using the machine. NOTE! If the machine is to be transported, the bolts and plastic plugs for locking the machine during transport must be installed to prevent damage to the machine through shaking.

  • Page 23: Installation

    Installation Positioning the washing machine The washing machine can be installed as a built-in or freestanding unit. Position the machine so that the electrical plug is easily accessible. A. Built-in The washing machine can be installed under a counter top with a working height of 850–900 mm. Leave a 5 mm space around the entire machine, including between the rear edge of the top cover and the wall behind it.

  • Page 24: Electrical Installation

    Installation internal diameter of the hole should be at least 18 Electrical installation If the machine is delivered from the factory with • Cut the nipple a plug attached, it can be connected to an earthed • Remove burrs from the hole. wall socket.

  • Page 25: Service

    Service Before contacting the service Model Number division Serial Number Before you contact the service division, make sure that you know the model number (located on the front panel), and serial number. The model designation can be found on the panel. The type designation and serial number can be found on the type plate on the inside of the washer door.
  • Page 26 Your notes...
  • Page 27 Your notes...

  • Page 28: Quick Guide

    Quick guide Washing fabric softener into the compartment on 1. Empty pockets and refasten zips. the right with the -symbol. 2. Read the item’s laundry label. 2. If you use liquid detergent, follow the 3. Sorting laundry. detergent manufacturer’s recommendations. NOTE! Select the program Place underwired bras in a laundry net.
