π

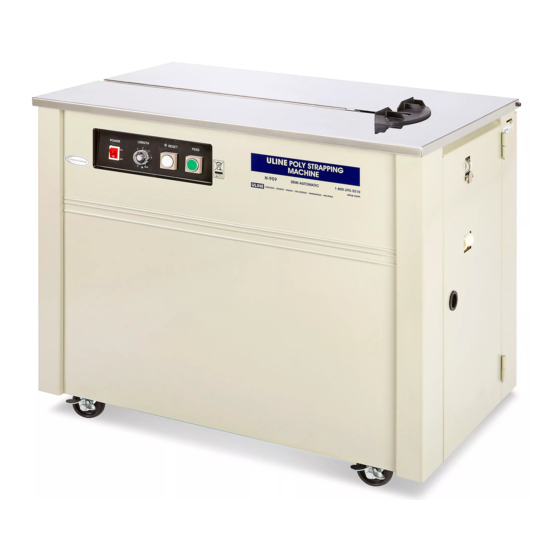

H-959
POLYPROPYLENE
STRAPPING MACHINE
OPERATING ISSUE
Strap jams while cutting and sealing.
Strapping not heat sealing.
PAGE 1 OF 9
1-800-295-5510
uline.com
TROUBLESHOOTING
RECOMMENDATIONS
Check if strap can be pulled out of the right side door. (See Figure 1)
1. Turn power OFF and open top cover. Check if strap is jammed
between press bar and front bar. (See Figure 2)
2. If strap is jammed between press bar and front bar:
a. Slide LS1 plate towards rear of machine until the plate and
separator come off.
b. Lift heater off the two screws.

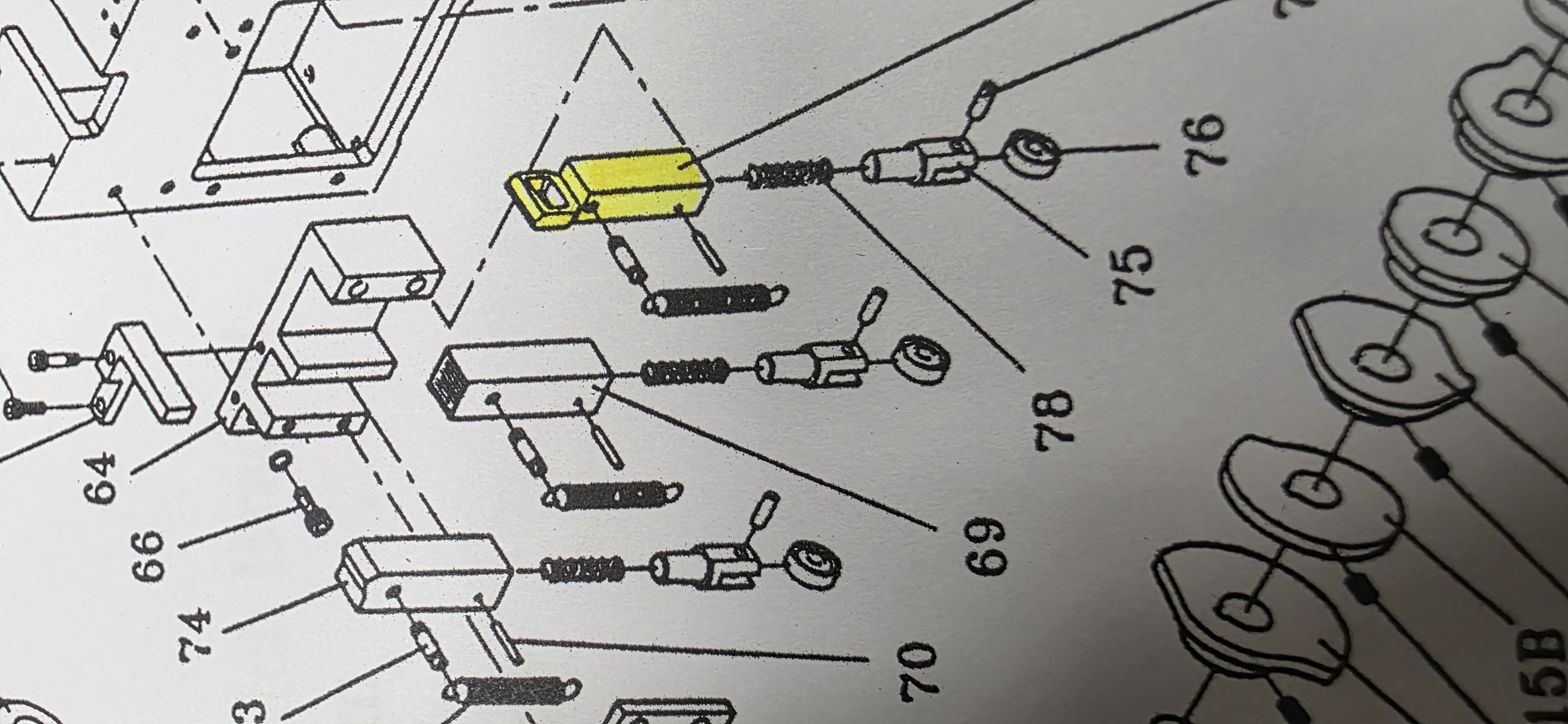

c. Lift springs from press bar, front bar and rear bar post. Lift out
bars.
d. Wipe down bars and square holes.
e. Lubricate bars with light lubrication, such as WD-40®, and
reinsert bars.
f. Reattach springs to post. Put heater, LS1 plate and separator
back on, ensuring LS1 arm is put in separator slot.
g. Ensure the groove on the bottom right side of the LS1 plate is
positioned so the tip of the front bar goes into the groove when it
is raised up. (See Figure 3)
1. Make sure the heater blade surface is clean. Dirty blades
prevent strapping from sealing properly.
2. Use a Scotch-Brite™ pad to clean strap residue from top and
bottom of heater blade. Lift blade assembly to unhook from two
set screws to clean bottom of blade. (See Figure 4)
NOTE: Do not loosen set screws.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
POW ER
LEN GTH
RES ET
3
2
FEE D
ON
4
5
OFF
0
M
MAX
0617 TH-959
Advertisement
Related Manuals for U-Line H-959
Summary of Contents for U-Line H-959
- Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. π H-959 1-800-295-5510 uline.com POLYPROPYLENE STRAPPING MACHINE POW ER LEN GTH RES ET FEE D TROUBLESHOOTING OPERATING ISSUE RECOMMENDATIONS Check if strap can be pulled out of the right side door. (See Figure 1) Strap jams while cutting and sealing.
- Page 2 TROUBLESHOOTING CONTINUED OPERATING ISSUE RECOMMENDATIONS Strap does not feed past the in-feed guide. 1. Ensure tension is not turned down too low. 2. Ensure strap is loaded properly and is on top of brake arm roller. 3. Ensure length knob is not turned all the way down. 4.
- Page 3 FIGURES Figure 1 Figure 2 Press Front Bar Strap Outlet Figure 3 Figure 3 Figure 4 Figure 5 Clean LS1 Plate Blade Front Bar Set Screws Figure 6 Socket Head Bolt Figure 7 Spring Pin Shaft Holder Set Screw Lower Holder Pulley Lower...
- Page 4 π H-959 800-295-5510 uline.mx MÁQUINA PARA FLEJE DE POW ER LEN GTH RES ET POLIPROPILENO FEE D SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO RECOMENDACIONES Compruebe si se puede extraer el fleje por la puerta derecha. El fleje se atasca al cortar y sellar.
- Page 5 CONTINUACIÓN DE SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO RECOMENDACIONES 1. Asegúrese de que la superficie de la hoja esté limpia. Las hojas El fleje no queda sellado. sucias evitan que el fleje se selle correctamente. 2. Use un paño Scotch-Brite™ para limpiar los restos de fleje de la parte superior e inferior de la hoja de la resistencia.
- Page 6 DIAGRAMAS Diagrama 1 Diagrama 2 Barra Presión Barra Delantera Salida del Fleje Figure 3 Diagrama 3 Diagrama 4 Diagrama 5 Hoja Placa LS1 Limpia Barra Delantera Tornillos de Ajuste Diagrama 6 Diagrama 7 Pernos de Cabeza de Dado Perno con Resorte Soporte del Eje Tornillo de ajuste Perno...
- Page 7 π H-959 1-800-295-5510 uline.com CERCLEUSE POUR FEUILLARD EN POW ER LEN GTH RES ET POLYPROPYLÈNE FEE D DÉPANNAGE PROBLÈME RECOMMANDATIONS Vérifiez si le feuillard peut être retiré de la porte latérale droite. Le feuillard se coince au moment de (Voir Figure 1) couper et de sceller.
- Page 8 DÉPANNAGE SUITE PROBLÈME RECOMMANDATIONS 1. Assurez-vous que la surface de la lame de l'élément chauffant Le thermoscellage du feuillard ne est propre. Le feuillard ne scellera pas correctement si les lames s'effectue pas. sont sales. 2. Utilisez un tampon Scotch-Brite pour nettoyer les résidus de feuillard dans les parties inférieure et supérieure de la lame de l'élément chauffant.
- Page 9 FIGURES Figure 1 Figure 2 Barre de pression Barre avant Sortie du feuillard Figure 3 Figure 3 Figure 4 Figure 5 Lame Plaque LS1 propre Barre avant Vis de réglage Figure 6 Boulon à tête creuse Figure 7 Tige à ressort Support d'arbre Vis de réglage Goupille...
