Loading Media

Installing the Media Roll

Note: The Media Guides must be adjusted to match the width of the media you are using,
(see Media Guide Adjustment). Once the Media Guides are set for the width of the media
being used it is no longer necessary to perform this adjustment.
Note:
It is important that the Windows Printer Driver 'Stock' setting matches the size of the label you
Windows Driver
are using. See the

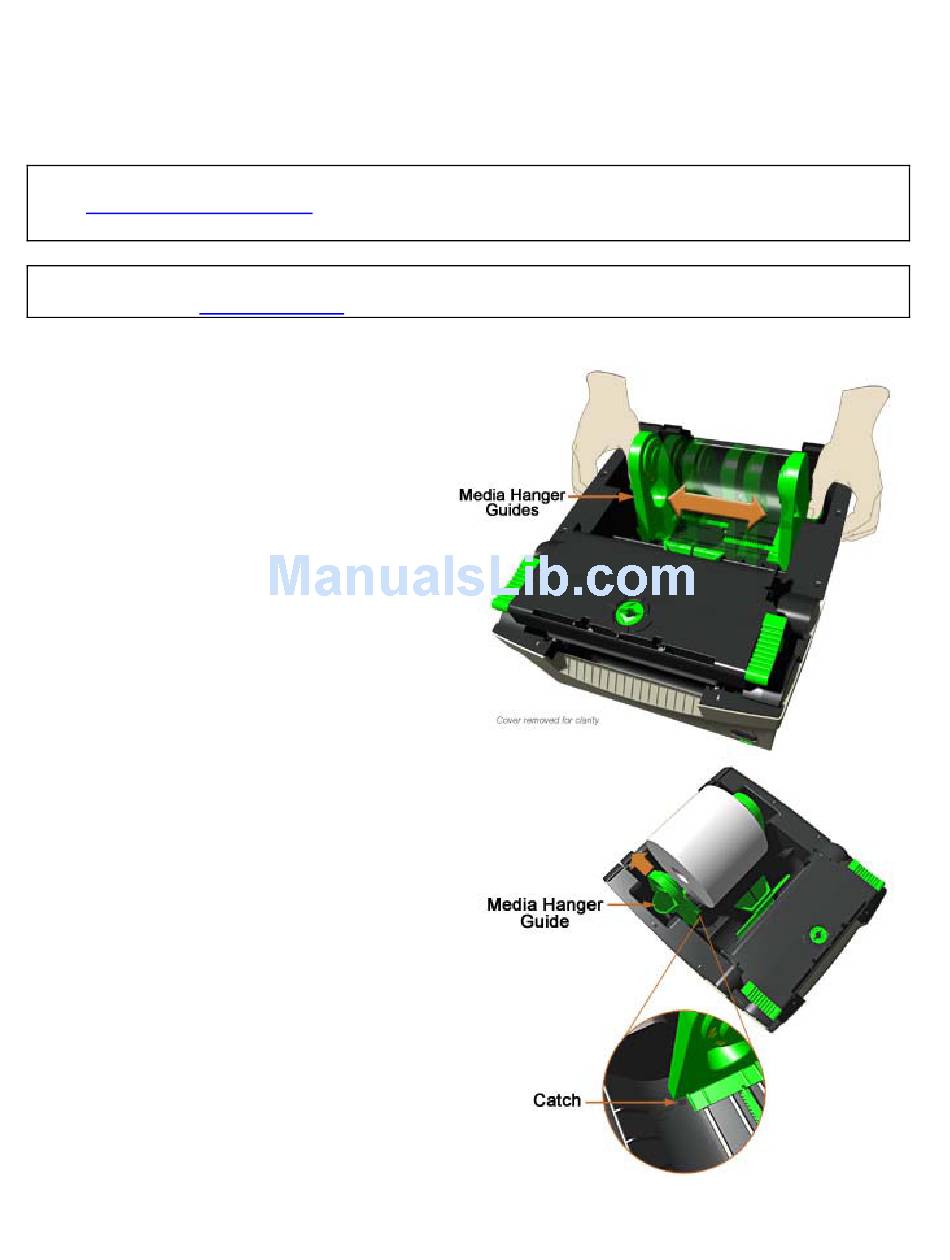

1. Slide the Media Hanger Guides
outwards until they lock in place.
2. Insert the roll of Media as shown.
Gently push the left Media Hanger
Guide toward the rear of the printer
so that it releases from the Catch.
The Guides will then retract and
grasp the media roll.
section.
10
