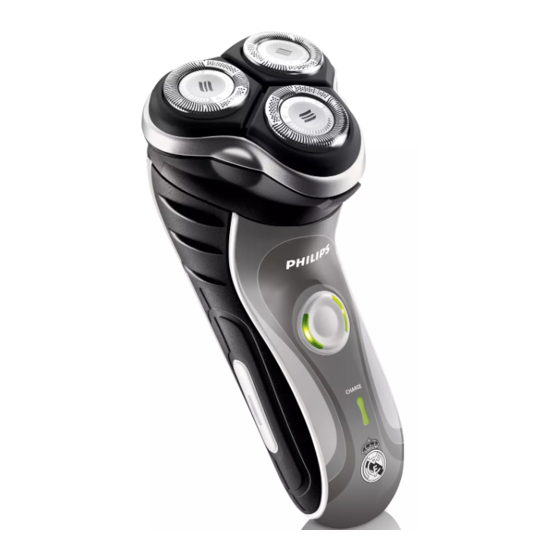

Philips HQ7142 Service Manual

Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
General:
- Mains/rechargeable operation
- World-wide automatic voltage selection
- Electronic on/off switch
- Washable
Safety information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Consumer Lifestyle
08/02
TECHNICAL INFORMATION
- Voltage
- Motor voltage
- Shaving heads
- SAP coding
DISASSEMBLY- AND RE-ASSEMBLY ADVICE
Disassembly:
- Remove shaving unit, to prevent damaging during
repairing.
- Remove the 2 screws (A) out of the hairchamber.
- Remove the hairchamber from the body.
- Remove the 2 screws (B) on the backside of the shaver.
- Remove the cover.
- Remove the side grips.
- Remove the housing by bending the hooks with a
screwdriver.
- Take out the basic body.
REPAIR INSTRUCTION
- No specific issues
OPTIONAL (accessories)
- Car cord : 4222 036 08920
- Pouch
Printed in the Netherlands
: 100 - 240 Volt / 50 - 60 Hz
: 1,2 Volt
: HQ8 - 4222 036 05820
: HQ7142
: 4222 036 14160
© Copyright reserved
Shaver
HQ7142
Subject to modification
