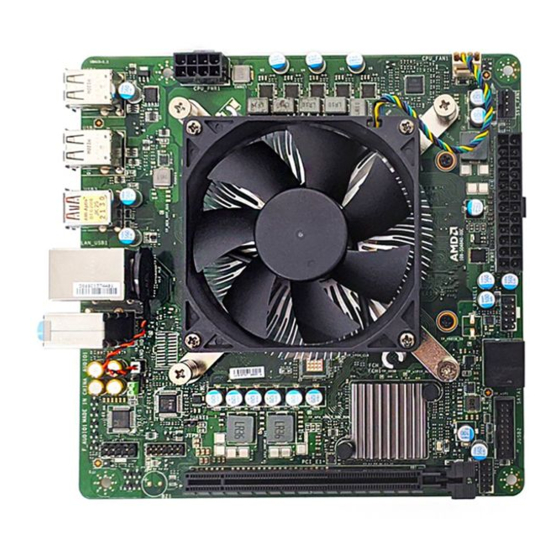

- Page 1 4700S 8-CORE D E S K T O P K I T U S E R M A N U A L This user guide contains the information you need when installing and configuring the AMD 4700S Desktop Kit.
-
Page 2: Table Of Contents
CONTENTS Additional Information ..................3 Package Contents .....................3 Specifications ....................4 Safety Information ...................4 Connectors Quick Guide Overview of Components ........6-11 Bios and Drivers ....................12 Warranty Information..................13... -
Page 3: Additional Information
Refer to the following sources for additional information and for product and software updates: • AMD website: www.amd.com/desktopkit The AMD website provides updated information on AMD hardware and software products. • Optional documentation: Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. -
Page 4: Specifications
SPECIFICATIONS AMD 4700S 8-Core Processor “Zen 2” architecture Memory 8GB or 16GB GDDR6 AMD A77E Fusion Controller Hub Super I/O ITE IT8772E Asix AX88179 Gigabit Ethernet controller Audio codec* Realtek ALC897 BIOS ROM 16MB Expansion slot 1x PCIe x16 slot, supports x4 signal... -
Page 5: Safety Information
• Your Desktop Kit should only be used in environments with ambient • If the power supply is broken, do not try to fix it by yourself. Contact temperatures between 0°C and 40°C. a qualified service technician or your retailer. AMD 4700S 8-CORE DESKTOP KIT USER MANUAL... -
Page 6: Connectors Quick Guide Overview Of Components
· 1x USB3. JSPI · 1x 4-pin Internal JTPM PCI_E connectors · 1x 4-pin · 1x Front · 1x Syste · 1x Clear Normal Clear CMOS · 1x Dubug · 4x USB2 AMD 4700S 8-CORE DESKTOP KIT USER MANUAL · 3x USB3... - Page 7 LPC_CLK0 3VSB JSPI A_RST# VCC3 FCH_PWRGD No Pin A_RST# VCC3 LAD0 SERIRQ FCH_SPI_WP#R SPI_HOLD# LAD0 SERIRQ G52-XXXXXXX LAD1 VCC5 LAD1 VCC5 JTPM JTPM LAD2 No Pin LAD2 No Pin AMD 4700S 8-CORE DESKTOP KIT USER MANUAL LAD3 Ground LAD3 Ground...
- Page 8 The color of the jack refers to the function of the connector. – PINK- Mic-In: Used as a connector for a microphone. – GREEN- Line Out: Used as a connector for speakers or headphone. – BLUE- Line-In: Used for connecting external audio outputting devices. AMD 4700S 8-CORE DESKTOP KIT USER MANUAL...
- Page 9 • Please make sure there are no loose metal components on the motherboard or within the computer case that may cause a short circuit of the motherboard. I/O Ports AMD 4700S 8-CORE DESKTOP KIT USER MANUAL...
- Page 10 Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard. AMD 4700S 8-CORE DESKTOP KIT USER MANUAL...
- Page 11 2. Push the graphics card into its expansion slot. Please consult your graphics card’s manual for further instructions regarding driver installation or other special settings. PCIe® x16 Expansion Slot AMD 4700S 8-CORE DESKTOP KIT USER MANUAL...
-
Page 12: Bios And Drivers
BIOS AND DRIVERS After you install the operating system you will need to install the latest drivers to maximize the performance of the new AMD 4700S Desktop Kit-based computer you just built. Drivers allow you to utilize the Desktop Kit more efficiently and to take advantage of any special features AMD provides. -
Page 13: Warranty Information
(Do not send the product to this address.) If the AMD Desktop Kit fails to meet the above warranties during the Warranty Term, AMD, at its sole option, will: (1) repair the AMD Desktop Kit by means of hardware and/ or software;... - Page 14 The information contained herein is for informational purposes only and is subject to change without notice.
