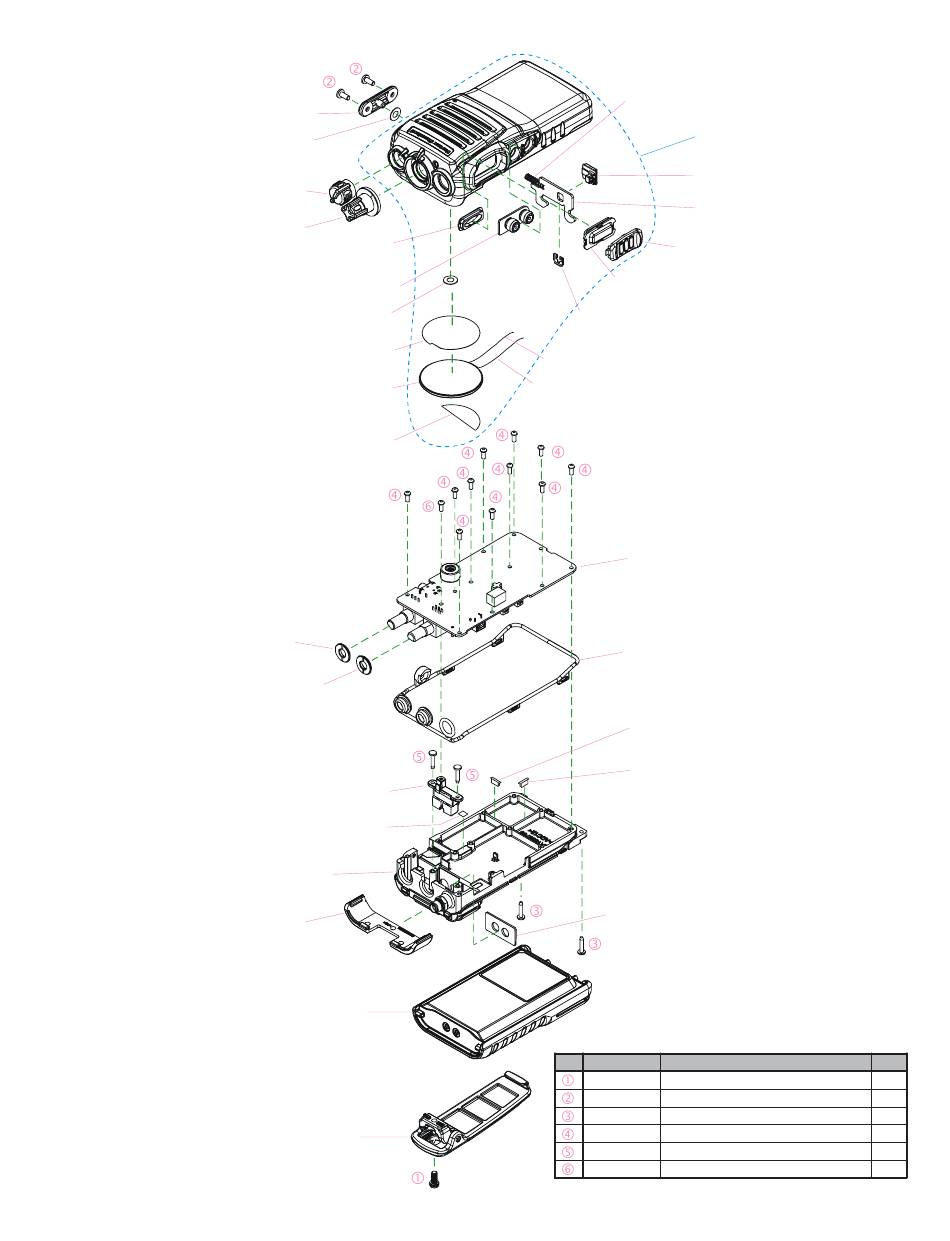

Exploded View & Miscellaneous Parts - Vertex Standard VX-230 Service Manual

RA0173500
CAP (MIC/SP)
RA1058900
O RING
RA090600C
KNOB(VOL)
RA091760B
KNOB ASSY(CH)
RA1041900
FRAME(PTT)
RA1041800
RUBBER(SIDE)
RA0187600
SHEET
RA0557900
SP NET
M4090192
SPEAKER
(14-ohm/1W)
RA1085300
TAPE(SP)
RA090590A
NUT
RA090590A
NUT
RA103910A
TERMINAL ASSY
RA037690B
SHEET
CP9379001
REAR CASE ASSY
RA103880A
CASE COVER(REAR)
BATTERY PACK
CP9381001
BELT CLIP ASSY
Exploded View & Miscellaneous Parts
RA1096000
COIL SPRING
RA1041700
RUBBER(PTT)
RA1042100
LOCK PLATE
T9318321
WIRE ASSY (YEL 80)
T9318322
WIRE ASSY(BLK 80)
MAIN Unit
RA1038900
RUBBER PACKING
RA0248200
GROUND PLATE
RA0248200
GROUND PLATE
RA1039000
PACKING PAD(BATT-C)
REF VXSTD P/N DESCRIPTION
U02308020 SEMS SCREW SM3X8SUS
U20206007 BINDING HEAD SCREW M2.6X6B
U24110002 BIND HEAD TAPTITE-B M2X10NI
U44105002 PAN HEAD TAPTITE-B M2X5NI
U24106002 BIND HEAD TAPTITE-B M2X6NI
U07230302 PAN HEAD SCREW M2X3NI #3
Non-designated parts are available only as part of a designated assembly.
CP9380001
FRONT CASE ASSY
RA103980A
RELEASE KNOB(BATT)
RA0905200
LATCH PLATE
RA090490B
COVER(PTT)
QTY.
1
2
2
11
2
1
3
