• Replace the luminaire over the wall plate, ensuring the
gasket is in place, and tighten the two nuts hand tight,
to secure the fitting.

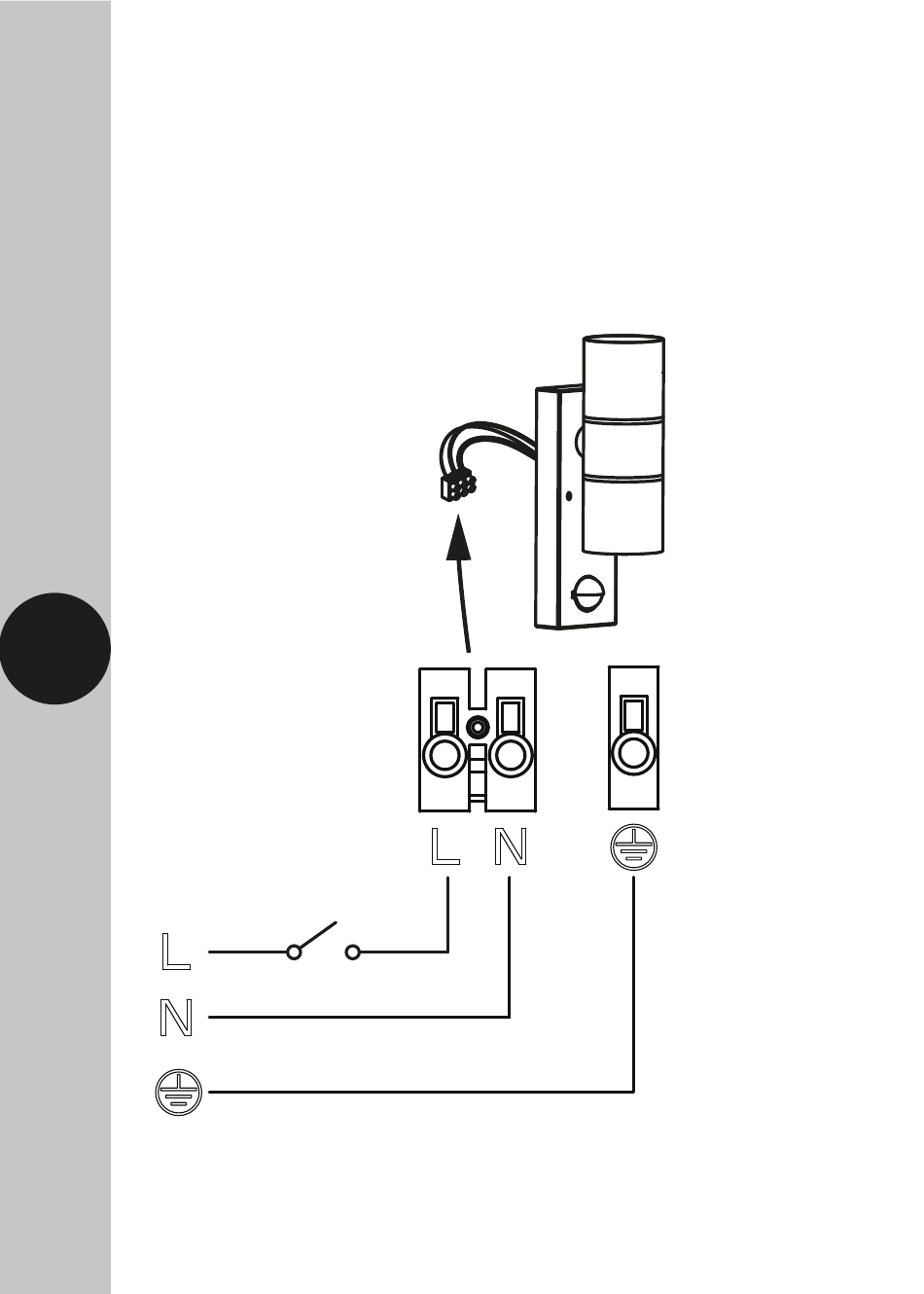

6.Connection Diagram

• Connect the 230V AC 50Hz mains supply cable as follows;
5
Note that the earth terminal is attached directly to the fitting.
This is to ground the metalic exterior of the luminaire.
Isolation
Switch
Brown or Red
Blue or Black
