• PIR Detection Range:
• Dectection Angle:
• Time ON Adjustment:
• (LUX) level adjustment:
• Manual Override:
• Construction:
• Dimensions (H x W x D):
4. Selecting a location
• The PIR has a number of detection zones at various horizontal
and vertical angles as shown below.
2

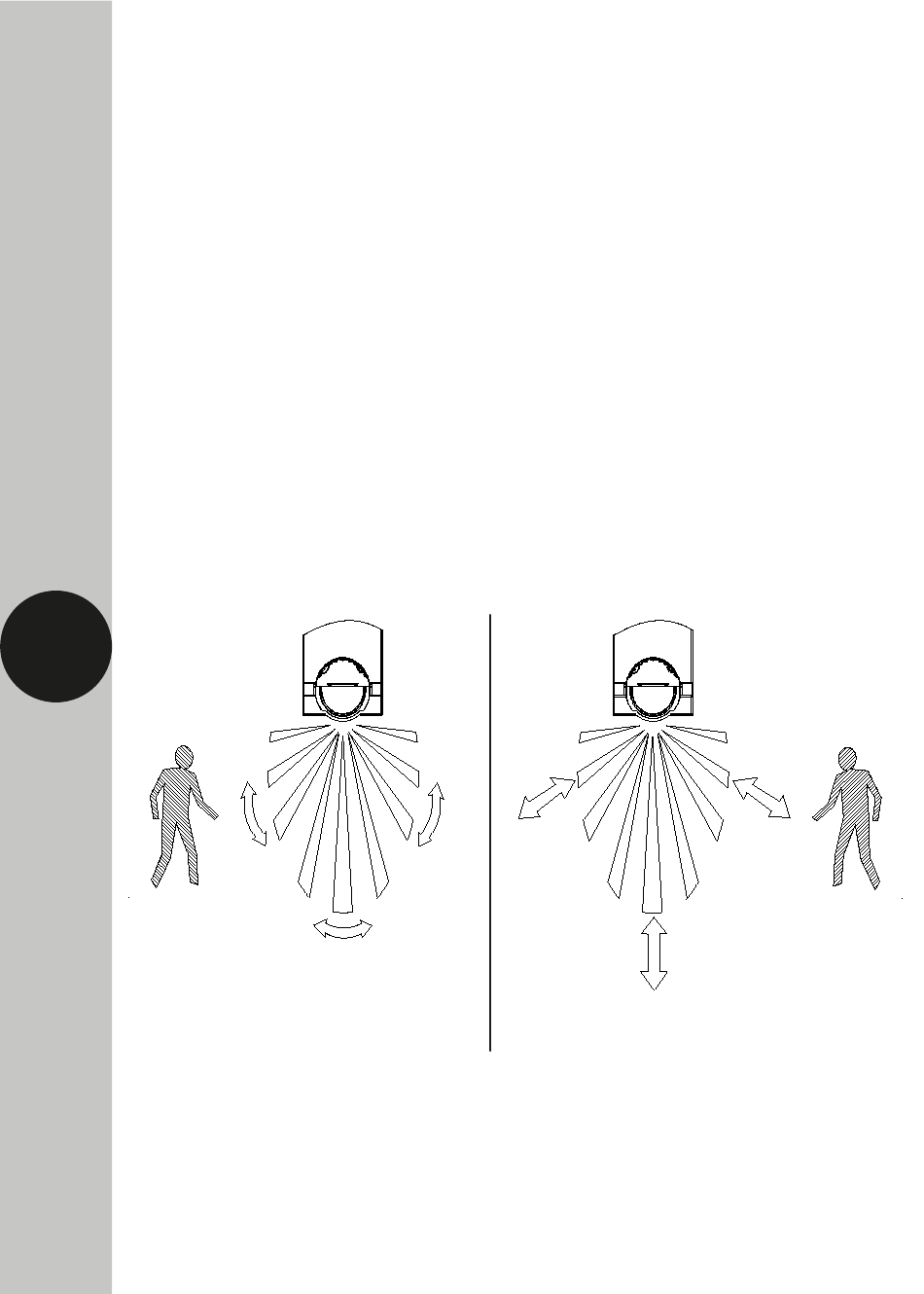

Effective Approach Path
• A moving human body or object needs to cross one of these
zones to activate the sensor. The optimum height for this is
between 1.5m - 2m mouting height. Careful positioning of
the luminaire is required to ensure the best performance from
the PIR and the appointed approach path.
(ACROSS)
4 - 7m at a 2m
mounting height
(adjustable)
90˚ (Fixed)
10 seconds - 5 minutes
10 - 2000
Yes
Stainless steel
221mm x 60mm x 100mm
Ineffective Approach Path
(TOWARDS)
