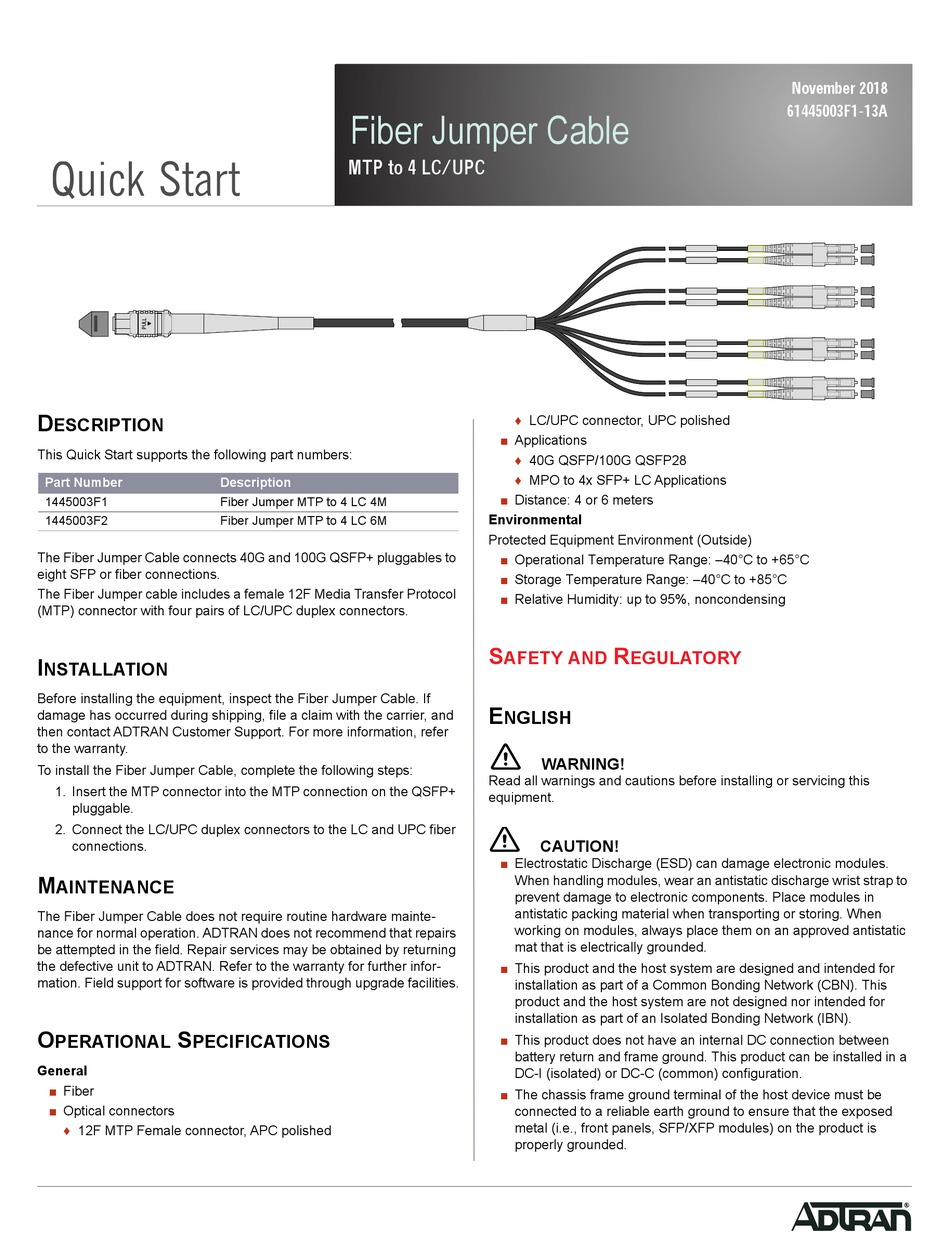

ADTRAN 1445003F1 Quick Start

Quick Start
D
ESCRIPTION
This Quick Start supports the following part numbers:
Part Number
1445003F1
1445003F2
The Fiber Jumper Cable connects 40G and 100G QSFP+ pluggables to
eight SFP or fiber connections.
The Fiber Jumper cable includes a female 12F Media Transfer Protocol
(MTP) connector with four pairs of LC/UPC duplex connectors.
I
NSTALLATION
Before installing the equipment, inspect the Fiber Jumper Cable. If
damage has occurred during shipping, file a claim with the carrier, and
then contact ADTRAN Customer Support. For more information, refer
to the warranty.
To install the Fiber Jumper Cable, complete the following steps:
1. Insert the MTP connector into the MTP connection on the QSFP+
pluggable.
2. Connect the LC/UPC duplex connectors to the LC and UPC fiber
connections.
M
AINTENANCE
The Fiber Jumper Cable does not require routine hardware mainte-
nance for normal operation. ADTRAN does not recommend that repairs
be attempted in the field. Repair services may be obtained by returning
the defective unit to ADTRAN. Refer to the warranty for further infor-
mation. Field support for software is provided through upgrade facilities.
O S
PERATIONAL PECIFICATIONS
General
■ Fiber
■
Optical connectors
♦
12F MTP Female connector, APC polished
Fiber Jumper Cable
MTP to 4 LC/UPC
Description
Fiber Jumper MTP to 4 LC 4M
Fiber Jumper MTP to 4 LC 6M
♦
LC/UPC connector, UPC polished
■ Applications
♦ 40G QSFP/100G QSFP28
♦ MPO to 4x SFP+ LC Applications
■ Distance: 4 or 6 meters
Environmental
Protected Equipment Environment (Outside)
■ Operational Temperature Range: –40°C to +65°C
■
Storage Temperature Range: –40°C to +85°C
■
Relative Humidity: up to 95%, noncondensing
S R
AFETY AND EGULATORY
E
NGLISH
f
WARNING!
Read all warnings and cautions before installing or servicing this
equipment.
f
CAUTION!
■
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist strap to
prevent damage to electronic components. Place modules in
antistatic packing material when transporting or storing. When
working on modules, always place them on an approved antistatic
mat that is electrically grounded.
■ This product and the host system are designed and intended for
installation as part of a Common Bonding Network (CBN). This
product and the host system are not designed nor intended for
installation as part of an Isolated Bonding Network (IBN).
■ This product does not have an internal DC connection between
battery return and frame ground. This product can be installed in a
DC-I (isolated) or DC-C (common) configuration.
■
The chassis frame ground terminal of the host device must be
connected to a reliable earth ground to ensure that the exposed
metal (i.e., front panels, SFP/XFP modules) on the product is
properly grounded.
November 2018
61445003F1-13A
