ADTRAN BVL3ARLD Series Quick Start Manual

SFP+, 11.3 Gbps, 1550 nm, SMF, 80 km
CLEI: BVL3ARLD_ _
Product P/N: 1442480F1
Documentation for ADTRAN Access & Aggregation products
is available for viewing and download directly from the
ADTRAN Support Community website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including
customized training and courses taught at our facilities or at
customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION

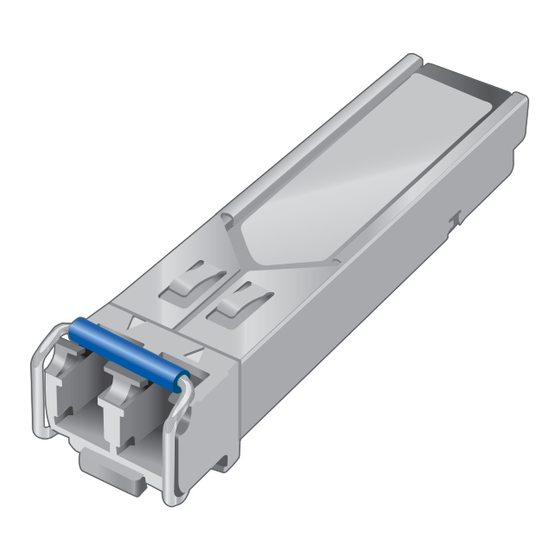

The SFP+, 11.3 Gbps, 1550 nm, SMF, 80 km optical transceiver is a
fully duplex serial electric, serial optical device with both transmit
and receive functions contained in a single module. It provides a
high speed serial link at a rate of 11.3 Gbps. When installed into
an appropriate host module, the SFP+ provides an 11.3 Gbps
interface to the supporting system.
The transmit side of the SFP+ converts serial NRZ electrical data
at 11.3 Gbps line rate to a standard compliant optical signal. The
receive side of the SFP+ converts the incoming DC balanced serial
NRZ optical data at 11.3 Gbps line rate into serial electrical data.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the SFP+:
■ 1550 nm optical signals for up to 80 km reach
■ Low power consumption (<1.5 W max)
-12
■ Bit error rate (<1x10 )
■ Excellent EMI performance
!
CAUTION
Due to compliance certification requirements, only SFP+s
supplied by ADTRAN are to be used with the host module.
ADTRAN cannot certify system integrity with other SFP+
modules.
Small Form-factor Pluggable
The following related online documents and resources provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix (online tool: http://www.adtran.com/sfp)
Specifications
Optical
Environmental
I
NSTALLATION
Before installing the equipment, inspect the SFP+. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty.
To install the SFP+ into an appropriate module, complete the
following steps:
NOTE
Do not remove the protective end cap from the SFP+ until the
fiber optic cable is ready to be connected.
NOTE
The latch on the SFP+ is for removal only. When removing the
SFP+, rotate the latch away from the SFP+, the SFP+ should easily
slide out of the cage.
■ 1550 nm optical signals for up to 80 km reach
■ Data rate: 9.95 to 11.3 Gbps
■ Optical transmit level: 0 to +4.0 dBm
■ Optical receive level sensitivity: –24 dBm
■ Optical Receiver Overload: –7 dBm
■ Path-penalty: 3 dB
■ Optical Budget: 21 dB
■ Max Span attenuation: 20 dB
■ Optical distance: 80 km maximum
■ Optical connectors: LC
■ Protected Equipment Severe Environment (Outside):
♦ Operational temperature range: –40°C to +70°C
● Case temperature hardened range: –40°C to +85°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity 5 to 90%
1. Insert the SFP+ into the SFP+ cage on the module. Ensuring
that the latch handle on the SFP+ is facing upward, slide the
SFP+ all the way into the SFP+ cage until there is an audible
"click".
jobAid
Issue Date: February 2016
Document P/N: 61442480F1-22A
1
