ADTRAN BVL3AH0D Series Quick Start Manual

9.95 - 11.3G, Single-Mode, 10 km, SFP+
CLEI: BVL3AH0D_ _
Product P/N: 1442410G1
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The Small Form-factor Pluggable
(SFP+) 9.95 - 11.3G, Single-Mode,10
km optical transceiver is a fully
duplex serial electric, serial optical
device with both transmit and
receive functions contained in a
single module that provides a high
speed serial link of up to 11.3 Gbs.
Installed into an appropriate host module, the SFP+ provides a
11.3 Gigabit interface to the supporting system.
The transmit side of the SFP+ converts serial NRZ electrical data
at the 11.3 Gbps line rate to a standard compliant optical signal.
The receive side of the SFP+ converts the incoming DC balanced
serial NRZ optical data at the 11.3 Gbps line rate into serial
electrical data.
The following features are supported on the SFP+:
■ 1310 nm optical signals for up to 10 km reach
■ Case temperature hardened range from –40°C to 85°C
■ Low power consumption (<1 W max)
■ Bit error rate (<1x10 -12 )
■ Excellent EMI performance
!
CAUTION
Due to compliance certification requirements, use only SFP+s
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other SFP+s.
Operational Specifications
■ Optical Specifications:
♦ 1310 nm optical signals for up to 10 km reach
♦ Data rate: 9.95 to 11.3 Gbps
♦ Optical transmit level: –8.2 to +0.5 dBm
♦ Optical receive level sensitivity: –12.6 dBm (+0.5)
♦ Optical distance: 10 km maximum
♦ Optical connectors: LC
■ Extended Environmental Support:
♦ Operational temperature range: –40°C to +85°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity to 85%, noncondensing

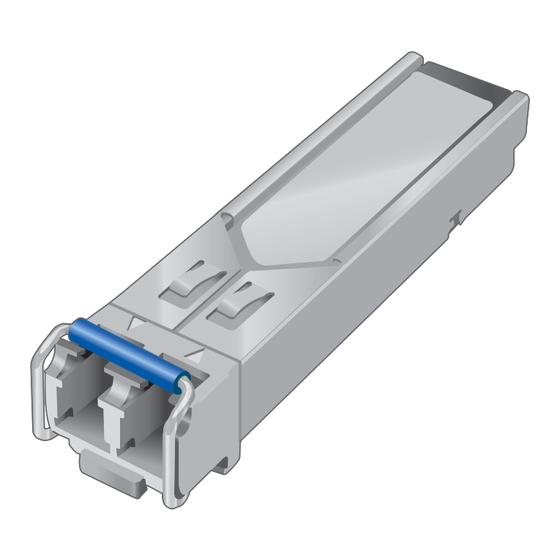

Small Form-Factor Pluggable
The following related online documents and resources provide additional information for this
product:
SFP/XFP/SFP+ Compatibility Matrix (Online Tool: www.adtran.com/SFP)
I
NSTALLATION
Before installing the equipment, inspect the SFP+. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty.
Installation Guidelines
The following are guidelines for this installation:
Installation Steps
To install the SFP+ into an appropriate module, complete the
following steps:
P
The SFP+ is not provisionable. For configuration or status infor-
mation, access the menu system of the host module. Refer to the
"Provisioning" section of the host module documentation for
provisioning details.
M
The SFP+ does not require routine hardware maintenance for
normal operation. Repair services may be obtained by returning
the defective unit to ADTRAN. Refer to the warranty for further
information.
■ Do not remove the protective end cap from the SFP+ until the
fiber optic cable is ready to be connected.
■ The latch on the SFP+ is for removal only. When removing the
SFP+, rotate the latch away from the SFP+, the SFP+ should
easily slide out of the cage.
■ Ensure that the protective end cap remains on whenever the
transceiver optical fiber connector is not inserted.
1. Insert the SFP+ into the cage on the module. Ensuring that
the latch handle on the SFP+ is facing upward, slide the
SFP+ all the way into the SFP+ cage until there is an audible
"click".
2. Do not remove the protective end cap until the optical fiber
connection is made.
3. Continue the installation and turn-up of the host module
using the instructions in the Job Aid provided with the
module or other system-level documentation available
online at www.adtran.com.
ROVISIONING
AINTENANCE
jobAid
Issue Date: February 2015
Document P/N: 61442410G1-22C
