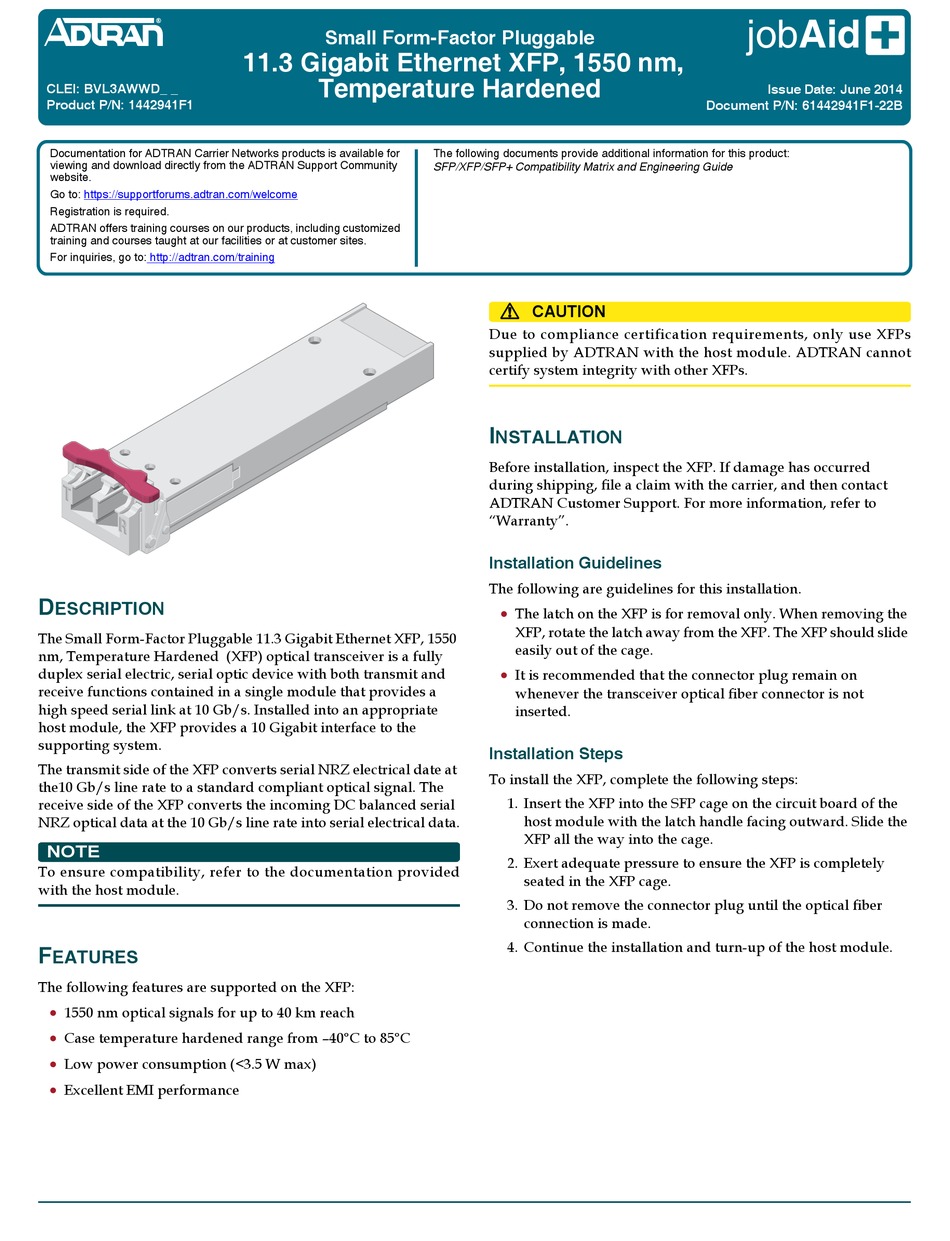

ADTRAN BVL3AWWD Series Quick Start Manual

CLEI: BVL3AWWD_ _
Product P/N: 1442941F1
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION

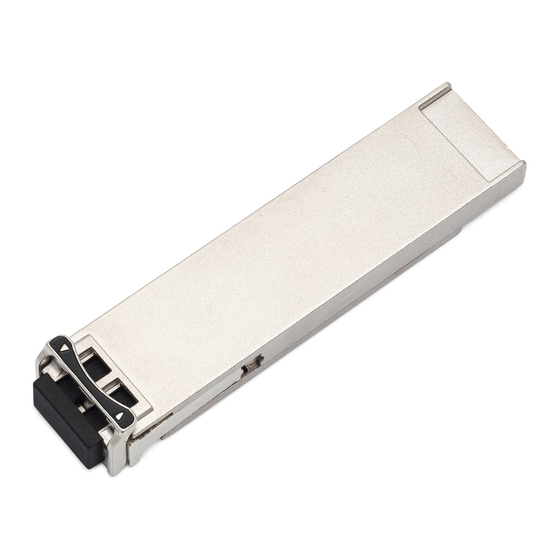

The Small Form-Factor Pluggable 11.3 Gigabit Ethernet XFP, 1550
nm, Temperature Hardened (XFP) optical transceiver is a fully
duplex serial electric, serial optic device with both transmit and
receive functions contained in a single module that provides a
high speed serial link at 10 Gb/s. Installed into an appropriate
host module, the XFP provides a 10 Gigabit interface to the
supporting system.
The transmit side of the XFP converts serial NRZ electrical date at
the10 Gb/s line rate to a standard compliant optical signal. The
receive side of the XFP converts the incoming DC balanced serial
NRZ optical data at the 10 Gb/s line rate into serial electrical data.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
F
EATURES
The following features are supported on the XFP:

1550 nm optical signals for up to 40 km reach

Case temperature hardened range from –40°C to 85°C

Low power consumption (<3.5 W max)

Excellent EMI performance
Small Form-Factor Pluggable
11.3 Gigabit Ethernet XFP, 1550 nm,
Temperature Hardened
The following documents provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix and Engineering Guide
!
CAUTION
Due to compliance certification requirements, only use XFPs
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other XFPs.
I
NSTALLATION
Before installation, inspect the XFP. If damage has occurred
during shipping, file a claim with the carrier, and then contact
ADTRAN Customer Support. For more information, refer to
"Warranty".
Installation Guidelines
The following are guidelines for this installation.

The latch on the XFP is for removal only. When removing the
XFP, rotate the latch away from the XFP. The XFP should slide
easily out of the cage.

It is recommended that the connector plug remain on
whenever the transceiver optical fiber connector is not
inserted.
Installation Steps
To install the XFP, complete the following steps:
1. Insert the XFP into the SFP cage on the circuit board of the
host module with the latch handle facing outward. Slide the
XFP all the way into the cage.
2. Exert adequate pressure to ensure the XFP is completely
seated in the XFP cage.
3. Do not remove the connector plug until the optical fiber
connection is made.
4. Continue the installation and turn-up of the host module.
jobAid
Issue Date: June 2014
Document P/N: 61442941F1-22B
