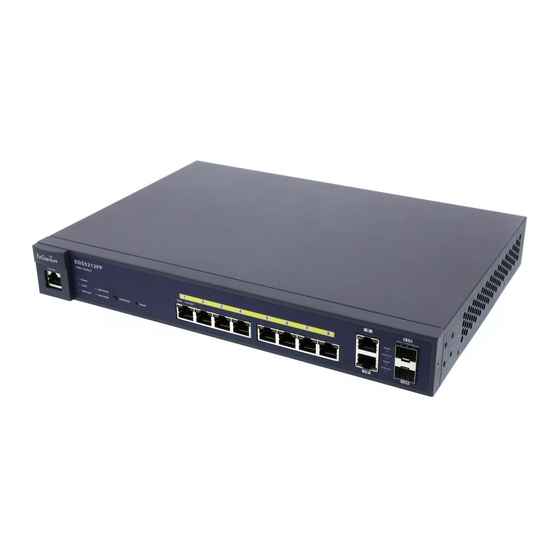

EnGenius EGS5212FP Quick Installation Manual

Introduction
Power-over-Ethernet (PoE) technology brings new capability and device
expansion to network deployments. IP cameras, indoor wireless access points,
VoIP (Voice-over- IP) phone systems and many other client devices are capable of
receiving their Power-over-Ethernet cabling. These EnGenius switches
provide management with tools to configure and control the network through its
simple web-based Graphical User Interface (GUI).
Unpacking
Open the shipping carton and carefully unpack its contents. Please consult the
packing list below to make sure all the items are present and undamaged. Please
note that the model you have purchased may appear slightly different. If any item
is found missing or damaged, please contact your local EnGenius reseller for
replacement.
Package content
- EnGenius switch
- Quick Installation Guide
- Rj-45 console cable
- Rack mount kit
Before you connect
- Do not place heavy objects on the switch.
- Do not expose the switch to direct sunlight.
- Make sure that there is adequate space (at least 2 inches) for proper heat
dissipation around the switch.
Please do not cover the ventilation holes on all sides of the switch.
- Install the switch in a fairly cool and dry environment.
- Install the switch in a site free from strong electromagnetic source.
- Visually inspect the power jack and make sure that it is fully secured to the
power adapter.
EnGenius Europe | Veldzigt 28, 3454 PW De Meern,
Netherlands | 0900-WIFIABC | www.wifiabc.com
EGS5212FP
Switch installation
Installing the switch on a flat surface
Install the switch on a flat surface such as a desktop or shelf, attach the rubber
feet on the bottom at each corner of the switch. The rubber feet cushion the switch
from shock or vibration, and secure space between devices when stacking.
Rack installation
To mount the switch onto a rack, attach the included rack mounting brackets to the
switch. Then secure the mounting brackets to the rack. The switch can be mounted
in an EIA standard size, 19-inch rack, which can be placed in a wiring closet with
other equipement.
Disclaimer: Information may be subject to changes without prior notification.
Quick Installation Guide
