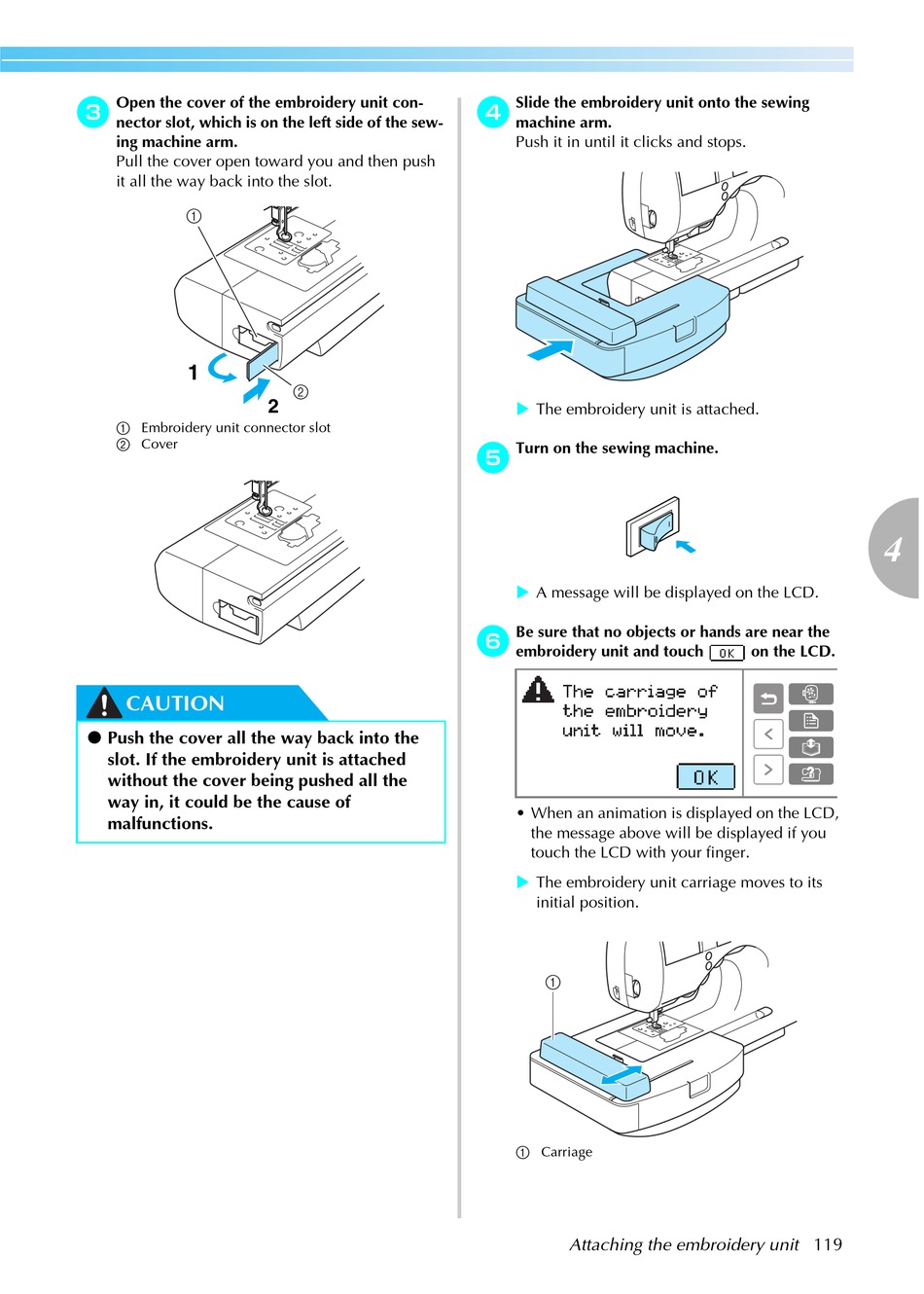

Brother Computerized Embroidery Sewing Machine Operation Manual page 125

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
c Open the cover of the embroidery unit con-
nector slot, which is on the left side of the sew-
ing machine arm.
Pull the cover open toward you and then push
it all the way back into the slot.
a Embroidery unit connector slot
b Cover
CAUTION
● Push the cover all the way back into the
slot. If the embroidery unit is attached
without the cover being pushed all the
way in, it could be the cause of
malfunctions.
1
1
2
2
d Slide the embroidery unit onto the sewing
machine arm.
Push it in until it clicks and stops.
The embroidery unit is attached.
e Turn on the sewing machine.
A message will be displayed on the LCD.
f Be sure that no objects or hands are near the
embroidery unit and touch
• When an animation is displayed on the LCD,
the message above will be displayed if you
touch the LCD with your finger.
The embroidery unit carriage moves to its
initial position.
1
a Carriage
Attaching the embroidery unit 119
4
on the LCD.
