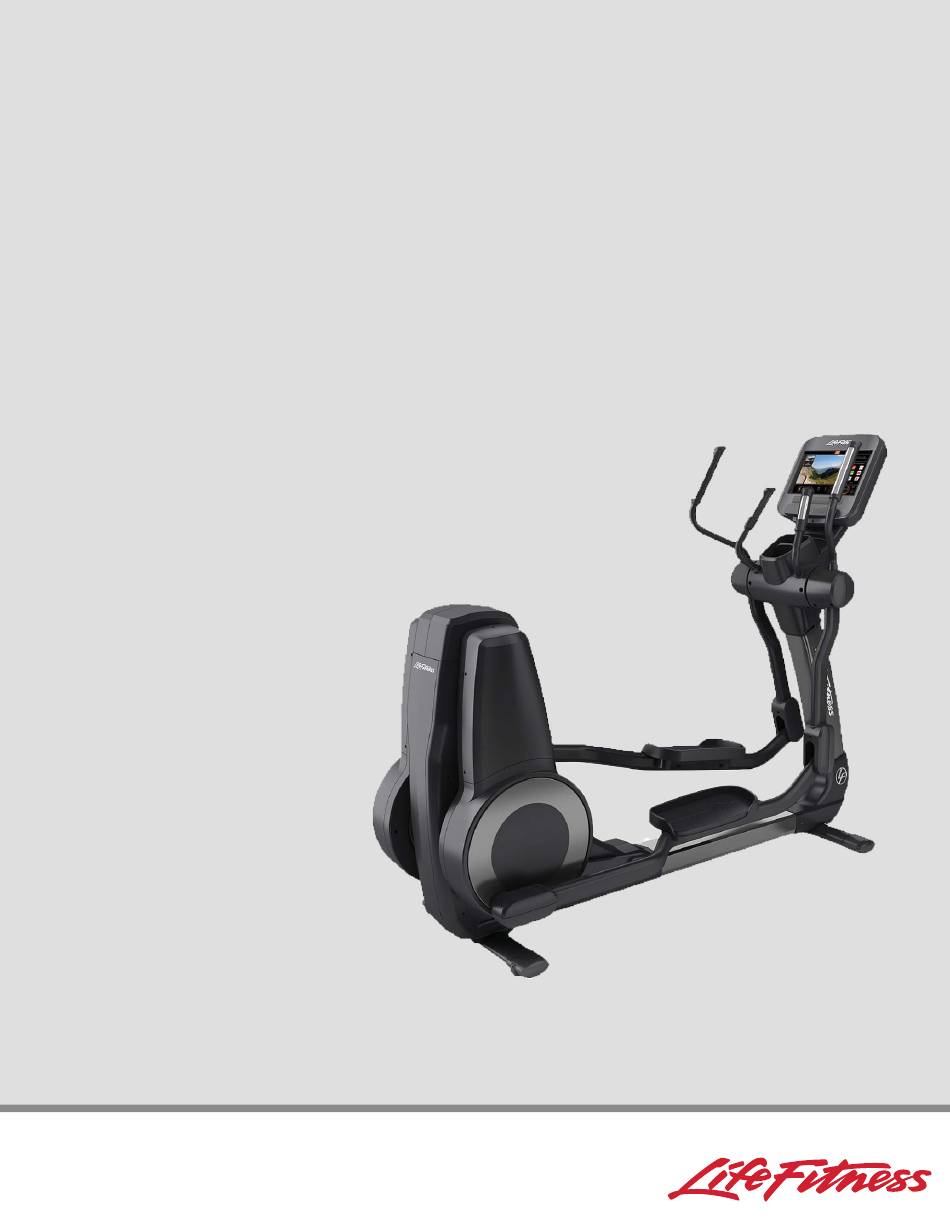

- Page 1 ELEVATION ™ SERIES 95X CROSS-TRAINER & PLATINUM CLUB SERIES CROSS-TRAINER DISCOVER SE3, DISCOVER SI, & EXPLORE ASSEMBLY INSTRUCTIONS M051-00K92-0057 REV...
- Page 2 Marketing/Sales Email: Operating Hours: 9.00h-17.00h (JAPAN) Service Email: kundenberatung@lifefi tness.com customersupport@lifefi tness.com Hong Kong Operating Hours: 08:30-16.30.h (MEZ) Life Fitness Asia Pacifi c LTD Sales/Marketing Email: commercialsales@lifefi tness.com Spain 32/F, Global Trade Square Life Fitness IBERIA Operating Hours: 7:00am-6:00pm (CST)
- Page 3 AVERTISSEMENT: Des problèmes de santé peuvent être causés par une utilisation incorrecte ou excessive de l’équipement. LIFE FITNESS recommande FORTEMENT de consulter un médecin pour subir un examen médical complet avant de commencer tout programme d’exercice, et tout particulièrement si l’utilisateur a des antécédents familiaux d’hypertension ou de troubles cardiaques, s’il a plus de 45 ans, s’il fume, s’il a du choles-...
-
Page 4: Table Of Contents
Table of Contents 1. Getting Started ................4 1.1 Important Safety Instructions . -
Page 5: Getting Started
If you feel faint, stop exercising immediately. • WARNING: Ensure that there is at least 1 ft. (0.3 m) of clearance in front of the LIFE FITNESS Cross-Trainer and at least 2 ft., (0.6 m) on the side. •... - Page 6 En cas de sensation d’évanouissement, arrêter immédiatement l’entraînement. • AVERTISSEMENT : Veillez à laisser un espace d’au moins 30 cm (1 pied) à l’avant du LIFE FITNESS Cross-Trainer et d’au moins 60 cm (2 pieds) sur les côtés. •...
-
Page 7: Set-Up
The Explore consoles are powered by a rechargeable 6-volt battery. Check the battery by pressing the knob. The console should beep and light up. The Explore Console will display the Life Fitness logo. If a prompt doesn’t appear, mount the Cross-Trainer and begin pedaling. The console should light up and programming a workout should be pos- sible. - Page 8 (for up to 2 minutes). Note: If any of the consoles do not light up, contact LIFE FITNESS Customer Service (refer to page one of this manual). Use only the power supply provided by Life Fitness in order to ensure against unsafe operation.
-
Page 9: Service And Technical Data
Service and Technical Data Preventive Maintenance Tips LIFE FITNESS products are backed by the engineering excellence and reliability of LIFE FITNESS and are one of the most rugged and trouble-free pieces of exercise equipment on the market today. Note: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. -
Page 10: Troubleshooting The Cross-Trainer
Belt transmitter not properly set up. console. After the heart rate is displayed on the console the range is extended to 3 feet. Contact LIFE FITNESS Customer Support Chest strap battery is depleted. Services for instructions on how to have the chest strap replaced. -
Page 11: Troubleshooting The Lifepulse System Sensors
Recycling the Battery - Explore Consoles Only When this LIFE FITNESS product is about to be discarded at the end of its useful life, the rechargeable battery must be removed and recycled. To access the battery, use a medium tip Philllips screw driver to remove the eight screws that hold the rear cover to the back of the cross-trainer. -
Page 12: Assembly
Assembly Component List Part Description Console Bracket M8 x 20MM Hex Screw M8 Washer Left Bullhorn M8 Hex Nut Right Bullhorn Right Moving Arm M8 x 16MM Button Head Screw Left Moving Arm Rear Cover Phillips Screw Front Cover Top Cover Front End Cover Rear End Cover Back Cover... - Page 13 Hardware M8 X 20MM Hex Screw (2) M8 Washer (3) M8 X 16MM Button Head Screw (8) M8 Hex Nut (5) Phillips Screw (11) M5 X 14MM Phillips Screw (17) Tools Required • Magnetic #2 Phillips screwdriver • 5mm Hex Key Allen Head Wrench •...
- Page 15 16.27 Nm (12 ft. lbs.)
- Page 19 Discover SI Discover SE3 Discover SE3 Explore IPTV...
- Page 21 Discover SE3 & SI (Explore Optional)
- Page 22 MAKE SURE ALL HARDWARE IS TIGHT! ASSUREZ-VOUS QUE TOUTE LA VISSERIE EST BIEN SERRÉE ! CONTROLEER OF ALLE BEVESTIGINGEN GOED VAST ZITTEN! ASSICURARSI CHE TUTTA LA BULLONERIA SIA BE N STRETTA ASEGÚRESE DE QUE TODAS LAS PIEZAS ESTÉN BIEN APRETADAS. ASSEGURE-SE DE QUE TODAS AS PEÇAS ESTÃO APERTADAS! すべての金具がしっかり固定されているこ...
-
Page 23: Specifications
Specifications 4.1 Life Fitness 95X Cross-Trainer specifications Designed Use: Elevation Series 95X: Heavy/Commercial Platinum Club Series: Home Maximum User Weight: 400 pounds / 181 kilograms Power Requirements: See Electrical Power Requirements in Section 1.2 Pedal Speed range: 1.5 - 14.3 MPH (2.4 - 23 KPH)
