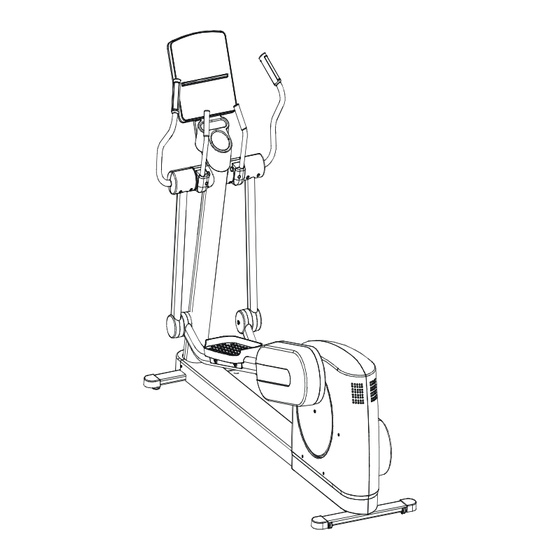

- Page 1 ARCTIC SILVER QUIET DRIVE CROSS TRAINER 95X-0XXX-05 (Hungary built Ct for Domestic sales) Customer Support Services PARTS MANUAL rev 30 Nov 2007...
- Page 2 PLUG IN OPTION 230/50 CONT Note: This model has both Life Pulse sensors and Telemetry for reading Heart Rate. M051-00K62-A107 M051-00K62-A149 0017-00008-0204 0017-00008-0205 0017-00008-0206 AK62-00152-0001 AK62-00210-0000 AK32-00020-0002 AK32-00078-0001 0K62-01179-0001 0017-00021-2846 0017-00042-0754 GK62-00002-0018 GK62-00002-0019 GK62-00002-0020 GK62-00002-0021 Page 2 of 17 95X-0XXX-05 S/N XHK073903956 – XHK?????????
-
Page 3: Table Of Contents
ARCTIC SILVER QUIET DRIVE 95Xi 95X-0XXX-05 CONTENTS S/N XHK073903956 – XHK????????? Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 CONSOLE AND RELATED COMPONENTS...6 UPPER FRAME HARDWARE ...7 ROCKER ARMS AND PEDAL LEVERS ...8 CRANK COVER AND LOWER CAPS ...9 LOWER FRAME SHROUDS AND HARDWARE...10... -
Page 4: Console Support & Deadshaft Covers
Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 2-Front Inside Deadshaft Cover 0K62-01009-0000 Right Bullhorn Cover 0K62-01007-0001 Left Bullhorn Cover 0K62-01008-0001 Page 4 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? 2-Outside Front Deadshaft Cover 0K62-01013-0000 2-Outside Rear Deadshaft Cover 0K62-01012-0000... -
Page 5: Handlebars And Bullhorns
Left Bullhorn Assembly AK62-00361-0000 HR Sensor Kit GK20-00002-0005 HR Cable AK47-00029-0000 ( one per bullhorn) Bullhorn Gasket 0K62-01199-0000 Left Handlebar AK62-00087-0000 Heart Rate Cable AK61-00051-0001 (one per handlebar) Page 5 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? HR Sensor Kit GK20-00002-0005... -
Page 6: Console And Related Components
AK39-00064-0000 OVERLAY/BEZEL/SWITCH AK62-00191-0001 AK62-00191-0003 AK62-00191-0004 AK62-00191-0006 AK62-00191-0007 AK62-00191-0008 AK62-00191-0009 AK62-00191-0010 AK62-00191-0014 Page 6 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Battery Door 0K62-01026-0000 Upper and Lower PCB mounting screws 0017-00101-1650 Lower PCB B084-92222-B000 LANGUAGE Eng + Met Ger/Met... -
Page 7: Upper Frame Hardware
(2 per side) Items Not Shown: Accessory Tray Mounting Screws (2) Bullhorn Screw Kit (includes 4 screws) GK62-00002-0042 0K62-01022-0000 0017-00101-1846 Page 7 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Handlebar Mounting Screws 0017-00101-1791 (3 per side) Bullhorn Cover Screws 0017-00101-1854... -
Page 8: Rocker Arms And Pedal Levers
Rocker Arms & Pedal Levers Rocker Arms AK62-00062-0001 Shaft Collar w/screws M0K61-01259-0000 Washer 0017-00104-0418 LF Bug Retaining Ring Medallion Assy. 0017-00100-0178 AK58-00245-0000 Right Pedal Lever Assembly AK62-00236-0000 Left Pedal Lever Assembly AK62-00235-0000 Page 8 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? -
Page 9: Crank Cover And Lower Caps
Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 Stabilizer Caps 4 - 0K62-01003-0000 Page 9 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
Ladder Frame Cover w/decal AK62-00106-0001 4 - Mounting screws 0017-00101-1795 Shroud Panel 0K62-01002-0003 Mounting screws (2 per side) 0017-00101-1795 Page 10 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Rear Shroud Assembly AK62-00223-0000 Mounting screws (2 per side) 0017-00101-1796 Wheel/Bracket Assy. -
Page 11: Pedal Lever Assembly Components
Hex Nut 0017-00103-0333 Roller w/bearing AK62-00196-0001 Shaft Collar M0K62-01065-0000 Washer 0017-00104-0474 Brass Washer 0K47-01104-0000 Anti-Lift Roller M0K62-01191-0000 Page 11 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Link Sleeve Kit GK62-00002-0022 Washer 0017-00104-0164 0017-00103-0338 Crank Extension Mounting Bolt 0017-00101-1806 Roller Extrusion AK62-00197-0000... -
Page 12: Pcb, Battery, Reed Switch & Bracket
Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 Page 12 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Grommet (4) 0017-00042-0821 Reed Switch 118E-00001-0140 Reed Switch Mounting screws (2) 0017-00101-1794... -
Page 13: Bearing-Insert Assembly
4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings 2- sets of bearing flanges 4- nuts and washers Bearing Flanges (2) 0K62-01220-0000 1” Bearing 0K62-01221-0000 Page 13 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? -
Page 14: Crank Arm Pulley Assembly
0017-00101-1860 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly MAK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 Page 14 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate M0K61-02302-0001 Crankshaft Plate Mounting screws (4) 0017-00101-1834... -
Page 15: Drive Module
Control Cable AK62-00260-0000 Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Bearing-Insert Assembly (4) See Page 13 for breakdown Page 15 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Right Crank Arm Weld Assembly MAK62-00204-0000 J8 Flexonic Belt 0K62-01134-0000 Poly-V Metric Pulley 0K35-01186-0007... -
Page 16: Drive Module Hardware
0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1860 0017-00103-0334 Machine Key 0K53-01183-0000 Bearing-Insert mounting screw and nut 0017-00101-1866 0017-00103-0341 Page 16 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? Retaining ring 0017-00100-0107 Poly-V pulley mounting screw and washer 0017-00101-1836 0017-00104-0465 Set Screws 0017-00101-1833... -
Page 17: Cables
BLK/PURPLE 13POS.KK-156 LWR-CNSL Upper Console Board A084-92219-A016 START START 17POS. LOWER KEYPAD 19 POS. UPPER KEYPAD Page 17 of 17 95X-0XXX-05 S/N XHK073903956 – XHK????????? N.C. N.C. MAGNET REED SWITCH Main Cable AK62-00093-0000 Lower Console Cable AK63-00038-0000 24POS. MICROFIT 24POS. MICROFIT...
