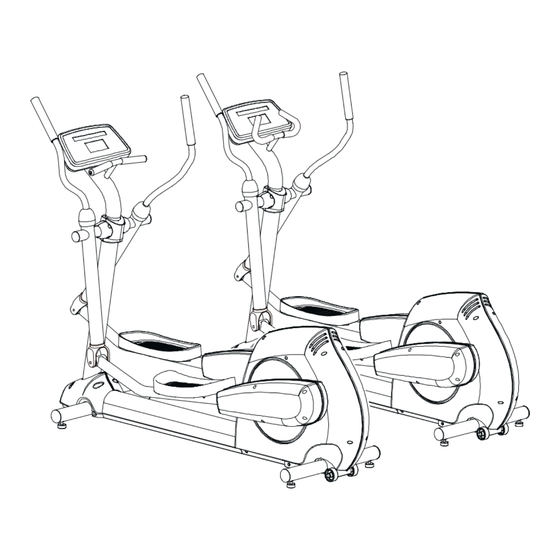

- Page 1 Cross-Trainer A S S E M B L Y I N S T R U C T I O N S...
- Page 2 Congratulations... Life Fitness and welcome to the world of and the Life Fitness 5500HR / 8500 Cross-Trainers. The following Parts Identification Listing and the step by step assembly procedures have been assembled to make the set-up of the Cross-Trainer as quick and easy as possible.
-
Page 3: Important Safety Instructions
Parts Listing prior to setting the cartons and shipping material aside. If any parts are missing, contact Life Fitness Customer Support Services at the number listed in the Operation Manual. Save the shipping cartons in case of return. -
Page 4: Parts Description
OOLS EQUIRED FOR Key Wrench (provided) Hex Key Mounting Bolt 0017-00101-1645 Mounting Screw 0017-00101-1242 Front Monocolumn Cover OK61-06020-0002 Console Support Assembly AK61-00500-0002 (Model 5500HR) AK61-00500-0003 (Model 8500) Left Front Cover OK61-06200-0000 Left User Arm Assembly AK61-00460-0001 Power Supply (Model 5500HR Only) 118E-00001-0113 (Domestic)(A) 118E-00001-0114 (International)(B) ®... - Page 6 Step 1 Before proceeding, familiarize yourself with the parts of the Cross-Trainer and make sure that you have received all the items described in the Parts List. Step 2 Locate the left and right FRONT COVER (#9, #10). Using two MOUNTING SCREWS (#3), mount the USER LEFT FRONT COVER (#9) to the FRAME (A).
- Page 7 Step 9 (Model 5500HR Only) ® Locate the POLAR RECEIVER (#14). Plug the POLAR RECEIVER into the jack located at the front of the MONOCOLUMN (E) near the DEAD SHAFT (F). Slide the FOAM ISOLATOR (#15) over the POLAR RECEIVER. Step 10 Locate the front and back MONOCOLUMN COVERS (#5, #6).
-
Page 8: Pre-Operation Checklist
Operation Manual. If your Cross-Trainer does not respond as described in the OPERATION MANUAL, contact the nearest Life Fitness service center as listed in the Operation Manual. Copyright 1999 Brunswick Corporation. All rights reserved. Life Fitness is a trademark of Brunswick Corporation.
