SAVE THIS MANUAL FOR FUTURE REFERENCE
Owner's Manual

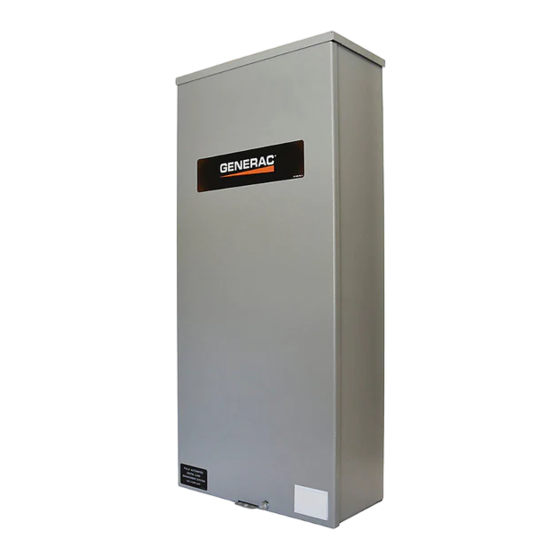

Automatic Transfer Switch
400 Amp, Service Entrance
MODEL NUMBER: RXSW400A3CUL
SERIAL NUMBER: _________________________
DATE PURCHASED:________________________
Loss of life. This product is not intended to
be used in a critical life support application.
Failure to adhere to this warning could result
in death or serious injury.
Register your Generac product at:
WWW.GENERAC.COM
http://www.generac.com/service-support/product-support-lookup
For
WARNING
(000209b)
1-888-GENERAC
(888-436-3722)
