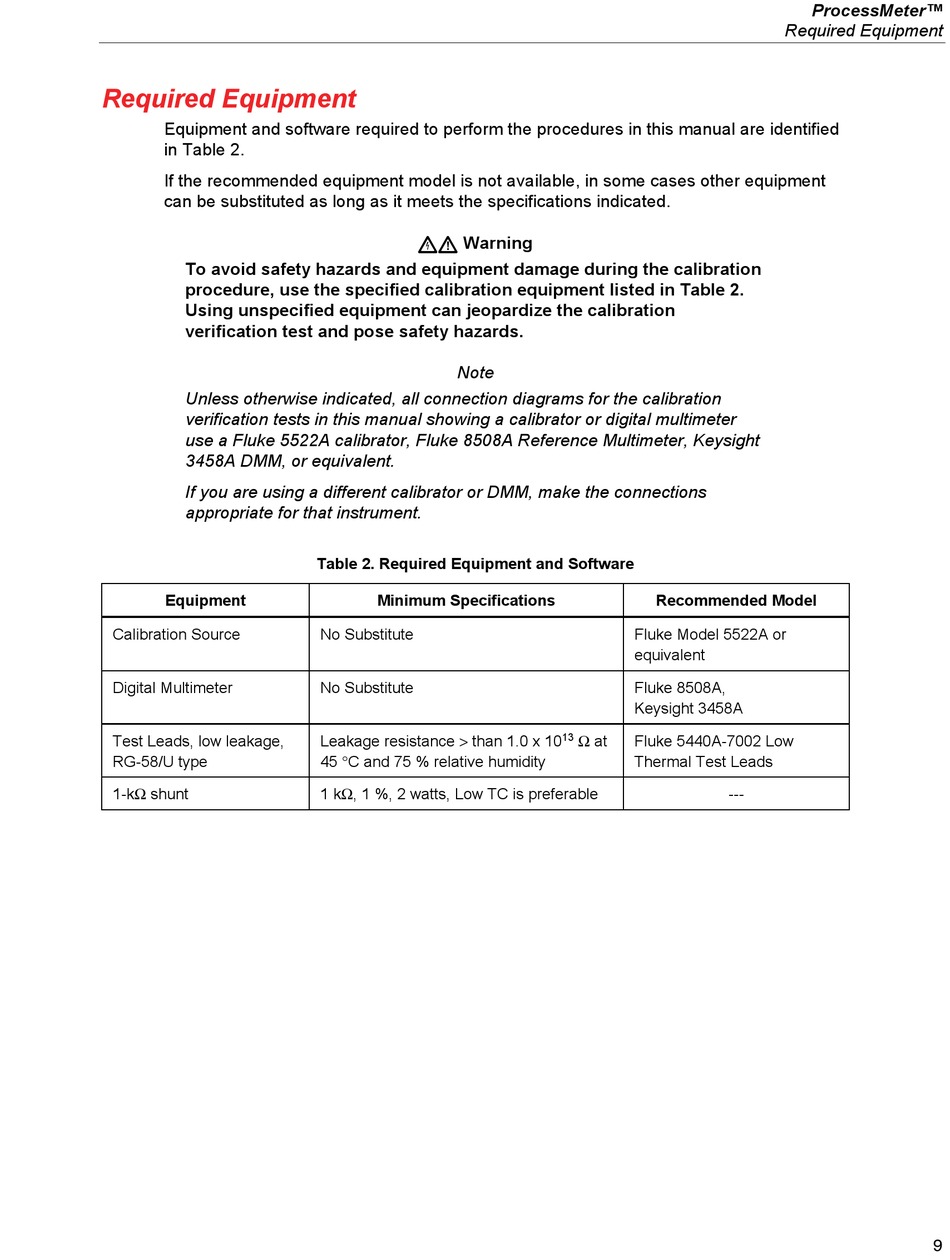

Required Equipment

Equipment and software required to perform the procedures in this manual are identified
in Table 2.
If the recommended equipment model is not available, in some cases other equipment
can be substituted as long as it meets the specifications indicated.
To avoid safety hazards and equipment damage during the calibration
procedure, use the specified calibration equipment listed in Table 2.
Using unspecified equipment can jeopardize the calibration
verification test and pose safety hazards.
Unless otherwise indicated, all connection diagrams for the calibration
verification tests in this manual showing a calibrator or digital multimeter
use a Fluke 5522A calibrator, Fluke 8508A Reference Multimeter, Keysight
3458A DMM, or equivalent.
If you are using a different calibrator or DMM, make the connections
appropriate for that instrument.
Equipment
Calibration Source
Digital Multimeter
Test Leads, low leakage,
RG-58/U type
1-kΩ shunt
 Warning
Note
Table 2. Required Equipment and Software
Minimum Specifications
No Substitute
No Substitute
Leakage resistance > than 1.0 x 10
45 °C and 75 % relative humidity
1 kΩ, 1 %, 2 watts, Low TC is preferable
Recommended Model
Fluke Model 5522A or
equivalent
Fluke 8508A,
Keysight 3458A
Ω at
13
Fluke 5440A-7002 Low
Thermal Test Leads
---
ProcessMeter™
Required Equipment
9
