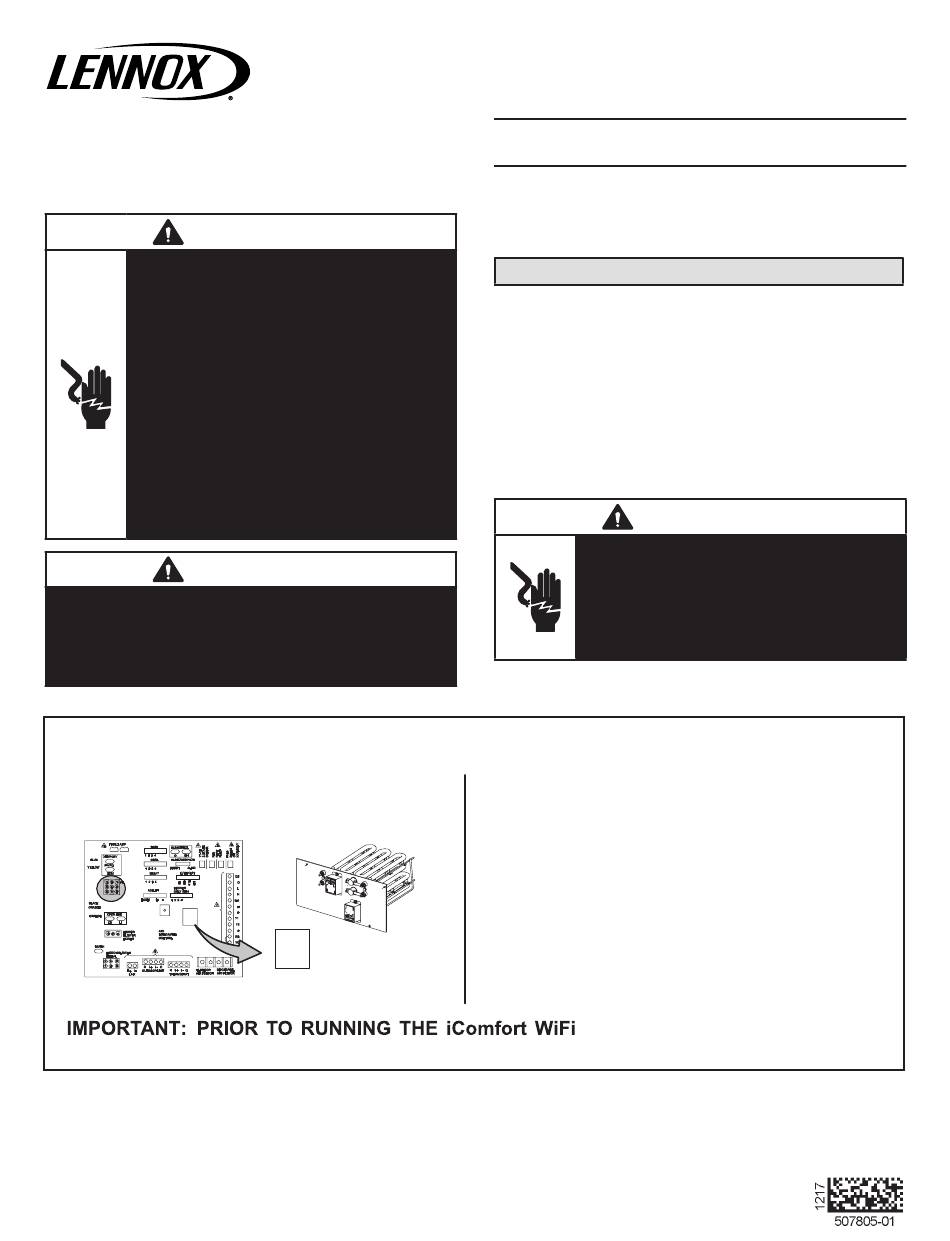

©2017 Lennox Industries Inc.
Dallas, Texas, USA
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
WARNING
Electric Shock Hazard.
Can cause injury or death.
Foil-faced
insulation
characteristics similar to metal. Be sure there
are no electrical connections within 1/2ʺ
of the insulation. If the foil-faced insulation
comes in contact with electrical voltage, the
foil could provide a path for current to pass
through to the outer metal cabinet. While
the current produced may not be enough to
trip existing electrical safety devices (e.g.,
fuses or circuit breakers), the current can be
enough to cause an electrical shock hazard
that could cause personal injury or death.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, service agency, or the gas supplier.
IMPORTANT INFORMATION FOR INSTALLER
CONFIGURE ELECTRIC HEAT
H
SETUP, ELECTRIC HEAT MUST BE MANUALLY CONFIGURED.
has
conductive
ECB38
H
INSTALLATION
INSTRUCTIONS
ECB38 Series Units
ELECTRIC HEAT SECTIONS
507805-01
12/2017
Shipping and Packing List
Package 1 of 1 contains:
1 – Assembled electric heat section
1 – Bag assembly containing the following:
Screws - 6 each
Wiring diagram - 1 each
Circuit breaker cover - 1 each
2 – Adhesive-backed foam seals
Check equipment for shipping damage; if found, immedi-
ately contact the last carrier.
Electric shock hazard! - Disconnect all power
supplies before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
ELECTRIC HEAT WILL NOT OPERATE
IF IT IS NOT CONFIGURED (SET UP)
THROUGH THE AIR HANDLER
CONTROL (AHC).
SEE CONFIGURATION PROCEDURE,
FIGURE 12 ON PAGE 9.
®
OR iComfort
Page 1
WARNING
®
S30 INSTALLER
