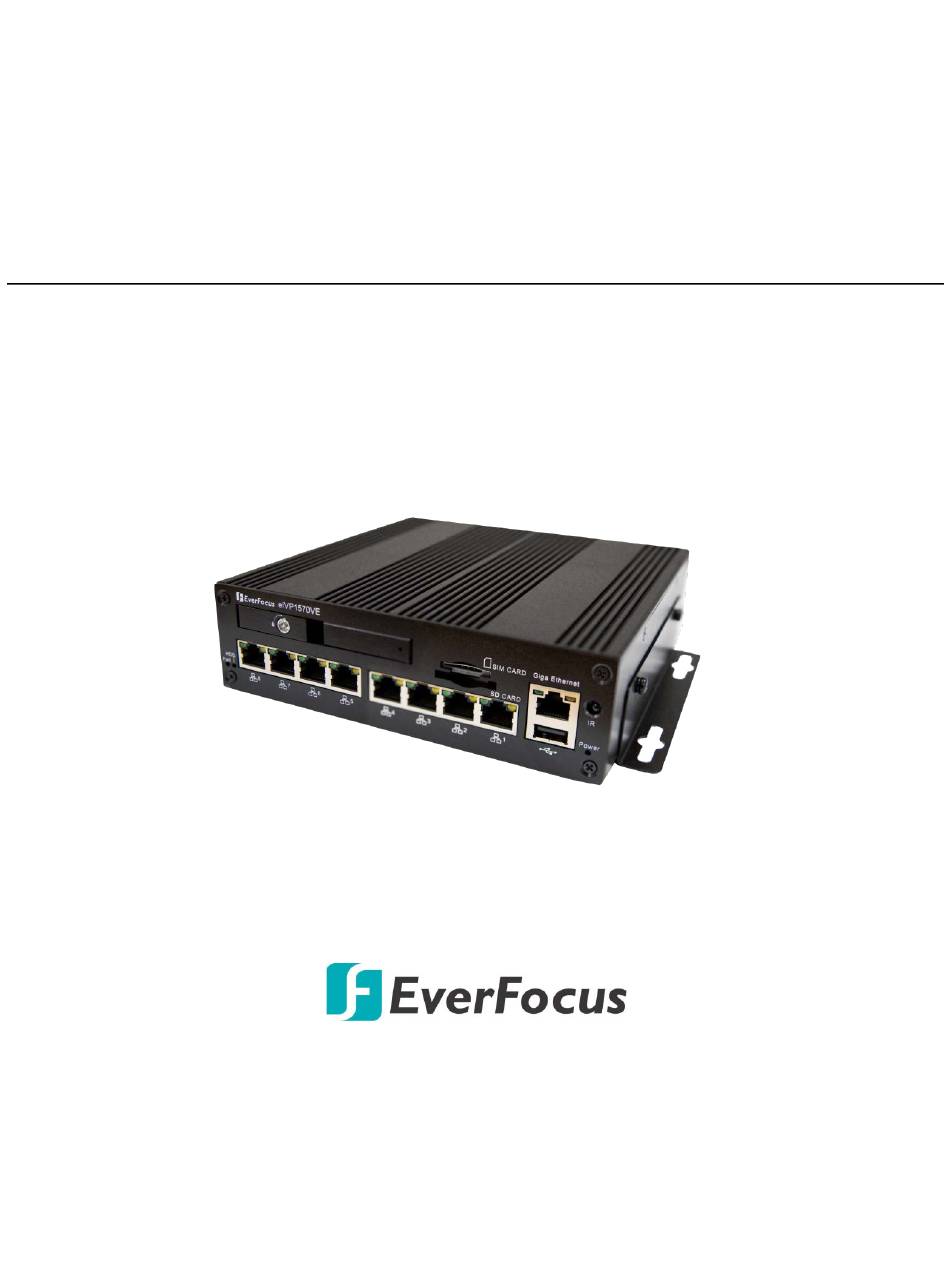

- Page 1 AI Mobile NVR with 8 PoE Ports Based on NVIDIA Jetson Nano / TX2 NX / Xavier NX eNVP-JNN-IV-V0008 (eIVP1570VE) eNVP-JTX-IV-V0008 eNVP-JNX-IV-V0008 User’s Manual Copyright © EverFocus Electronics Corp. Release Date: May 2021...
- Page 2 Copyright All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. Acknowledgements NVIDIA is a trademark of the NVIDIA Corporation.
- Page 3 All cautions and warnings on the device should be noted. All cables and adapters supplied by EverFocus are certified and in accordance with the material safety laws and regulations of the country of sale. Do not use any cables or adapters not supplied by EverFocus to prevent system malfunction or fires.
- Page 4 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Caution: There is a danger of explosion if the battery is incorrectly replaced.
-
Page 5: Table Of Contents
Mounting ......................... 6 Vehicle Connection ......................7 2.2.1 Connecting to a Truck with 24VDC ................7 2.2.2 Connecting to a Car with 12VDC ................. 8 SSD Installation ....................... 9 Specification .......................... 10 eNVP-JNN-IV-V0008 (eIVP1570VE) ................10 eNVP-JTX-IV-V0008 ....................... 12 eNVP-JNX-IV-V0008 ...................... 14... -
Page 6: Introduction
NVIDIA® Jetson™ Nano, TX2 NX and Xavier NX respectively, all of the models are fanless and designed for AIoT market including transportation, smart building and etc.. The models can be installed with EverFocus in-house designed NVR software, providing basic NVR functions like real-time live view, video recording, video playback, alarm notification and more. AI functions such as driver fatigue and distraction monitoring, pedestrian detection and vehicle detection can be performed using the NVR software. -
Page 7: Dimensions
Note: 1. Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process. -
Page 8: Front Panel
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 1.5 Front Panel Name Description Lock and unlock the SSD tray (see 2.3 SSD Installation). SSD Key Lock SD Card Slot Insert a SD card to the card slot. SIM Card Slot Insert a SIM card to the card slot. -
Page 9: Rear Panel
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 1.6 Rear Panel No. Name Description Connects to audio input devices, such as microphones. Note that the Audio Input microphones with a (built-in) amplifier and external power supply are required. Connects the antenna to the AI mobile NVR for 3G / 4G / WiFi / GPS Antenna functions. -
Page 10: Carrier Board
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 1.7 Carrier Board Main Board Power Board IO Board eIVP1570VE-CB Audio In Console USB 3.0 HDMI HDD Thermal Sensor RS232 HDD Heater (Reserved) RS485 HDD Power Alarm IO (4-input, 4-output) Video In / Camera Power... -
Page 11: Connection And Installation
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 Chapter 2. Connection and Installation 2.1 Mounting You can mount the AI mobile NVR onto a surface inside the vehicle. Interface Support-Mount The Mounting Bracket is already installed on the AI mobile NVR. To mount the AI mobile NVR onto a surface, use the supplied 4 black screws and 8 spacers (place 2 spacers on each screw hole). -
Page 12: Vehicle Connection
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 2.2 Vehicle Connection The AI mobile NVR supports input power voltage between 9VDC ~ 36VDC. You can install the AI mobile NVR in all kinds of vehicles support the above power voltage. The diagrams below are examples to illustrate the connection inside a car / truck with 12VDC / 24VDC. -
Page 13: Connecting To A Car With 12Vdc
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 2.2.2 Connecting to a Car with 12VDC Glove box (inside or underneath) Trunk Passenger seat (underneath) Driver seat (between the seat and side panel) 12V+ GND IGN Black Yellow Fuse (10A) Relay (12V) 12V+ (Red) -
Page 14: Ssd Installation
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 2.3 SSD Installation Users can install one 2.5” SSD into the AI mobile NVR for recording. Please follow the steps below to install the SSD. Note: The AI mobile NVR does not support hot swap for the SSD. Ensure to power off the device before removing the SSD. -
Page 15: Specification
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 Chapter 3. Specification 3.1 eNVP-JNN-IV-V0008 (eIVP1570VE) System Quad-core ARM® Cortex®-A57 MPCore processor NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores Main Memory Onboard 4 GB 64-bit LPDDR4 16 GB eMMC Video Format H.264 / H.265 SKU1: IP camera x 8 ;... - Page 16 / eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 Alarm Alarm In/Out Input x 4; Output x 4 Interface Power button x 1 IR receiver x 1 USB 2.0 x 1 GbE port x 1 Front I/O Panel PoE port x 8 Micro USB2.0 (Internal OTG) x 1 2.5“...
-
Page 17: Envp-Jtx-Iv-V0008
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 3.2 eNVP-JTX-IV-V0008 System Dual-core NVIDIA Denver 2 64-bit CPU and quad-core ARM A57 Complex NVIDIA Pascal™ Architecture GPU with 256 CUDA cores Main Memory Onboard 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GBs 16 GB eMMC 5.1... - Page 18 / eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 Audio input x 1, Audio output x 1 USB 3.0 x 1, RS-232 x 1, RS485 x 1 HDMI x 1 Rear I/O Panel Alarm IO (4-input, 4-output) x 1 Power input x 1 Antenna port x 5 Expansion Slot Mini PCIe x 2 (full-size USB2.0 x 1, half-size USB2.0 x 1)
-
Page 19: Envp-Jnx-Iv-V0008
/ eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 3.3 eNVP-JNX-IV-V0008 System 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 processor NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores ( 21 TOPS [ INT8 ] ) Main Memory Onboard 8 GB 128-bit LPDDR4x @ 1600 MHz 51.2GB/s 16 GB eMMC 5.1... - Page 20 / eNVP-JTX-IV-V0008 / eNVP-JNX-IV-V0008 Audio input x 1, Audio output x 1 USB 3.0 x 1, RS-232 x 1, RS485 x 1 HDMI x 1 Rear I/O Panel Alarm IO (4-input, 4-output) x 1 Power input x 1 Antenna port x 5 Expansion Slot Mini PCIe x 2 (full-size USB2.0 x 1, half-size USB2.0 x 1)
