Panasonic MK-MG1560WTN Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

tions.)----------------------------------------------------------------- 3
2 Specifications ----------------------------------------------------- 3
3 Schematic Diagram ---------------------------------------------- 3
4 Basic Wiring Diagram------------------------------------------- 4
5.1. Disassembly of Motor Housing------------------------- 5
5.2. Disassembly of Motor Set ------------------------------- 6
5.3. Disassembly of Switch Knob --------------------------- 6
5.4. Disassembly of Gear Box ------------------------------- 7
Model No.
Destination : PGF
PAGE
6 Troubleshooting Guide ----------------------------------------- 8
feeding meat (overloaded). ------------------------------8
failure to start.-----------------------------------------------8
screw failure to turn.---------------------------------------8
meat grinding too slow. -----------------------------------8
© 2012 Panasonic Manufacturing Malaysia Berhad
(6100-K). Unauthorized copying and distribution is a
violation of law.

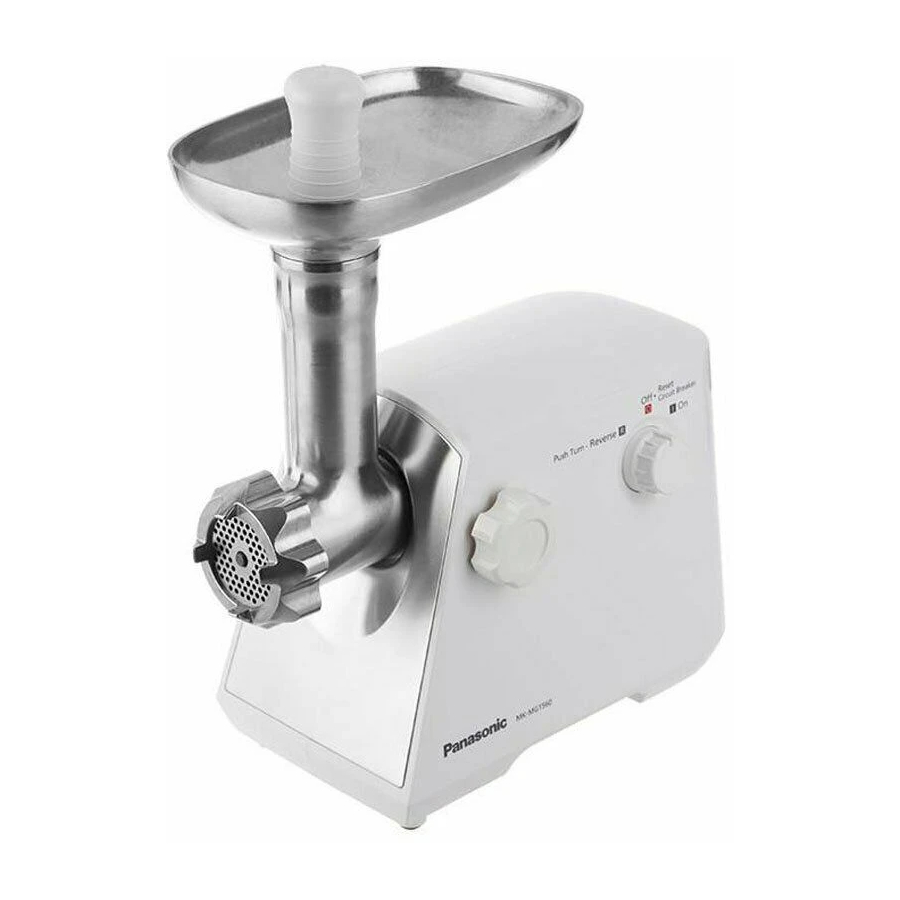

Meat Grinder
MK-MG1560WTN
PMMA120717CE
PAGE

Advertisement

Table of Contents
loading

Related Manuals for Panasonic MK-MG1560WTN

Summary of Contents for Panasonic MK-MG1560WTN

  • Page 1: Table Of Contents

    6.4. SYMPTOM : A.C. motor running too noisy and 5.3. Disassembly of Switch Knob --------------------------- 6 meat grinding too slow. -----------------------------------8 5.4. Disassembly of Gear Box ------------------------------- 7 © 2012 Panasonic Manufacturing Malaysia Berhad (6100-K). Unauthorized copying and distribution is a violation of law.
  • Page 2 6.5. SYMPTOM : A.C. motor running noise unusual.-------------------------------------------------------8 6.6. SYMPTOM : Smell of burning from A.C. motor.----------------------------------------------------------8 7 Exploded View and Replacement Parts List -------------9 7.1. Exploded View ----------------------------------------------9 7.2. Packing Instruction--------------------------------------- 10 7.3. Replacement Parts List --------------------------------- 11...

  • Page 3: Precautions (Strictly Follow These Instructions.)

    Keep in mind that some parts of the grinder cannot be washed in a dishwasher. CAUTION This meat grinder is for household use only. 2 Specifications Destination Model MK-MG1560WTN Power Source AC220V~240V~50/60Hz Motor Power 240W~260W Protective Device Circuit Breaker AC250 V 1.6 A (4.5s - 7.0s)

  • Page 4: Basic Wiring Diagram

    4 Basic Wiring Diagram Gear case Motor housing Switch A.C. Motor Brown Blue Power cord Condenser...

  • Page 5: Disassembly And Assembly Instruction

    5 Disassembly and Assembly Instruction 5.1. Disassembly of Motor Housing Step 3 Open Motor Housing. Step 1 Remove 4 screws. Step 2 Remove Locking Knob.

  • Page 6: Disassembly Of Motor Set

    5.2. Disassembly of Motor Set 5.3. Disassembly of Switch Knob Step 1 Remove 2 screws. Step 1 Remove Switch Knob. Step 2 Pull up Gear box. Step 3 Detach Connector from Motor Unit.

  • Page 7: Disassembly Of Gear Box

    5.4. Disassembly of Gear Box Step 3 Remove Top Gear Cover. Step 1 Remove 4 screws. Step 4 Remove Gears Step 2 Release 4 Rubber Holders. Caution: Wear Glove when take out Gears Step 5 Remove 3 Screws. Step 6 Remove Bottom Gear Cover. Caution: During assembling, ensure that all Gears have been Grease.

  • Page 8: Troubleshooting Guide

    6 Troubleshooting Guide 6.1. SYMPTOM : A.C. motor interupted when feeding meat (overloaded). Causes Remedy Too hard meat being fed. Take out the hard meat. Too much meat being fed at once. Reduce the meat feed rate. Used for too long continuously. Follow the specified operating time.

  • Page 9: Exploded View And Replacement Parts List

    7 Exploded View and Replacement Parts List 7.1. Exploded View B10 (C2) B1 1 B1 1 B1 1 B1 1 B21 B22...

  • Page 10: Packing Instruction

    7.2. Packing Instruction Kubbe attachment B Kubbe attachment A Cutting Plate Power Cord Housing unit Grinder cap Hopper Food Pusher Grinder head...

  • Page 11: Replacement Parts List

    7.3. Replacement Parts List Safety Ref. Part No. Part Name & Description Remarks AME04-1072W0 PLUNGER AME03-133-CA HOPPER ALUMINIUM AME01-121 SCREW BODY AM98C18000 SCREW (U) AM12C18000 ROTATING CUTTER AM08C18100 CUTTER A AM10C18100 CUTTER C AME02-121 BODY COVER AMN99-133-W4 ROTARY KNOB UNIT AMP96Y133-WZ CORD UNIT C2 PLUG...
