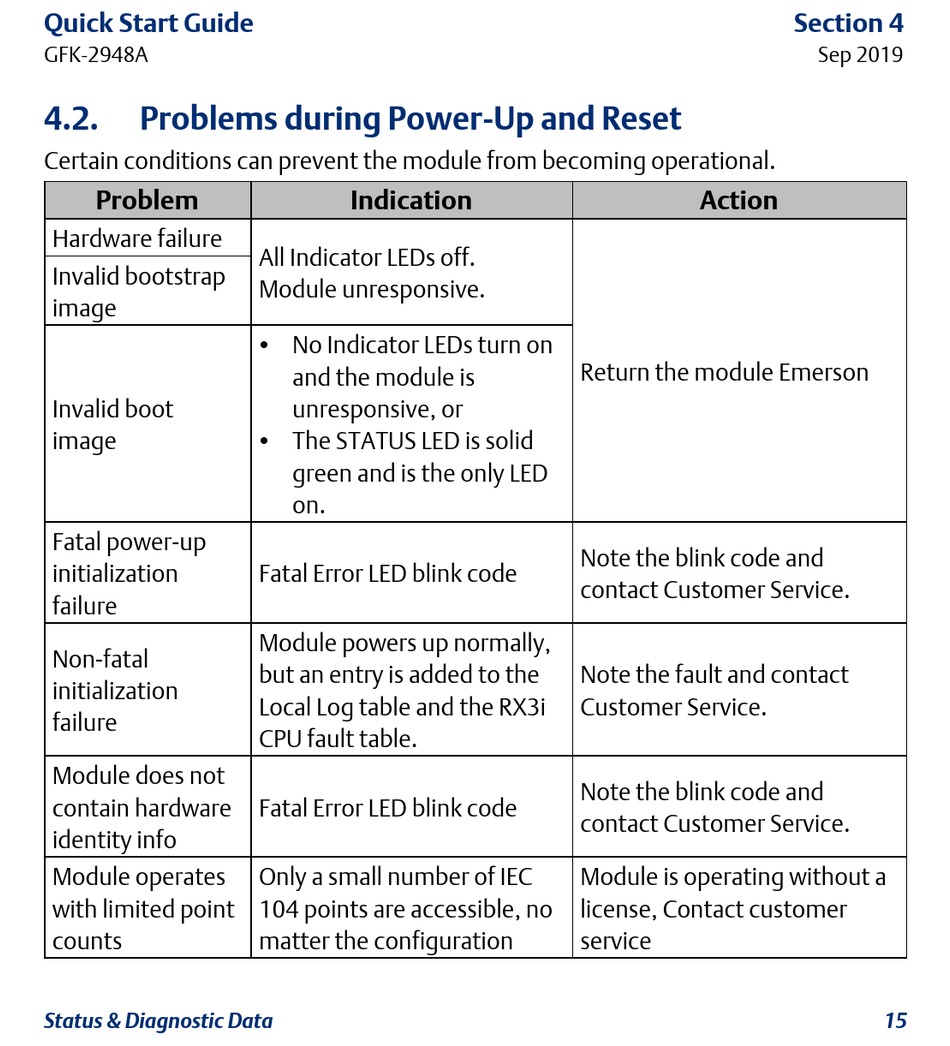

Problems during Power-Up and Reset

Certain conditions can prevent the module from becoming operational.
Problem
Hardware failure
Invalid bootstrap
Invalid boot
Fatal power-up
initialization
failure
Non-fatal
initialization
failure
Module does not
contain hardware
identity info
Module operates
with limited point
counts
Status & Diagnostic Data
Indication
All Indicator LEDs off.
Module unresponsive.
 No Indicator LEDs turn on
and the module is
unresponsive, or
 The STATUS LED is solid
green and is the only LED
on.
Fatal Error LED blink code
Module powers up normally,
but an entry is added to the
Local Log table and the RX3i
CPU fault table.
Fatal Error LED blink code
Only a small number of IEC
104 points are accessible, no
matter the configuration
Action
Return the module Emerson
Note the blink code and
contact Customer Service.
Note the fault and contact
Customer Service.
Note the blink code and
contact Customer Service.
Module is operating without a
license, Contact customer
service
