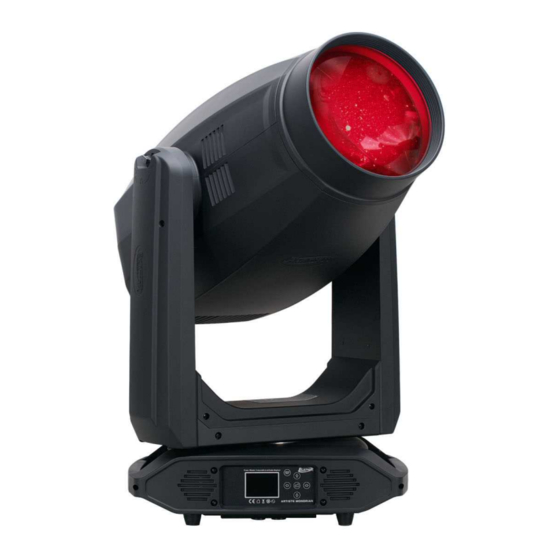

Elation ARTISTE MONDRIAN User Manual
  1. Manuals
  2. Brands
  3. Elation Manuals
  4. DJ Equipment
  5. ARTISTE MONDRIAN
  6. User manual

Elation ARTISTE MONDRIAN User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Elation ARTISTE MONDRIAN

Summary of Contents for Elation ARTISTE MONDRIAN

  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Returns (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Colors, Gobos, & Animation Wheel SpectraColor Guide Custom Gobos GOBO Installation Installation Guidelines System Menu Fan Modes and Low Noise Operation DMX Channel Functions and Values Error Codes Specifications...

  • Page 4: General Information

    BOX CONTENTS Omega Brackets (x2) Locking Power Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Warranty Returns (Usa Only)

    B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER SKIN...

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 9: Fixture Overview

    F I X T U R E O V E R V I E W Lens Tilt Lock System Menu Display MODE/ESC Button LEFT Button ENTER Button DOWN Button RIGHT Button UP Button 10. PAN Lock 11. Carrying Handle(s) 12. RJ45 Input 13.

  • Page 10: Colors, Gobos, & Animation Wheel

    C O L O R S , G O B O S , & A N I M A T I O N W H E E L COLOR FLAGS COLOR WHEEL ROTATING GOBO WHEEL 1 FIXED GOBO WHEEL 2 ANIMATION WHEEL...

  • Page 11: Spectracolor Guide

    SPECTRACOLOR GUIDE The Mondrian’s innovative SpectraColor system combines the established and well known CMY / CTO controls with three Pure RGB flags that are seamlessly adjustable. These flags greatly enhance the possible color range of the Mondrian for some truly outstanding colors that can be difficult to achieve with only CMY controls.

  • Page 12: Custom Gobos

    Extended testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for further information. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 13: Gobo Installation

    G O B O I N S T A L L A T I O N Pan Lock Tilt Lock 1. Before removing either cover, place fixture on a stable flat surface in an INDOOR DUST FREE location. Ensure moving head is locked into a neutral upright position with both PAN and TILT locks engaged. If necessary, the fixture can be locked at various angles as seen below.
  • Page 14 G O B O I N S T A L L A T I O N 3. The GOBO Wheel module is secured to the fixture frame rail with (2x) sliding slotted brackets. To remove the module, loosen the (4x) Philips-head screws just enough (do not remove them) to allow the slotted brackets to slide down.
  • Page 15 G O B O I N S T A L L A T I O N 5. With the moving head locked in a convenient position (note vertical locked position), slide the GOBO Wheel module completely out and away from the fixture. 6.
  • Page 16 G O B O I N S T A L L A T I O N 7. REPLACING A ROTATING GOBO Locate the specific Rotating GOBO to be replaced. Carefully grip the GOBO and gently lift it slightly up to pull it out and away until it fully clears the GOBO Wheel.
  • Page 17 I N S T A L L A T I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.

  • Page 18: Installation Guidelines

    I N S T A L L A T I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼...
  • Page 19 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.

  • Page 20: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu. The control panel (see image below) located on the front of the fixture, provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 21 ELATION ARTISTE MONDRIAN™ S Y S T E M M E N U Supports Software Versions: 1.2.3 Features subject to change without notice. *Rotation direction (Clockwise/Counterclockwise) and control of effects depends on head orientation and Pan/Tilt settings. MAIN MENU SUB MENU...
  • Page 22 ELATION ARTISTE MONDRIAN™ S Y S T E M M E N U Supports Software Versions: 1.2.3 Features subject to change without notice. *Rotation direction (Clockwise/Counterclockwise) and control of effects depends on head orientation and Pan/Tilt settings. MAIN MENU SUB MENU...
  • Page 23 S Y S T E M M E N U FUNCTION – Auto Program Define fixture mode (Primary or Alone) for running Auto Programs. Select desired internal programs under “Select Program,” set the number of steps under “Edit program,” and edit individual scenes under “Edit Scenes.”...
  • Page 24 FIXTURE SOFTWARE CAN NOT BE DOWNGRADED! DOWNLOAD FIXTURE SOFTWARE TO PC ONLY! (NO MAC SUPPORT) PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. 1. Copy fixture software update file from a PC computer to a compatible USB flash drive. Make sure only the fixture software update file is stored on the USB flash drive.
  • Page 26 S Y S T E M M E N U PERSONALITY - Reset Default (011) ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION! SAVED WHITE BALANCE IS ERASED AFTER RESET IS PERFORMED. This function restores all fixture settings to the factory default settings. The password is 011 and must be entered each time a reset is performed.
  • Page 27 S Y S T E M M E N U EDIT PROGRAM – Record Controller – Working with Built-In Program [continued] To start an Auto Program, proceed as follows: 1. Secondary Setting Select “Function Mode”. Press ENTER to confirm. Select “Set to Secondary”. Press ENTER to confirm.
  • Page 28 S Y S T E M M E N U EDIT PROGRAM – Record Controller – Working with Built-In Program [continued] 5. Automatic Scene Recording Select “Edit Program”. Press ENTER to confirm. Select “Edit Scenes”. Select desired scene numbers. A maximum of 250 scenes can be programmed. Press ENTER to confirm.

  • Page 29: Fan Modes And Low Noise Operation

    F A N M O D E S a n d L O W N O I S E O P E R A T I O N The Artiste Mondrian is a high-performance fixture suited for multiple applications. For noise critical environments such as Theater, Opera, or Orchestral Halls, it offers various fan operation modes which remove unwanted noise distractions for the audience and performers.

  • Page 30: Dmx Channel Functions And Values

    D M X C H A N N E L F U N C T I O N S A N D V A L U E S ELATION ARTISTE MONDRIAN™ DMX Channel Values / Functions (42 / 68 Total DMX Channels) Supports Software Versions: 1.2.3...
  • Page 31 Hold Standard Extended Value Function Default Snap Time Color Wheel: 0-19 Open 20-37 38-55 Green 56-73 74-91 High CRI 92-109 Orange 110-127 Medium Blue 128-189 Clockwise effect from fast to slow 190-193 No rotation 194-255 Counter-clockwise effect from slow to fast Color Wheel Fine: 0-255 Fine Control of Color Wheel position...
  • Page 32 Hold Standard Extended Value Function Default Snap Time Rotating Gobo2 Open 10-19 Rot. gobo 1 20-29 Rot. gobo 2 30-39 Rot. gobo 3 40-49 Rot. gobo 4 50-59 Rot. gobo 5 60-69 Rot. gobo 6 70-89 Gobo 1 shake slow to fast 90-109 Gobo 2 shake slow to fast 110-129 Gobo 3 shake slow to fast...
  • Page 33 Hold Standard Extended Value Function Default Snap Time Rotating prism, Prism/Gobo macros: 0-63 Open 64-95 4 Prism 96-127 4 Facet Linear 128-135 Macro1 136-143 Macro2 144-151 Macro3 152-159 Macro4 160-167 Macro5 168-175 Macro6 176-183 Macro7 184-191 Macro8 192--199 Macro9 200-207 Macro10 208-215 Macro11 216-223 Macro12 224-231 Macro13...
  • Page 34 Hold Standard Extended Value Function Default Snap Time Auto Focus : 0-10 Auto Focus Off 11-25 Focus Override FX 26-50 Idle 51-100 101-150 7.5m 151-200 10m 201-255 15m AutoFocus Fine: 0-255 Continuous adjustment Fine Shutter, strobe: 0-31 Shutter closed 32-63 No function (shutter open) 64-95 Strobe effect slow to fast...
  • Page 35 Hold Standard Extended Value Function Default Snap Time Dim Modes 0-20 Standard 21-40 Stage 41-60 61-80 Architectural 81-100 Theatre 101- 120 Stage 2 Dimmer Delay Time 0.1s 0.2s 0.3s 0.4s 0.5s 0.6s 0.7s 0.8s 0.9s 1.0s 1.5s 2.0s 3.0s 4.0s 5.0s 6.0s 7.0s...
  • Page 36 Hold Standard Extended Value Function Default Snap Time Speed Of CMY & Color macro Speed: 0-255 Speed Max >Min Color macros - CMY and color wheel: 0-31 32-39 Macro1 40-47 Macro2 48-55 Macro3 56-63 Macro4 64-71 Macro5 72-79 Macro6 80-87 Macro7 88-95 Macro8...
  • Page 37 Hold Standard Extended Value Function Default Snap Time Blade 1A 0-255 Open to Close Blade 1A Fine 0-255 Open to Close Fine Blade 1B 0-255 Open to Close Blade 1B Fine 0-255 Open to Close Fine Blade 2A 0-255 Open to Close Blade 2A Fine 0-255 Open to Close Fine...
  • Page 38 Hold Standard Extended Value Function Default Snap Time Framing Macro: 8-15 Macro1 16-23 Macro2 24-31 Macro3 32-39 Macro4 40-47 Macro5 48-55 Macro6 56-63 Macro7 64-71 Macro8 72-79 Macro9 80-87 Macro10 88-95 Macro11 96-103 Macro12 104-111 Macro13 112-119 Macro14 120-127 Macro15 128-135 Macro16 136-143 Macro17 144-151 Macro18...
  • Page 39 Hold Standard Extended Value Function Default Snap Time Pan / Tilt Speed: 0-225 Max to min speed 226-235 Blackout by movement 236-245 Blackout by all wheel changing 246-255 No function Control: 0-19 Color change normal 20-29 Color change to any position 30-39 Color &...
  • Page 40 Hold Standard Extended Value Function Default Snap Time 1170 1180 1190 1200 1210 1220 1230 1240 1250 1260 1270 1280 1290 1300 1310 1320 1330 1340 1350 1360 1370 1380 1390 1400 1410 1420 1430 1440 1450 1460 1470 1480 1490 1500 2500...
  • Page 41 Hold Standard Extended Value Function Default Snap Time 177-178 Hibernation Off 179-180 Hibernation On 181-190 smooth mode (Pan/Tilt brake) (default) 191-200 fast mode (Pan/Tilt brake) 201-210 Dimmer Curve Linear (default) 211-220 Dimmer Curve Square 221-230 Dimmer Curve Inverse Square 231-240 Dimmer Curve S-Curve Internal program 1 (scene1~8 of EEPROM) Internal program 2 (scene9~16 of EEPROM) Internal program 3 (scene17~24 of EEPROM)

  • Page 42: Error Codes

    E R R O R C O D E S When power is applied, the unit will automatically enter a “Reset/Test” mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of “XXer”...

  • Page 43: Specifications

    S P E C I F I C A T I O N S SOURCE 950W 6,500K Bright White LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

  • Page 44: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S *DRAWINGS NOT TO SCALE Specifications and improvements in the design of this unit and this manual are subject to change without notice.

  • Page 45: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable CAT6PRO5 5 ft.
