Datalogic Lynx Quick Start Manual

Lynx Single Slot Dock
TM
Quick Start Guide
Read this manual carefully before performing any type of
connection from the terminal to a host PC using the Single
Slot Dock.
The user is responsible for any damages caused by
NOTE
incorrect use of the equipment or by inobservance of the
indication supplied in this manual.
Do not attempt to disassemble the Single Slot Dock, as it
does not contain parts that can be repaired by the user.
Any tampering will invalidate the warranty.
NOTE

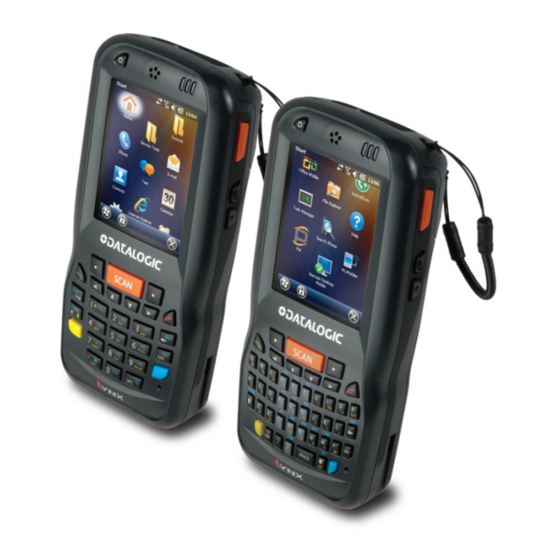

The Single Slot Dock paired with a Lynx PDA builds a reading system
for the collection, decoding and transmission of barcoded data.
The Single Slot Dock is both a USB and a serial communication
adapter between the terminal and the host computer.
The Single Slot Dock also functions as a battery charger, both for the
terminal and the spare battery pack (standard 94ACC0064 and high
capacity 94ACC0065). The spare battery can be charged by inserting it
into the slot at the back of the cradle.
Power supply is required for the Lynx to be connected to the cradle
and for battery recharging operations.

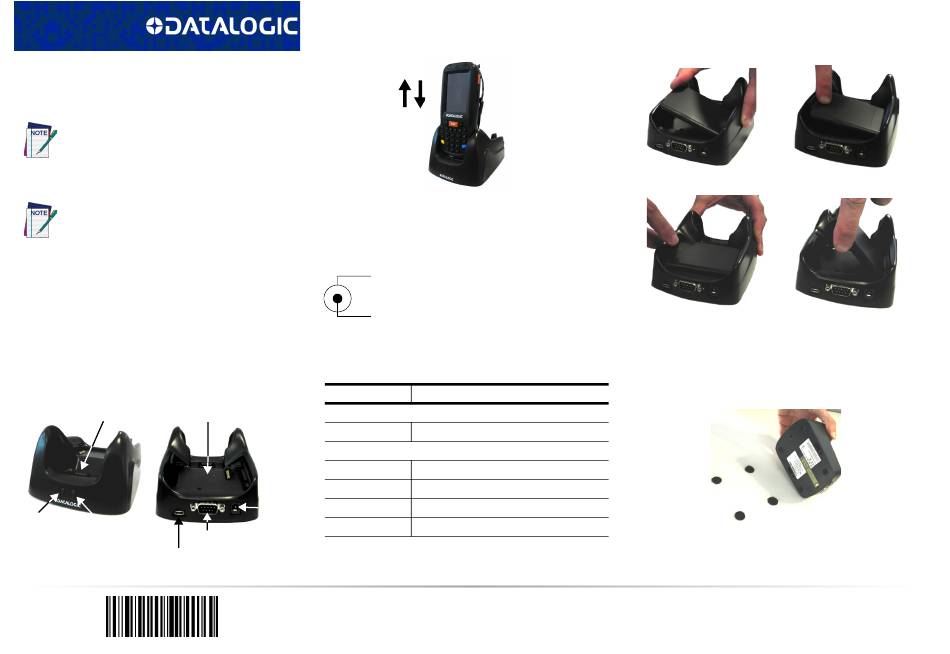

General View
Contacts for Lynx
Spare Battery Slot
Power On
Battery Charge
LED
Status LED
RS232 Connector
USB Connector
822001283 (Rev. A) Jan. 2018
PDA Insertion/Removal
For correct insertion into the dock, insert the PDA from the top of the
dock and push it down.
To remove the PDA from the dock, simply pull it upwards while
holding the dock firmly down.
Power Supply
Each dock requires a power supply.
-
+
LED Indicators
LED
Power ON LED
Solid green Dock is powered.
Battery Charge Status LED
Off Battery absent.
Solid red Battery charge in progress.
Power
Jack Solid green Charge completed.
Blinking red Error.
Using the Spare Battery Charger
Insert the battery pack, contacts side first, into the slot and press it
until the battery latch is automatically closed; charging starts
automatically.
To remove the battery, press the battery-release lever.
Fastening the Dock to a Surface
To securely fasten the Single Slot Dock to tables, desks and other
surfaces, and to prevent the dock from moving when you remove the
device, use the four velcro dual lock feet provided with the matching
dual-lock adhesive pads.
Status
Remove the protective feet from the dock before attaching the velcro
dual lock feet.
