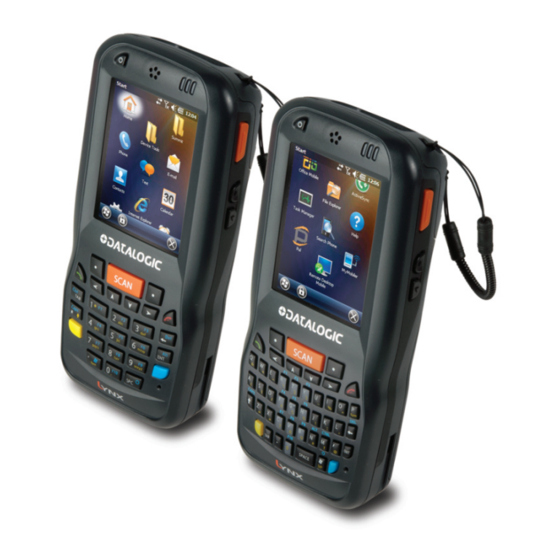

Lynx™
Personal Digital Assistant (PDA)
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Datalogic Lynx

Summary of Contents for Datalogic Lynx

  • Page 1 Lynx™ Personal Digital Assistant (PDA) User’s Manual...
  • Page 2 Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non- exclusive, revocable license to reproduce and transmit this documentation for the purchaser' s own internal business purposes.

  • Page 3: Table Of Contents

    Laser Data Capture ..................38 4.3.2 Imager Data Capture................... 40 Description of the Keys ................42 4.4.1 Alphanumeric Keyboard ................42 4.4.2 Resetting the Lynx ..................45 Status Indicators ..................47 4.5.1 LED Status ....................47 4.5.2 Taskbar ....................... 48...
  • Page 4 Connecting to other Computers ..............76 4.7.1 Windows Mobile® Device Center ..............76 4.7.2 Bluetooth® Manager Device Setup ............. 77 Datalogic Firmware Utility ................85 4.8.1 Retrieving a Firmware Image Update ............85 4.8.2 Installing DFU on the Host PC ..............86 4.8.3...
  • Page 5 Bluetooth® Approval ................. 140 FCC Compliance ..................142 RF Exposure Information (SAR) ............... 143 Industry Canada Compliance ..............144 SAR Compliance ..................145 WEEE Compliance ................... 146 GLOSSARY ....................148 INDEX ....................... 152...

  • Page 6: References

    “PDA” and "Lynx" refer to Lynx PDA. “You” refers to the System Administrator or Technical Support person using this manual to install, configure, operate, maintain or troubleshoot an Lynx PDA. “Single Dock” refers to the Lynx Single Slot Dock. The label artworks may be only a draft. Refer to the product labels for more precise information.

  • Page 7: General View

    GENERAL VIEW A) Color Display Laser Safety Label B) ON/OFF Power Key Loudspeaker C) Receiver K) Color Camera D) LEDs Flash E) Front Scan Key M) Product Label (under battery) Keyboard N) MicroSD Card Slot (under battery) G) Microphone O) SIM Card Slot (under battery) H) Telescope Stylus (not included in P) Reset Key (under battery) the box, please order it separately,...
  • Page 8 R) Side Scan Key (right) Side Scan Key (left) S) Up/down Volume Keys U) Headset Connector V) Micro-USB Port for supplying power and data transfer (host/slave) W) Data Capture Window X) Handylink™ Connector (host/slave) viii...

  • Page 9: Introduction

    256 MB of RAM and 512 MB of Flash. A Micro SD card slot supporting micro SDHC storage cards provides for virtually unlimited storage space. The Lynx has been equipped with both a 1D laser scanner and 2D bar code imager. Ready for the most demanding applications, an autofocus camera with flash has been foreseen on the back of the product.

  • Page 10: Available Models

    LYNX™ AVAILABLE MODELS The Lynx is available in different models depending on the options it is equipped with. All options are listed below: • communication options: 802.11 b/g/n radio, Bluetooth®, HSPA+ • data capture options: laser, 2D imager • operating system: Windows Embedded Handheld •...
  • Page 11 INTRODUCTION • 944400006 Lynx 00N0WI-1Q1-MEN0 Lynx with Bluetooth® v2.0, 802.11 b/g/n CCX v4, 2D Imager, Camera 3MPixel,Windows Embedded Handheld 6.5, 256 MB RAM / 512 MB Flash, 46- Key QWERTY...

  • Page 12: Package Contents

    − 1 End User License Agreement (EULA) Sheet Accessories necessary for the Lynx connection to the host computer and to the network are packaged separately: the cradle, one or more connection cables. Remove all the components from their packaging; check their integrity and compare them with the packing documents.
  • Page 13 INTRODUCTION Rechargeable battery packs are not initially fully charged. Therefore the first operation to perform is to charge them. See paragraph 2.1. NOTE...

  • Page 14: Inserting A Microsd Card

    LYNX™ INSERTING A MICROSD CARD Lynx supports microSD memory cards. To access the microSD card slot and insert the card, proceed as follows: Turn off the Lynx. Shift the battery latch to the left and remove the battery pack: Open the card slot and insert the microSD card with the written part downward:...
  • Page 15 INTRODUCTION Shift the card to the right to lock it into the cardholder; close the card slot: First insert the bottom (contacts) and then the upper side of the battery pack into the slot. Press until the battery latch clicks.

  • Page 16: Removing The Microsd Card

    Lynx or the microSD card itself. Proper ESD precautions include, but are not limited to, working on CAUTION an ESD mat and ensuring that the operator is properly grounded. Do not force the card. If you feel resistance, remove the card, check the orientation, and reinsert it.

  • Page 17: Installing The Sim Card

    INTRODUCTION INSTALLING THE SIM CARD To correctly insert the SIM Card, proceed as follows: Turn off the Lynx. Shift the battery latch to the left and remove the battery pack: Insert the SIM card with the contacts downwards: First insert the bottom (contacts) and then the upper side of the battery pack into...

  • Page 18: Removing The Sim Card

    LYNX™ Follow proper ESD precautions to avoid damaging the SIM card. Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded. CAUTION Do not force the card. If you feel resistance, remove the card, check the orientation, and reinsert it.

  • Page 19: Accessories

    94ACC0079 Module, Ethernet Communication for Single Slot Dock 94ACC1372 Module, Modem Communication for Single Slot Dock  Batteries 94ACC0064 Battery, Standard Capacity, Lynx, 1800 mAh battery (included with Wi-Fi models) 94ACC0065 Battery, High Capacity, Lynx, 3600 mAh battery (included with 3G/4G (HSPA+) models) ...
  • Page 20 95ACC1213 Power Cord, 240V AC, UK 95ACC1215 Power Cord, IEC/Australian 95ACC1284 Power Cord, IEC C13, Black Argentina, ROHS Use only a Datalogic approved power supply and cables. Use of an alternative power supply will invalidate any approval given to this device and may be dangerous.

  • Page 21: Batteries And Maintenance

    The battery icon on the Taskbar indicates when the battery pack is low. It is possible to recharge the battery pack by connecting the power supply directly to the Lynx. Alternatively, it is also possible to recharge the battery pack by using a Single Cradle or the Lynx Multi Battery Charger.
  • Page 22 If the battery pack is removed from the PDA, it can be recharged by inserting it into the rear slot of a Single Cradle or into a Lynx Multi Battery Charger. Do not use the Lynx until standard batteries are charged for minimum 4 hours and extended batteries are charged for minimum 6 hours.
  • Page 23 Lynx is disconnected from power supply before the charging cycle is completed. NOTE The Lynx may get warm during charging; this is normal and does not mean a malfunction. NOTE Use only a USB-IF compliant USB port as a charging source.

  • Page 24: Replacing The Battery Pack

    REPLACING THE BATTERY PACK To correctly replace the battery pack, proceed as follows. Turn off the Lynx. Shift the battery latch to the left and remove the battery pack: Install the new battery pack, first insert the bottom (contacts) and then the upper...
  • Page 25 Using the battery pack in this manner may also result in a loss of performance and a shortened life expectancy. Use only a Datalogic approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, an explosion, or fire.
  • Page 26 In order to guarantee an adequate operating autonomy, when replacing the battery pack the PDA checks the battery energy level. If the battery is not sufficiently charged, the Lynx does not turn on (when pressing the ON/OFF key). In this case, either substitute the battery pack with a charged one...

  • Page 27: Cleaning The Pda

    BATTERIES AND MAINTENANCE CLEANING THE PDA Periodically clean the Lynx with a slightly dampened cloth. Do not use alcohol, corrosive products or solvents.

  • Page 28: Connections

    LYNX™ CONNECTIONS USB CONNECTION You can use the standard micro USB cable 94A051968 or the Datalogic HandyLink™ cable 94A051970 to directly connect the Lynx to a host computer to transfer data through the USB interface. Key: Host computer Lynx Standard Micro USB cable 94A051968/ 94A051970 HandyLink™...
  • Page 29 CONNECTIONS The Single Dock can be connected to the Host by means of the Micro-B USB cord 94A051968. Once the host computer has been turned on, insert the Lynx PDA into the cradle. Key: Host computer 94A150036 Lynx Single Slot Dock...

  • Page 30: Connection To Usb Peripherals

    LYNX™ CONNECTION TO USB PERIPHERALS To connect the Lynx to a USB keyboard or a memory device, connect the terminal to the Datalogic 94A051969 cable or to the Datalogic 94A051971 cable (together with a standard A to micro A USB cable).
  • Page 31 CONNECTIONS Insert the micro-USB cable output plug into the micro-USB connector of the Lynx, making sure that the arrow on the plug faces upwards: NOTE...
  • Page 32 94ACC1381 Power Adapter 94A051969 Micro USB Host Cable Lynx works with most of the mentioned USB peripherals. Datalogic can not guarantee the interoperability of Lynx with all devices on the market. NOTE Connection is compliant to USB 1.1 standard. NOTE The actual data transfer speed can be appreciably lower than the maximum theoretical speed.

  • Page 33: Rs232 Connection

    CONNECTIONS RS232 CONNECTION You can use the Datalogic 94A051972 cable to directly connect the Lynx to a host computer to transfer data through the RS232 interface Key: Host computer Lynx 94A051972 HandyLink™ Micro RS232 Client Cable Insert the HandyLink™ cable output plug into the HandyLink™...
  • Page 34 The Single Slot Dock can be connected to the Host by means of a standard null modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections. Once the Host computer has been turned on, insert the Lynx PDA into the cradle. Key:...

  • Page 35: Wlan Connection

    CONNECTIONS WLAN CONNECTION Lynx 802.11 b/g/n radio models can communicate with the host using the on-board Wi-Fi radio and an Access Point connected to the host computer network. For models using the 802.11 b/g/n radio, you can find information about the applet for radio configuration: http://www.summitdata.com/SCU.htm.
  • Page 36 (microwave ovens, radio transmitters, etc.). NOTE In case of heavy usage the Lynx may get warm; this is normal and does not mean a malfunction. NOTE...

  • Page 37: Wpan Connections

    CONNECTIONS WPAN CONNECTIONS Lynx Bluetooth® models can communicate with a Bluetooth® device, such as a printer, within a range of 10 m, using the on-board Bluetooth® module. Key: A) Lynx B) Bluetooth® printer In order to extend battery life, the Bluetooth® module is off by default.

  • Page 38: Wwan Connection

    LYNX™ WWAN CONNECTION Lynx 3G/4G HSPA+ models enhance your connectivity solutions giving you an opening to an international wireless infrastructure that is the global standard. Lynx uses the following bands: UMTS/HSPA+: 800/850/900/1900/2100MHz GSM/GPRS/EDGE 850 900 1800 1900 MHz. In order to use a WWAN Connection you have to install a SIM Card (see instructions on par.
  • Page 39 During a call, you can set the speaker volume by pressing the volume keys on the side of the Lynx. NOTE In case of heavy usage the Lynx may get warm; this is normal and does not mean a malfunction. NOTE...

  • Page 40: Wireless And Radio Frequencies Warnings

    Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications or attachments could damage the product and may violate laws and regulations. The antennas inside the Lynx are not user-accessible and cannot be replaced by end users. Send any faulty equipment to Datalogic for WARNING repair.
  • Page 41 CONNECTIONS RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle. WARNING An air bag inflates with great force.

  • Page 42: Use And Functioning

    STARTUP The Lynx turns on when the battery pack or the external supply is inserted and the ON/OFF Power button is pressed. After the battery pack is installed, use the [ON/OFF] key to turn the PDA on and off.

  • Page 43: Using The Stylus

    To recalibrate the touch screen use the Screen applet (see par. 4.6.7). Use only original Datalogic styluses supplied with the product itself. In harsh applications, use of screen protectors should be taken into consideration, in order to extend the touch screen operating life.

  • Page 44: Windows Embedded Handheld Welcome Wizard

    LYNX™ WINDOWS EMBEDDED HANDHELD WELCOME WIZARD In Windows Embedded Handheld, at the very first Lynx startup, following a clean boot or following a Registry restore to default values, the PDA startup (see par. 4.1) is preceded by the Welcome Wizard.

  • Page 45: Data Capture

    USE AND FUNCTIONING DATA CAPTURE To capture data first of all tap Start > Settings > System > Decoding: To configure and enable data capture parameters refer to par. 4.6.1.

  • Page 46: Laser Data Capture

    4.3.1 Laser Data Capture To scan barcodes, point the Lynx laser model onto the code from a distance within the reading range while pressing the SCAN key. The lighted band emitted by the laser must completely cross the barcode as shown in the figure below.
  • Page 47 USE AND FUNCTIONING Remove the protective film cover over the Laser Output Window before use, if present. NOTE...

  • Page 48: Imager Data Capture

    To read a 1D or 2D code, simply point the Lynx Imager model onto the code and press the SCAN Key. The Lynx Imager uses an intelligent aiming system pattern, similar to those on...
  • Page 49 The field of view indicated by the aiming system pattern will be smaller when the Lynx Imager is closer to the code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit.

  • Page 50: Description Of The Keys

    LYNX™ DESCRIPTION OF THE KEYS The Lynx comes with two different keyboards, an alphanumeric keyboard (QWERTY), having 46 keys, and a numeric keyboard, having a total of 27 keys. 4.4.1 Alphanumeric Keyboard...

  • Page 51: Numeric Keyboard

    USE AND FUNCTIONING Numeric Keyboard...

  • Page 52: Main Keys Function

    Blue modifier (one shot key): when pressed before a standard key, it enables the character or function printed in blue above the key It powers the Lynx ON or OFF. It is placed on the upper left side of the terminal. The Telephone End key normally generates the VK_TEND virtual key code, used to hang-up phone calls and to quickly return to the Today screen.

  • Page 53: Resetting The Lynx

    RAM, but the file system is preserved. Registry is restored from persistent memory. A clean boot restores the Lynx to a clean configuration: both the Registry and the file system return to a clean status that conforms to factory default.

  • Page 54: Clean Boot

    LYNX™ Clean Boot To perform a clean boot, do the following steps: Perform a Warm Boot (see Warm Boot) Before the splash screen appears, press and hold down the 0 and Telephone End keys simultaneously: A dialog box will appear asking for confirmation. Press the Enter Key to confirm. If you wish to cancel the clean boot, press Esc by pressing Blue + Telephone End.

  • Page 55: Status Indicators

    USE AND FUNCTIONING STATUS INDICATORS 4.5.1 LED Status The Lynx provides three different LEDs signaling the PDA status. STATUS Scanning LED is ON from the time the Good Read user hits the scan button or side trigger (right side) buttons until the bar code is decoded.

  • Page 56: Taskbar

    LYNX™ 4.5.2 Taskbar The Taskbar provides information about the time, the battery level, the keyboard function, and the decoding status. Windows Embedded Handheld Taskbar ICONS DESCRIPTION Zooms the screen. Opens the Connections balloon, which includes hypertext links to the Wireless Manager and the Connections applet. (see par.

  • Page 57: Settings

    USE AND FUNCTIONING SETTINGS From the Start menu, tap Settings. The settings are organized hierarchically. Control panel applets are displayed as icons; each icon corresponds to one applet: Windows Embedded Handheld Control Panel...

  • Page 58: Data Capture Configuration

    LYNX™ 4.6.1 Data Capture Configuration You can configure the Lynx’s decoding options by tapping Start -> Settings -> System -> Decoding: There are two sections in the Decoding control panel, each containing additional pages. There are seven General Configuration pages and multiple Barcode symbology pages.
  • Page 59 USE AND FUNCTIONING Audio From the Decoding menu, tap Configure > General > Audio. Use it to set volume, tone, duration, and number of various types of beeps. Good Read From the Decoding Properties applet, tap Configure > General > Good Read. Use it to enable Good Read indications, the use of a vibrator feedback and to set the decoding timeout for decoding labels.
  • Page 60 LYNX™ General Options From the Decoding menu, tap Configure > General > General Options. Select from Label Programming Enable, Symbology IDs, Label Prefix, Label Suffix and Data Separator.
  • Page 61 USE AND FUNCTIONING Decoding Options From the Decoding Properties applet, tap Configure > General > Decoding Options. Use it to configure the User ID for symbologies, Redundancy and Aggressive Decoding (if supported by the decoding module). Select a symbology to view or change the available properties settings.
  • Page 62 LYNX™ Spot Beam From the Decoding Properties applet, tap Configure > General > Spot Beam. It allows enabling and configuration of Spot Beam and triggering modes. It is only available on devices equipped with laser and advanced long range laser...

  • Page 63: Imager Options

    USE AND FUNCTIONING Imager Options From the Decoding Properties applet, tap Configure > General > Imager Options. It configures illumination, target beam and Pick List mode, and triggering modes. It is only available on devices equipped with 2D decoding engines.
  • Page 64 When the Clipboard checkbox is checked, the Windows clipboard is used to pass label data, which can be much faster than the keyboard wedge at typing label data from a large label one character at a time. The disadvantage is that label data will replace any data already in the Lynx's clipboard.
  • Page 65 USE AND FUNCTIONING 1D Barcode Symbology Pages Use the drop-down menus from Configure > 1D Barcode, or tap the left and right arrow keys to navigate the different pages of the barcode symbology pages. Each barcode symbology opens to its own page, as shown in the figure below. Refer to the sample symbology control panels for examples of the types of fields and options you can modify.
  • Page 66 LYNX™ Decoding Settings Select from the Decoding Properties Settings menu to restore previous configurations and/or other available default settings. Choose from: • Factory Defaults • Minimum Settings • Maximum Settings • Save (New Settings) • Revert to Saved Settings The settings are saved when you tap OK.

  • Page 67: Buttons

    USE AND FUNCTIONING 4.6.2 Buttons From the Start menu, tap Settings > Personal > Buttons. On the Program Buttons tab, customize the program hardware buttons to launch your most used applications. Under ‘Select a button’, tap the button you want to assign a program to, and then select a program from ‘Assign a program’.

  • Page 68: Dl Buttons

    LYNX™ 4.6.3 DL Buttons In Windows Embedded Handheld devices, <F1>-<F10> buttons (excluding F5) are assigned by Windows to default applications. F5 is commonly used by applications to refresh the few, but is not explicitly controlled by default. To disable an assigned function, tap Start > Settings > System > DL Buttons to display the DL Buttons window: Select the button you want to disable.
  • Page 69 USE AND FUNCTIONING To add the button, tap ‘New’ and then press the button you wish to add: To assign a new function to the button, select the desired function and then tap ‘OK’: To restore the old settings, do a clean boot.

  • Page 70: Triggers

    LYNX™ 4.6.4 Triggers Triggers are special customizable buttons that are mapped by default by DL Buttons. Also, they can be set as wakeup buttons: AVAILABLE FUNCTIONS TRIGGERS Bar Code/ Bar Code Camera Shutter ∗ Camera Shutter Activates the Scan Takes a picture if...

  • Page 71: Application Switcher

    The <Esc> key can be used to close the Application Switcher. The <Esc> key is activated by pressing on the Lynx. NOTE Press the assigned button to open the application switcher. Press the assigned button to cycle through the running applications when the dialog is open.

  • Page 72: Wireless Communications

    LYNX™ 4.6.6 Wireless Communications The Wireless Manager application is a sort of 'Control Panel' for wireless connections. From here it is possible to turn on or off Bluetooth® and radio modules. Open the Wireless Manager by tapping Start > Settings > Connections > Wireless Manager, or by tapping the connectivity icon on the taskbar and then tapping the "Wireless Manager"...
  • Page 73 USE AND FUNCTIONING Summit Client Utility (SCU) Wireless networking has a customized control, Summit Client Utility (SCU). From the Start menu, tap: Summit > SCU: The SCU will open to the “Main” tab: Summit Client Utility...
  • Page 74 LYNX™ To create a new profile, tap the "Profile" tab: Information about the wireless network can be entered directly in the profile tab or by pressing “Scan” when the desired network SSID is in range. At the "Scan" screen, select the desired SSID:...
  • Page 75 USE AND FUNCTIONING Tap the "Configure" button Follow the on-screen instructions to configure security parameters for your network. For more detailed settings specific to your installation please contact your wireless network administrator. When finished, tap “Commit” to save your settings. Return to the “Main”...
  • Page 76 LYNX™ At the “Main” tab select the profile you just created. If you used the “scan” button the desired profile will have the same name as the SSID. Use the “Status” tab to check connectivity to the network. More detailed information about the applet for radio configuration can be found at...
  • Page 77 USE AND FUNCTIONING Locating the IMEI Number on the Lynx To find the IMEI number on the Lynx 3G/4G HSPA+ units, do the following steps: Install a SIM card (see par.1.5) From the desktop of the unit open the Start Menu > Settings > Connections >...
  • Page 78 LYNX™ Tap on Menu at the bottom of the screen and choose Phone Settings. Tap the right or left arrow until Info displays in the center of the title bar. The IMEI number should now be showing on the screen.

  • Page 79: Stylus Calibration

    USE AND FUNCTIONING 4.6.7 Stylus Calibration You might need to recalibrate the touch screen (i.e. when you attempt to select one item with the stylus, another item is erroneously selected). To recalibrate the touch screen, complete the following steps: Select Start > Settings > System > Screen to open the Screen Settings.
  • Page 80 LYNX™ Startup Stylus Calibration When clean booting the terminal, a Welcome Wizard (with Stylus Calibration) comes up if valid calibration settings are not available.

  • Page 81: Audio Settings

    USE AND FUNCTIONING 4.6.8 Audio Settings There are two applets that control volume: Audio and Volume & Sounds. Audio From the Start Menu, tap Settings > System > Audio: The audio control panel can be used to independently set the playback or recording volume for different types of audio inputs and outputs, such as a headset, powered mobile dock, or the internal speakers and microphone.
  • Page 82 LYNX™ Sounds & Notifications From the Start Menu, tap Settings > Sounds & Notifications: The Sounds & Notifications applet configures audio features of all speakers and headphones: Sounds Tab Notifications Tab...
  • Page 83 USE AND FUNCTIONING You can also set the volume of a paired Bluetooth®headset. Tap: Start > Settings > System > Bluetooth Manager, select the Connections tab and then select the headset pairing in the Paired Devices list. The following window will appear:...

  • Page 84: Connecting To Other Computers

    LYNX™ CONNECTING TO OTHER COMPUTERS To connect the Lynx to another device (i.e. Host PC) which run Windows, several programs are available. These programs require specific electrical connections in order to function properly. 4.7.1 Windows Mobile® Device Center The desktop application Windows Mobile® Device Center gives you the ability to synchronize information between a desktop computer and your Lynx.

  • Page 85: Bluetooth® Manager Device Setup

    Search for available Bluetooth® devices by tapping the button for the type of device you want (Printer, Serial or All) or tap the Discovery tab and then tap the Discover button to skip this step. The Lynx will search for Bluetooth® devices within range.
  • Page 86 LYNX™ Once searching is complete, Bluetooth® devices will be displayed in the Discovery tab. You can set up a connection to a device in the list by selecting the device and then tapping the 'Connect' button: To create a pairing:...
  • Page 87 USE AND FUNCTIONING Icon Service Dialup Networking Printer Object Push (OPP) or Object Exchange (OBEX) ActiveSync Human Interface Device (HID) - Keyboard Serial Personal Area Network (PAN) Modem Headset Handsfree Virtual Port allows you to specify the incoming port, which is used to communicate serially with an incoming device just as if it were a physical COM port.
  • Page 88 LYNX™ You can also select Encrypt or Authenticate from the Bluetooth® control panel to apply or modify those settings. To require Authentication, check the checkbox, then tap OK. If required, the Authentication Request dialog will then open, requesting that you enter a PIN.
  • Page 89 USE AND FUNCTIONING The dialog will also appear when an Authentication request is received from another device. Once you have set up a Pairing, you can view the settings by double-tapping its name in the Connections tab. Tap the arrow to change the Virtual Port, or Delete to remove the device pairing.
  • Page 90 LYNX™ Using your device to connect to the Lynx Before turning on Bluetooth® ensure that the two devices are within close range and that both Bluetooth-enabled devices are discoverable. Tap Start > Settings > System > Bluetooth Manager to open the Bluetooth®...
  • Page 91 (i.e. a scanner) to the Lynx, use the Port control to select a virtual COM port to use for the connection. Tap ‘Find Me’ if you want to make the Lynx visible to other Bluetooth® devices for 60 seconds, allowing them to set up a connection.
  • Page 92 LYNX™ By default, Bluetooth® is turned off. If you turn it on, and then turn off your device, Bluetooth® also turns off. When you turn on your device again, Bluetooth® turns on automatically. NOTE...

  • Page 93: Datalogic Firmware Utility

    For more information refer to the dedicated section of the Wavelink website: http://www.wavelink.com/Datalogic-device-downloads. − If Wavelink Avalanche™ is not available or you have only a few Datalogic devices to update, use the Datalogic Firmware Utility (DFU), described below, to install or update the firmware using an ActiveSync connection.

  • Page 94: Installing Dfu On The Host Pc

    PC. NOTE To install the Datalogic Firmware Utility, complete the following steps on the PC: Go to the Datalogic website and download the most current version of the Datalogic Firmware Utility. Unzip the file, then double-click to run DFU_Setup.

  • Page 95: Updating The Firmware

    ActiveSync or Windows Mobile® Device Center connection between the host computer and the Datalogic device. NOTE Go to Start > Programs > Datalogic > DFU > Datalogic Firmware Utility. WMDC/ Verify that ActiveSync is selected by clicking Communications > ActiveSync.

  • Page 96: Datalogic Configuration Utility

    DATALOGIC CONFIGURATION UTILITY Datalogic Configuration Utility (DCU) is a Datalogic Windows-based utility tool allowing the uploading, modifying and downloading of the configuration of a Datalogic device. Configuration settings include Scanner, Control Panel, and Datalogic Desktop Utility (DDU). The DCU installer is downloadable from the Datalogic website (http://www.datalogic.com/eng/support-services/automatic-data-...

  • Page 97: 4.10 Radio Power Management

    USE AND FUNCTIONING 4.10 RADIO POWER MANAGEMENT The Lynx's power management allows the user to keep device features powered while the device is off. The features managed by this feature are: Cellular Data/Voice and GPS. The Wi-Fi driver has been measured to consume about 50 µA when left powered.
  • Page 98 LYNX™ The term "device off" here refers to a condition where the display is off and the device appears unpowered. The device CPU may in fact be powered on. In this condition the power consumption can be relevant and battery can be...

  • Page 99: 4.11 Datalogic Desktop Utility

    USE AND FUNCTIONING 4.11 DATALOGIC DESKTOP UTILITY ® Datalogic Desktop Utility (DDU) allows administrators to configure Windows CE and Embedded Handheld devices to control individual user access. This includes the ability to: • Prevent users from changing your device OS settings.

  • Page 100: Administrative Options (Admin Tab)

    4.11.1 Administrative Options (Admin tab) When you open the DDU control panel, the “Admin” tab appears. COMMAND DESCRIPTION Enable Datalogic Desktop Select/tap this checkbox to activate the DDU functions such as Windows Access Restrictions and Application Selector. Enter Password Enter a password in the text box. This allows the user to specify a password when this utility is launched.

  • Page 101: Setting A Password

    You must select/tap “Set Password” prior to exiting DDU in order to store and activate your new password. It is not necessary to select “Enable Datalogic Desktop”. NOTE If you select/tap “Set Defaults” it will remove all custom settings and restore all the factory default settings, except a previously set password.

  • Page 102: Removing A Password

    Delete the contents of in both “Password” fields. Select/tap “Set Password”. Password Request Dialog Box Once the password is set, the next time you open the “Datalogic Desktop Utility”, the DDU Password dialog box opens. This dialog box will only open if a password was defined.

  • Page 103: Locked Web Browser Options (Lockedweb Tab)

    USE AND FUNCTIONING 4.11.2 Locked Web Browser Options (LockedWeb tab) Tap the LockedWeb tab to access the Locked Web Browser Configuration. Locked Web Browser is disabled by default. To enable, go to “Advanced settings” on the next page for more information. NOTE For additional information about Locked Web Browser commands and metatags, see section 4.14, “Locked Web Browser”.
  • Page 104 LYNX™ Error Redirection options Error Type The “Error Type” pull-down list displays available Error Types: (400) Invalid Syntax, (403) Request Forbidden, (404) Object Not Found, (406) No Response Format, (410) Page Doesn't Exist, (500) Internal Server Error, (501) Server Can't Do That, Generic Error,...

  • Page 105: Advanced Settings

    USE AND FUNCTIONING Advanced settings General Tab Context Menu...
  • Page 106 LYNX™ Advanced Locked Web Browser options General Enable Locked When checked, enables the Locked Web Browser when Internet Web Browser Explorer is launched. Disable Cache Prevents the browser from loading the local intranet page from cache instead of navigating to the “Network Disconnected” error redirection page.
  • Page 107 USE AND FUNCTIONING Context Menu Enable Context Enables the context menu accessed by a touch screen press in Menu the Locked Web Browser. Refresh Adds a “Refresh” item to the Locked Web Browser context menu. Selecting the “Refresh” item refreshes the web page. Stop Adds a “Stop”...

  • Page 108: Status Icons Options (Status Tab)

    LYNX™ 4.11.3 Status Icons Options (Status Tab) Tap the “Status” tab to access the Status Icons option. You can configure the view of some status icons that are used in “WebAppLock” and in “Application Selector” to display the status of: wi-fi radio, battery and GSM.

  • Page 109: Windows Controls

    USE AND FUNCTIONING Windows Controls 4.11.4 Select/tap the “Win” (Windows Controls) tab to access the Windows Controls option. Use Windows controls to allow or restrict access to Windows system functions. You can disable normal Windows functions such as the taskbar, leaving nothing but a blank workspace.
  • Page 110 LYNX™ Windows Controls Select/tap “Taskbar Enabled” to specify whether the Taskbar Enabled taskbar is accessible. Enables the AutoSIP Windows feature. AutoSIP Enabled This control only take effects in WebAppLock. Scroll Bars Enabled When checked, displays horizontal and vertical scroll bars to help view large web pages which do not fit the screen.

  • Page 111: Appselector Options (Appselect Tab)

    USE AND FUNCTIONING 4.11.5 AppSelector Options (AppSelect tab) Tap the Application Selector (“AppSelect” Tab) to edit, add, or delete applications for the application selector. Application Selector Options Enable Application Selector Select/tap “Enable Application Selector” enable/disable application selector. When enabled, the Application Selector replaces the desktop allows only...
  • Page 112 LYNX™ Application Selector Commands Select/tap “New” to create a new application entry. Edit Select/tap “Edit” to edit the selected entry. Select/tap “Del” to delete the selected entry. Select/tap “Up/Down” to move an entry up or down in Up/Down the Authorized Applications list.
  • Page 113 USE AND FUNCTIONING Add Applications The “Add Application” dialog opens when you tap either “New” or “Edit”. From the “Add Application” dialog the administrator can configure and/or add/change a new application entry in the list. Applications with the “Run Application at Startup” option enabled will start automatically when the Application Selector starts up.
  • Page 114 LYNX™ COMMAND DESCRIPTION Displays the path/link to the desired icon file. Icon File Select/tap to browse for the desired icon file. The Browse results of this search are placed in the “Icon File” textbox. Select/tap this box to force this application to auto start when the Application Selector starts up.

  • Page 115: Appselector (Application Selector)

    Additionally, the page template can be modified to display a different background. Contact your Datalogic representative for more information on this feature. To exit from Application Selector, press ALT + 6, uncheck the ‘Enable Application...

  • Page 116: 4.13 Locked Web Browser

    LYNX™ 4.13 LOCKED WEB BROWSER The Locked Web Browser is a web browser helper object for Internet Explorer. It allows an administrator to define a restricted internet usage environment. Once in the restricted environment, a password is required to exit. This means users can only access web applications and websites set by the administrator.
  • Page 117 USE AND FUNCTIONING For firmware versions 1.60 and newer, the following command line arguments are supported: /E optional parameter which allows for Exit without entering a password @URL optional parameter which specifies a URL to use as a home page. /C optional parameter which disables the ctrl keys (including the one to exit).

  • Page 118: Locked Web Browser Special Meta-Tags

    </head> tag set. Also, the head tag set must be complete within the first 15K of the web page. The Datalogic Locked Web Browser defines some special metatags that allow the web application to interact with the device: In particular, the special metatags allow it to:...
  • Page 119 USE AND FUNCTIONING GetSerialNumber Metatag DL_GetSerialNumber – Obtains the device serial number and sends it as an argument to a customer’s javascript function. Content – name of function to pass serial number to. Example: <meta http-equiv="DL_GetSerialNumber" content="Javascript:CustomerFunction"> When a page with this metatag is loaded, the content should be a javascript function that receives one parameter, the serial number.
  • Page 120 LYNX™ Decoding Metatags: Each decoding metatag has a possible content of “Enable” or “Disable”. The settings are valid for the entire page (enables/disables each symbology). DL_Code_39 DL_Code_128 DL_Code_I25 DL_Code_S25 DL_Code_M25 DL_Code_CODABAR DL_Code_93 DL_Code_UPCA DL_Code_UPCE DL_Code_EAN13 DL_Code_EAN8 DL_Code_MSI DL_Code_MSR DL_Code_GS1_14 DL_Code_GS1_LIMIT...
  • Page 121 USE AND FUNCTIONING Key press Metatags The key press metatags can be used to call JavaScript functions. They have the name structure: “DL_Key_xxx” where xxx is the VKey code. Example: <meta http-equiv="DL_Key_13" content="Javascript:CheckEnter();"> Assigning a key press via a DL_Key metatag overrides its use on the page. For instance, when entering data in a text box a character assigned as a DL_Key would not be entered in the text box.

  • Page 122: 4.14 Autostart

    Allows you to create a list of applications (with optional command line arguments) to run automatically after loading CAB files. AutoStart launches each time the Lynx is rebooted executing each line with the specified command line arguments. It will take into account any AutoStart options at the beginning of the line.

  • Page 123: How Autostart Uses Wceload

    USE AND FUNCTIONING 4.14.2 How AutoStart Uses Wceload If you intend to create highly interactive installers, you should either install the CABs manually or review the section on “Interactive CAB Install” in this chapter.. NOTE In certain environments, CAB files will be deleted after execution. To prevent the CAB file from being deleted, write protect the file before copying the file onto the device.

  • Page 124: Interactive Cab Install

    NOTE identical to that of Autostart.ini..” Autostart.ini is a text file that AutoStart will run upon startup of the Lynx, and after any CAB files are installed. This file should be placed in the \root folder. AutoStart will run the Autostart.ini file on each reboot of the device.
  • Page 125 USE AND FUNCTIONING The following table breaks down the sample Autostart.ini line: Autostart option(s) Full path to executable Command line arguments \windows\pword.exe \file.doc Spaces must be placed between each component of the line in the Autostart.ini. If the executable path is in a folder that contains spaces in the name, quotes are required to distinguish what the actual executable name is.
  • Page 126 LYNX™ AutoStart Options The table below shows options you can use when writing a line in the Autostart.ini file. Description Character Comments This may only be used as the first character of the line. If the Comment: This line will not be ‘#’...
  • Page 127 USE AND FUNCTIONING Combining Options Autostart options can be combined together as shown in the following sample: ?- \Windows\Pword.exe This line would: − Request confirmation before executing the line. The next line would not be processed before the confirmation is answered. −...
  • Page 128 LYNX™ The fields may be broken up into multiple lines (as shown in the example) due to limited space in the dialog. NOTE AutoStart Query Options Parentheses are used to surround the given field and make it very clear what the value of the field is.
  • Page 129 USE AND FUNCTIONING Autostart.ini Samples The next table is a collection of sample Autostart.ini lines: Line Description This will confirm execution ? \windows\wceload.exe “\My \Windows\wceload.exe with specified argument Documents\Sample.cab” “\My Documents\Sample.cab” (invalid) This will execute \Program with the \Program Files\App.exe argument Files\App.exe.

  • Page 130: Technical Features

    ESD PROTECTION 4 KV contact discharge, 8 KV air discharge In order to achieve the maximum charging rate the LYNX WLAN model should be charged beetween 0-40 °C, while 3G/4G models should be charged between 0-35 °C. Never charge the main device or spare batteries in a closed space where excessive heat can build up.
  • Page 131 Micro-USB power adapter requirements: IDCP min=1,8A POWER SUPPLY* VCHG min=4,75V VCHG max=5,25V RDCP_DAT max=200 ohm LPS source according to EN 60950:2006+A1+A11+A12 IEC 60950:2005+A1:2009 Datalogic recommends the use of approved adapters to keep all regulatory requirements and to guarantee the best performances...
  • Page 132 LYNX™ COMMUNICATIONS Micro-USB connector: USB 1.1 Client and USB 1.1 Host HandyLink™ connector: integrated RS-232 up to INTERFACES 115.2 Kbps, USB 1.1 Client, USB 1.1 Host Ethernet: via single dock (external module) or multiple cradle GSM/GPRS/EDGE: Quad band, 850/900/1800/1900 MHz...
  • Page 133 TECHNICAL FEATURES READING OPTIONS LASER CHARACTERISTICS SCANNING RATE 104 ± 12 scan/sec OPTICAL RESOLUTION 0.10 mm / 4 mils DEPTH OF FIELD See reading diagram (par. 5.2) SKEW ANGLE ± 50° PITCH ANGLE ± 65° AIMING LASER VLD, wavelength 630~670 nm GS1-DataBar family, EAN/UPC, Code 39, 2/5 BAR CODES Codes, Codabar, Code 128, GS1-128, MSI,...

  • Page 134: Reading Diagrams

    LYNX™ READING DIAGRAMS Lynx SE950-DL Symbol Density/ Far 47° Guaranted Bar Code Type/ Working Ranges W-N Ratio 4.0 mil 2,6 in Code 39; 6,63 cm 2.5:1 5.0 mil 4,9 in Code 39; 12,47 cm 2.5:1 7.5 mil 8,9 in Code 39;...
  • Page 135 TECHNICAL FEATURES LYNX SE4500-DL Symbol Density/ Far Guaranted Bar Code Type Working Ranges 3.0 mil 3,1 in Code 39 7,9 cm 5.0 mil 6,1 in Code 39 15,52 cm 5.0 mil 3,3 in PDF417 8,41 cm 6.67 mil 5,6 in...

  • Page 136: Test Codes

    LYNX™ TEST CODES High Density Codes 0.25 mm (10 mils) !17162H! Code 39 17162 Ë"8NduÌ 2/5 Interleaved 0123456784 ÌtestwÎ Code 128 test x(0B2DE5*KKKKLM( EAN 13 (6450*TRMN( EAN 8...
  • Page 137 TEST CODES Medium Density Codes 0.38 mm (15 mils) !17162H! Code 39 17162 Ë"8NduÌ Interleaved 2/5 0123456784 ÌtestwÎ Code 128 test 100% x(0B2DE5*KKKKLM( EAN 13 100% (6450*TRMN( EAN 8...
  • Page 138 LYNX™ Low Density Codes 0.50 mm (20 mils) !17162H! Code 39 17162 Ë"8NduÌ Interleaved 2/5 0123456784 ÌtestwÎ Code 128 test 120% x(0B2DE5*KKKKLM( EAN 13 120% (6450*TRMN( EAN 8...
  • Page 139 TEST CODES 2D Codes Datamatrix ECC200 Example Inverse Datamatrix ECC200 Example...

  • Page 140: Safety Regulations

    Use only the components supplied by the manufacturer for the specific Lynx being used. − Do not attempt to disassemble the Lynx PDA, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty. −...

  • Page 141: Laser Safety

    LASER SAFETY The laser light is visible to the human eye and is emitted from the window indicated in the figure. This information applies to both laser models and the Lynx Imager Aiming System. Laser output window...
  • Page 142 Die Laserstrahlung ist für Le rayon laser est visible La luce laser è visibile La luz láser es visible al das menschliche Auge à l'oeil nu et il est émis all'occhio umano e viene ojo humano y es emitida sichtbar und wird am par la fenêtre désignée emessa dalla finestra por la ventana indicada...
  • Page 143 ENGLISH The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of your PDA. STANDARD LASER SAFETY REGULATIONS This product conforms to the applicable requirements of both CDRH 21 CFR 1040 Subchapter J and IEC 60825-1:2007 at the date of manufacture.
  • Page 144 Non tentare di accedere allo scomparto contenete i componenti ottici o di farne la manutenzione. L’apertura dello scomparto, o la manutenzione di qualsiasi parte ATTENZIONE ottica da parte di personale non autorizzato, potrebbe violare le norme della sicurezza. Il sistema ottico può essere riparato solamente alla fabbrica.
  • Page 145 Unter keinen Umständen darf versucht werden, die Komponenten im Optikhohlraum zu öffnen oder auf irgendwelche andere Weise zu warten. Öffnen bzw. Warten Komponenten Optikhohlraum durch unbefugtes Personal verstößt gegen die ACHTUNG Laser-Sicherheitsbestimmungen. Optiksystem darf werkseitig repariert werden. Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht in dieser Betriebsanleitung beschrieben...
  • Page 146 L'utilisation de procédures ou réglages différents de ceux donnés ici peut entraîner une dangereuse exposition à lumière laser visible. ATTENTION Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le rayon, comme toute autre source lumineuse intense telle que le soleil.

  • Page 147: Led Class

    LED illuminators integrated in the LYNX models with SE-4500 imager engine are compliant with exempt risk group requirements according to IEC62471:2006 and EN62471:2008. Flash LED integrated in the LYNX models with camera is blue light hazard risk group 1 according to IEC62471:2006 and EN62471:2008.

  • Page 148: Radio Compliance

    The Radio modules used in this product automatically adapt to the frequencies set by the system and do not require any parameter settings. The TYPE field shows the correspondence between LYNX™ types and radio modules: TYPE: ABCDEE-FGH-IJJK-LMMMM A: “0”...
  • Page 149 Information for the User ENGLISH Contact the competent authority responsible for the management of radio frequency devices of your country to verify any possible restrictions or licenses required. Refer site http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts- points/spectr/ for further information. ITALIANO Contatta l'autorità competente per la gestione degli apparati a radio frequenza del tuo paese, per verificare eventuali restrizioni o licenze.

  • Page 150: Fcc Compliance

    FCC COMPLIANCE FCC Regulations • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 151: Rf Exposure Information (Sar)

    RF EXPOSURE INFORMATION (SAR) This model device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.

  • Page 152: Industry Canada Compliance

    INDUSTRY CANADA COMPLIANCE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à...

  • Page 153: Sar Compliance

    SAR COMPLIANCE For the used worst case positions, the portable device Lynx from Datalogic (FCC ID: U4G0070 and U4G0073) is in compliance with the IC RSS 102 Issue 4 [RSS 102] and Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure.

  • Page 154: Weee Compliance

    For more detailed information about disposal, contact the supplier that provided you with the product in question or consult the dedicated section at the website http://www.datalogic.com.
  • Page 155 Auswirkungen für die Umwelt und die Gesundheit der Menschen  ermöglicht die Wiederverwendung der Materialien und spart somit Energie und Resourcen Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage unter http://www.datalogic.com.

  • Page 156: Glossary

    GLOSSARY Access Point A device that provides transparent access between Ethernet wired networks and IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile computers, PDAs or other devices equipped with radio cards, communicate with wired networks using Access Points (AP). The mobile unit (PDA) may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired network.
  • Page 157 Decode To recognize a bar code symbology (e.g., Codabar, Code 128, Code 3 of 9, UPC/EAN, etc.) and convert the content of the bar code scanned from a visual pattern into electronic data. Depth of Field (DOF) The portion of a scene that appears acceptably sharp in the image. Although a lens can precisely focus at only one distance, the decrease in sharpness is gradual on each side of the focused distance, so that within the DOF, the unsharpness is imperceptible under normal viewing conditions.
  • Page 158 HSPA+ HSPA+, or Evolved High-Speed Packet Access, is a technical standard for wireless, broadband telecommunication. HSPA+ enhances the widely used WCDMA (UMTS) based 3G networks with higher speeds for the end user. Host A computer that serves other mobile computers in a network, providing services such as network control, database access, special programs, supervisory programs, or programming languages.
  • Page 159 Random Access memory. Data in RAM can be accessed in random order, and quickly written and read. Radio Frequency. Real Time Clock. Universal Serial Bus. Type of serial bus that allows peripheral devices (disks, modems, printers, digitizers, data gloves, etc.) to be easily connected to a computer. A “plug-and-play”...

  • Page 160: Index

    Radio Compliance; 140 WLAN Connection; 27 Reading Diagrams; 126 WPAN Connections; 29 References; vi Replacing the Batteries; 16 Resetting the Lynx; 45 RF Exposure Information (SAR); 143 Data Capture; 37 Imager Data Capture; 40 Laser Data Capture; 38 Data Capture Configuration; 50 Safety Regulations;...
  • Page 161 Taskbar; 48 WEEE Compliance; 146 Technical Data; 122 Windows Embedded Handheld Technical Features; 122 Welcome Wizard; 36 Test Codes; 128 Windows Mobile® Device Center; 76 Wireless and Radio Frequencies Warnings; 32 Wireless Communication; 64 Using the Stylus; 35 WWAN Connection; 30...

  • Page 162: Via S. Vitalino

    DECLARATION OF CONFORMITY Datalogic ADC S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt ,daß das Gerät declare que el LYNX modelli con funzionalità radio 802.11a/b/g+BT models with 802.11a/b/g+BT radio feature modèles avec 802.11a/b/g+BT radio intégrés...
  • Page 163 FREQUENCY RANGE OF MHZ TO EN50581:2012 ECHNICAL DOCUMENTATION FOR THE ASSESSMENT OF ELECTRICAL AND ELECTRONIC PRODUCTS WITH RESPECT TO THE RESTRICTION OF HAZARDOUS SUBSTANCES Lippo di Calderara di Reno, April 12 2013 Ruggero Cacioppo Quality & Reliability Manager Datalogic ADC S.r.l.

  • Page 164: Declaration Of Conformity

    DECLARATION OF CONFORMITY Datalogic ADC S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt ,daß das Gerät declare que el LYNX modelli con funzionalità radio WWAN+802.11a/b/g+BT models with WWAN+802.11a/b/g+BT radio feature modèles avec WWAN+802.11a/b/g+BT radio intégrés...
  • Page 165 ETSI EN 301 489-3 1.4.1: 2002 LECTROMAGNETIC COMPATIBILITY RADIO SPECTRUM MATTERS ELECTROMAGNETIC COMPATIBILITY STANDARD FOR RADIO EQUIPMENT AND SERVICES PART (SRD) PECIFIC CONDITIONS FOR HORT ANGE EVICES 40GH OPERATING ON FREQUENCIES BETWEEN Z AND ETSI EN 301 489-7 1.3.1: 2005 LECTROMAGNETIC COMPATIBILITY ADIO...
  • Page 166 PROXIMITY TO THE HUMAN BODY FREQUENCY RANGE OF EN50581:2012 ECHNICAL DOCUMENTATION ASSESSMENT ELECTRICAL AND ELECTRONIC PRODUCTS WITH RESPECT TO THE RESTRICTION OF HAZARDOUS SUBSTANCES Lippo di Calderara di Reno, April 12 2013 Ruggero Cacioppo Quality & Reliability Manager Datalogic ADC S.r.l.
  • Page 167 © 2012-2014 Datalogic ADC S.r.l. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. In many countries, including the U.S.A. and the E.U. Datalogic ADC S.r.l. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno...

Table of Contents
