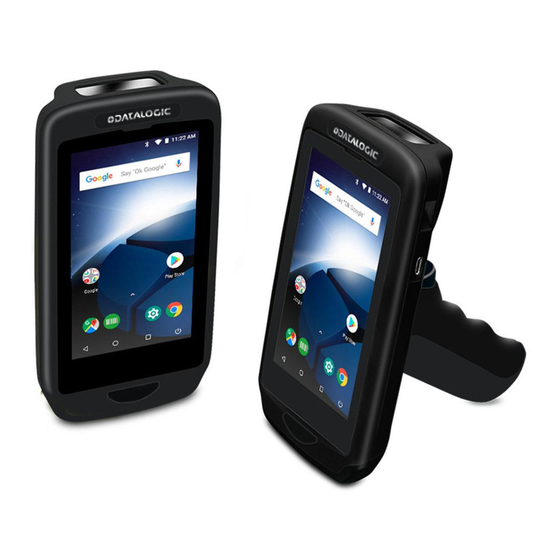

Datalogic Memor 1 Installation Manual

3-slot cradle
Hide thumbs Also See for Memor 1:
Table of Contents

Advertisement

Quick Links

Download this manual
Memor™ 1
3-Slot Cradle
Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic Memor 1

Summary of Contents for Datalogic Memor 1

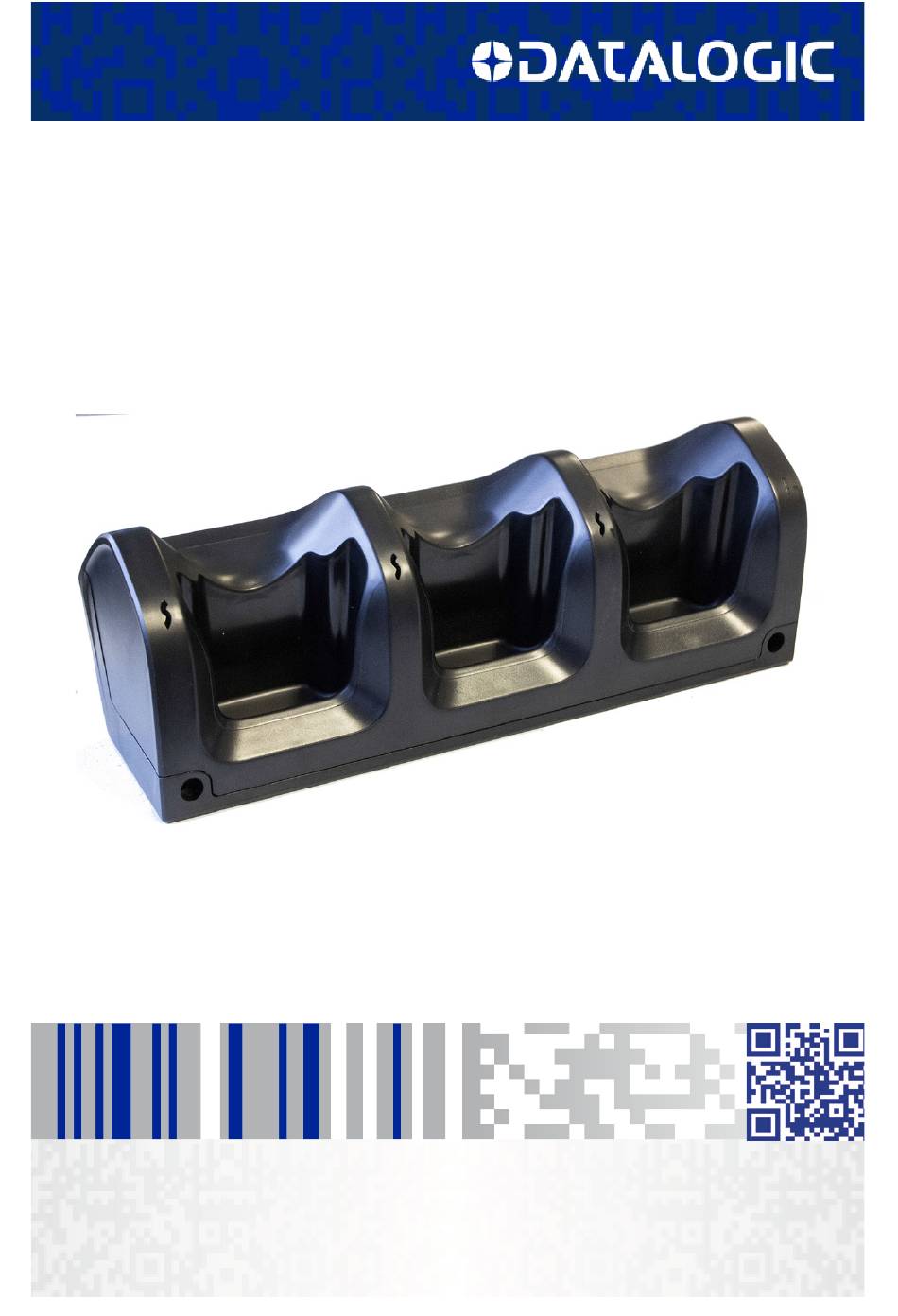

  • Page 1 Memor™ 1 3-Slot Cradle Installation Guide...
  • Page 2 Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Memor is a trademarksof Datalogic S.p.A. and/or its affiliates. All other brand and product names may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Dispenser Construction Details........23 Base Unit Description ............... 23 Memor 1 3-Slot Cradle Installation ..........23 Remove the Memor 1 from the 3-Slot Cradle ......28 Base Unit Construction Details - Pattern Holes ......29 Anchoring and Maintenance Issues ..........38 Protection Against Cart/Trolley Impacts ........
  • Page 4 Powering the Cradle ..............41 LED Indicators ..................45 Radio Technologies and Frequency Bands ......47 Technical Specifications ............48 Maintenance ................50 Cleaning ..................50 Safety Precautions ..............51 Cabinet .................... 51 Memor™ 1 3-Slot Cradle...

  • Page 5: Introduction

    Introduction The purpose of this document is to provide helpful instructions about designing and building a cabinet to house the Memor 1 3-Slot Cradles. The first part of the document gives information useful to build the best dispenser layout, according to the retail environment needs.
  • Page 6 Introduction NOTES Memor™ 1 3-Slot Cradle...

  • Page 7: Dispenser Design Guidelines

    Dispenser Design Guidelines Functional Areas The Memor 1 is also suitable for an effective communication inside the retail environment, thanks to the high quality of its display. For this reason, it is important to design the arrangement of the device in a dispenser to bring out the performances without compromising the functionality.
  • Page 8 Dispenser Design Guidelines Memor™ 1 3-Slot Cradle...

  • Page 9: Base Unit Configuration

    Dispenser Design Guidelines Base Unit Configuration The preceding paragraphs provided some general rules on building a base unit, taking into account the space required for the cabinet, the density and the display visibility. Every retail environment has different and specific needs and constraints: some may need a tall base (but not deep or large), some may need a short base but can accept larger and bulkier sizes.
  • Page 10 Dispenser Design Guidelines To guarantee full stability, the cabinet must be anchored to Anchoring and Maintenance the wall or to the floor. (see Issues on page 38 NOTE The front door dispenser must have a jamb of 20 cm, to allow the front door to open.

  • Page 11: Configuration J0

    Dispenser Design Guidelines Configuration J0 Back Door Dispenser, High Density, Hand-Held Installation Guide...

  • Page 12: Configuration J1

    Dispenser Design Guidelines Configuration J1 Front Door Dispenser, High Density, Hand-Held Memor™ 1 3-Slot Cradle...

  • Page 13: Configuration J2

    Dispenser Design Guidelines Configuration J2 Back Door Dispenser, High Density, Pistol Grip Installation Guide...

  • Page 14: Configuration J3

    Dispenser Design Guidelines Configuration J3 Front Door Dispenser, High Density, Pistol Grip Memor™ 1 3-Slot Cradle...

  • Page 15: Configuration J4

    Dispenser Design Guidelines Configuration J4 Back Door Dispenser, High Visibility, Hand-Held Installation Guide...

  • Page 16: Configuration J5

    Dispenser Design Guidelines Configuration J5 Front Door Dispenser, High Visibility, Hand-Held Memor™ 1 3-Slot Cradle...

  • Page 17: Configuration J6

    Dispenser Design Guidelines Configuration J6 Back Door Dispenser, High Visibility, Pistol Grip Installation Guide...

  • Page 18: Configuration J7

    Dispenser Design Guidelines Configuration J7 Front Door Dispenser, High Visibility, Pistol Grip Memor™ 1 3-Slot Cradle...

  • Page 19: Configuration J8

    Dispenser Design Guidelines Configuration J8 Back Door Inclined Dispenser, High Visibility, Hand-Held Installation Guide...

  • Page 20: Configuration J9

    Dispenser Design Guidelines Configuration J9 Back Door Inclined Dispenser, High Visibility, Pistol Grip Memor™ 1 3-Slot Cradle...

  • Page 21: Configuration J10

    Dispenser Design Guidelines Configuration J10 Back Door Hybrid Dispenser, Hand-Held Installation Guide...

  • Page 22: Configuration J11

    Dispenser Design Guidelines Configuration J11 Back Door Hybrid Dispenser, Pistol Grip Base Unit Configurations Summarizing Table Dispenser Vertical Tilted Pods Dispenser Dispenser Highest pod Lowest pod Configuration pods rows n. rows n. height (cm) depth (cm) height (cm) height (cm) Memor™...
  • Page 23 Dispenser Design Guidelines Dispenser Vertical Tilted Pods Dispenser Dispenser Highest pod Lowest pod Configuration pods rows n. rows n. height (cm) depth (cm) height (cm) height (cm) 163.5 The dimensions previously reported refer to a wood cabinet designed on the basis of the building requirements indicated on the second part of this NOTE document.

  • Page 24: Ventilation Grilles Position

    Dispenser Design Guidelines Ventilation Grilles Position Memor™ 1 3-Slot Cradle...

  • Page 25: Shopper Unit Placing And Unity Definition

    Dispenser Design Guidelines Shopper Unit Placing and Unity Definition In case of installation where two or more shopper units share the same dispensing furniture, a physical boundary must be placed to indicate the dispensing areas related to each Shopper Unit. The purpose of this boundary is to prevent the swapping of the devices when two customers ask for a device at the same time from different Shopper Unit.
  • Page 26 Dispenser Design Guidelines NOTES Memor™ 1 3-Slot Cradle...

  • Page 27: Dispenser Construction Details

    In this section, instructions are given to correctly build a Dispenser Base Unit. The same instructions can be used to build Base Units containing a different number of Memor 1 3-Slot Cradles. Memor 1 3-Slot Cradle Installation The following figures show the minimum footprint needed to insert...
  • Page 28 Remove it from the last bracket of the row by cutting along the engraving line. 3-Slot Cradle Wall Bracket - P/N 91ACC0050 1. To be ordered separately (Memor 1 / Joya Touch 3-Slot Cradle Wall Bracket - P/N 91ACC0050). Memor™ 1 3-Slot Cradle...
  • Page 29 Dispenser Construction Details 2. Insert the power supply cable through the proper hole (the right hole is for high visibility configuration, the left hole is for high density configuration). Connect the cradle to the power supply (see Powering the Cradle on page 41).
  • Page 30 Dispenser Construction Details 3. Place the cradle on the mounting bracket as shown in the pictures below. Ensure there is no gap between the bracket and the cradle. Fix the cradle to the bracket using the two screws included in the bracket’s box.
  • Page 31 Dispenser Construction Details High Density Configuration Installation Guide...

  • Page 32: Remove The Memor 1 From The 3-Slot Cradle

    Dispenser Construction Details Remove the Memor 1 from the 3-Slot Cradle The Memor 1 3-Slot Cradle can be unlocked using the unlock key provided with the cradle or by software sending an unlock command from the inserted device (see the Memor 1 user’s manual or the SDK documentation).

  • Page 33: Base Unit Construction Details - Pattern Holes

    Dispenser Construction Details Base Unit Construction Details - Pattern Holes The following drawings show the suggested cabinet’s pattern holes for each configuration. High Density, Hand-Held Installation Guide...
  • Page 34 Dispenser Construction Details High Density, Pistol Grip Memor™ 1 3-Slot Cradle...
  • Page 35 Dispenser Construction Details High Visibility, Hand-Held Installation Guide...
  • Page 36 Dispenser Construction Details High Visibility, Pistol Grip Memor™ 1 3-Slot Cradle...
  • Page 37 Dispenser Construction Details Tilted Panel, High Visibility, Hand-Held Installation Guide...
  • Page 38 Dispenser Construction Details Tilted Panel, High Visibility, Pistol Grip Memor™ 1 3-Slot Cradle...
  • Page 39 Dispenser Construction Details Hybrid Panel, Hand-Held Installation Guide...
  • Page 40 Dispenser Construction Details Hybrid Panel, Pistol Grip Memor™ 1 3-Slot Cradle...
  • Page 41 Dispenser Construction Details Custom If you want to design your own custom configuration, there is a minimum distance to respect, to guarantee the unmounting of the cradles and removal of the Memor 1 from the cradle. Installation Guide...

  • Page 42: Anchoring And Maintenance Issues

    Dispenser Construction Details Anchoring and Maintenance Issues The front door cabinet must be firmly anchored to the wall in at least two points, since the footprint is small and therefore not sufficient to guarantee full stability. It is preferable for the cabinet to have a removable back panel for easy access inside when performing cabling or for technical inspection or extraordinary maintenance.

  • Page 43: Power Supply

    Power Supply The Memor 1 3-Slot Cradle Power Supply (P/N 91ACC0048) is available as optional accessory to power the Memor 1 3-Slot Cradle. This single phase AC input, single output switching power supply can provide for a 12V/ 6A, 72W Max. DC output with constant voltage source.
  • Page 44 Dispenser Construction Details Output Requirements Output voltage and Output voltage (Vdc): 12V+/-5% current Current min.(A): 0A Current max.(A): 6A Voltage isolation The DC ground will be isolated from the AC neutral and AC line. Environment Temperature Operating: -20 to 50° C Storage: -20 to 85°...

  • Page 45: Powering The Cradle

    Dispenser Construction Details Powering the Cradle Each power supply must be mounted on its bracket inside the cabinet, as shown in the figure below: There are two options to connect the cradle to the power supply: fast charge and standard charge. Installation Guide...
  • Page 46 The standard charge connection allows to power two cradles with one power supply. To connect a second cradle use the Cradle Power Jumper, available as optional accessory: Memor 1 / Joya Touch Cradle Power Jumper - P/N 91ACC0049 Memor™ 1 3-Slot Cradle...
  • Page 47 1. Connect the first cradle to the second cradle using the power jumper. 2. Connect the power supply to the first cradle. 3. Plug the power supply into the AC/DC plug using a Datalogic power cable. Use only the Datalogic power supply 91ACC0048 to power the Memor 1 3-Slot Cradle.
  • Page 48 Dispenser Construction Details Do not put any foreign object such as, but not limited to, coins, paper clips, stickers inside the slot of the dock (see the example below). CAUTION Memor™ 1 3-Slot Cradle...

  • Page 49: Led Indicators

    Dispenser Construction Details LED Indicators Status Power On (Blue LED) Solid blue Dock is powered. User LED (Green LED) Green dimming animation (all slots Cradle application start. in sequence) Flash green for 300 ms (single slot) Device properly locked in. Could notify that the slot is unlocked (if programmed to use green led to notify Solid green (single slot)
  • Page 50 Dispenser Construction Details Status Maintenance LED (Red LED) - Continued FOD (Foreign Object Detection). It’s a WLC error related to metallic parts between transmitter and receiver coils. The power Blink red, 3 quick pulses (single slot) transfer is suspended. Solution: remove the device from the cradle, then remove the metallic part causing the problem.

  • Page 51: Radio Technologies And Frequency Bands

    Dispenser Construction Details Radio Technologies and Frequency Bands Memor 1 3-Slot Cradle incorporates the following radio technologies and supports the corresponding frequencies, as specified below: Radio Technology Frequency Bands NFC (Near Field Communication) 13.56MHz Wireless Charging (Transmitter) 130kHz Installation Guide...

  • Page 52: Technical Specifications

    95% non condensing for temperatures < 40 °C Humidity The Memor 1 should be charged at an ambient temperature between 0 - 35º C to achieve the maximum charging rate. Never charge the main device in a closed space where excessive heat can build up. Close to the limits of the working temperature, some display and/or battery performance degradation may occur.
  • Page 53 Mechanical Features Cradle - High Visibility: 313x120x110mm/ 12.32x4.72x4.33in Cradle with Memor 1 Handheld - High Visibility: 313x155x136mm/ 12.32x6.10x5.35in Cradle with Memor 1 Pistol Grip - High Visibility: 313x183x134mm/ 12.32x7.20x5.28in Dimensions Cradle - High Density: 313x113x113mm/ 12.32x4.45x4.45in Cradle with Memor 1 Handheld - High Density: 313x113x162/ 12.32x4.45x6.38in...

  • Page 54: Maintenance

    Dispenser Construction Details Maintenance Cleaning Periodically clean the Memor 1 3-Slot Cradle using a soft cloth slightly dampened with only water or Isopropyl Alcohol (70%). Do not use any other cleaning agents (e.g. different alcohol, abrasive or corrosive products, solvents) or abrasive pads to clean the cradle.

  • Page 55: Safety Precautions

    It must be made of material complying with the Safety Rules. • The requirements for air passages to cool both the Memor 1 cradles and the power supply must be adhered to in order to avoid overheating problems for the components inside the cabinet.
  • Page 56 ©2019 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U. Datalogic S.r.l. Via S. Vitalino, 13 Lippo di Calderara di Reno...
