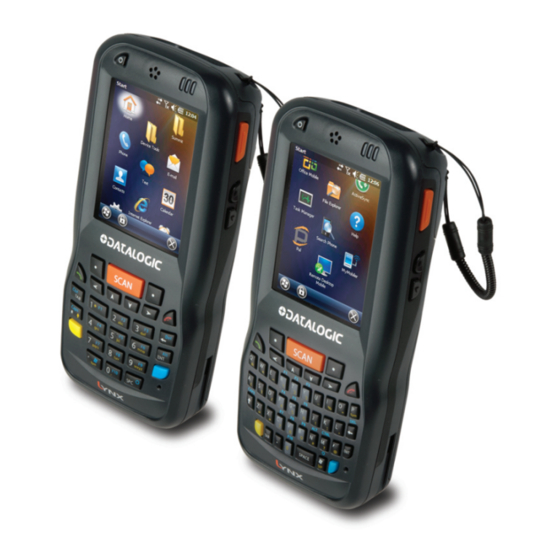

Lynx™ PDA Quick Start Guide

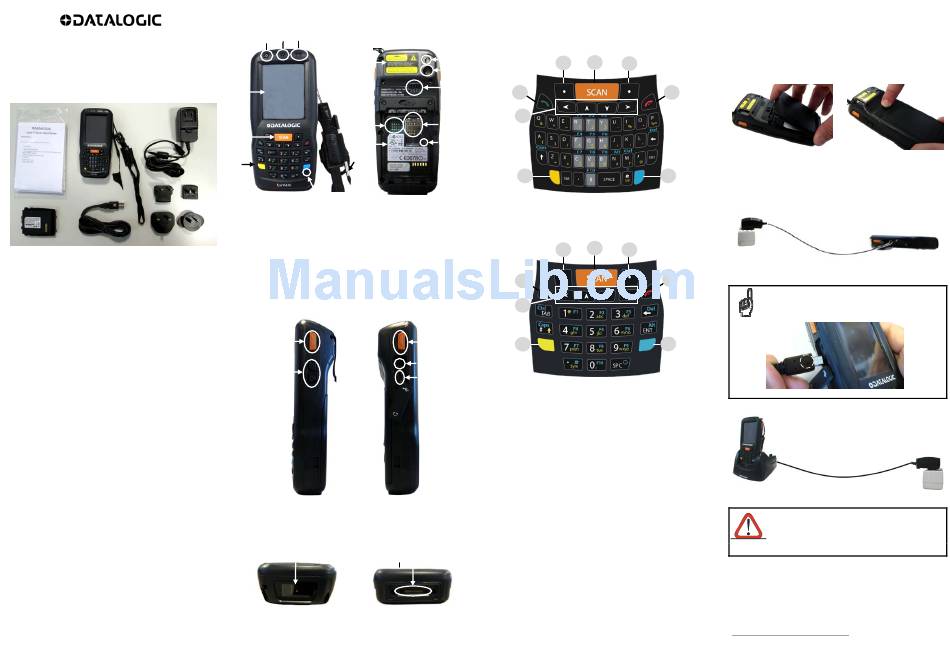

THE PACKAGE
The Lynx package includes the following items:
D
A
B
I
G
H
J
C K
F
E
A) Lynx PDA
B) Quick Start Guide/ Safety and Regulatory Addendum/
Wavelink Avalanche Insert/ End User License Agreement
(EULA) Sheet
C) Rechargeable battery pack (standard @1800 mAh for Wi-Fi
models, extended @3600 mAh for HSPA+ models)
D) Power supply
E) AUS plug adapter
F) UK plug adapter
G) EU plug adapter
H) US plug adapter
I) Lanyard
J) Guitar pick stylus
K) Micro-USB cable
822001343
THE TERMINAL
D
C
B
I
A
N
E
M
H
F
G
A) Color display I) Laser safety label
B) ON/OFF power key J) Loudspeaker
C) Receiver K) Color camera
D) LEDs L) Flash
E) Front scan key M) Product label (under
battery)
F) Keyboard
N) MicroSD card slot (under
G) Microphone
battery)
H) Telescope stylus (not
O) SIM card slot (under
included in the box,
battery)
please order it separately,
p/n 94ACC0068) P) Reset key (under battery)
Q
R
Q) Side scan key (right) S) Side scan key (left)
R) Up/down volume keys T) Headset connector
U) Micro-USB port for
supplying power and data
transfer (host/slave)
V
W
V) Data capture window W) Handylink™ connector
(host/slave)
KEYPADS
Alpha-Numeric Keyboard
L
3 4
K
J
1
5
O
P
6
Numeric Keyboard
4
3
1
5
S
6
T
U
1. Call
2. End
3. Soft Key
4. Scan Key
5. Navigation Keys
6. Yellow Modifier
7. Blue Modifier
GETTING STARTED
Insert the Battery
First insert the bottom (contacts) and then the upper side of the
3
battery pack into the slot. Press until the battery latch clicks.
2
Charge the Battery
7
3
2
Insert the micro-USB cable output plug into the micro-
USB connector of the Lynx, making sure that the
arrow on the plug faces upwards:
NOTE
7
With Single Slot Dock
Do not use the Lynx until standard batteries are
charged for minimum 4 hours and extended
batteries are charged for minimum 6 hours.
CAUTION

The power supply for the Single Slot Dock is included in the Single Slot
Dock box (P/N 94A150036)
With Power Supply

