Ultrasonic flow measuring system, foundation fieldbus
Hide thumbs Also See for Proline Prosonic Flow 93C:
Table of Contents

Advertisement

Quick Links

Download this manual

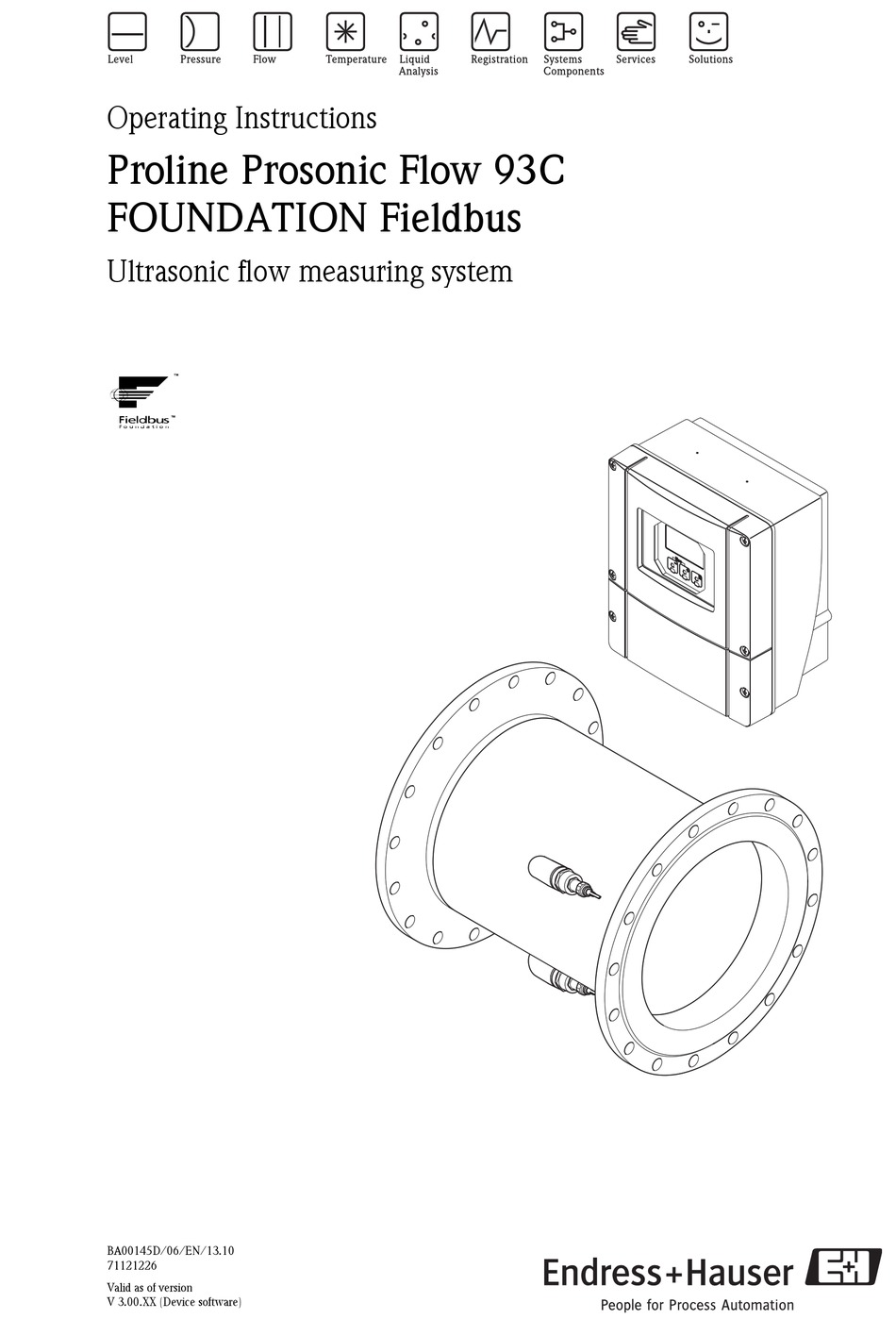

Operating Instructions
Proline Prosonic Flow 93C
FOUNDATION Fieldbus
Ultrasonic flow measuring system
9
BA00145D/06/EN/13.10
71121226
Valid as of version
V 3.00.XX (Device software)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Prosonic Flow 93C

Summary of Contents for Endress+Hauser Proline Prosonic Flow 93C

  • Page 1 Operating Instructions Proline Prosonic Flow 93C FOUNDATION Fieldbus Ultrasonic flow measuring system BA00145D/06/EN/13.10 71121226 Valid as of version V 3.00.XX (Device software)

  • Page 3: Table Of Contents

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Table of contents Table of contents Safety instructions ....5 Sensor/transmitter connecting cable ... 28 4.2.1 Connecting the Prosonic Flow W .
  • Page 4 Proline Prosonic Flow 93C FOUNDATION Fieldbus Table of contents Troubleshooting ....58 Troubleshooting instructions ....58 System/process error messages .

  • Page 5: Safety Instructions

    • The device must be operated by persons authorized and trained by the facility's owner-operator. Strict compliance with the instructions in these Operating Instructions is mandatory. • Endress+Hauser is willing to assist in clarifying the chemical resistance properties of parts wetted by special fluids, including fluids used for cleaning.

  • Page 6: Return

    Endress+Hauser: • Always enclose a duly completed "Declaration of Contamination" form. Only then can Endress+Hauser transport, examine and repair a returned device. Note! You will find a preprinted "Declaration of Contamination" form at the back of this manual.

  • Page 7: Identification

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Identification Identification Device designation The "Prosonic Flow 93C Inline" flowmeter system consists of the following components: • Prosonic Flow 93 transmitter • Prosonic Flow C Inline measuring tube • Prosonic Flow W sensors 2.1.1...

  • Page 8: Nameplate Of The Prosonic Flow C Inline Measuring Tube

    Please refer to operating instructions / documentation Permitted ambient temperature range Data on explosion protection. Refer to the specific additional Ex documentation for detailed information. Please do not hesitate to contact your Endress+Hauser sales office if you have any questions. Endress+Hauser...

  • Page 9: Prosonic Flow W Sensors

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Identification 2.1.3 Nameplate of the Prosonic Flow W sensors PROSONIC FLOW W 93C3F-LHCA00RCA0AB Order Code: XXXXXXXXXXXXXx Ser. No.: W-IN-1F-L-C Type: N12895 NEMA/Type 6P Warning: To maintain NEMA/Type 6P rating or IP68 protection the connector must be fully engaged.

  • Page 10: Nameplate For The Connections

    Identification Proline Prosonic Flow 93C FOUNDATION Fieldbus 2.1.5 Nameplate for the connections active See operating manual passive Betriebsanleitung beachten normally open contact Observer manuel d'instruction normally closed contact 12345678912 Ser.No.: L1 / L+ Supply / Versorgung / N / L-...

  • Page 11: Certificates And Approvals

    EMC requirements of IEC/EN 61326. The measuring system described in these Operating Instructions thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system complies with the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 12: Installation

    Installation Proline Prosonic Flow 93C FOUNDATION Fieldbus Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 13: Installation Conditions

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Installation Installation conditions 3.2.1 Dimensions All the dimensions and lengths of the sensor and transmitter are provided in the separate documentation "Technical Information". 3.2.2 Mounting location Correct flow measurement is possible only if the pipe is full.

  • Page 14: Down Pipes

    Installation Proline Prosonic Flow 93C FOUNDATION Fieldbus 3.2.3 Down pipes Notwithstanding the foregoing, the installation suggested below permits installation in an open down pipe. Pipe restrictions or the use of an orifice plate with a smaller cross-section than the nominal diameter prevent the pipe from running empty while measurement is in progress.

  • Page 15: Inlet And Outlet Runs

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Installation 3.2.5 Inlet and outlet runs If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows, etc. The longest inlet and outlet run must be taken into consideration if two or more flow obstructions are present.

  • Page 16: Foundations, Supports

    Installation Proline Prosonic Flow 93C FOUNDATION Fieldbus 3.2.7 Foundations, supports For all nominal diameters, mount the sensor on a foundation of adequate load-bearing strength. A0008751 Fig. 12: Correct support for large nominal diameters 3.2.8 Adapters The sensor can also be installed in a pipe with a larger nominal diameter using appropriate adapters in accordance with (E) DIN EN 545 (double-flange adapters).

  • Page 17: Nominal Diameter And Flow Rate

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Installation 3.2.9 Nominal diameter and flow rate The pipe diameter and the flow rate determine the nominal diameter of the sensor. Optimum flow velocity is between 2 and 3 m/s. The flow velocity (v) must also match the physical properties of the fluid: v <...

  • Page 18: Length Of Connecting Cable

    Installation Proline Prosonic Flow 93C FOUNDATION Fieldbus Flow characteristics of Prosonic Flow C (US units) Nominal diameter Recommended flow rate Factory setting [inch] [mm] Min./max. full scale value Creepage (v ~ 0.3 or 10 m/s) (v ~ 0.04 m/s) 12"...

  • Page 19: Installation

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Installation Installation 3.3.1 Installing the Prosonic Flow C measuring tube Note! The screws, nuts, seals etc. do not form part of the scope of supply and must be provided by the customer. The sensor is mounted between the pipe flanges.
  • Page 20 Installation Proline Prosonic Flow 93C FOUNDATION Fieldbus DIN pressure ratings Prosonic Flow C Nominal diameter DIN pressure rating Screws Max. tightening torque [mm] [bar] [Nm] [lbf ft] PN 10 12 × M 20 PN 16 12 × M 24 PN 10 16 ×...
  • Page 21 Proline Prosonic Flow 93C FOUNDATION Fieldbus Installation AWWA pressure ratings Prosonic Flow C Nominal diameter AWWA pressure rating Screws Max. tightening torque [mm] [inch] [Nm] [lbf ft] 28" Class D 28 × 1 1/4 " – 30" Class D 28 × 1 1/4 "...

  • Page 22: Installing The Wall-Mount Housing

    Installation Proline Prosonic Flow 93C FOUNDATION Fieldbus 3.3.2 Installing the wall-mount housing There are various ways of installing the wall-mount housing: • Direct wall mounting • Panel mounting (with separate mounting kit, accessories) → ä 23 • Pipe mounting (with separate mounting kit, accessories) → ä 23 "...
  • Page 23 Proline Prosonic Flow 93C FOUNDATION Fieldbus Installation Panel mounting Prepare the opening in the panel as shown in the diagram. Slide the housing into the panel cutout from the front. Screw the retainers onto the wall-mount housing. Screw the threaded rods into the retainers and tighten until the housing is solidly seated on the panel wall.

  • Page 24: Post-Installation Check

    Installation Proline Prosonic Flow 93C FOUNDATION Fieldbus Post-installation check Perform the following checks after installing the measuring device in the pipe: Device condition and specifications Notes Is the device damaged (visual inspection)? – → ä 5 ff. Does the device correspond to specifications at the measuring point, including process temperature and pressure, ambient temperature, measuring range, etc.?

  • Page 25: Wiring

    When connecting Ex-certified devices, please refer to the notes and diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your Endress+Hauser sales office if you have any questions. Note! The device does not have an internal power switch. For this reason, assign the device a switch or power-circuit breaker which can be used to disconnect the power supply line from the power grid.

  • Page 26: Maximum Overall Cable Length

    Wiring Proline Prosonic Flow 93C FOUNDATION Fieldbus 4.1.2 Maximum overall cable length The maximum network expansion depends on the type of protection and the cable specifications. The overall cable length is made up of the length of the main cable and the length of all spurs >1 m (3.28 ft).

  • Page 27: Bus Termination

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Wiring 4.1.6 Bus termination The start and end of each fieldbus segment are always to be terminated with a bus terminator. With various junction boxes (non-Ex), the bus termination can be activated via a switch. If this is not the case, a separate bus terminator must be installed.

  • Page 28: Sensor/Transmitter Connecting Cable

    Wiring Proline Prosonic Flow 93C FOUNDATION Fieldbus Sensor/transmitter connecting cable Warning! • Risk of electric shock. Switch off the power supply before opening the device. Do not install or wire the device while it is connected to the power supply. Failure to comply with this precaution can result in irreparable damage to the electronics.

  • Page 29: Cable Specification For Connecting Cable

    Rubber seal 4.2.2 Cable specification for connecting cable Only use the connecting cables supplied by Endress+Hauser. The connecting cables are available in different lengths → ä 56 ff. For the cable specifications, see → ä 81. Operation in areas with strong electrical interference The measuring system complies with the general safety requirements in accordance with EN 61010, the EMC requirements of IEC/EN 61326 "Emission as per Class A requirements"...

  • Page 30: Connecting The Measuring Unit

    Wiring Proline Prosonic Flow 93C FOUNDATION Fieldbus Connecting the measuring unit Field instruments can be connected to the FOUNDATION Fieldbus in two ways: • Connection via conventional cable gland → Chap. 4.3.2 • Connection using prefabricated fieldbus connector (option) → Chap. 4.3.3 4.3.1...
  • Page 31 Proline Prosonic Flow 93C FOUNDATION Fieldbus Wiring (L–) FF (+) (L+) FF (–) 20 21 22 23 24 25 26 27 A0014580 Fig. 19: Connecting the transmitter, cable cross-section: max. 2.5 mm (14 AWG) Connection compartment cover Cable for power supply: 85 to 260 V AC, 20 to 55 V AC, 16 to 62 V DC Terminal No.

  • Page 32: Fieldbus Connector

    4-channel or 8-channel distribution modules. The device can therefore be supplied with the option of a ready-mounted fieldbus connector. Fieldbus connectors for retrofitting can be ordered from Endress+Hauser as a spare part → ä 56. M 20.5 190 mm (7.48 ) "...

  • Page 33: Degree Of Protection

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Wiring Degree of protection Transmitter (wall-mount housing) The transmitter fulfills all the requirements for IP 67. " Caution! The screws on the sensor housing should not be opened as to do so would invalidate the degree of protection guaranteed by Endress+Hauser.
  • Page 34 IP 68 protection is maintained: • Only use cables supplied by Endress+Hauser with the corresponding sensor connectors. • The sensor connector seals (1), (2) must be clean, dry and undamaged when inserted in the seal groove.

  • Page 35: Post-Connection Check

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Wiring Post-connection check Perform the following checks after completing electrical installation of the measuring device: Device condition and specifications Notes Are cables or the device damaged (visual inspection)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate?

  • Page 36: Operation

    Operation Proline Prosonic Flow 93C FOUNDATION Fieldbus Operation Quick operation guide You have a number of options for configuring and commissioning the device: Local display (option) → ä 37 The local display enables you to read all important variables directly at the measuring point, configure device-specific parameters in the field and perform commissioning.

  • Page 37: Local Display

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Operation Local display 5.2.1 Display and operating elements The local display enables you to read all important parameters directly at the measuring point and configure the device using the "Quick Setup" or the function matrix.

  • Page 38: Display (Operating Mode)

    Operation Proline Prosonic Flow 93C FOUNDATION Fieldbus 5.2.2 Display (operating mode) The display area consists of three lines in all; this is where measured values are displayed, and/or status variables (direction of flow, bar graph, etc.). You can change the assignment of display lines to different variables to suit your needs and preferences (→...

  • Page 39: Icons

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Operation 5.2.4 Icons The icons which appear in the field on the left make it easier to read and recognize measured variables, device status, and error messages. Icon Meaning Icon Meaning System error Process error...

  • Page 40: Brief Guide To The Function Matrix

    Operation Proline Prosonic Flow 93C FOUNDATION Fieldbus Brief guide to the function matrix Note! • See the general notes → ä 41 • Function descriptions → see the "Description of Device Functions" manual" HOME position → F → Entry into the function matrix Select a block (e.g.

  • Page 41: General Notes

    • If programming is disabled and the OS operating elements are pressed in any function, a prompt for the code automatically appears on the display. • If "0" is entered as the private code, programming is always enabled. • The Endress+Hauser service organization can be of assistance if you mislay your personal code. " Caution! •...

  • Page 42: Disabling The Programming Mode

    Operation Proline Prosonic Flow 93C FOUNDATION Fieldbus 5.3.3 Disabling the programming mode Programming mode is disabled if you do not press an operating element within 60 seconds following automatic return to the HOME position. You can also disable programming in the "ACCESS CODE" function by entering any number (other than the customer's code).

  • Page 43: Operating Options

    5.5.1 Operating program "FieldCare" FieldCare is Endress+Hauser’s FDT-based plant asset management tool and allows the configuration and diagnosis of intelligent field devices. By using status information, you also have a simple but effective tool for monitoring devices. The Proline flowmeters are accessed via a service interface or via the service interface FXA193.

  • Page 44: Operating Via Foundation Fieldbus

    The Fieldcheck tester/simulator is used for testing flowmeters in the field. When used in conjunction with the "FieldCare" software package, test results can be imported into a database, printed and used for official certification. Contact your Endress+Hauser representative for more information.

  • Page 45: Foundation Fieldbus Hardware Settings

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Operation FOUNDATION Fieldbus hardware settings 5.6.1 Switching hardware write protection on and off A jumper on the I/O board provides the means of switching hardware write protection on or off. Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.

  • Page 46: Commissioning

    Commissioning Proline Prosonic Flow 93C FOUNDATION Fieldbus Commissioning Function check Make sure that the following function checks have been performed successfully before switching on the supply voltage for the measuring device: • Checklist for "Post-installation check" → ä 24 • Checklist for "Post-connection check" → ä 35 Note! •...

  • Page 47: Commissioning Via Foundation Fieldbus

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Commissioning Commissioning via FOUNDATION Fieldbus Note the following points: • The files required for commissioning and network configuration can be obtained as described on → ä 43. • The device is identified by the FOUNDATION Fieldbus in the host or configuration system via the device ID (DEVICE_ID).
  • Page 48 Commissioning Proline Prosonic Flow 93C FOUNDATION Fieldbus Display text (xxx... = serial number) Base index Description INPUT_SELECTOR_xxxxxxxxxxx 1150 Input Selector Function Block (ISEL) SIGNAL_CHARACT_xxxxxxxxxxx 1200 Signal Characterizer Function Block (CHAR) INTEGRATOR_xxxxxxxxxxx 1250 Integrator Function Block (INTG) Note! This measuring device is supplied with the bus address "250" and is thus in the address range reserved for readdressing field devices, between 248 and 251.
  • Page 49 Proline Prosonic Flow 93C FOUNDATION Fieldbus Commissioning 13. Set the "Flow" and "Totalizer" Transducer Blocks to AUTO in the MODE_BLK parameter group (TARGET parameter). Only then is it ensured that the process variables can be processed correctly by the downstream AI Function Block.
  • Page 50 Commissioning Proline Prosonic Flow 93C FOUNDATION Fieldbus Example: – The measurement range of the sensor is 0 to 30 m – The output range to the process control system should be 0 to 30 m /h as well. The following settings should be made: –...

  • Page 51: Quick Setup

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Commissioning Quick Setup In the case of measuring devices without a local display, the individual parameters and functions must be configured via the operating program, e.g. FieldCare. If the measuring device is equipped with a local display, all the important device parameters for standard operation, as well as additional functions, can be configured quickly and easily by means of the following Quick Setup menus.

  • Page 52: Data Backup/Transmission

    Commissioning Proline Prosonic Flow 93C FOUNDATION Fieldbus 6.4.2 Data backup/transmission Using the T-DAT SAVE/LOAD function, you can transfer data (device parameters and settings) between the T-DAT (exchangeable memory) and the EEPROM (device storage unit). This is required in the following instances: •...

  • Page 53: Adjustment

    In instances of this nature, please contact your Endress+Hauser service center. • You can view the currently valid zero point value using the ZERO POINT function (see the "Description of Device Functions"...

  • Page 54: Memory (Historom)

    – Repeatedly press and release the Esc keys (X). Memory (HistoROM) At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data are stored. By plugging and unplugging such modules, device configurations can be duplicated onto other measuring devices to cite just one example.

  • Page 55: Maintenance

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Maintenance Maintenance No special maintenance work is required. Exterior cleaning When cleaning the exterior of measuring devices, always use cleaning agents that do not attack the surface of the housing and the seals. Endress+Hauser...

  • Page 56: Accessories

    Accessories Proline Prosonic Flow 93C FOUNDATION Fieldbus Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Your Endress+Hauser representative can provide detailed information on the order codes in question. Device-specific accessories...
  • Page 57 Proline Prosonic Flow 93C FOUNDATION Fieldbus Accessories Service-specific accessories Accessory Description Order code Applicator Software for selecting and planning flowmeters. DXA80 – * The Applicator can be downloaded from the Internet or ordered on CD-ROM for installation on a local PC.

  • Page 58: Troubleshooting

    Caution! In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. Important procedures must be carried out before you return a flowmeter to Endress+Hauser → ä 6. Always enclose a duly completed "Declaration of Contamination" form. A copy of the form can be...
  • Page 59 Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting Check device fuse → ä 75 Device fuse 85 to 260 V AC: 0.8 A slow-blow / 250 V (continued) 20 to 55 V AC and 16 to 62 V DC: 2 A slow-blow / 250 V...
  • Page 60 Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus Analog Input fct. block: The There may be several reasons for this. Check the following in sequence: operating mode cannot be 1. Check whether the operating mode of the Analog Input Function Block is in set to AUTO.
  • Page 61 Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting Transducer Block: The The device description file (Device Description, DD) has not been loaded into the host system or the configuration program → Load the file into the configuration system. manufacturer-specific parameters are not visible.

  • Page 62: System/Process Error Messages

    Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus System/process error messages General notes The flowmeter assigns current system and process errors to two error message types in accordance with a predefined algorithm and classifies them accordingly: Error message type "Fault message": •...

  • Page 63: List Of System Error Messages

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting 9.2.1 List of system error messages Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → ä 71) FOUNDATION Fieldbus error messages error messages (FF)* "Diagnosis" Transducer (local display) Block * With FOUNDATION Fieldbus, error messages are displayed in the "Diagnosis"...
  • Page 64 Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → ä 71) FOUNDATION Fieldbus error messages error messages (FF)* "Diagnosis" Transducer (local display) Block Device status message (FF): BLOCK_ERR = Device needs OUT.
  • Page 65 Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → ä 71) FOUNDATION Fieldbus error messages error messages (FF)* "Diagnosis" Transducer (local display) Block No. # 1xx → Software error...
  • Page 66 Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → ä 71) FOUNDATION Fieldbus error messages error messages (FF)* "Diagnosis" Transducer (local display) Block Device status message (FF): BLOCK_ERR = Device needs OUT.
  • Page 67 Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → ä 71) FOUNDATION Fieldbus error messages error messages (FF)* "Diagnosis" Transducer (local display) Block Device status message (FF): BLOCK_ERR = No Error OUT.
  • Page 68 Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus Error messages: Transducer Block Analog Input Function Block Reason for error/rectification (spare parts → ä 71) FOUNDATION Fieldbus error messages error messages (FF)* "Diagnosis" Transducer (local display) Block Device status message (FF): BLOCK_ERR = Simulation OUT.

  • Page 69: List Of Process Error Messages

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting 9.2.2 List of process error messages Error messages: FOUNDATION Fieldbus Transducer Block Analog Input Function Block Cause/remedy (Spare parts → ä 71) (FF)* error messages error messages (local display) * With FOUNDATION Fieldbus, error messages are displayed in the "Diagnosis" Transducer Block (base index: 1600) by means of the "Diag.

  • Page 70: Process Errors Without Messages

    • Nameplate specifications: order code and serial number → ä 7 Return devices to E+H You can return a measuring device to Endress+Hauser for repair or calibration. Always enclose the duly completed "Declaration of Contamination" form with the flowmeter. You will find a preprinted blank of this form at the back of this manual.

  • Page 71: Spare Parts

    Note! You can order spare parts directly from your Endress+Hauser service organization by providing the serial number printed on the transmitter's nameplate → ä 7. Spare parts are shipped as sets comprising the following parts: •...

  • Page 72: Installing And Removing Electronics Boards

    Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus Installing and removing electronics boards Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 73 Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting A0014886 Fig. 33: Wall-mount housing: removing and installing electronics boards Housing cover Electronics module Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)

  • Page 74: Installing And Removing The Flow W Sensors

    Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus Installing and removing the Flow W sensors The active part of the flowrate measuring sensor W can be replaced without interrupting the process. Unscrew the sensor connector (1) from the sensor neck (2) and pull it out.

  • Page 75: Replacing The Device Fuse

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Troubleshooting Replacing the device fuse Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment. The main fuse is on the power unit board → å 35.

  • Page 76: Software History

    Troubleshooting Proline Prosonic Flow 93C FOUNDATION Fieldbus 9.10 Software history Date Software version Changes to software Operating Instructions 06.2009 3.00.XX Introduction of new FOUNDATION Fieldbus BA00145D/06/EN/13.10 I/O board 71121226 Shorter execution times: – Analog Input Function Blocks 1 to 8 (each 18 ms) –...

  • Page 77: Technical Data

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Technical data Technical data 10.1 Quick technical data guide 10.1.1 Applications • Measuring the flow rate of liquids in closed piping systems. • Applications in measuring, control and regulation technology for monitoring processes. 10.1.2...
  • Page 78 Technical data Proline Prosonic Flow 93C FOUNDATION Fieldbus Link Master (LM) support Link Master Factory setting Basic Device Selectable Device basic current 11 mA Device starting current <11 mA Device error current (FDE) 0 mA Device (lift off) 9 V (H1-segment) min.
  • Page 79 Proline Prosonic Flow 93C FOUNDATION Fieldbus Technical data Block information, Block Base index Execution time [ms] Functionality execution time Resource Block – Enhanced "Flow" Transducer Block 2600 – Vendor specific "Diagnosis" Transducer Block 1600 – Vendor specific Transducer Block "Service"...

  • Page 80: Power Supply

    Technical data Proline Prosonic Flow 93C FOUNDATION Fieldbus Input data Discrete Output Function Block (channel 16) Status change Action Discrete state 0 → Discrete state 1 reserved Discrete state 0 → Discrete state 2 Positive zero return channel 1: On Discrete state 0 →...

  • Page 81: Performance Characteristics

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Technical data Cable specifications Only use the connecting cables supplied by Endress+Hauser. Different versions of the connecting cables are available → ä 56 ff. Prosonic Flow W • Cable material made of PVC (standard) or PTFE (for higher temperatures) •...

  • Page 82: Operating Conditions: Installation

    Technical data Proline Prosonic Flow 93C FOUNDATION Fieldbus 10.1.7 Operating conditions: installation Installation instructions Any orientation (vertical, horizontal) Restrictions and other installation instructions → ä 13 ff. Version → ä 15 Inlet and outlet runs Length of connecting cable Shielded cables are available in the following lengths: 5 m (16.4 ft), 10 m (32.8 ft), 15 m (49.2 ft) and 30 m (98.4 ft)

  • Page 83: 10.1.10 Mechanical Construction

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Technical data 10.1.10 Mechanical construction Design / dimensions The dimensions and lengths of the sensor and transmitter are provided in the separate "Technical Information" document on the device in question. This can be downloaded as a PDF file from www.endress.com.

  • Page 84: 10.1.11 Human Interface

    Technical data Proline Prosonic Flow 93C FOUNDATION Fieldbus Weight (US units) Transmitter wall-mount housing: 13.2 lbs Nominal diameter Measuring pipe incl. sensors [mm} [inch] ANSI AWWA PN 6 PN 10 PN 16 Class 150 Class D 12" – – 14"...

  • Page 85: 10.1.12 Certificates And Approvals

    CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick mark The measuring system complies with the EMC requirements of the "Australian Communications and Media Authority (ACMA)".

  • Page 86: 10.1.15 Documentation

    Technical data Proline Prosonic Flow 93C FOUNDATION Fieldbus 10.1.15 Documentation • Flow measurement (FA005) • Technical Information for Prosonic Flow 93C (TI108D) • Description of Device Functions for Prosonic Flow 93C FOUNDATION Fieldbus (BA00146D) • Ex supplementary documentation (Control–Drawing) for FM, CSA...

  • Page 87: Index

    Proline Prosonic Flow 93C FOUNDATION Fieldbus Index Index Accessories ........56 FieldCare.
  • Page 88 Proline Prosonic Flow 93C FOUNDATION Fieldbus Index Maintenance ........55 Safety icons .
  • Page 89 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
