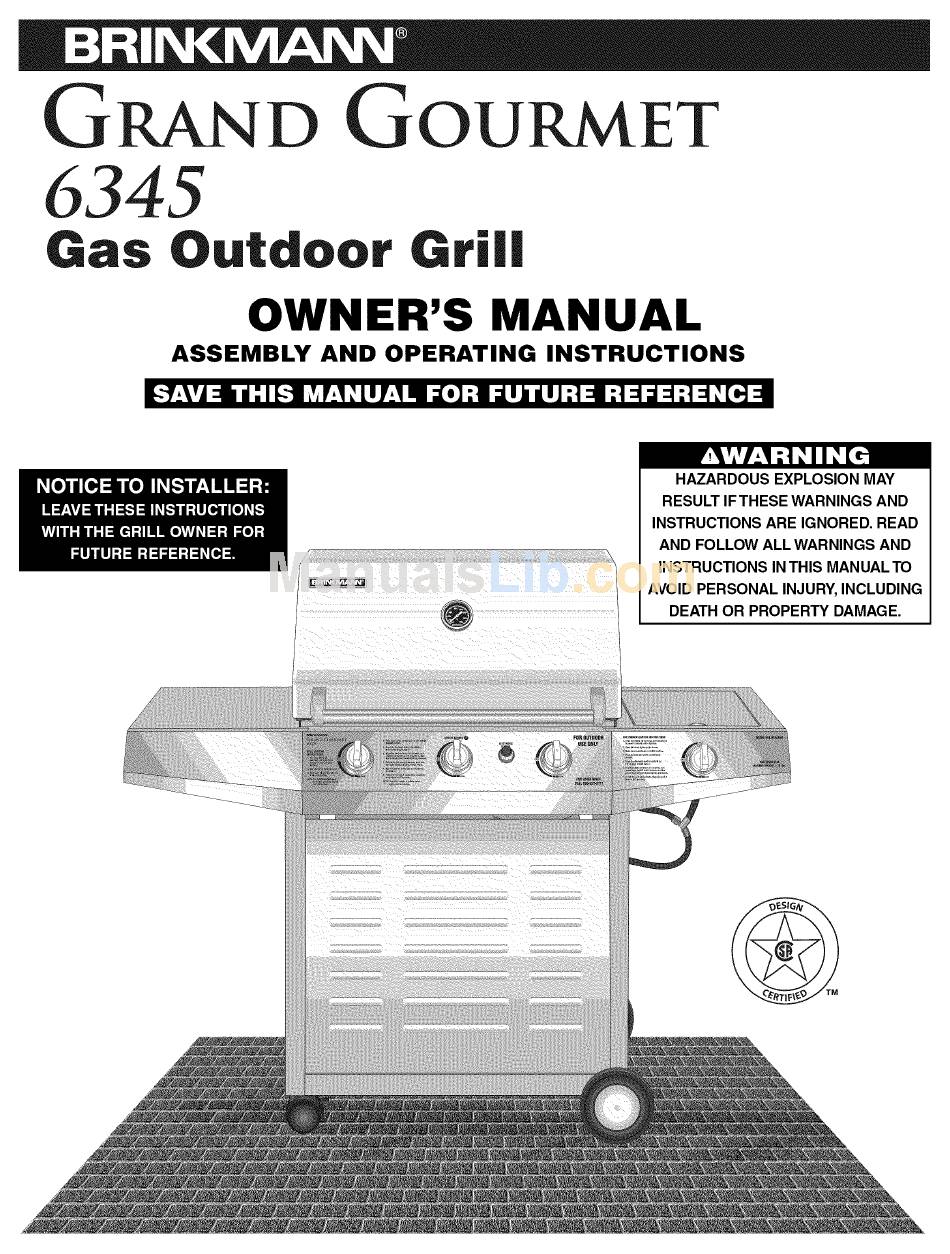

GRAND
GOURMET
6345
Gas Outdoor
Grill
OWNER'S
MANUAL
ASSEMBLY
AND
OPERATING
INSTRUCTIONS
r,V/l±1
;t: I I: [r_
HAZARDOUS EXPLOSION MAY
RESULT IFTHESE WARNINGS AND
INSTRUCTIONS ARE IGNORED. READ
AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS IN THIS MANUAL TO
AVOID PERSONAL INJURY, INCLUDING
DEATH OR PROPERTY DAMAGE.
Advertisement
Table of Contents
Related Manuals for Brinkmann GRAND GOURMET 810.63450
Summary of Contents for Brinkmann GRAND GOURMET 810.63450
- Page 1 GRAND GOURMET 6345 Gas Outdoor Grill OWNER'S MANUAL ASSEMBLY OPERATING INSTRUCTIONS r,V/l±1 ;t: I I: [r_ HAZARDOUS EXPLOSION MAY RESULT IFTHESE WARNINGS AND INSTRUCTIONS ARE IGNORED. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY, INCLUDING DEATH OR PROPERTY DAMAGE.
- Page 2 IMPORTANT WE WANTYOU TO ASSEMBLE THE PURPOSE OF THIS SAFETY ATTENTION TO POSSIBLE WHEN YOU SEE THE SAFETY PAY CLOSE ATTENTION READ ALL SAFETY BEFORE ASSEMBLING IF YOU SMELL GAS: Shut off gas to the appliance. Extinguish any open flame. Open Lid.
-
Page 3: Table Of Contents
TABLE General Warnings Installation and LP Cylinder Specifications Connecting LP Cylinder and Hose / Regulator to Grill ... Leak Testing ... Pre-start Check List ... Lighting Instructions ... Operating Grill and Helpful Hints ... Proper Care and Maintenance Transporting and Storage Trouble Shooting Frequently Asked Questions Parts List and Assembly... -
Page 4: General Warnings
Strong odors, colds, sinus congestion, propane. Use caution and common • Always keep your gas grill free and clear of gasoline, paint thinner, or other flammable and liquids or combustible • Always check the grill prior to each use as indicated manual. -
Page 5: Installation And Lp Cylinder Specifications And Safe Use
FOROUTDOOR USEONLY.DONOToperateindoors or in an enclosedareasuch as a garage, shed or breezeway. Useyour grill OUTDOORS in a well ventilatedspaceaway prevent dangers associated be situated at least 10 feet (3.1 m) from buildings. Maintain a minimum clearance combustible material. DO NOT use grill under overhead DO NOT use or install this grill in or on a recreational INSTALLATION INFORMATION: The installation... - Page 6 DO NOT insert any foreign objects result. A damaged back-check bodily harm, or death. a cylinder for your gas grill, it must be constructed for LP gas cylinders of the U.S. Department of Canada, CAN/CSA-B339 Goods; and Commission, as applicable;...
-
Page 7: Connecting Lp Cylinder And Hose / Regulator To Grill
FILLING THE LP GAS CYLINDER: • Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder. • New tanks should be purged prior to filling; • DO NOT allow the cylinder to be filled dangerous condition. - Page 8 Leak check all fittings before lighting your grill. See section on "Leak Testing" in this manual. leak testing all gas connections supplied with your gas grill must be used. it to any other fuel supply source such as a natural gas line. assembly other than the one supplied with your grill.
-
Page 9: Leak Testing
LEAK TESTING: To prevent fire or explosion hazard: • DO NOT smoke or permit ignition sources • Perform test OUTDOORS • Never perform a leak test with a match or open flame. • Never perform a leak test while the grill is in use or while grill is still hot. WHEN TO PERFORM A LEAKTEST: After assembling your grill and before lighting for the first time, even if purchased... -
Page 10: Pre-Start Check List
6. Check each place listed (A-K) 7. Turn off gas supply at cylinder valve. 8. Turn on control knobs to release gas pressure 9. Turn control knobs to "OFF" position. 10. Tighten any leaking connections. 11. Repeat soapy water test until no leaks are detected. 12. -
Page 11: Lighting Instructions
Read, understand and follow all warnings any of the warnings and instructions LIGHTING INSTRUCTIONS: Follow the instructions exactly. OPEN THE GRILL LID before attempting the grill. An explosion could occur if grill lid is down. Check that all burner control knobs and the cylinder valve are turned to the "OFF" Turn on the fuel supply by rotating the cylinder valve knob counter-clockwise DO NOT stand with head, body, or arms over the grill when lighting. - Page 12 LIGHTING THE SIDE BURNER: Open lid before lighting side burner. Make sure control knob is in the "OFF" position. Push and turn side burner control knob to the "HIGH" position. Press the electronic igniter hold for 3-5 seconds to light burner. If ignition does NOT occur in 5 seconds, "OFF", wait 5 minutes to allow gas to dissipate lighting procedure.
-
Page 13: Operating Grill And Helpful Hints
This ensures that the grilling surfaces to sear the food sugars when cooking. After lighting your grill, set the meats on a gas grill. This adds to the unique flavor of cooking on a your food and cause a dangerous result from the build-up of grease in the bottom of your grill. - Page 14 ROTISSERIE COOKING: • Your grill was pre-drilled not use a rotisserie not specifically • Read and follow all instructions • Do not use the side burner when using a rotisserie. When using an AC current rotisserie, codes, or in the absence •...
- Page 15 • To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not in use. A grill cover may be ordered directly from Brinkmann by calling 800-468-5252 • Wash cooking grills and heat distribution cooking grill with vegetable oil or vegetable •...
-
Page 16: Proper Care And Maintenance
CLEANING AND MAINTENANCE: • Keep the appliance free and clear of combustible and liquids. • Keep the ventilation openings • Visually check burner flames for proper operation under Proper Care and Maintenance). blockage. • For safe grilling and peak performance after extended periods of storage. -
Page 17: Transporting And Storage
• If storing the grill outdoors, cover the grill with a grill cover for protection may be ordered directly from Brinkmann by calling 800-468-5252 and water. A brass bristled brush or a nylon cleaning steel surfaces. Do not use steel wire bristles to clean the cooking... -
Page 18: Trouble Shooting
TROUBLE SHOOTING Problem: Burner will not light Fire at control knob Yellow Flames at burner Flame blows out on "LOW" Burner does not get hot enough Grill is Too Hot Possible Causes: Check LP cylinder fuel level. Bad electrode spark. Check to see if the grill will match light. -
Page 19: Frequently Asked Questions
Service at 800-527-0717. Question: Why does my LP gas grill have a low flame or a flame with orange / yellow color? Answer: You need to purge air from the gas line or reset the regulator's flow limiting device. Opening the... - Page 20 If the humming noise is loud and excessive, you need to purge air from the gas line or reset the regulator Connecting LP Cylinder and Hose/Regulator tank is connected to your grill. For help, refer to your owner's manual or call Brinkmann 800-527-0717. ASKED oven cleaner. For stubborn food residue, use a Cast-Iron...
-
Page 21: Parts List And Assembly Instructions
PARTS Make sure you have all items listed under PARTS LIST and PARTS CARD CONTENTS you begin the installation process. PARTS CARD CONTAINS: Qty. Hex nut wrench AA/I.5V Alkaline battery Screwdriver M6 X 12mm bolts Wheel Wheel axle bolts M5 X 10mm bolts BAG CONTENTS Qty. - Page 22 Left Side Table Front Panel Cart Front Panel Side Burner Grate INSTRUCTIONS WARNINGS & ASSEMBLY ASSEMBLING OR OPERATING for this grill is approximately this Brinkmann INSTRUCTIONS CAREFULLY YOUR GRILL. WHEN ASSEMBLING THIS UNIT. 45 minutes. Grand Gourmet Side Burner Base...
- Page 23 FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 800-527-0717. (Proof of purchase will be required.) Inspect contents of the box to ensure all parts are included and undamaged.
- Page 24 Choose a good, cleared assembly area and get a friend to help you put your grill together. Lay cardboard down to protect grill finish and assembly area. Some parts may A'k CAUTION! contain sharp edges. Wear protective gloves if necessary. Step Assemble bottom cart (Item #26)
- Page 25 Locking Caster Wheel Hubcap bolt Wheel axle Hex Nut Wrench Step 4 With the help of a friend, turn the assembled cart over. Try to minimize the stress to the bottom plate. Step 5 Attach locking casters (Item #27) to the bottom of the left side cart panel.
- Page 26 Step 7 Snap wheel hub caps (Item #29) onto the outside of wheels as illustrated. Step With the help of a friend, turn the cart to its upright position. Step 9 Attach tank heat shield (Item #23) to heat shield plate (Item #24) using one #8 self-tapping Step 10...
- Page 27 Heat Shield Plate _ _- C_CCCCCCZb ¢ ¢ Grease Cup Heat Plate Siield Step Attach heat shield plate (Item #24) and front panel to the front of the cart frame assembly M6 X 12mm bolts with star washers. Step 12 Attach heat shield plate (Item #24) to the back of the cart frame assembly...
- Page 28 Note: When performing Step 14, Lift grill body from front and rear panels to avoid injury to hands and fingers. to pass hose/regulator assembly above cart frame crossbar. Step 14 With the help of a friend, place grill body assembly on assembled frame.
- Page 29 Side Table Front Panel Side Table • Side Burner i_-- Side Burner Front Panel ® ® Step 15 Attach the side table front panel (Item #13) to side table (Item #12) with two M5 x 10mm. Step Attach the side burner front panel (Item #17) to side burner base (Item #16) with two M5 x 10mm.
- Page 30 Step Attach the side burner assembly to the right side of the grill body. Insert two M6 x 12mm bolts into both right legs halfway. Place side burner assembly over bolts and slide toward front of grill, then tighten securely. Fasten side burner front panel to grill body with one M6 X 12mm bolt.
- Page 31 Burner Side Control Knob Grease Tray Step Place the bezel (Item #22) over the control knob (Item #21) mounting stem and position over holes in side burner base and side burner valve assembly. Attach with two M4 bolts with lock washers which come with valve.
- Page 32 Step 24 Place the heat distribution (Item #9) on lower level of grill body assembly directly above burners. Step Place cooking grills (Item #7) on support ribs directly above heat distribution plates (Item #9). Step 26 Place warming rack (Item #5) in grooves so that it sits above the cooking grills.
- Page 33 ProSeries 6345 (Assembled) (c-------_) £c_ (czzzZZ_)
-
Page 34: Grilling Accessories
RIB RACK Chrome-plated rack can greatly increase the cooking capacity of your grill. Holds ribs, chicken halves, potatoes and corn vertically to triple cooking capacity. Allows smoke, steam and heat to penetrate food evenly. 812-3310-0 MEATLOAF BASKET The unique basket weave prevents meatloaf from falling through the grill while allowing smoke, steam and heat to flow into the food. - Page 35 Strainer basket holder helps drain excess oil. Use outdoors with the Brinkmann Backyard Kitchen and avoid the mess and odor of frying indoors. 815-3610-0...
- Page 36 • This warranty does not cover surface scratches, rust or heat damage to the finish, which is considered normal wear. • The Brinkmann Corporation may elect to repair or replace damaged units covered by the terms of this warranty. • This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
