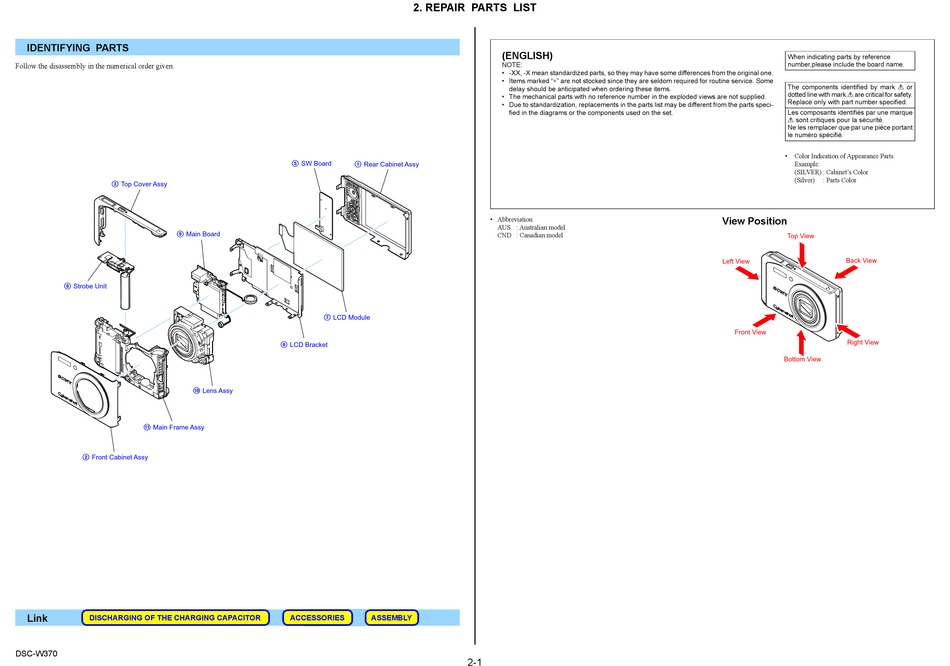

IDENTIFYING PARTS

Follow the disassembly in the numerical order given.
3 Top Cover Assy
9 Main Board
8 Strobe Unit
0 Lens Assy
qa Main Frame Assy
2 Front Cabinet Assy
Link
DISCHARGING OF THE CHARGING CAPACITOR
DSC-W370

2. REPAIR PARTS LIST

5 SW Board
1 Rear Cabinet Assy
7 LCD Module
6 LCD Bracket
ACCESSORIES ACCESSORIES ASSEMBLY
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some differences from the original one.
• Items marked "*" are not stocked since they are seldom required for routine service. Some
delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views are not supplied.
• Due to standardization, replacements in the parts list may be different from the parts speci-
fied in the diagrams or the components used on the set.
• Abbreviation
AUS : Australian model
CND : Canadian model
2-1
When indicating parts by reference
number,please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Color Indication of Appearance Parts
Example:
(SILVER) : Cabinet's Color
(Silver) : Parts Color
View Position
Top View
Back View
Left View
Front View
Right View
Bottom View
