Instruction Manual
REV
ECN
4285
A
Line In
Line Out
VGA IN
DC INPUT
USB Upstream
USB Downstream
REL APPR
REL DATE
UNLESS OTHERWISE SPECIFIED:
PS
DRAWN
10/23/02
TOLERANCE ON DECIMAL DIMENSIONS:
XX = .010
XXX = .005
ENGR SERV
MAB
10/28/02
TOLERANCE ON HOLE DIAMETERS:
PL
ENGINEER
10/28/02
UNDER .250 ú
= +/- .005
.250 TO .500
= +.006 -.005
PROD ENGR
AVT
10/29/02
OVER .500
= +.008 -.005
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
MATL SUP
ARM
10/28/02
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
QUALITY
AK
10/28/02
ALL DIMENSIONS IN INCHES.
THIRD ANGLE
DO NOT SCALE THIS DRAWING.
PROJECTION
REVISIONS
DESCRIPTION
DATE
APPROVED
RELEASE TO PRODUCTION
10/29/02

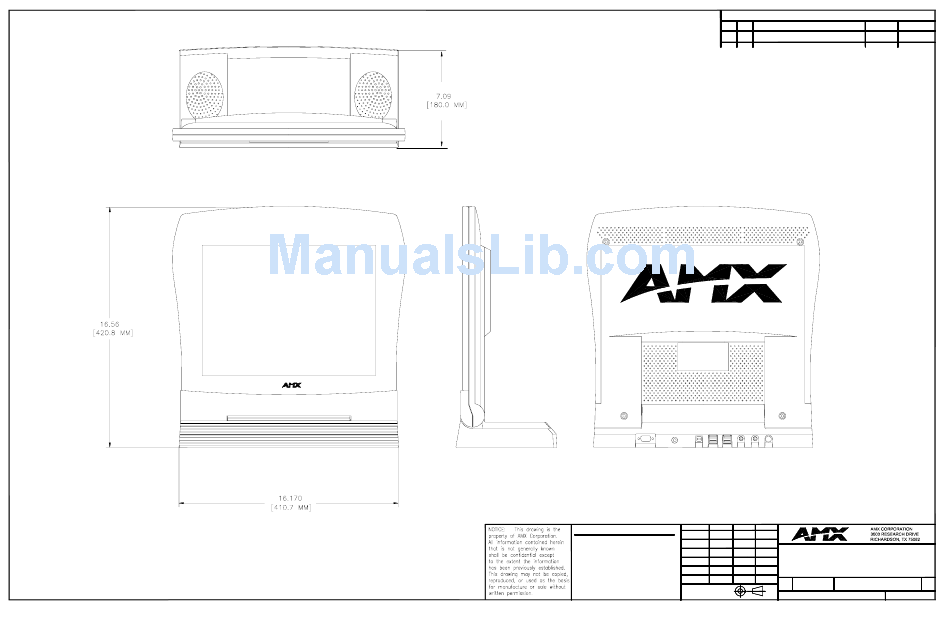

Screen Interface
REV APPR
TM
MAB
PICTORIAL
PL
PTM-D15, PLATINUM SERIES
AVT
15" TOUCH MONITOR
ARM
AK
SIZE
SCALE:
DWG. NO.
REV.
D
FULL
95-5976-68
A
95597668
SHEET
1 OF 1
