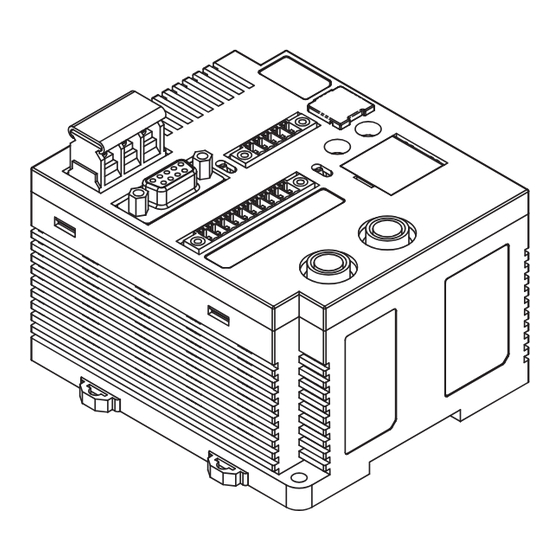

Omron V600 Series Operation Manual

R/w heads and data carriers, built-in battery (sram memory) models, large-capacity battery-less models
Hide thumbs Also See for V600 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

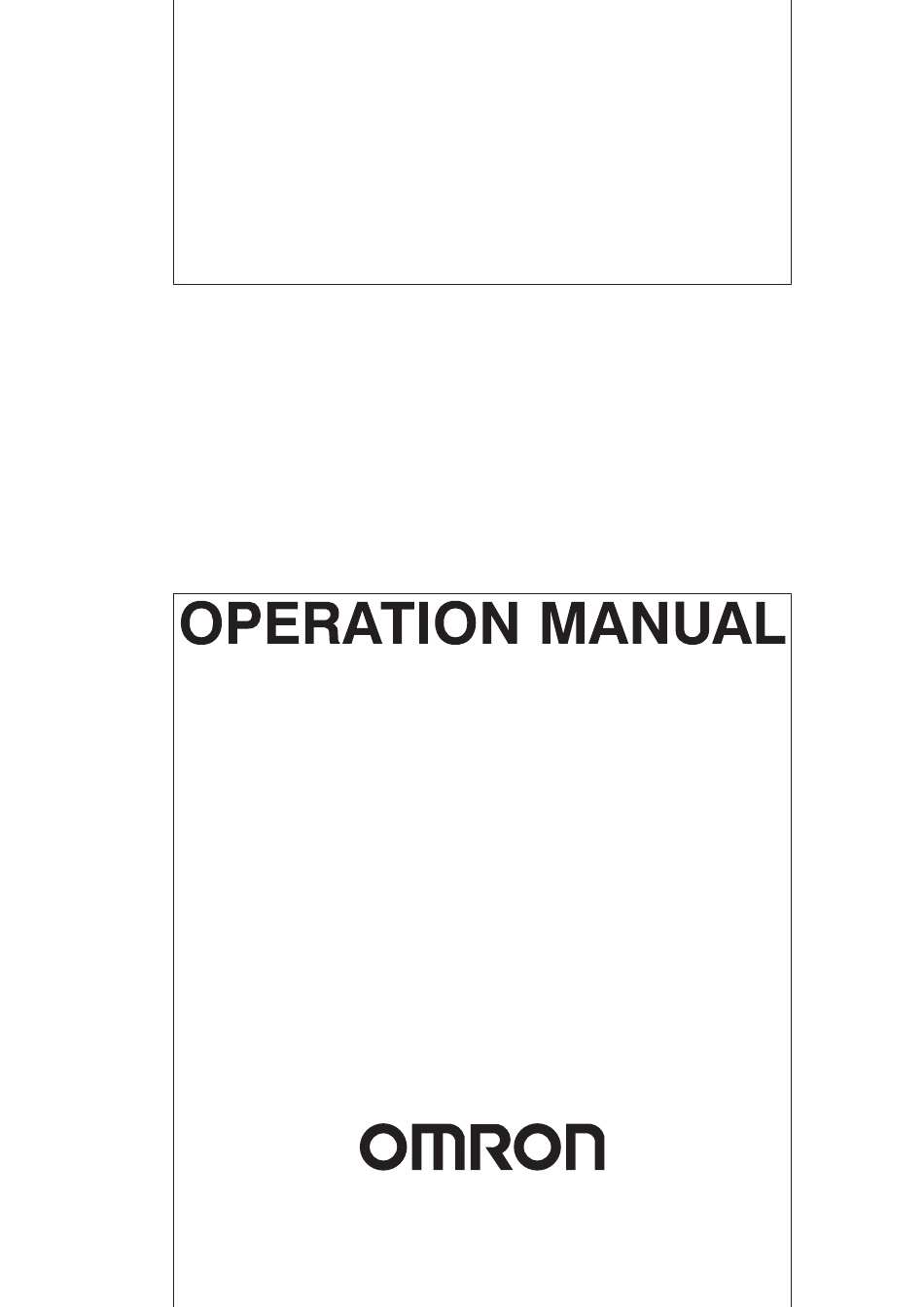

Cat. No. Z127-E1-04
V600 RFID System
R/W Heads and Data Carriers
Built-in Battery (SRAM Memory) Models
Large-capacity Battery-less Models

Advertisement

Table of Contents
loading

Related Manuals for Omron V600 Series

Summary of Contents for Omron V600 Series

  • Page 1 Cat. No. Z127-E1-04 V600 RFID System R/W Heads and Data Carriers Built-in Battery (SRAM Memory) Models Large-capacity Battery-less Models...
  • Page 3 V600 RFID System R/W Heads and Data Carriers Operation Manual Revised August 2006...
  • Page 5 CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED,...
  • Page 6 PROGRAMMABLE PRODUCTS OMRON shall not be responsible for the user’s programming of a programmable product, or any consequence thereof. COPYRIGHT AND COPY PERMISSION This document shall not be copied for sales or promotions without permission.
  • Page 7 Precautions for Safe Use To ensure safety, be sure to follow the following precautions: 1. Do not operate this device in any flammable, explosive, or corrosive gas environment. 2. Do not disassemble, repair, or remodel this device. 3. Tighten the base lock screws and terminal block screws completely. 4.
  • Page 8 FCC emission limits. 2. EC Declaration of Conformity Hereby, OMRON Corporation declares that this product is in compliance with essential requirements and other relevant provisions of Directive 1995/5/EC, and satisfy tests for the appropriate requirements of the following relevant standards, <V600-H07, V600-H11>...
  • Page 9 OMRON. No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice.

  • Page 11: Table Of Contents

    TABLE OF CONTENTS SECTION 1 Features and System Configuration ....Features ............. . . System Configuration .
  • Page 12 About this Manual: This manual describes the installation and operation of the V600-series Read/Write Heads and battery- powered SRAM Data Carriers, and includes the sections described below. Please read this manual carefully and be sure you understand the information provided before attempting to install and operate the Read/Write Heads and Data Carriers.

  • Page 13: Features And System Configuration

    SECTION 1 Features and System Configuration This section provides a general introduction to the V600 RFID System, including the V600-series Read/Write (R/W) Heads and Data Carriers. The V600 RFID System utilizes non-contact data transfer in which data is transmitted electromagnetically without physical contact between the devices.

  • Page 14: Features

    Contactless Data The V600 Series uses electromagnetic linking that enables contactless data Transfer transmission in both directions between the Data Carrier (DC) and Read/Write (R/W) Head.

  • Page 15: System Configuration

    System Configuration Section System Configuration A V600 RFID System is made up of ID Controllers, R/W Heads, and DCs. A sys- tem can be assembled to suit almost any situation with different arrangements of these components. ID Controllers and ID Sensor Units V600-CA5D02 CS1W-V600C11 CJ1W-V600C11...

  • Page 17: Specifications

    SECTION 2 Specifications This section provides Read/Write (R/W) Head and Data Carrier (DC) specifications. R/W Heads ............. . 2-1-1 Specifications and Outer Dimensions .

  • Page 18: R/W Heads

    R/W Heads Section R/W Heads 2-1-1 Specifications and Outer Dimensions V600-H07/V600-H11 Model Item V600-H07 V600-H11 Operating frequency 530 kHz Operating temperature –25°C to 70°C –10°C to 60°C Storage temperature –40°C to 85°C –25°C to 75°C Operating humidity 35% to 95% RH Insulation resistance 50 MΩ...
  • Page 19 R/W Heads Section V600-H11 Vinyl-insulated Mounting holes Four, R1 round cord (6 dia) (Two, 4.5 dia.) Two, R5 Connector Bushing 14.7 dia. LED indicators Power supply (green) Communications (orange) Case material ABS resin Fill resin Epoxy resin Cable PVC (oil-resistant) Note The connectors are not waterproof or oil resistant.

  • Page 20: Data Carriers

    Data Carriers Section Data Carriers 2-2-1 Specifications and Outer Dimensions V600-D8KR12D/13/04 (Built-in Battery Models) Model Item V600-D8KR12D V600-D8KR13 V600-D8KR04 Memory capacity 8K bytes Memory type SRAM (static random access memory) Battery service life Refer to the graphs in 2-3 Data Carrier Battery Service Life. Number of data read/write No limit (up to the extent of the battery service life) conversions...
  • Page 21 Data Carriers Section WARNING The Data Carrier has a built–in lithium battery. Serious injury may occasionally occur due to ignition or explosion. Do not attempt to disassemble the Data Carrier, expose it to pressures that may distort it or to temperatures above 100_C, or dispose of it by incineration. V600-D8KF04 (Battery-less Models) Item V600-D8KF04...
  • Page 22 Data Carriers Section V600-D2KR16 (Battery Replacement Models) Item V600-D2KR16 Memory capacity 2K bytes Memory type SRAM (static random access memory) Battery service life (See 2 years (replaceable battery) note 1.) Number of data read/write No limit (unrelated to battery service life) conversions Error detection 16-bit CRC error detection is used in both directions of transmission.
  • Page 23 Data Carriers Section 2-2-2 Memory Map The Data Carrier (DC) has a memory area of up to 8K bytes. Each address of the memory area specifies one byte. A single byte of data can be written to one address. Address Data 0000 Production date area...
  • Page 24 Data Carriers Section Setting the Write Protect Function The write protect function is set in the four bytes of addresses 0002 through 0005 of the Data Carrier’s memory. The status of the leftmost bit of address 0002 determines whether or not the write protect function is in effect. When Executing the Address Write Protect Function...

  • Page 25: Data Carrier Battery Service Life

    Data Carrier Battery Service Life Section 4. If the beginning address is greater than the ending address (beginning address > ending address), the write-protected area will wrap through 0006 , so that addresses from 0006 through the ending address, and from the beginning address through 1FFF will be write-protected.
  • Page 26 Data Carrier Battery Service Life Section The preceding graphs show the lowest possible lifetimes for DCs in the tempera- ture range –10° C to 55° C (14° F to 131° F). Normally, batteries will last longer at lower ambient temperatures. With a V600-D8KR04 DC at 55°...
  • Page 27 Data Carrier Battery Service Life Section 2-3-2 Battery Service Life Expectancy Check Checking Whether the Battery is Low Models With Built-in Battery (Except V600-D2KR16) 1, 2, 3... 1. Data Carrier battery checks are not performed automatically, only during times of special access. When a battery check is performed, a small current is passed through the DC’s internal circuitry.

  • Page 29: Communications Specifications

    SECTION 3 Communications Specifications This section provides specifications for communications. Transmission Range ............3-1-1 Transmission Range Specifications (Certified Performance) .

  • Page 30: Transmission Range

    Transmission Range Section Transmission Range 3-1-1 Transmission Range Specifications (Certified Performance) Transmission range (unit: mm, axis slip: ± 10 mm) R/W Head Setting conditions V600-D8KR12D V600-D8KR13 V600-D8KR04 V600-D2KR16 V600-H07 Stationary Flush-mounted within metal 10 to 50 10 to 30 See page 32. Surface-mounted on metal 10 to 60 10 to 35...
  • Page 31 Transmission Range Section 2) V600-D8KR04/V600-D8KF04 Data Carriers For flush-mounting within metal, the read/write distance changes depending on distance x from the metal. x mm x mm Flush-mounted Surface-mounted 20 mm max. Metal Metal Flush-mounted within metal Surface-mounted on metal 3) V600-D2KR16 Data Carriers 10 mm min.

  • Page 32: Transmission Areas

    Transmission Range Section 3-1-2 Transmission Areas The following diagrams show representative examples of the communications areas. All measurement units are shown in mm. V600-D8KR12D and V600-H07 V600-D8KR12D and V600-H11 V600-D2KR16 and V600-H11 V600-D8KF04 (no surface-mounted on metal) and V 600-H07 V600-D8KF04 (no surface-mounted on metal) and V 600-H11 Note The mounting method is surface-mounted on...

  • Page 33: Transmission Time

    Transmission Time Section Transmission Time Transmission Time Transmission times are the same for all models of R/W Heads and DCs covered in this manual. • The term “transmission time” is used to indicate both the turn–around time (TAT) and the lower level transmission time between the R/W Head and DC. •...
  • Page 34 Transmission Time Section Transmission Time With the Data Carrier (Reference) (Auto) write (Auto) read Number of bytes processed Calculation Method (Reference) (Unit: ms) Read/Write Lower-level transmission time Read T = 1.8N + 48.4 Write T = 4.2N + 86.5 N: Number of bytes processed Battery-less Models TAT (Reference) The following diagrams show the TAT and lower–level transmission time for the...
  • Page 35 Transmission Time Section The TAT for Parallel Interface ID Controllers and ID Sensor Units varies with the host’s software. Transmission Time With the Data Carrier (Reference) (Auto) write (Auto) read Number of bytes processed Calculation Method (Reference) (Unit: ms) Read/Write Lower-level transmission time Read T = 1.8N + 168.4...

  • Page 36: Data Carrier Speed

    Data Carrier Speed Section Data Carrier Speed The number of bytes that can be processed using the Auto Read and Auto Write commands depends on the speed of the DC. The relationship between the num- ber of bytes and DC speed in m/minute can be determined from the following equation.

  • Page 37: Installation

    SECTION 4 Installation This section describes the recommended installation methods for the R/W Heads and Data Carriers (DCs), and provides details on the battery’s service life expectancy and methods to check the battery’s condition. R/W Head Installation ........... . . 4-1-1 Installation Method .

  • Page 38: R/W Head Installation

    R/W Head Installation Section R/W Head Installation 4-1-1 Installation Method V600-H07 R/W Head Use M4 screws and spring washers (in four places) for R/W Head installation. Tighten the screws to a torque of 0.7 to 1.2 NSm (approximately 7 to 12 kgfScm). There are no restrictions on the mounting direction or the direction of access to the DC, but if the R/W Head is to be installed near a device such as a conveyance belt, make sure there is no danger of the R/W Head being accidentally struck.
  • Page 39 R/W Head Installation Section Note A mounting bracket is provided with the V600-H07. It is not necessary to use this bracket if a metal mounting plate larger than the 100×100 mm “footprint” of the R/W Head is used for installation. Mounting plate V600-H07 Mounting bracket...

  • Page 40: Effect Of Surrounding Metals

    R/W Head Installation Section 4-1-2 Effect of Surrounding Metals V600-H07 R/W Head In addition to surface mounting, it is also possible to flush-mount the V600-H07 within a metal casing to protect it from being struck by other objects. To prevent malfunctioning, allow at least 50 mm between the sides of the R/W Head and the metal casing, and do not mount the R/W Head below the metal surface.

  • Page 41: Interference Between R/W Heads

    R/W Head Installation Section 4-1-3 Interference between R/W Heads When using two or more R/W Heads, be sure to allow enough space between the R/W Heads to avoid errors caused by mutual interference. The diagrams below show the minimum spacing required. V600-H07 R/W Head When facing each other, V600-H07 R/W Heads should be installed at least 650 mm apart if RD/WT commands are used, and 900 mm apart if auto commands...

  • Page 42: Interference With Proximity Sensors

    R/W Head Installation Section 4-1-4 Interference with Proximity Sensors V600-series R/W Heads use electromagnetic linking (frequency: 530 kHz), so, if they are installed near sensors (such as proximity sensors) with an oscillation frequency of 400 to 600 kHz, it may cause the sensors to malfunction. Before installing R/W Heads, and when selecting sensors, be sure to conduct tests to make sure that there will be no interference.

  • Page 43: Data Carrier Installation

    Data Carrier Installation Section Data Carrier Installation V600-D8KR12D/KR13/KR04/KF04 Data Carriers Installation Method Use M4 screws and spring washers for DC installation. Tighten the screws to a torque of 0.7 to 1.2 N m (approximately 7 to 12 kgf cm). There are no restrictions on the mounting direction or the direction with respect to the R/W Heads.
  • Page 44 Data Carrier Installation Section When the V600-D8KR04 is flush-mounted in a metal casing, the transmission range varies according to the width of the gap (x) between the metal and the DC, as shown in the following graphs. When Combined With V600-H07 When Combined With V600-H11 ±...
  • Page 45 Data Carrier Installation Section When the V600-D8KF04 is flush-mounted in a metal casing, the transmission range varies according to the width of the gap (x) between the metal and the R/W Head and DC, as shown in the following graphs. When combined with the V600-H07 When combined with the V600-H11 ±...
  • Page 46 Data Carrier Installation Section Mounting in a Metal The V600-D2KR16 can be either surface-mounted or flush-mounted in a metal Casing casing. If mounted as shown in the following diagrams, there will be no effect on the transmission range. Flush-mounted Surface-mounted 10 mm min.

  • Page 47: Chemical Resistance

    SECTION 5 Chemical Resistance This section shows the chemicals that affect R/W Heads and Data Carriers.
  • Page 48 Chemical Resistance Section 5 R/W Heads and Data Carriers are constructed using both ABS resin and epoxy resin. Referring to the following charts, be sure to use only those chemicals that have no effect on the ABS or epoxy resins and avoid using those chemicals that do have an effect.

  • Page 49: A Accessories (Sold Separately)

    Appendix A Accessories (Sold Separately) Item Specification Model Remarks Extension cable for R/W Heads V600-A45 The connectors are not waterproof. V600-A44 10 m V600-A40 20 m V600-A41 30 m V600-A42 Extension cable for R/W Heads The connectors are not V600-A56 waterproof.

  • Page 51: B Discontinued Models And Replacements

    • In response to the above problem, OMRON changed the frequency for all new wireless-transmission products in the V600 Series from 500 kHz to 530 kHz, and in 1991 received formal certification from the FCC. Since then, all subsequent models in this series have also been developed for 530-kHz specifications.
  • Page 52 Appendix B Discontinued Models and Replacements Materials Provided Here The following materials are provided in this appendix: • Information regarding model changes • Differences in specifications/performance between 500-kHz and 530-kHz models: • 530-kHz model specifications/performance • 500-kHz model specifications/performance • Combining 500-kHz and 530-kHz models: To some extent there are disadvantages such as a reduction in transmission range from combining 500-kHz and 530-kHz models.
  • Page 53 Appendix B Discontinued Models and Replacements Model Changes Discontinued Models All 500-kHz models have been discontinued. R/W head: V600-H06 Data carriers: V600-D2KR01, V600-D8KR01, V600-D2KR02, V600-D8KR02, V600-D2KR03, V600-D8KR03 From now on, please use 530-kHz models. Replacement Models The following table shows the models that are replacing each of the discontinued models. Discontinued model (500 kHz) Replacement model (530 kHz) V600-H06...
  • Page 54 Appendix B Discontinued Models and Replacements Specifications and Performance of 530-kHz Models Data Carriers V600-D8KR11 V600-D8KR12D V600-D8KR13 V600-D8KR04 V600-D8KF04 Model Item (Battery-less type) (Standard type) (Compact type) (Thin type) (Mid-range type) V600-D8KF04 V600-D8KR11 V600-D8KR12D V600-D8KR13 V600-D8KR04 Memory 8K bytes capacity Memory type SRAM (volatile memory) FeRAM...
  • Page 55 Appendix B Discontinued Models and Replacements R/W Heads V600-H11 Model Item V600-H12 V600-H11 V600-H12 Operating frequency 530 kHz Operating temperature –10°C to 60°C –25°C to 70°C Storage temperature –25°C to 75°C –40°C to 85°C Operating humidity 35% to 95% RH Storage humidity 35% to 95% RH Degree of protection...
  • Page 56 Appendix B Discontinued Models and Replacements Transmission Range Specifications (Recommended Operating Area) When Combined With V600-H11 Model Item V600-D8KR11 V600-D8KR12D V600-D8KR13 V600-D8KR04 V600-D8KF04 Range Stationary Refer to Refer to Flush-mounted 10 to 50 mm 5 to 40 mm 10 to 30 mm within metal Graph A and G ap...
  • Page 57 Appendix B Discontinued Models and Replacements Transmission Area Diagrams The following diagrams are representative examples. The unit of measurement used is mm. Graph A V600-H06/V600-D8KR04 V600-H12/V600-D8KR04 Effect of Surrounding Metals Effect of Surrounding Metals ± ± (Shaft slip: 0 mm) (Shaft slip: 0 mm) R/W Head...
  • Page 58 Appendix B Discontinued Models and Replacements R/W Head V600-H06 Model Item V600-H06 Operating frequency 500 kHz Operating temperature –25°C to 70°C Storage temperature –40°C to 85°C Operating humidity 35% to 95% RH Storage humidity 35% to 95% RH Degree of protection Meets or exceeds IEC60529 IP67 and JEM IP67G standards for submersion and oil-resistance.
  • Page 59 Appendix B Discontinued Models and Replacements Transmission Range Specifications (Recommended Operating Area) When Combined With V600-H06 Model Item V600-D2KR01 V600-D2KR02 V600-D2KR03 V600-D8KR01 V600-D8KR02 V600-D8KR03 Range Stationary Flush-mounted within metal 10 to 35 mm 5 to 25 mm 10 to 35 mm Surface-mounted on metal 15 to 45 mm 10 to 30 mm...
  • Page 60 Appendix B Discontinued Models and Replacements Combining 500-kHz and 530-kHz Models Transmission Range Specifications (Recommended Operating Area) It is possible to use 500-kHz models and 530-kHz models in combination, but the transmission ranges are differ- ent. 1) 500-KhZ R/W Head Combined With 530-kHz DC •...
  • Page 61 Appendix B Discontinued Models and Replacements 1) 530-KhZ R/W Head Combined With 500-kHz DC • Combined With V600-H12 Model Item V600-D2KR01 V600-D2KR02 V600-D2KR03 V600-D8KR01 V600-D8KR02 V600-D8KR03 Range Stationary Flush-mounted within metal 10 to 30 mm 5 to 20 mm 10 to 30 mm Surface-mounted on metal 15 to 35 mm 10 to 25 mm...
  • Page 62 Appendix B Discontinued Models and Replacements Transmission Area Diagrams The following diagrams are representative examples. The unit of measurement used is mm. V600-D8KR12D and V600-H06 V600-D KR02 and V600-H12 V600-D KR03 and V600-H12 V600-D KR02 and V600-H11 V600-D KR03 and V600-H11 Note All mounting conditions shown here are for metal back panel mounting.
  • Page 63 Appendix B Discontinued Models and Replacements Dimensions V600-H06/12 Power indicator (LED) Mounting holes (four, 4.5 dia.) Bushing Connector Cable (6 dia.; 8 conductors, 7/0.12 dia.; ) V600-H11 PVC-clad cable (6 dia.; Mounting holes 8 conductors, 7/0.12 dia.; ) Four, R1 Two, R5 (two, 4.5 dia.) Connector...
  • Page 64 Appendix B Discontinued Models and Replacements V600-D KR01 V600-D KR02 V600-D8KR11 Mounting holes Mounting holes (two, 4.5 dia.) (four, 4.5 dia.) V600-D8KR12D V600-D KR03 V600-D8KR13 Mounting holes Mounting holes (two, 4.5 dia.) (two, 4.5 dia.) 17.5 Case material ABS resin Fill resin Epoxy resin...

  • Page 65: C Other Series

    Appendix C Other Series Except for the transmission frequency, the specifications of the above 470-kHz models are exactly the same as those of the V600-H07, V600-H12, V600-D2KR11, and V600-D8KR12D. For details, refer to Appendix B Discontin- ued Models and Replacements.

  • Page 66: Revision History

    Revision History A manual revision code appears as a suffix to the catalog number on the front cover of the manual. Cat. No. Z127-E1-04 Revision code The following table outlines the changes made to the manual during each revision. Page numbers refer to the previous version.
  • Page 68 The Netherlands Hoffman Estates, IL 60169 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 1998-2020 All Ri hts Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.
