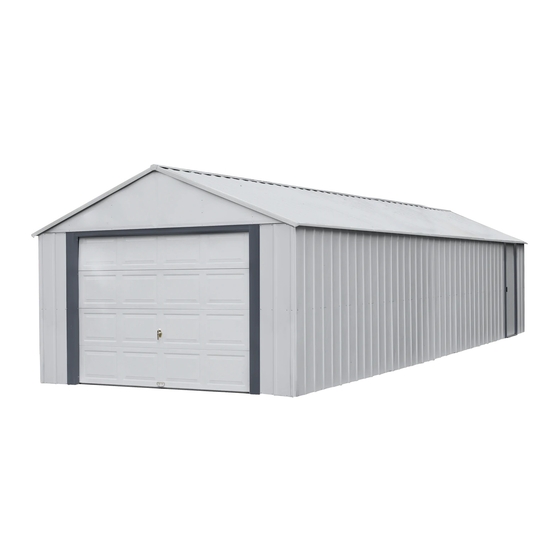

Arrow Storage Products BGR1421FG  Series Owner's Manual & Assembly Instructions

Arrow Storage Products BGR1421FG Series Owner's Manual & Assembly Instructions

Advertisement

Quick Links

Owner's Manual & Assembly Instructions
BX01b
713770919
Storage Area:
14' x 21'
4,2 m x 6,5 m
14' x 31'
4,2 m x 9,4 m
BUILDING DIMENSIONS
*Approx.
Size
14' x 21'
164" x 255 1/2"
14' x 31'
164" x 370 1/2"
4,2 m x 6,5 m
416,6 cm x 649,0 cm
4,2 m x 9,4 m
416,6 cm x 941,1 cm
Model No.
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
assist@arrowsheds.com
Do not return to dealer, they are not
equipped to handle your requests.
291 Sq. Ft.
2527 Cu. Ft.
27,0 m
71,6 m
2
422 Sq. Ft.
3663 Cu. Ft.
39,2 m
103,7 m
2
* Size rounded o to the nearest foot
Base
(Roof Edge to Roof Edge)
Size
Width
169"
169"
429,3 cm
429,3 cm
BGR1421FG
3
3
Exterior Dimensions
Depth
Height
260 3/4"
116"
375 3/4"
116"
662,3 cm
294,6 cm
954,4 cm
294,6 cm
BGR1431FG
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Width
Depth
164"
255 1/2"
164"
370 1/2"
416,6 cm
649,0 cm
416,6 cm
941,1 cm
Height
114 1/2"
114 1/2"
290,8 cm
290,8 cm

Advertisement

loading

Summary of Contents for Arrow Storage Products BGR1421FG Series

  • Page 1 Owner's Manual & Assembly Instructions BX01b BGR1431FG Model No. BGR1421FG Missing Parts, Questions on Assembly? Call: 1-800-851-1085 or assist@arrowsheds.com Do not return to dealer, they are not equipped to handle your requests. 713770919 Storage Area: 14' x 21' 291 Sq. Ft. 2527 Cu.
  • Page 3 BEFORE YOU BEGIN..BW02 Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.
  • Page 4 PLAN AHEAD..BW04 Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 5 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
  • Page 6 CARE & MAINTENANCE..BW05 Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
  • Page 7 ACCESSORIES..BW06 Web ANCHOR KITS TOOL HANGING RACK Model No. AK4 Model No. TH100 Anchor Kit contains heavy-duty steel The perfect tool organizer. Twin augers, 60' (18 m) of steel cable and 25 1/2" (64,8 cm) steel channels 4 cableclamps. No digging or concrete plus ve heavy-duty snap-in pouring, just insert cable under roof, hangers and a small tool holder for...
  • Page 8 ORDERING ACCESSORIES..02/13 We recommend that you purchase accessory items from your local storage building dealer whenever possible; however, because the full line of accessories is not always available from all dealers, Arrow is o ering them to you on a direct basis. There are two ways to order Arrow Storage Building Accessories: Option 1 Option 2...
  • Page 9 Base BX09 The Base For Your Building Concrete Slab The slab should be at least 4" (10,2 cm) thick. It must be level and at to provide good support for the frame. The following are the recommended materials for your base. 2 x 4's (38 mm x 89 mm) (will be removed once the concrete cures) Concrete Sheet of 6 mil plastic We recommend for a proper strength concrete to use a mix of:...
  • Page 10 Anchoring BX10 Anchoring Down The Building It is important that the entire oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) Recommended for use with any suggested base.
  • Page 11 Hardware for Building BX11 KIT 1 65101 1/4-20 Square Nut 65958 65914 132 - (14x21: 4,2 m x 6,5 m) 65408 #8-32x7/8" (22 mm) Bolt (2) #6Ax7/8" (22 mm) Screw (4) 254 - (14x31: 4,2 m x 9,4 m) #10-32x1/4" (6 mm) Bolts (3) KIT 2 KIT 3 WASHER KIT...
  • Page 12 Parts List BX12b Carton #1 through #5 contain parts for a 14x21 (4,2 m x 6,5 m). Page 14 contains the additional parts for a 14x31 (4,2 m x 9,4 m). Assembly Part Part Key No. Number Description Carton 1 Carton 2 Carton 3 Carton 4...
  • Page 13 Assembly by Key No. 14x21 (4,2 m x 6,5 m) BX13...
  • Page 14 Additional Parts 14x31 (4,2 m x 9,4 m) BX14 Assembly Part Part Carton 6 Key No. Number Description CHI Door Carton 7 Carton 8 9470 Wall Panel 9491 Roof Panel 6947 Column Gusset 6954 Gable/Truss Strut 6958 Inner Truss Bracket 6959 Outer Truss Bracket 6962...
  • Page 15 Assembly by Key No. 14x31 (4,2 m x 9,4 m) BX15...
  • Page 16 01FFa Components for Door #3 End Hinge #2 End Hinge #1 End Hinge #1 Center Hinge #4 End Hinge Door Section with weather stripping Outside Inside Step Gripping Plate Point Door Section Bottom Bottom Fixture Left Fixture Fixture Right Roller Door Lock Assembly...
  • Page 17 02FG Components for Door Snap Latch Snap Latch Keeper Cable Vertical Track Flag Angle Flag Angle Left Right Horizontal Curve Horizontal Curve Track Right Track Left Track Bracket Safety Spring Extension Spring Cable Cable Cable Clip Pulley S Hook Clevis...
  • Page 18 03FGa Hardware for Door 1/4” Sheet 10-24 x 5/8” Hex Bolt with Metal Screw Bolt Hole 1/4” Self 1/4” Self 1/4” Wiz Nut Drilling Screw Drilling Screw 3/8” x 3/4” Carriage Bolt 3/8” x 1-1/2” Bolt 1/4” x 5/8” Track Bolt &...
  • Page 19 6947 Column Gusset (2) 6965 Inner Diagonal Brace (2) 6964 Lower Chord (2) Step 1 Parts Needed For 6958 Inner Truss Bracket (4) 6963 Upper Chord (2) 6966 Outer Diagonal Brace (2) Truss Assembly 7022 Eave Bracket (4) 6959 Outer Truss Bracket (4) 6962 Vertical Brace (2) 9497 Outer Truss Bracket (4) BX16...
  • Page 20 9494 Right Gable (2) Step 2 9495 Left Gable (2) Parts Needed For 6955 Inner Gable Bracket (4) Gables/Column Assemblies 9496 Outer Gable Bracket (4) BX17 9490 Center Column (6 14x21: 4,2 m x 6,5 m) (10 14x31: 4,2 m x 9,4 m) The gables go on top of the front and Align the holes on the center rear walls to support the roof beams.
  • Page 21 Step 3 Parts Needed For 10456 Right Roof Beam (10) 10457 Left Roof Beam (10) Roof Beam Assemblies 9462 Roof Beam (10 14x31: 4,2 m x 9,4 m) BX18 The roof beams join the gables to the truss and supports the roof panels. Assembled Align the holes on a left and right roof beam back-to-back and fasten...
  • Page 22 9481 Front Frame (1) Step 4 9480 Front Frame (1) Parts Needed For 9475 Side Floor Frame (4) Floor Frame Assembly 6939 Rear Frame (1) BX19 6938 Rear Frame (1) 9460 Side Floor Frame (2 14x31: 4,2 m x 9,4 m) Place the oor frame pieces on the foundation.
  • Page 23 Step 5 Parts Needed For 6947 Column Gusset (3 14x21: 4,2 m x 6,5 m) (5 14x31: 4,2 m x 9,4 m) Gusset/Center Column BX20 Center Column Assembly (3 14x21: 4,2 m x 6,5 m) Center Column Assembly (5 14x31: 4,2 m x 9,4 m) Fasten side oor frames together with a column gusset using 2 bolts from the bottom and nuts on top.
  • Page 24 Step 6 Parts Needed For 9471 Wall Panel (2) 9473 Front Wall Panel (2) Corners 9472 Corner Panel (4) BX21 Narrow Side NOTE 9472 The remainder of the building Wide Side assembly requires many hours REAR and more than one person. Tie 9472 down and support assembly before the end of the work day.
  • Page 25 9482 Right Front Wall Channel (2) 9465 Support Column (2) Step 7 Parts Needed For 9483 Left Front Wall Channel (2) 9469 Side Door Channel (2) Mid Frames 9476 Side Wall Channel (6) 9468 Corner Door Channel (2) 6942 Right Rear Wall Channel (2) 9461 Side Wall Channel BX22 6943 Left Rear Wall Channel (2)
  • Page 26 Step 8 Parts Needed For 9484 Right Side Eave Channel (1) 7562 Track (1) Side Door Frames 9467 Ramp (1) BX23 9464 Lower Door Track (1) Position right side eave channel against support columns. Fasten channel to corner panel. Fasten columns to side eave channel using 2 bolts and nuts on each column.
  • Page 27 9474 Lintel (1) Step 9 9481 Front Frame (1) Parts Needed For 9480 Front Frame (1) 9478 Front Column (2) Front/Rear Frames 6947 Column Gusset (1) BX24 6938 Rear Frame (1) 6939 Rear Frame (1) Fasten front frames at the top to front wall panels with 3 screws.
  • Page 28 Step 10 Parts Needed For Truss Assembly (1 14x21: 4,2 m x 6,5 m) (2 14x31: 4,2 m x 9,4 m) Truss/Top Frames 9484 Right Side Eave Channel (2) BX25 9485 Left Side Eave Channel (2) 9463 Side Eave Channel (2 14x31: 4,2 m x 9,4 m) Position Truss Assembly on building by sliding column gussets over center columns and fasten with...
  • Page 29 Step 11 Parts Needed For 9470 Wall Panel (17 14x21: 4,2 m x 6,5 m) (8 14x31: 4,2 m x 9,4 m) Walls Panels/Track Supports 10458 Right Track Support (1) BX26 10459 Left Track Support (1) Each wall panel has a crimped rib on 1 side.
  • Page 30 Step 12 Parts Needed For 9477 Door Jamb (2) Wall Channel/Door Jamb 9466 Wall Channel (2) BX27 The door jambs reinforce the door opening and provide an attractive trim. Follow these steps for both door jambs. Place wall channels behind wall panel, large hole towards door opening.
  • Page 31 Step 13 Parts Needed For Right Gable Assembly (1) Gable/Roof Beams Roof Beam Assembly (2) BX28 Lift and fasten a right gable assembly at top of lintel using bolts and nuts. Spread the 2 halves of a roof beam assembly and fasten the roof beam to the outer gable bracket using 2 bolts and nuts.
  • Page 32 Step 14 Parts Needed For Roof Beam Assembly (8) Left Gable Assembly (2) Gables/Roof Beams Right Gable Assembly (1) 9462 Roof Beam Assembly (5 14x31: 4,2 m x 9,4 m) BX29 Lift and fasten a left gable assembly in the same manner. NOTE Join the left and right gables On the 14x31 (4,2 m x 9,4 m),...
  • Page 33 Step 15 Parts Needed For 6954 Gable-Truss Strut (4 14x21: 4,2 m x 6,5 m) Gable-Truss Strut (2 14x31: 4,2 m x 9,4 m) BX30 Fasten a gable-truss strut to the middle roof beam behind the front gable by placing tab on the end of the strut between the roof beams.
  • Page 34 Step 16 Squaring the Building BX31 Square the building on the foundation and at the top, by measuring diagonally from corner to corner as previously done. Use string to check and see if the sides and rear of building are straight, NOTE not bowed inward or outward.
  • Page 35 Step 17 Parts Needed For 9492 Right Roof Panel (2) Left/Right Roof Panels 9493 Left Roof Panel (2) BX32 Installing the roof panels is best done with an 8' (2,3 m) step ladder. Each LEFT ROOF PANEL RIGHT ROOF PANEL screw and bolt in the roof requires a washer.
  • Page 36 Step 18 Parts Needed For 9491 Roof Panel (4) Roof Panels BX33 Position a roof panel overlapping ROOF PANEL rib of left corner roof panel. Fasten overlap at center of roof panel rib SCREWS TO ROOF BEAM using a bolt and nut. Fasten to roof beams as done before using screws.
  • Page 37 Step 19 Parts Needed For 9509 Ridge Cap (1) Ridge Cap BX34 Install a ridge cap on the completed roof section using bolts and nuts. Do not fasten the ends of the ridge cap at this time. STEP 9509...
  • Page 38 Step 20 Parts Needed For 9509 Ridge Cap (1) Roof Panels & Ridge Cap 9491 Roof Panel (6) BX35 Install 4 roof panels working side to side. NOTE If roof beam holes do not line up with the roof panel holes, shift the building from left to right.
  • Page 39 Step 21 Parts Needed For 9509 Ridge Cap (1) 9512 Ridge Cap (1 1431: 4,2 m x 9,4 m) Roof Panels/Ridge Caps 9491 Roof Panel (4 14x21: 4,2 m x 6,5 m) (12 14x31: 4,2 m x 9,4 m) BX36 Install 2 more roof panels.
  • Page 40 Step 22 Parts Needed For 7023 Left Roof trim (2) 7024 Right Roof Trim (2) Roof Trim 9510 Side Roof Trim (6) 9513 Side Roof Trim (2 14x31: 4,2 m x 9,4 m) BX37 Attach the side roof trim to the Using your thumb and index nger, lower end of the roof panels on each overbend the bottom ange of the side...
  • Page 41 Step 23 Parts Needed For 10490 Door (1) 10505 Horizontal Door Brace (2) Side Door Assembly 9500 Vertical Door Brace (2) BX38 STEP 10505 NOTE STEP To assemble door to slide from left to right (opening), position door with handle holes on left side of door.
  • Page 42 Step 24 Parts Needed For Door Assembly (1) Door Installation 7972 Door Handle Lock Bracket (1) BX39 Position door slides onto the legs, Horizontal Door Brace from the end of door track, as shown Track in the end view. STEP Door Slide From inside the building, put the bottom of the door behind door jamb...
  • Page 43 04FGa Step 25: Bottom Panel You will need for this page: 1/4” Sheet Metal Bottom Door Inside Step Plate Screw Section Bottom Gripping Point/Step Plate Kit Look for the section with weather seal attached to it. This is the bottom section. Set it on table face down (the face is the outside of the door).
  • Page 44 05FG Step 25: Bottom Panel You will need for this page: 1/4” Sheet Metal 1/4” Self Drilling Bottom Fixture Bottom Fixture #1 Center Hinge #1 End Hinge Screw Screw (Red) Roller Right Left Roller Carrier Hinge Number Sections are attached to each other with hinges. Fasten hinges marked #1 to top of bottom section at each stile us- ing (2) 1/4”...
  • Page 45 06FG Step 26: #2 Panel You will need for this page: 10-24 x 5/8” #2 Door Section Door Lock Assembly Bolt Drill three 1/2” holes into the section face. Drill completely through the section for the middle hole. Install lock assembly in section. #2 Section lock/outside handle...
  • Page 46 07FG Step 26: #2 Panel You will need for this page: 1/4” Self Drilling Snap Latch Screw Attach a snap latch assembly to each end stile using two 1/4” self drilling screws. #2 Section 1/4” self drilling screw snap latch 1/4”...
  • Page 47 08FG Step 26: #2 Panel You will need for this page: 1/4” Sheet Metal #1 Center Hinge #2 End Hinge Roller Screw Fasten end hinges marked #2 to top of section on each end stile. Use (2) 1/4” sheet metal screws per hinge.
  • Page 48 09FGa Step 27: #3 Panel You will need for this page: 1/4” Sheet Metal #1 Center Hinge #3 Door Section #3 End Hinge Roller Screw Fasten end hinges marked #3 to top of section on each end stile. Use (2) 1/4” sheet metal screws per hinge.
  • Page 49 09FG Step 28: #4 Panel You will need for this page: 1/4” Sheet Metal #1 Center Hinge #4 Door Section #4 End Hinge Roller Screw Fasten end hinges marked #4 to top of section on each end stile. Use (2) 1/4” sheet metal screws per hinge.
  • Page 50 10FG Step 29: Track Installation You will need for this page: 1/4” x 5/8” Track 7.5 Track 5.5 Track Flag Angle Right Flag Angle Left Bolt & Hex Nut Vertical Track Bracket Bracket Prepare the Vertical Tracks. The top of the vertical track must pitch back from the jamb for door to seal properly. This spacing is set by use of graduated track brackets.
  • Page 51 11FG Step 29: Track Installation You will need for this page: 1/4-20x1/2” Hex 1/4-20 Square Head Bolt 1” Washers Fasten the vertical track and fl ag angle assembly to the door jamb using 1/4” Bolt and Hex Nut with 1” Washer. Follow the orientation as shown below. Do this for both the right and left vertical tracks. 1”...
  • Page 52 12FG Step 30: Insert Panels You will need for this page: Assembly from Step 25: • Bottom Panel Subassembly Insert the bottom section into the doorway. Slide the rollers into the vertical track as shown. Center and level bottom section in opening. If there is a gap on one end at the fl...
  • Page 53 13FG Step 30: Insert Panels You will need for this page: Assembly from Step 26: • #2 Panel Subassembly Stack #2 section (with #2 end hinges) on top of bottom (#1) section while sliding rollers into vertical track. #2 Panel Assembly Roller Vertical...
  • Page 54 14FG Step 30: Insert Panels You will need for this page: 1/4” Sheet Metal Screw Attach the #1 end hinges and center hinge to the #2 section with 1/4” sheet metal screws. 1/4” Sheet Metal Screws...
  • Page 55 15FG Step 30: Insert Panels You will need for this page: Assembly from Step 27: • #3 Panel Subassembly Stack #3 section (with #3 end hinges) on top of #2 section while sliding rollers into vertical track. #3 Panel Assembly Roller Vertical Track...
  • Page 56 16FG Step 30: Insert Panels You will need for this page: 1/4” Sheet Metal Screw Attach the #2 end hinges and center hinge to the #3 section with 1/4” sheet metal screws. 1/4” Sheet Metal Screws...
  • Page 57 17FG Step 30: Insert Panels You will need for this page: Assemblies from Step 28: • #4 Panel Subassembly Stack #4 section (with #4 end hinges) on top of #3 section while sliding rollers into vertical track. #4 Panel Assembly Roller Vertical Track...
  • Page 58 18FG Step 30: Insert Panels You will need for this page: 1/4” Sheet Metal Screw Attach the #3 end hinges and center hinge to the #4 section with 1/4” sheet metal screws. #4 Panel Assembly 1/4” Sheet Metal Screws...
  • Page 59 19FG Step 31: Snap Latch Keeper You will need for this page: 1/4” x 5/8” Track Snap Latch Bolt & Hex Nut Keeper Attach a snap latch keeper to each vertical track using a bolt and nut. right hand vertical track #2 Panel Assembly snap latch keeper...
  • Page 60 20FG Step 32: Thread Cable You will need for this page: Hex Bolt with 1/4” Wiz Nut Cable Hole Insert cable through left snap latch hole. Place a lug on the end of the cable to prevent it from sliding out. snap latch left hand vertical track...
  • Page 61 21FG Step 33: Horizontal Track You will need for this page: 7817 Spring Support #10-32 Square #10-32x7/16 Bracket Bolt Attach the spring support bracket to the back of the right roof beam using two bolts and square nuts. Truss Assembly Right Roof Beam #10-32 Square Nuts #10-32x7/16...
  • Page 62 22FG Step 33: Horizontal Track You will need for this page: 7817 #10-32 Square Spring Support #10-32x7/16 Bracket Bolt Attach the spring support bracket to the back of the left roof beam using two bolts and square nuts. Truss Assembly Left Roof Beam #10-32 Square Nuts #10-32x7/16...
  • Page 63 23FG Step 33: Horizontal Track You will need for this page: 3/8” x 3/4” Carriage 1/4” x 5/8” Track Left Horizontal Right Horizontal Bolt and Hex Nut Bolt & Hex Nut Curve Track Curve Track Have another person hold the end of the Fasten angle (attached to horizontal curve left horizontal curve track.
  • Page 64 24FG Step 33: Horizontal Track You will need for this page: 1/4-20x1 1/2” 1/4-20 Hex Head Bolt Square Nut Attach the end of the Left Horizontal Curve Track to the Spring Support Bracket using a long bolt and hex nut as shown. Truss Assembly Repeat for Right Horizontal Track.
  • Page 65 22FGb Step 33: Horizontal Track You will need for this page: 10455 1/4-20x1 1/2” 1/4-20 Hex Head Bolt Square Nut Track Strut Bend the tabs on the Track Strut approximately 90° and attach to the Truss Assembly using a bolt and nut. Track Strut Bend 90°...
  • Page 66 25FGa Step 34: Insert Top Panel You will need for this page: Top Door Section Assembling the top door panel will require another person holding the door section while attaching the fi xtures and hinges. Make sure adequate help is available before continuing on with the installation.
  • Page 67 26FG Step 34: Insert Top Panel You will need for this page: 1/4” Sheet Metal Top Fixture Roller Screw Place a roller inside of a top fi xture. Roller Fixture Slide the roller into the horizontal track where it is wide enough to put the roller as shown.
  • Page 68 27FG Step 34: Insert Top Panel You will need for this page: 1/4” Sheet Metal Top Fixture Roller Screw Place another roller into the other top fi xture. Section Fixture Roller Slide the roller into the horizontal track where it is wide enough to put the roller as shown.
  • Page 69 28FG Step 34: Insert Top Panel You will need for this page: 1/4” Sheet Metal Screw Attach the #4 end hinges and center hinge to the top section with 1/4” sheet metal screws. 1/4” Sheet Metal Screws...
  • Page 70 29FG Spring Assembly Preparation Check all spring assembly instructions and parts. Warning! If there appears to be any parts missing stop here and contact your Arrow Customer Service im- mediately. Do not substitute parts. Warning! Do not remove any factory applied spring tag or warning label! If any tags or labels are missing or unreadable, contact your Arrow Customer Service immediately.
  • Page 71 30FG Step 35: Extension Spring Assembly You will need for this page: 3/8” x 1-1/2” Bolt Pulley and Hex Nut Pulley Attach pulley with a 3/8” x 1-1/2” bolt and hex nut on 3/8” x 1-1/2” Bolt angle which attaches horizontal track to fl ag angle. Repeat this step for opposite side of door.
  • Page 72 31FG Step 35: Extension Spring Assembly You will need for this page: 3/8” x 1-1/2” Bolt Extension S Hook Safety Cable Pulley and Hex Nut Clevis Spring Assemble spring as shown. Bolt a clevis and pulley on one end Clevis S Hook 3/8”...
  • Page 73 30FFa Step 35: Extension Spring Assembly You will need for this page: Spring Cable Attach spring cable loop to bottom fi xture stud and thread spring cable over pulley Spring Cable Loop Pulley Thread spring cable around spring pulley. Spring Bottom Pulley Fixture Stud...
  • Page 74 33FG Step 35: Extension Spring Assembly You will need for this page: S Hook Cable Clip Tie a cable clip to the spring cable and connect it to an S-hook. Cable Clip Spring Cable Stretch spring 2”-3” and clip the S-hook to a hole in the horizontal angle.
  • Page 75 34FG Step 35: Extension Spring Assembly Safety Cable Cable Knot Tie the safety cable securely to the horizontal curve track as shown. Horizontal Curve Track Repeat steps 4 through 11 for the other spring. Lowering the door and spring adjustment. Warning! Until all adjustments are completed, always assume you will have to physically support the full weight of the door.
  • Page 76 Step 36 Parts Needed For 9488 Right Door Jamb (1) Right/Left Door Jambs 9489 Left Door Jamb (1) BX43 Position right and left door jambs to right and left track supports with notched end on top, facing inside building. Fasten long ange to track support and short ange to front wall panel using screws and washers.
  • Page 77 BGR1421FG BGR1431FG BX44b SOME FACTS ABOUT RUST Rusting is a natural oxidizing process that occurs 1. Avoid nicking or scraping the coating surface, when bare metal is exposed to moisture. Problem inside and out. areas include screw holes, unfinished edges, or where scrapes and nicks occur in the protective 2.
