Router 3034

These ports are configured and managed as a single logical entity.
G.SHDSL port
Table 11 Attributes of G.SHDSL port
Attribute
Connector
Rate
192 kbps~2320 kbps, in steps of 8
kbps.
ITU-T G991.2
Services
The following illustrations depict the components of the Router 3034.

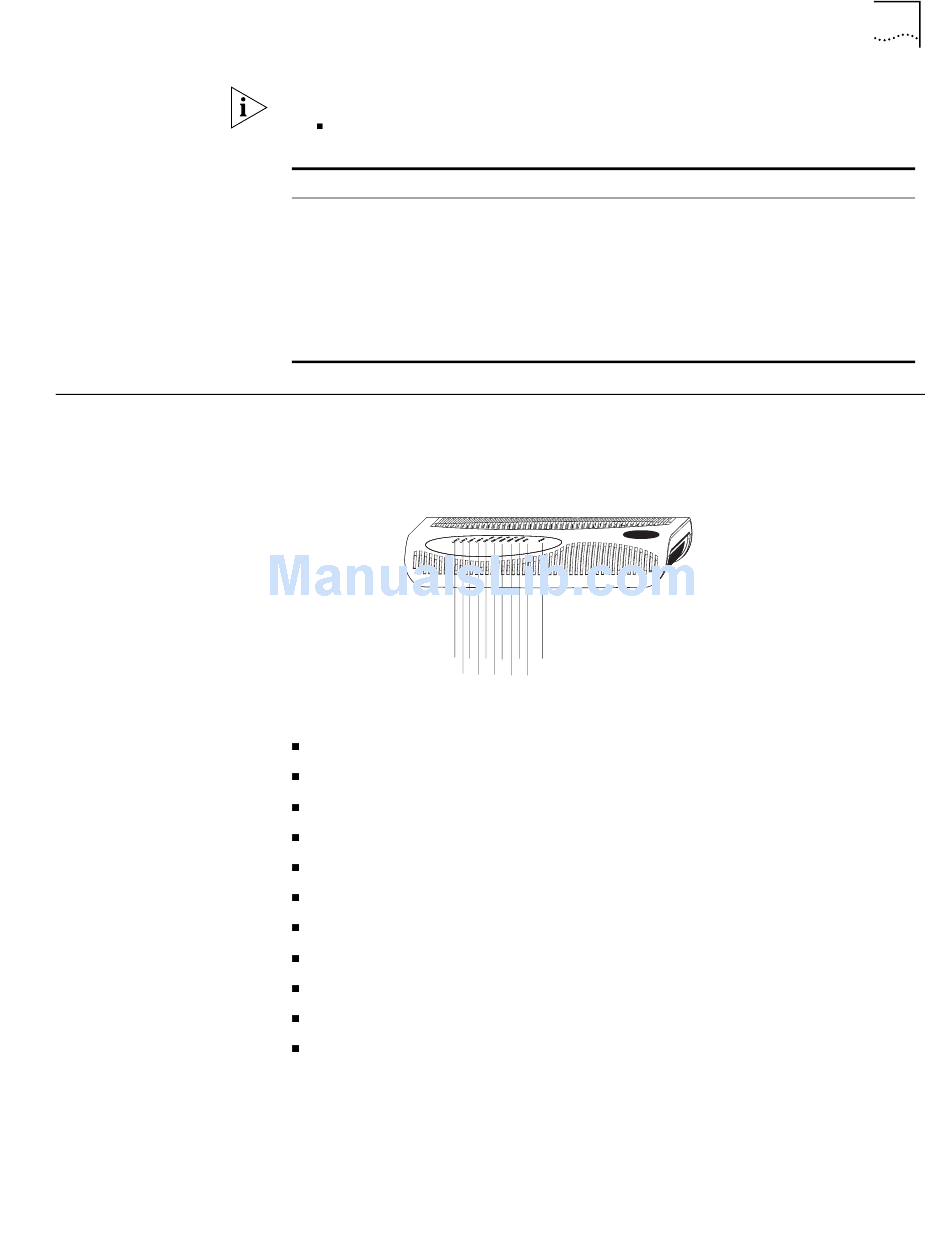

Figure 9 Router 3034 Front Panel
1 3
2
1. ETH LED (LAN3)
2. ETH LED (LAN2)
3. ETH LED (LAN1)
4. ETH LED (LAN0)
5. G.SHDSL active LED (DSL ACT)
6. G.SDHDSL link LED (DSL LNK)
7. ISDN B2 active LED (ISDN B2 ACT)
8. ISDN B1 active LED (ISDN B1 ACT)
9. ISDN B2 link LED (ISDN LNK)
10. System LED (SYS)
11. Power LED (PWR)
Description
RJ11
In single-pair mode, it transceives packets at
symmetric rate
Interface standard
ITU-T G994.1 handshaking
G.SHDSL access over single pair twisted pairs
5 7 9 11
4 6 8 10
Router 3034 19
