Router 3033

The following illustrations depict the components of the Router 3033.

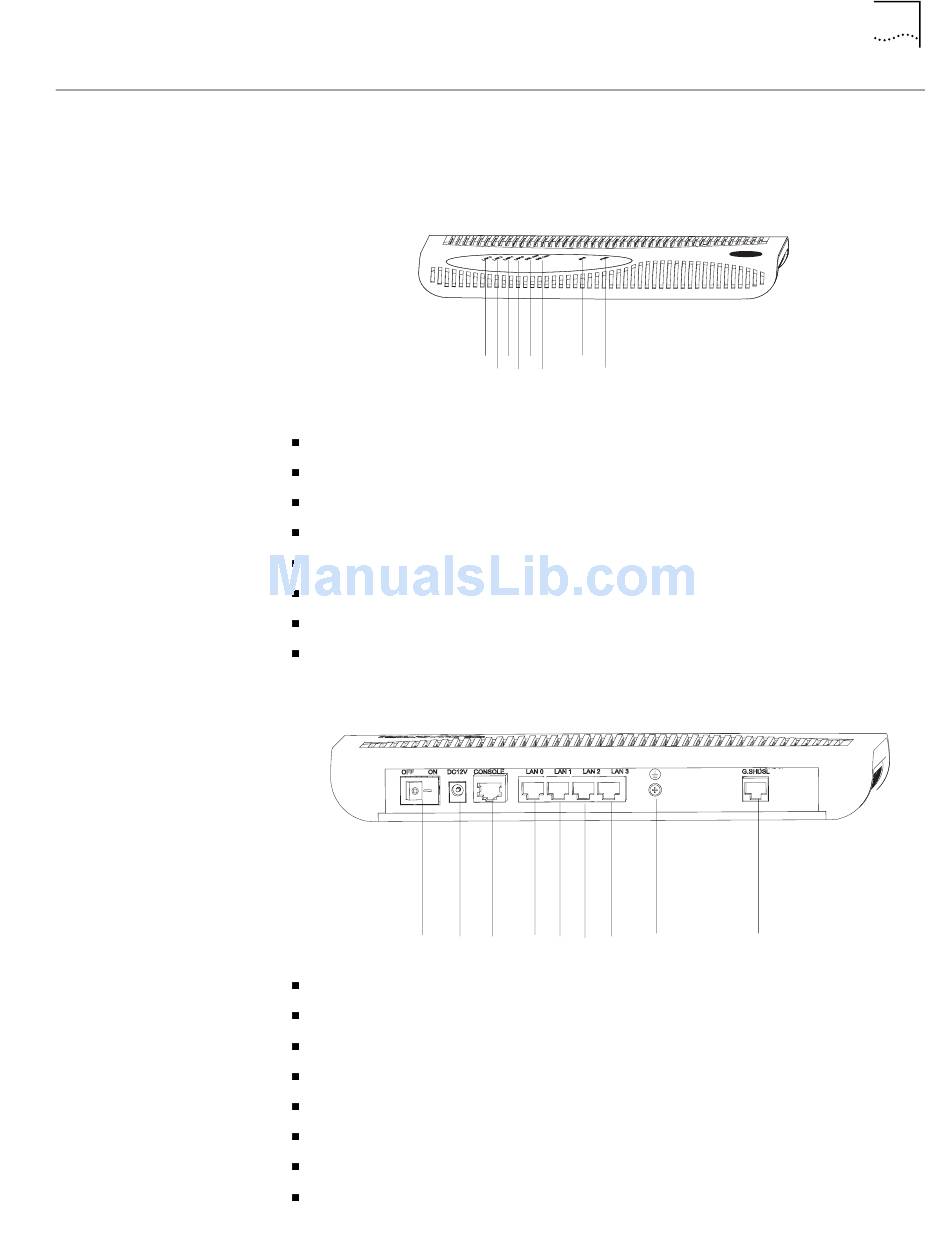

Figure 7 Router 3033 Front Panel
1. ETH LED (LAN3)
2. ETH LED (LAN2)
3. ETH LED (LAN1)
4. ETH LED (LAN0)
5. G.SHDSL active LED (DSL ACT)
6. G.SHDSL link LED (DSL LNK)
7. System LED (SYS)
8. Power LED (PWR)
Figure 8 Rear panel of Router 3033
1 2
1. Power switch
2. Power input socket
3. Console port (CON)
4. Ethernet port 0 (LAN0)
5. Ethernet port 1 (LAN1)
6. Ethernet port 2 (LAN2)
7. Ethernet port 3 (LAN3)
8. Grounding screw
7
1 3 5
8
2 6
4
3 4 5 6 7 8
